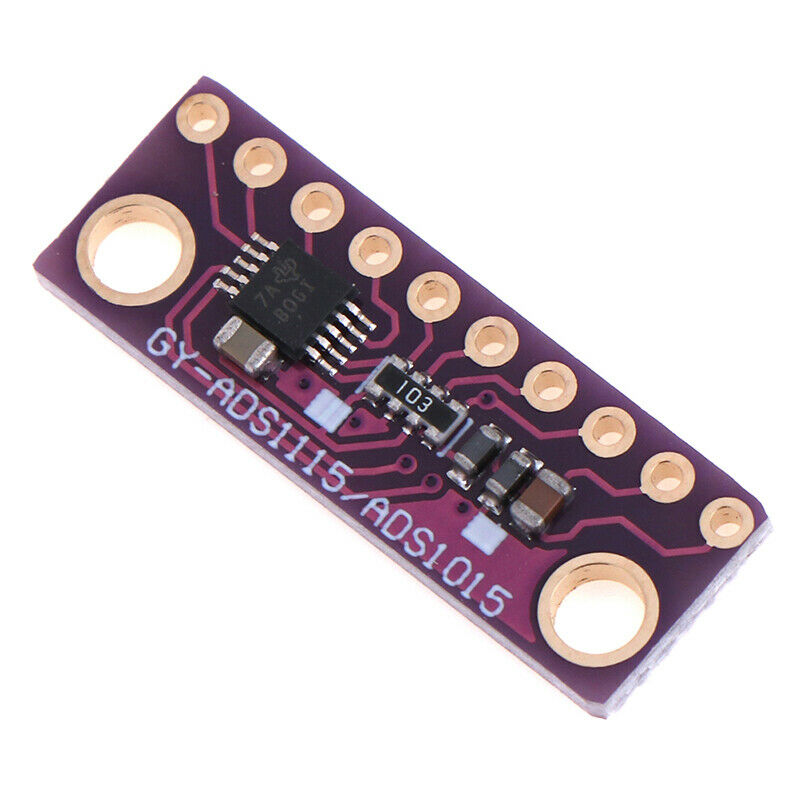

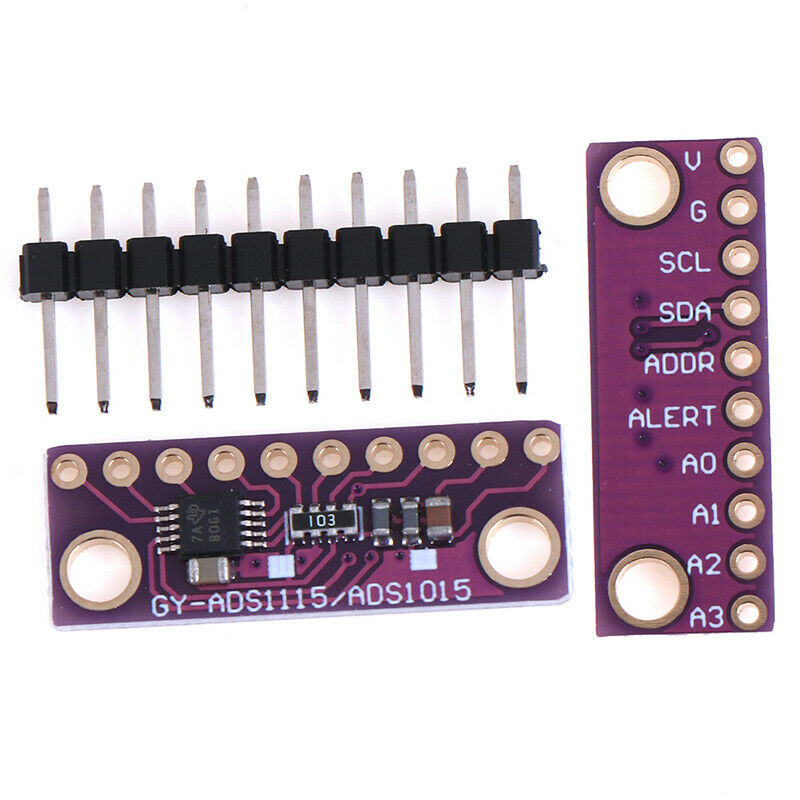

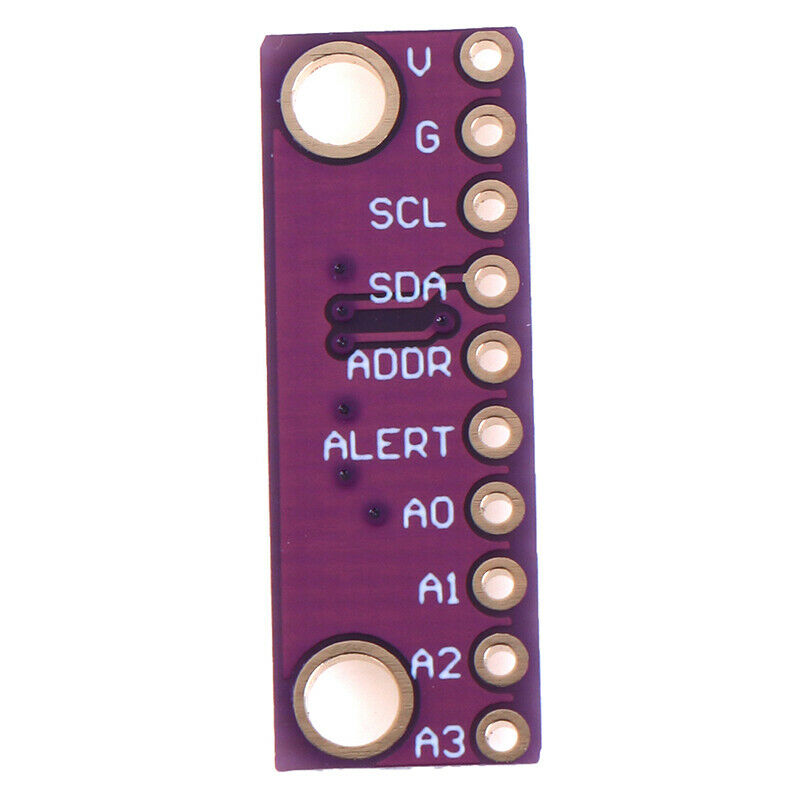

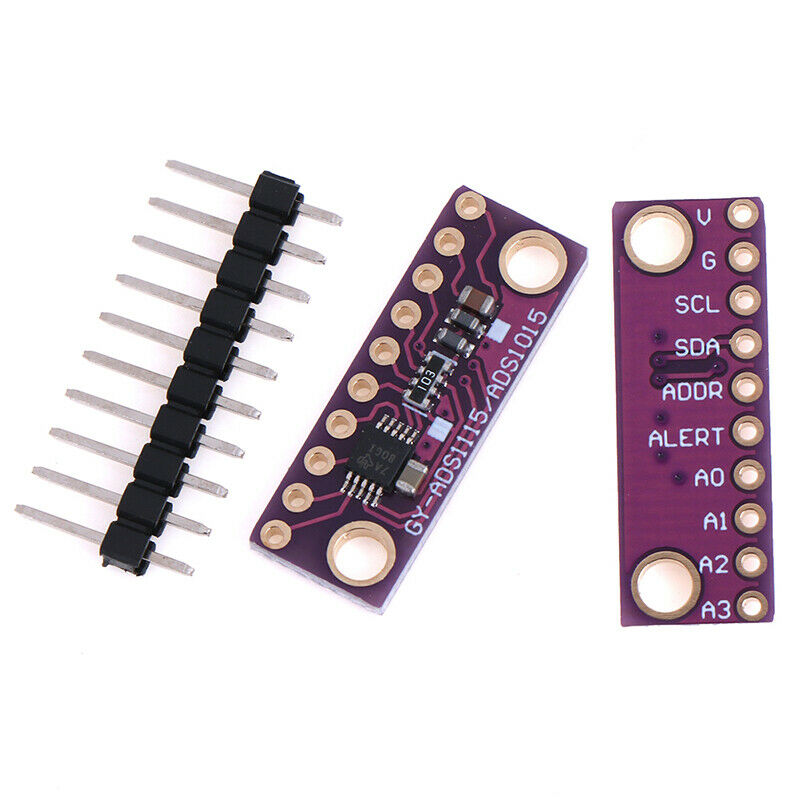

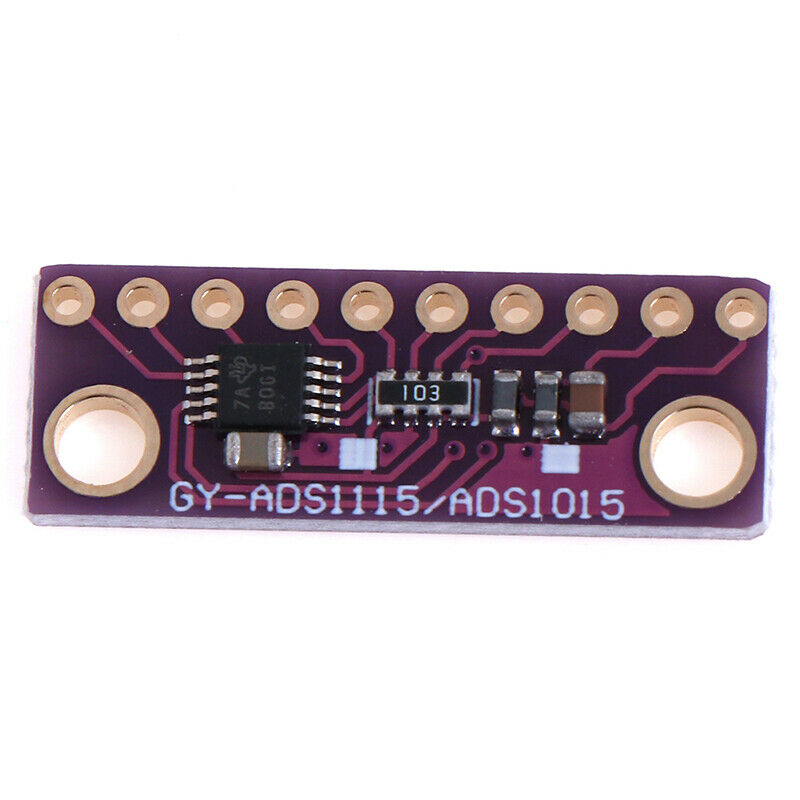

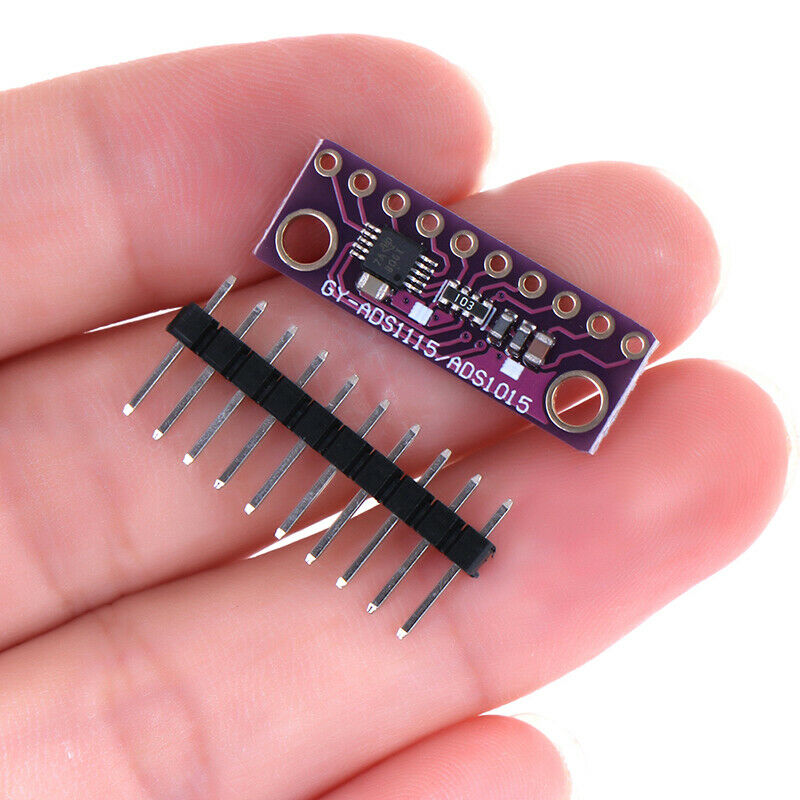

ITEM NAME:ADS1115 4 Channel 16 Bit I2C ADC With Pro Gain Amplifier For arduino Module Hc Product description: For microcontrollers without an analog-to-digital converter or when you want a higher-precision ADC, the ADS1115 provides 16-bit precision at 860 samples second over I2C. The chip can be configured as 4 single-ended input channels, or two differential channels. As a nice bonus, it even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range. We like this ADC because it can run from 2V to 5V power/logic, can measure a large range of signals and its super easy to use. It is a great general purpose 16 bit converter. The chip's fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C. The address can be changed to one of four options (see the datasheet table 5) so you can have up to 4 ADS1115's connected on a single 2-wire I2C bus for 16 single ended inputs. specificationï ¼Å¡ Wide supply range: 2.0V to 5.5V Continuous Mode: Only 150ÃŽ ¼A Single-Shot Mode: Auto Shut-Down Programmable data rate: 8SPS to 860SPS Internal low-drift voltage reference Internal oscillator Internal PGA I2C interface: Pin-Selectable Addresses Four single-ended or two differential inputs Programmable comparator This board chip uses I2C 7-bit addresses between 0x48-0x4B PCB size:(L*W)2.55*0.90cm/1.00"*0.35" Package Included: 1PCS * 16 Bit I2C 4 Channel ADS1115 Module ADC with Pro Gain Amplifier For Arduino New.The ADS1115 provides 16-bit precision at 860 samples second over I2C. so you can have up to 4 ADS1115's connected on a single 2-wire I2C bus for 16 single ended inputs. 1PCS 16 Bit I2C 4 Channel ADS1115 Module ADC with Pro Gain Amplifier For Arduino New.
