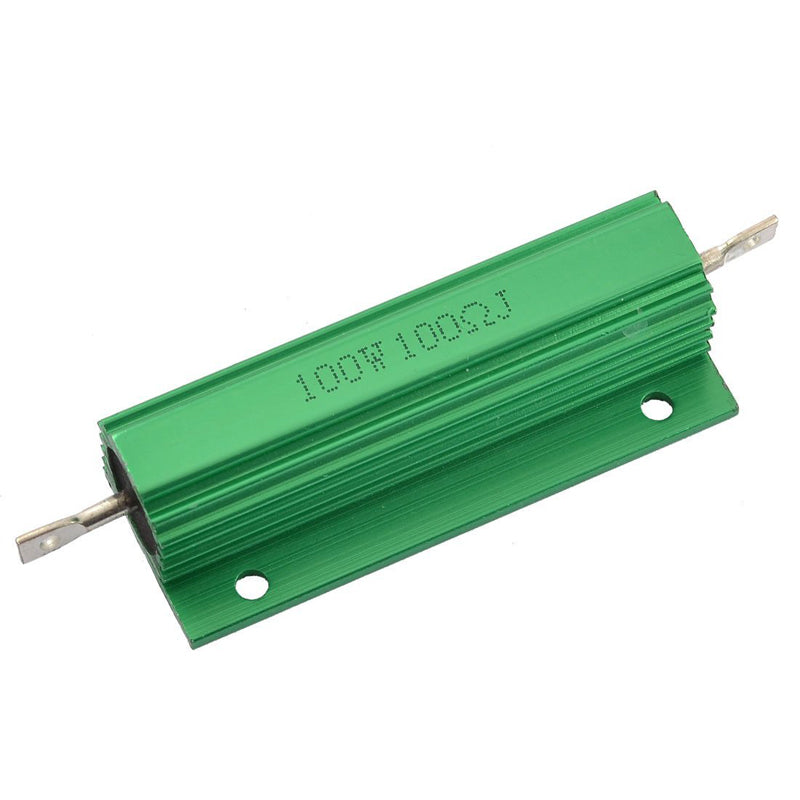

ITEM NAME:Aluminum Shell 100W Watt 100 Ohm Wirewound Power Resistor Y2N1 Aluminum Shell 100W Watt 100 Ohm Wirewound Power Resistor Y2N1 Product Name : Aluminum Housed Resistor;Resistance Value : 100 Ohm;Power Rating : 100W Resistance Tolerance : ï ¼Å¸Ã‚ ± 5% (J);Body Size : 59 x 15mm/ 2.3" x 0.6" (L*D) Mounted Hole Size : 3.3mm/0.129";Total Size : 82 x 21 x 17mm/ 3.2" x 0.8" x 0.7" (L*W*T) Casing Material : Aluminum;Color : Green Aluminum housing for heat dissipation, suitable for cooling plate installation, can be used in atrocious environment. Small size, high power load, standard and non-inductive winding types. High insulating capacity, good performance in vibration. Multiple connection modes, easy to install. Widely used in power supply, transducer, elevator, arena audio and high requirement equipment industry. Package Content : 1 x Aluminum Housed Resistor Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.The measurement allowed error is +/-1-3 cm..Multiple connection modes, easy to install. Casing Material : Aluminum;Color : Green. Small size, high power load, standard and non-inductive winding types.
