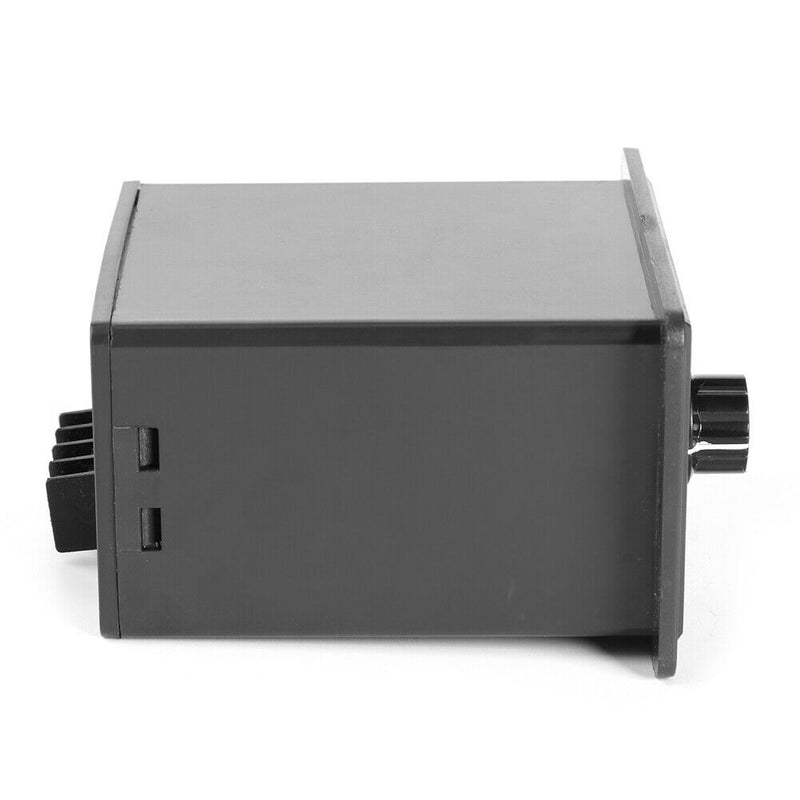

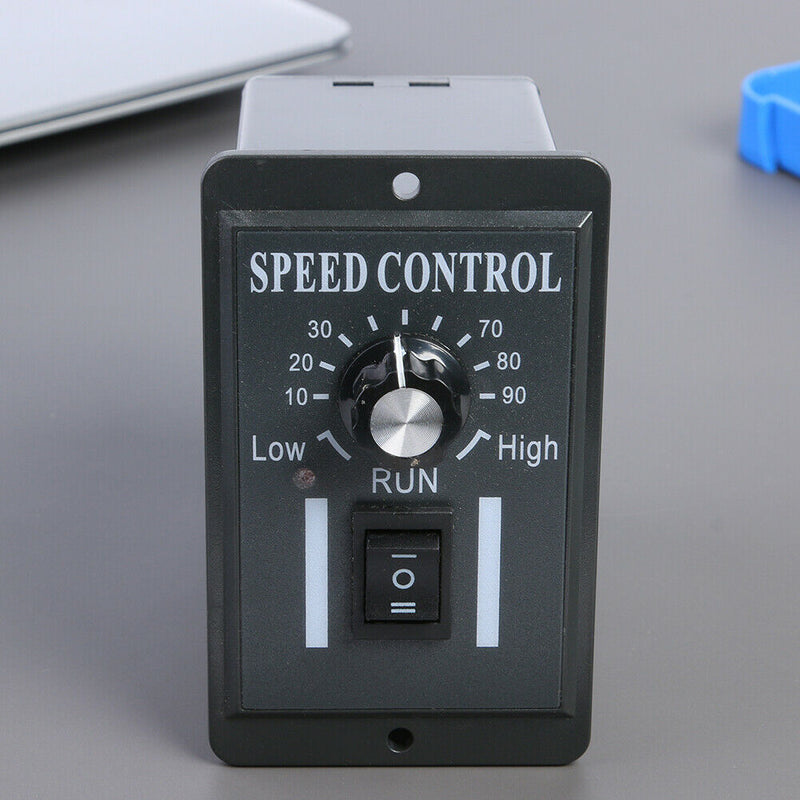

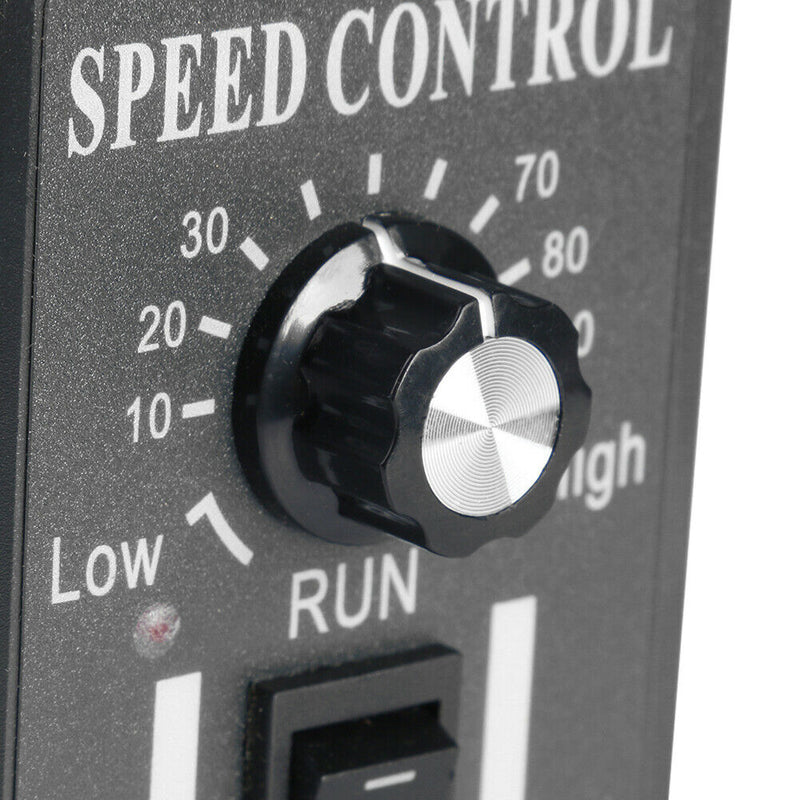

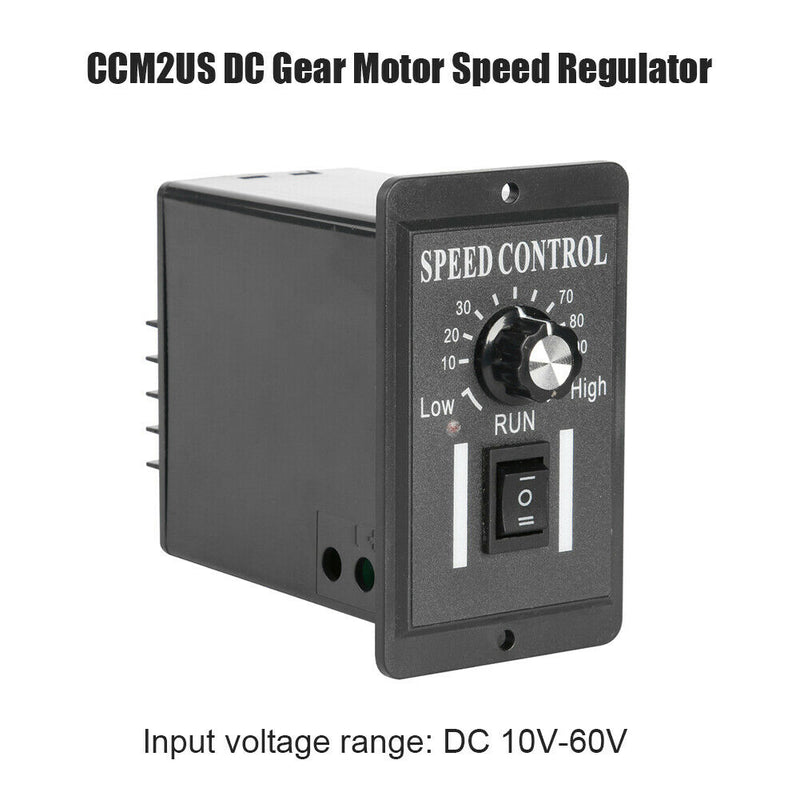

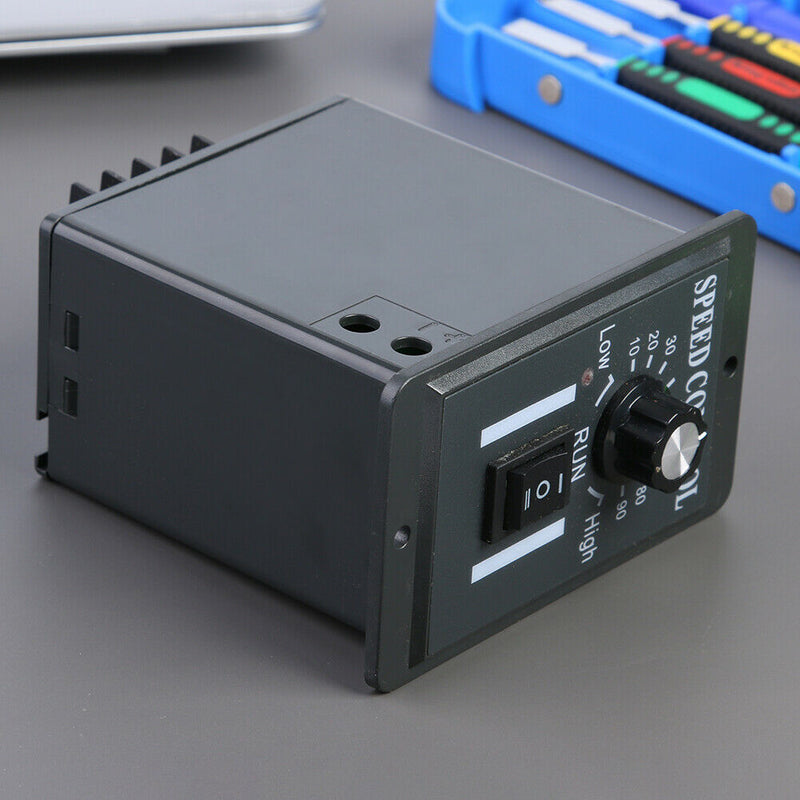

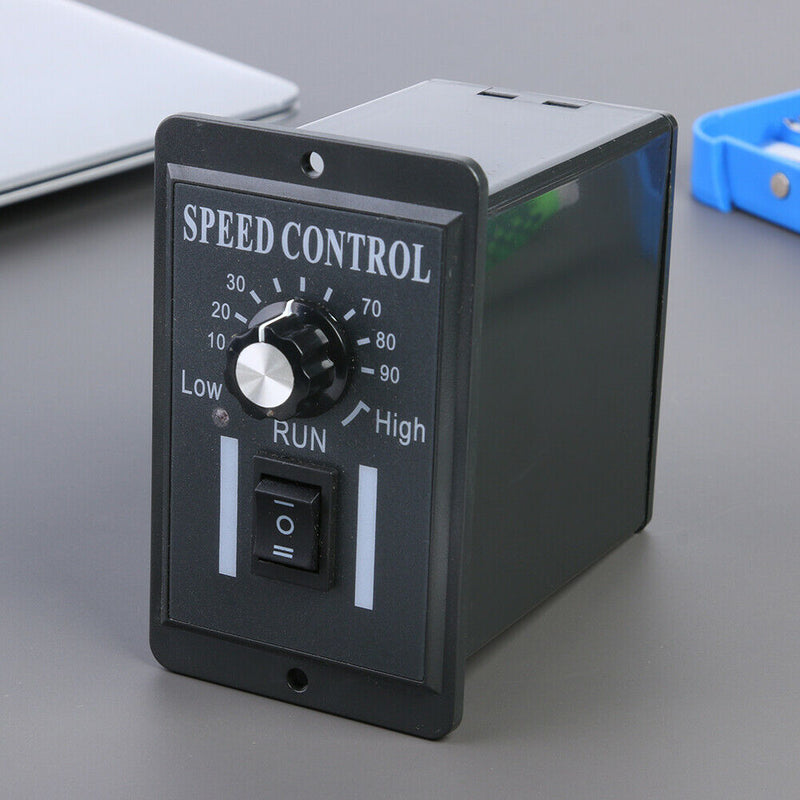

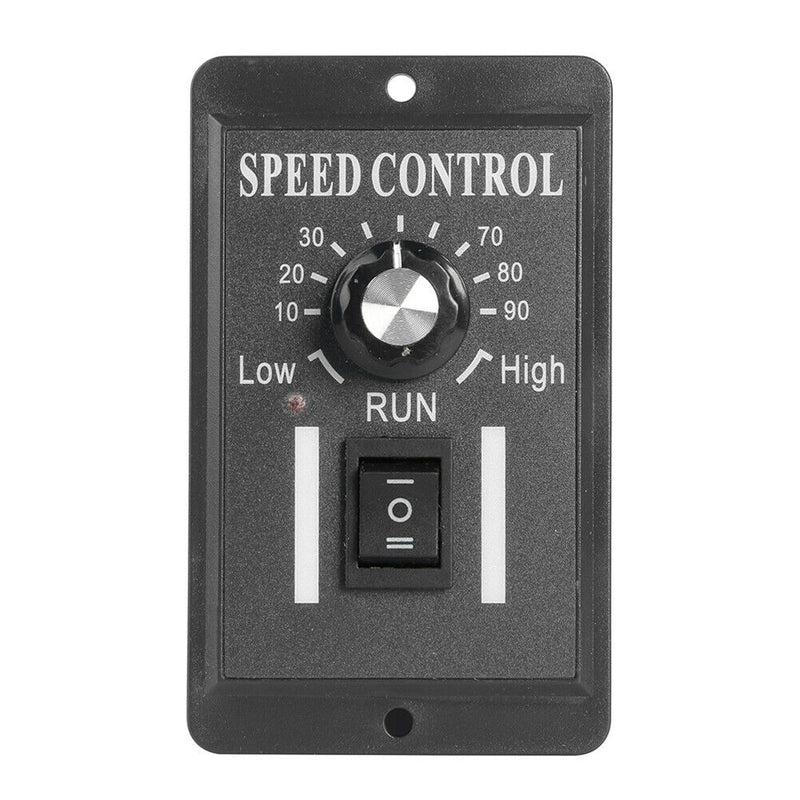

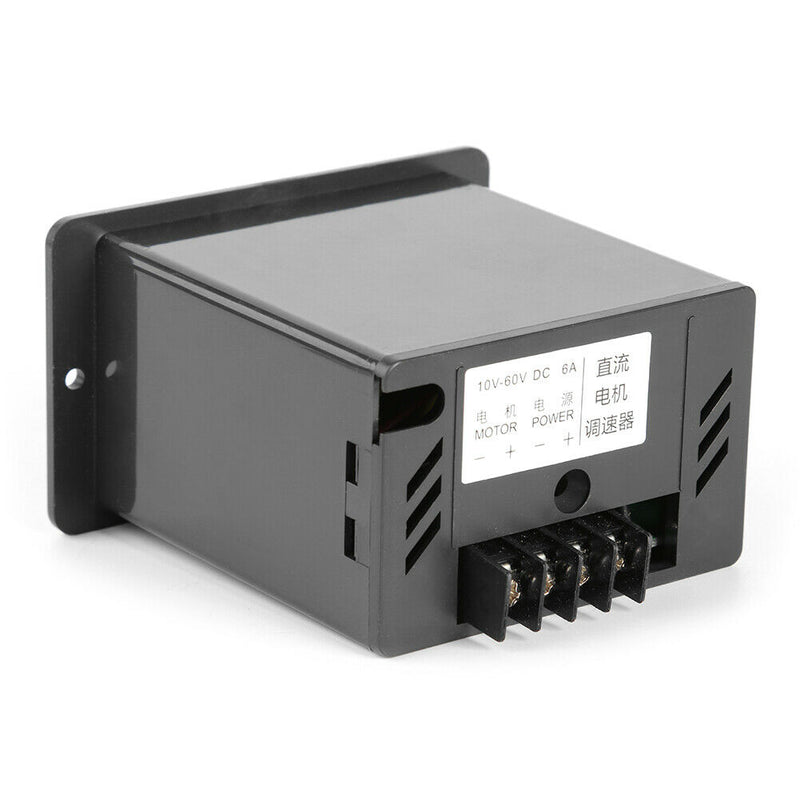

ITEM NAME:CCM2US DC Motor Speed Controller Positive Negative Rotating Control Switch A#S Product Description Description: CCM2US 10-60V DC 6A Motor Speed Governor Slow Down Motor Controller Positive Negative Rotating Control Switch Specification: Input voltage: DC 10V-60V Rated current: within 6A of continuous working current Function: DC brush motor speed regulation, forward rotation, stop, reverse rotation Installation method: panel type, wiring according to the wiring diagram Packing size: 90*80*50mm/3.54*3.15*1.97" Attention: 1. The input of the DC motor governor is DC, and it cannot be directly connected to AC (for example, household 220V AC), otherwise it will burn out. 2. The positive and negative poles of the DC power cannot be reversed, otherwise the governor will not work. 3. Motor is not divided into positive and negative. When the running direction is inconsistent with the expectation, the direction can be changed by adjusting the line sequence. 4. This product is used for brush motors, not suitable for brushless motors. It cannot be used as a voltage regulator. Note: 1. There may be slight size deviations due to manual measurement, different measuring methods and tools. 2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor. Included: 1 X Motor Speed Governor.Motor is not divided into positive and negative. When the running direction is inconsistent with the expectation, the direction can be changed by adjusting the line sequence. The input of the DC motor governor is DC, and it cannot be directly connected to AC (for example, household 220V AC), otherwise it will burn out.
