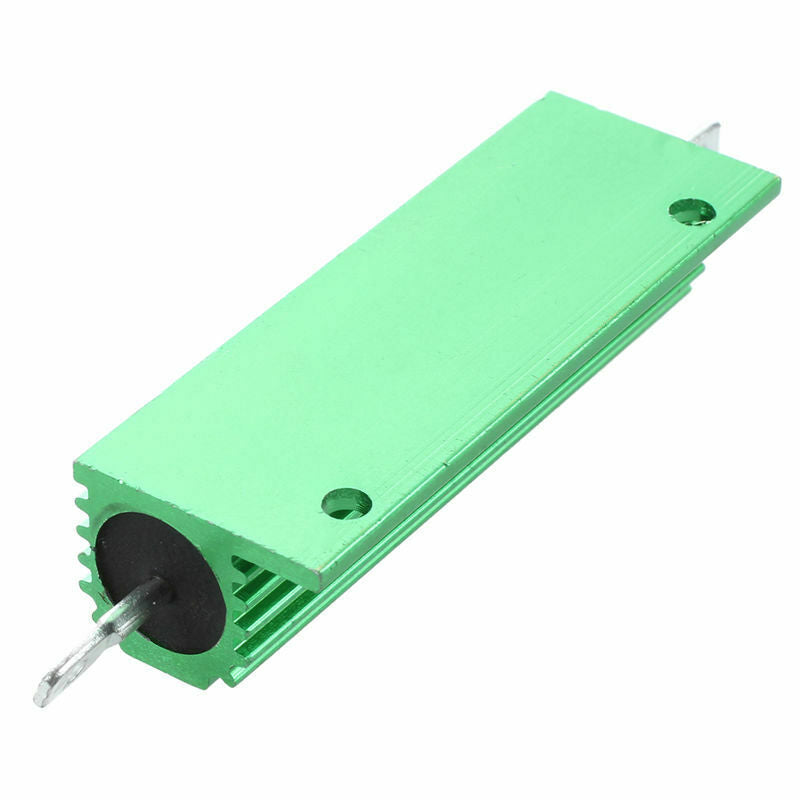

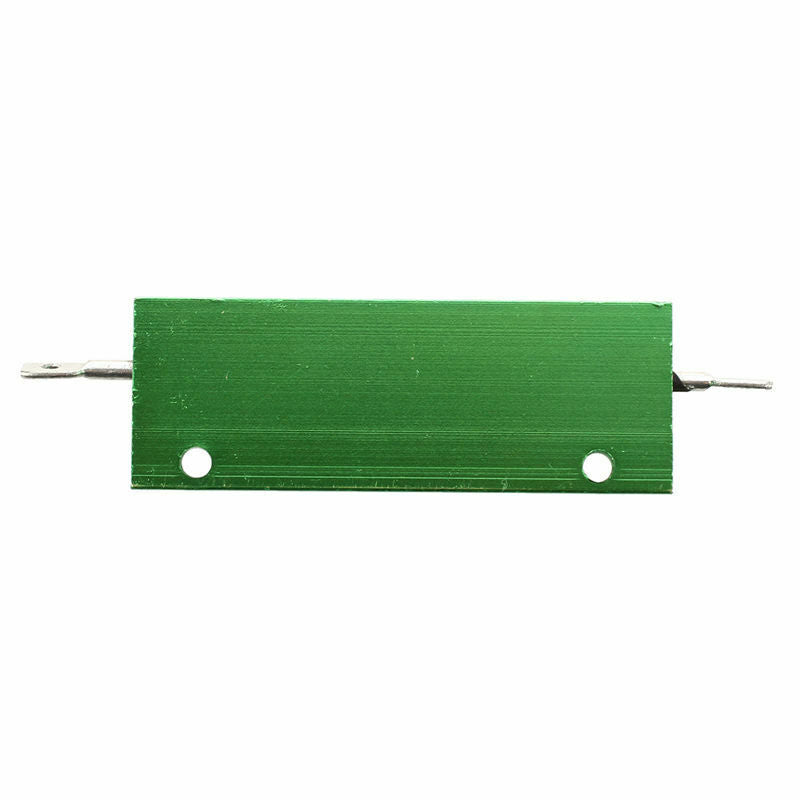

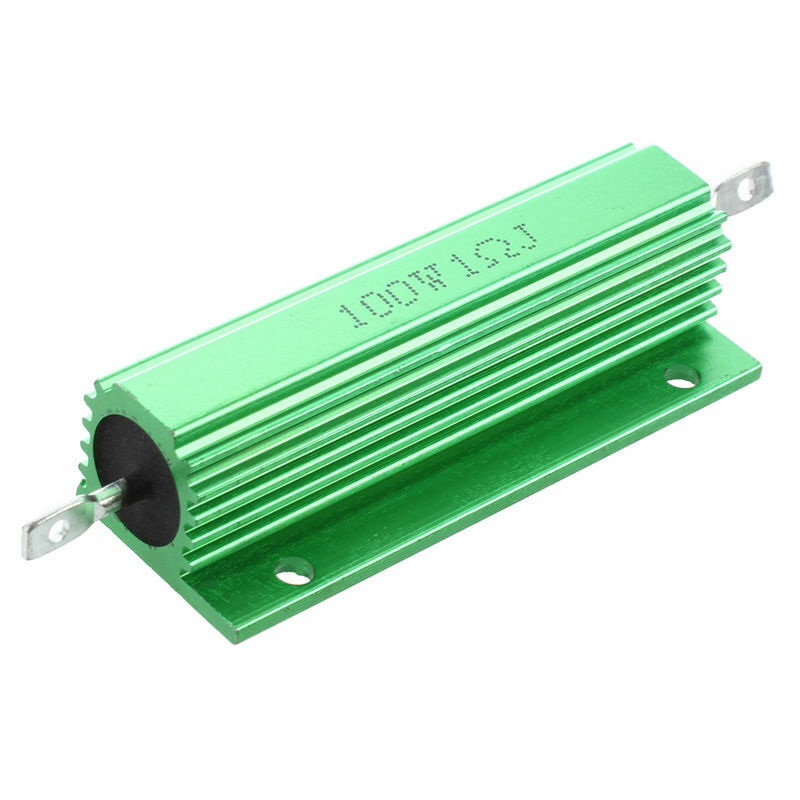

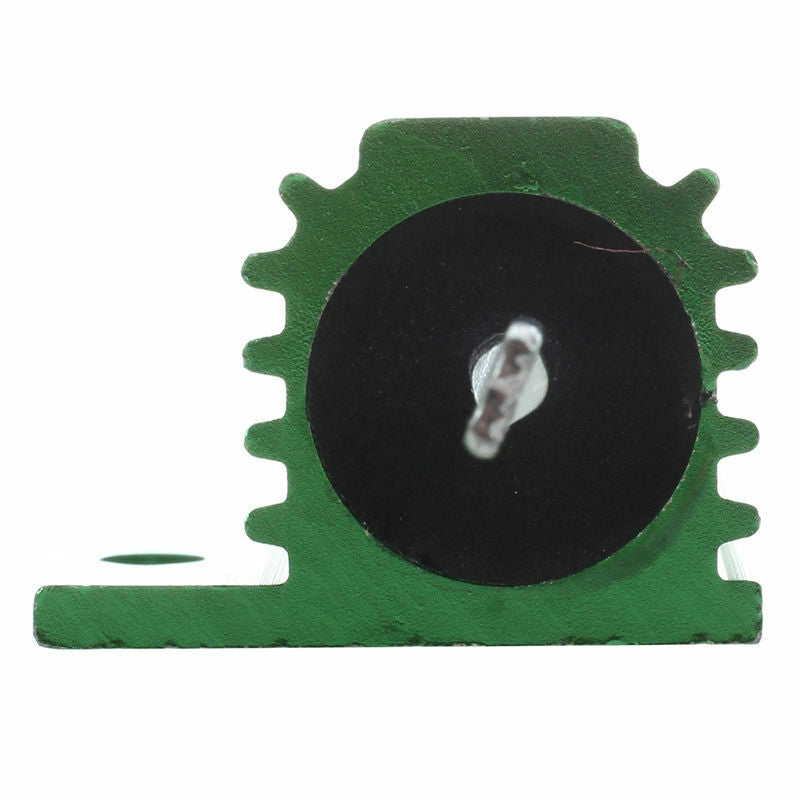

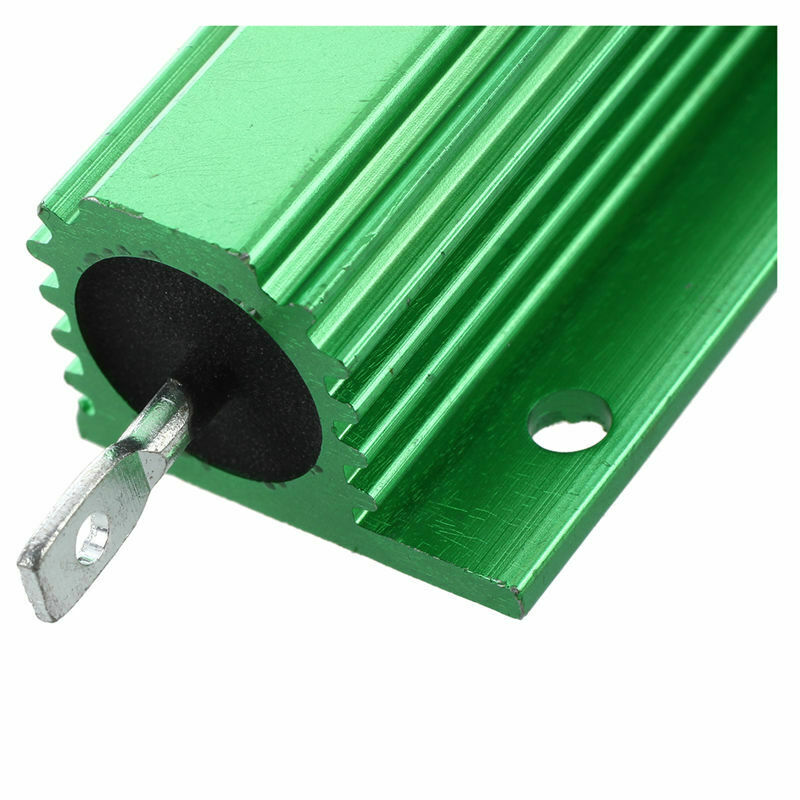

ITEM NAME:Chassis Mounted 100 Watt 1 Ohm Aluminum Case Wirewound Resistor M3R1 Chassis Mounted 100 Watt 1 Ohm Aluminum Case Wirewound Resistor M3R1 Product Name : Aluminum Housed Resistor;Resistance Value : 1 ohm;Power Rating : 100W Resistance Tolerance : 5% (J);Body Size : 59 x 15mm/ 2.32" x 0.59" (L*D) Mounting Hole Diameter : 1.8mm/ 0.07", 3mm/ 0.12";Total Size : 81 x 21 x 15mm/ 3.2" x 0.83" x 0.59" (L*W*T) Casing Material : Aluminum;Color : Green Weight : 30g;Package Content : 1 x Aluminum Housed Resistor Aluminum housing for heat dissipation, suitable for cooling plate installation, can be used in atrocious environment. Small size, high power load, standard and non-inductive winding types. High insulating capacity, good performance in vibration. Multiple connection modes, easy to install. Widely used in power supply, transducer, elevator, arena audio and high requirement equipment industry. Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm..Casing Material : Aluminum;Color : Green. Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. Small size, high power load, standard and non-inductive winding types.
