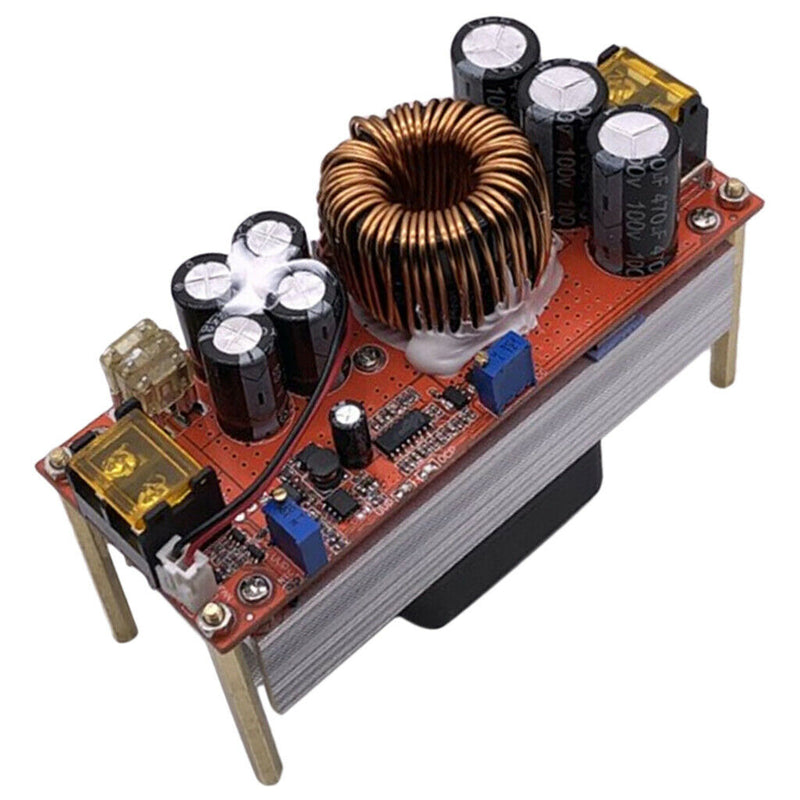

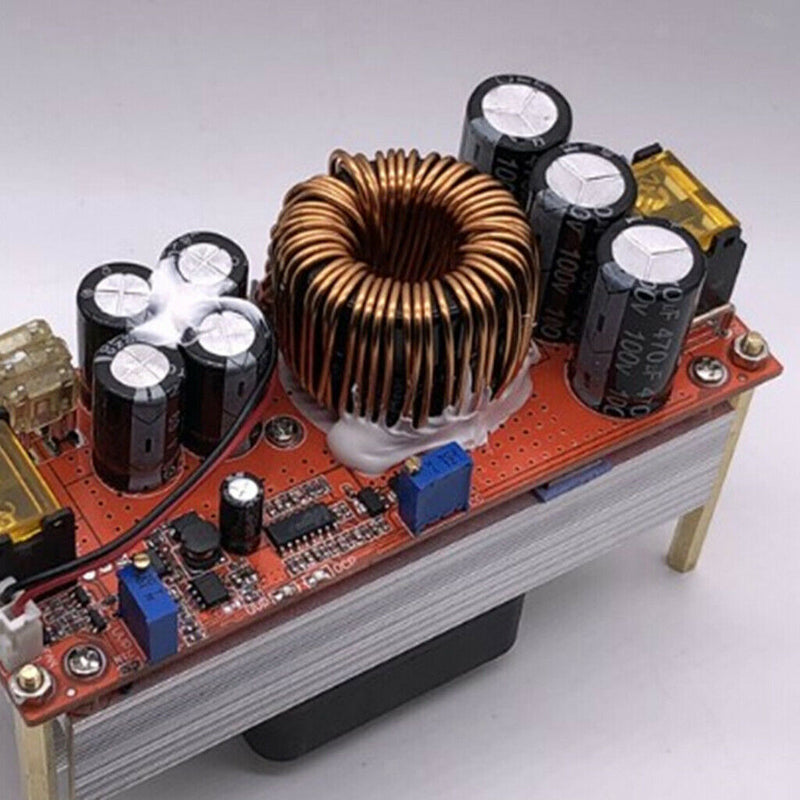

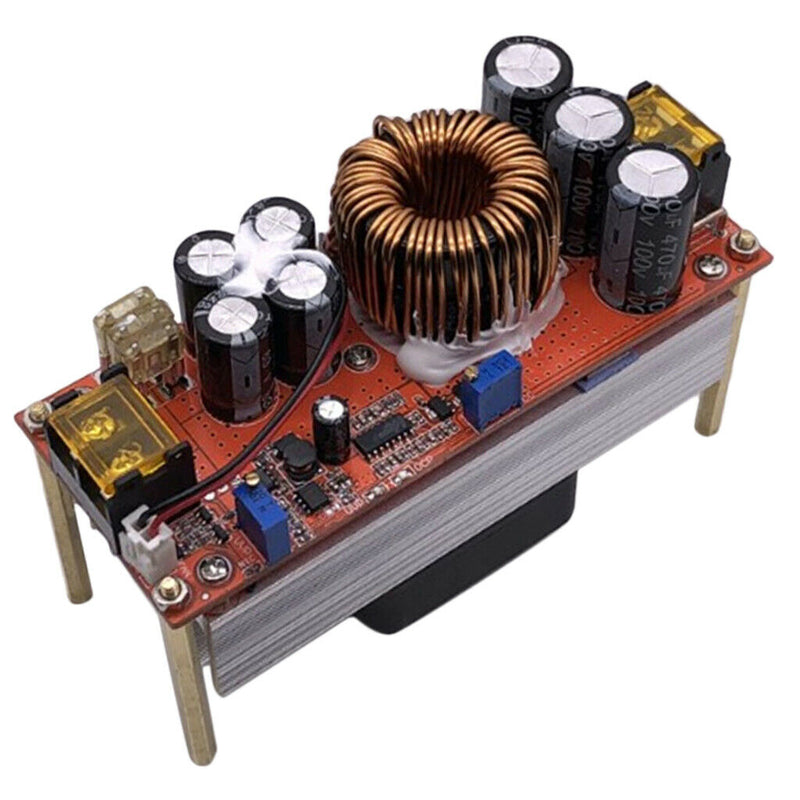

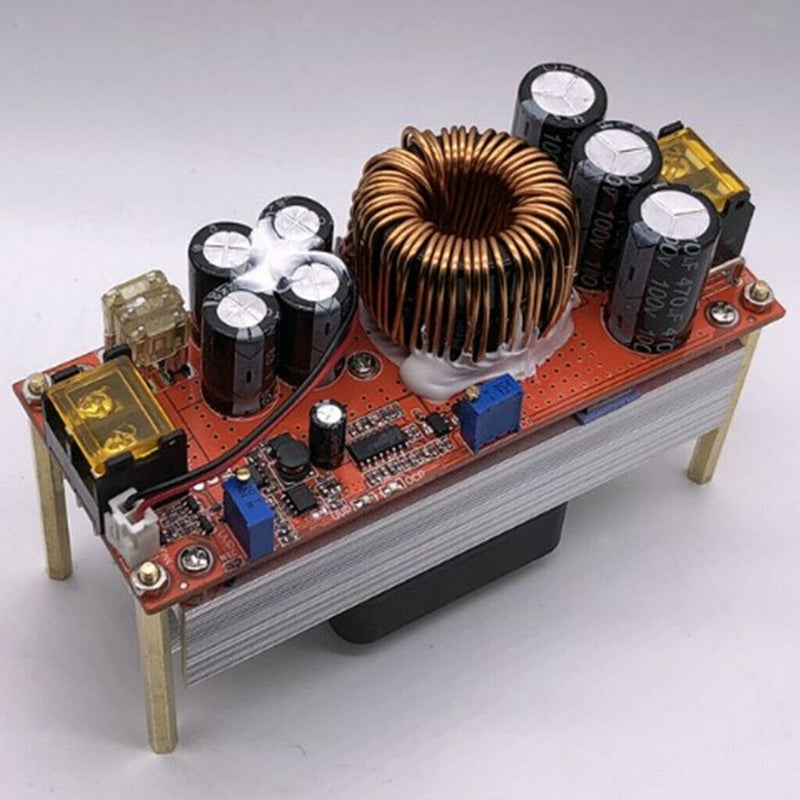

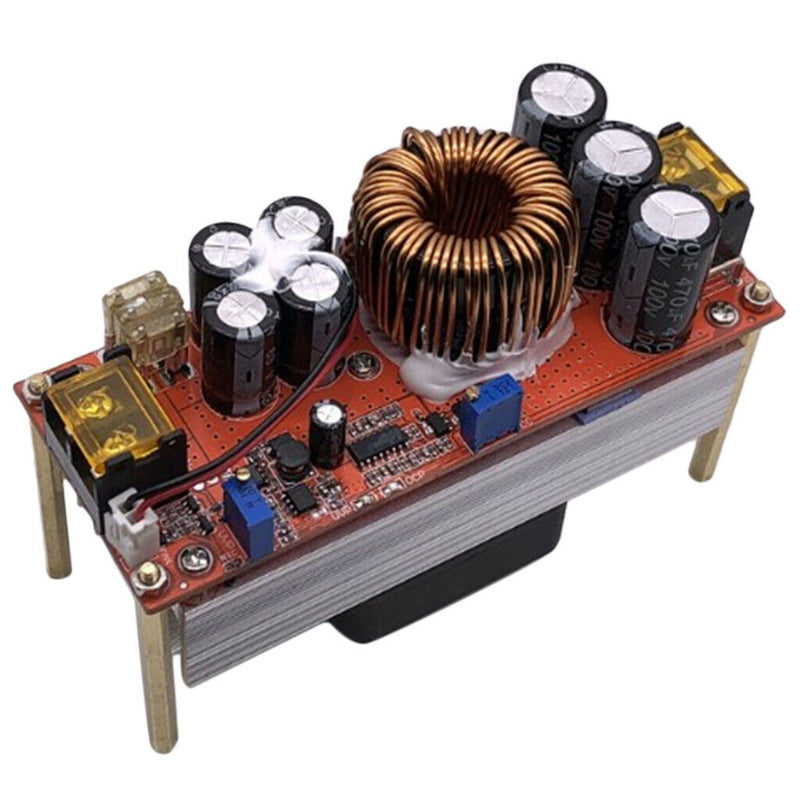

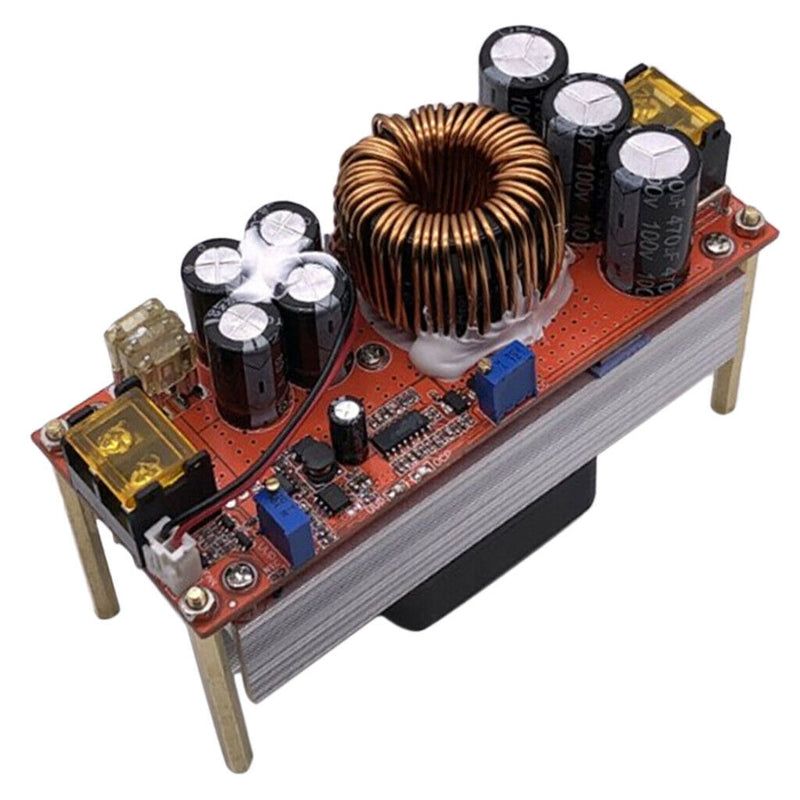

ITEM NAME:Constant Voltage Adjustable Power Supply, 1500W, Continuous / Continuous 30A Description: Stable Output: Boost module has high power and stable output, and it can also convert 10-60VDC to 12-90VDC. Intelligent Temperature Control: It adopts intelligent temperature-controlled fan design, and automatically works when the temperature reaches 60Â °C or so. It stops when the temperature is lower than 60Â °C. High Conversion Efficiency: Step up module is made of high quality components, ensuring high conversion efficiency up to 97%. Long Service Life: Boost converter is a non-isolated DC power converter module with a long service life. Widely Used: It is widely used in high-power solar street lights, various LED lighting CV drives, car and mobile equipment power supplies, DIY adjustable CV CC power supplies, solar charging, and various battery charging. Specification: Size: 130 x 52mm / 5.12 x 2.05inch Input Voltage: DC10V to 60V Input Current: 10V-30V input voltage, maximum current is 30A; 31-60V input voltage, maximum current is 25A Quiescent Current: 15mA Output Voltage: 12-97V continuously adjustable Output Current: 20A Constant Current Range: 0.8-20A(+/-0.3A) Reverse Input Protection: Yes Input Low Voltage Protection: Yes Operating Temperature: -40℃ to 85℃ Frequency: 150KHz Package Includes: 1pc Step Up Constant Current Module Note: Conversion Efficiency: 92% to 97% (Efficiency is related to input/output voltage, current and voltage difference. The smaller difference is, the higher efficiency will be) Input Over Current Protection: Yes Short Circuit Protection: Yes Reverse Input Protection: Yes Installation Method: Four 3mm standoffs Wiring Method: Terminal blocks Output Power: Max. Output Power = Input Voltage*30A(If input 12V, the max output power=12V*30A = 360W) (If input 24V, the max output power=24V*30A = 720W) SKU: DMO0012496373015861.Output Power: Max. (If input 24V, the max output power=24V 30A = 720W). Stable Output: Boost module has high power and stable output, and it can also convert 10-60VDC to 12-90VDC. 1pc Step Up Constant Current Module.
