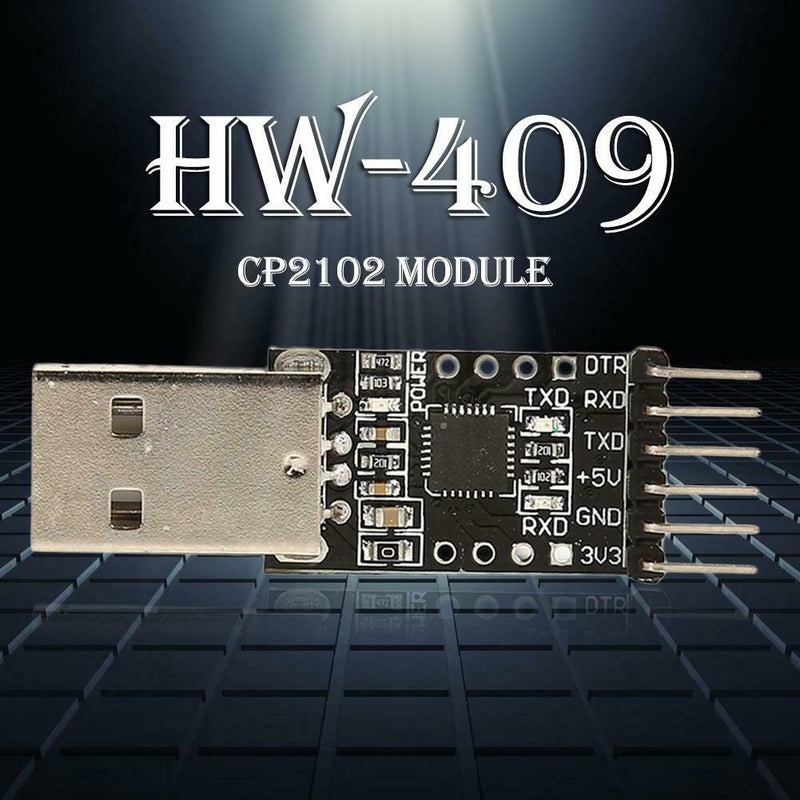

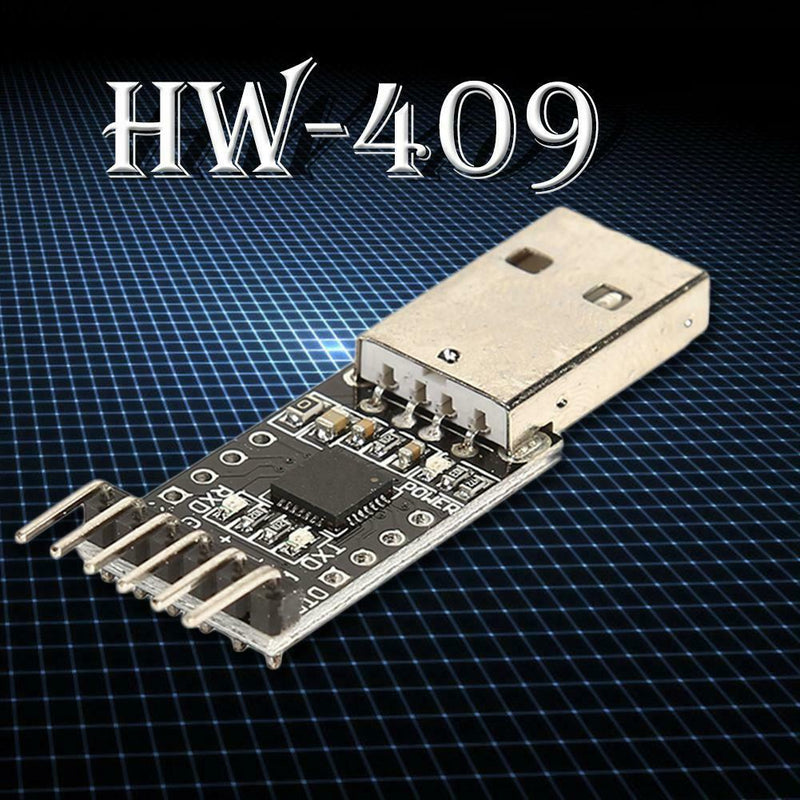

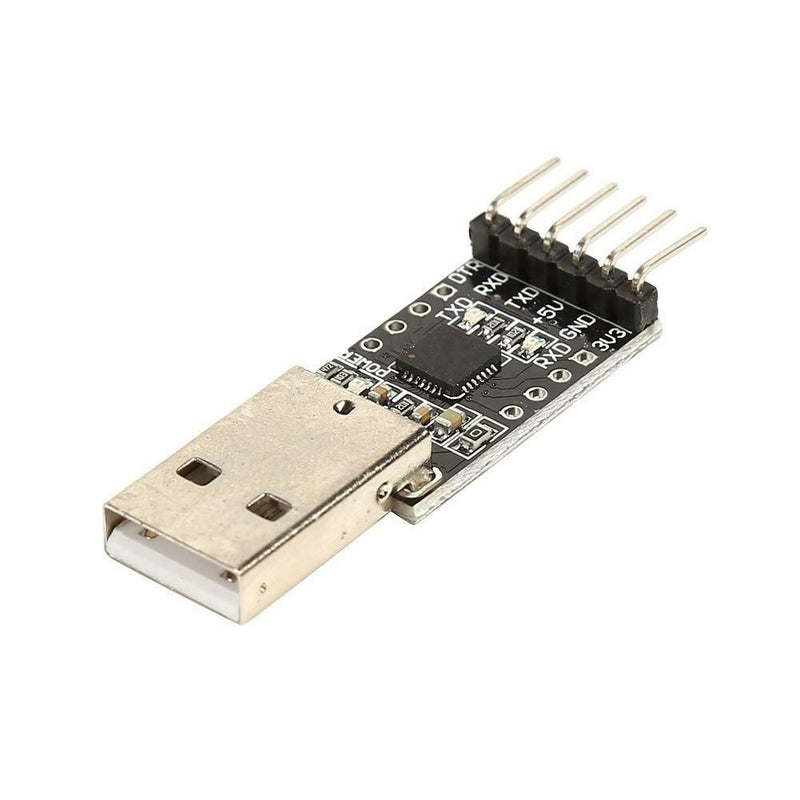

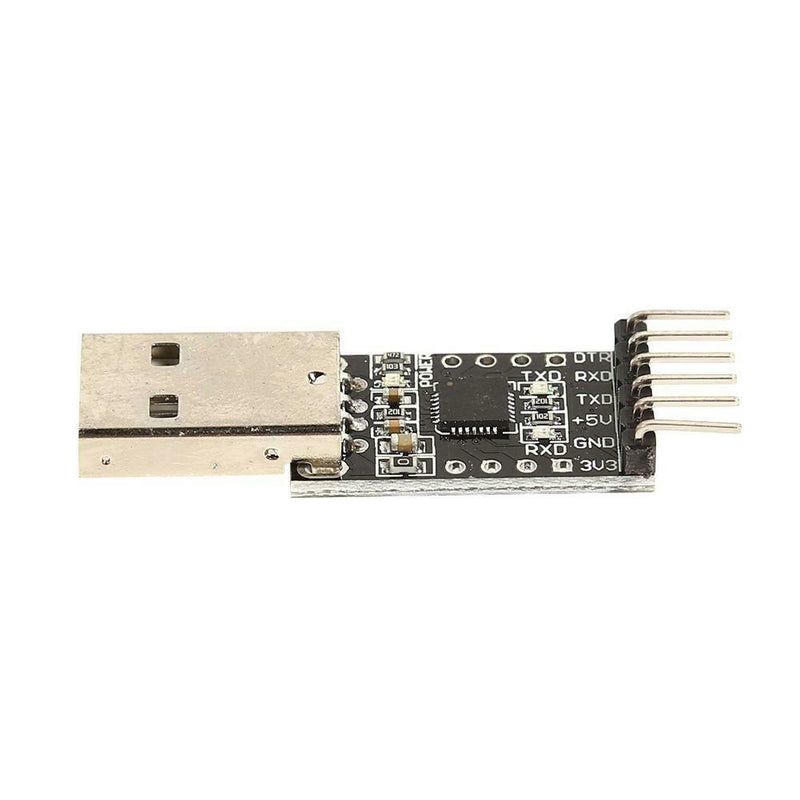

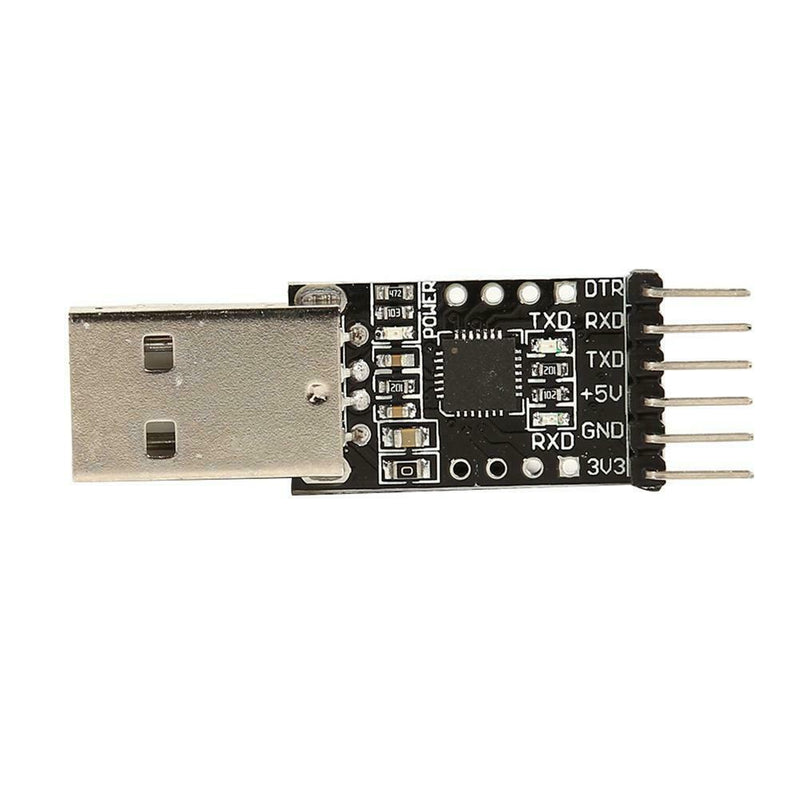

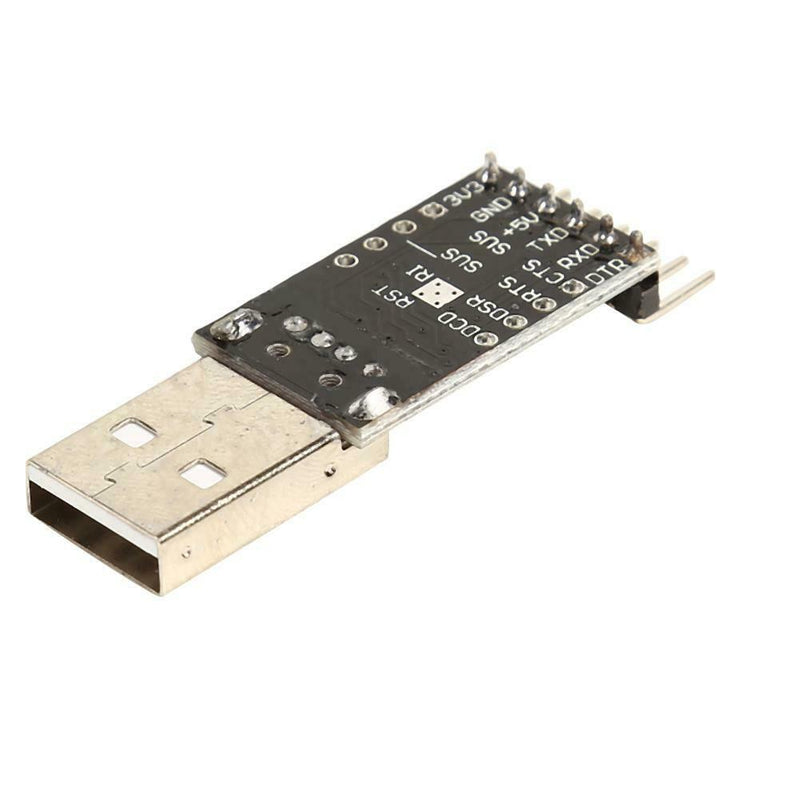

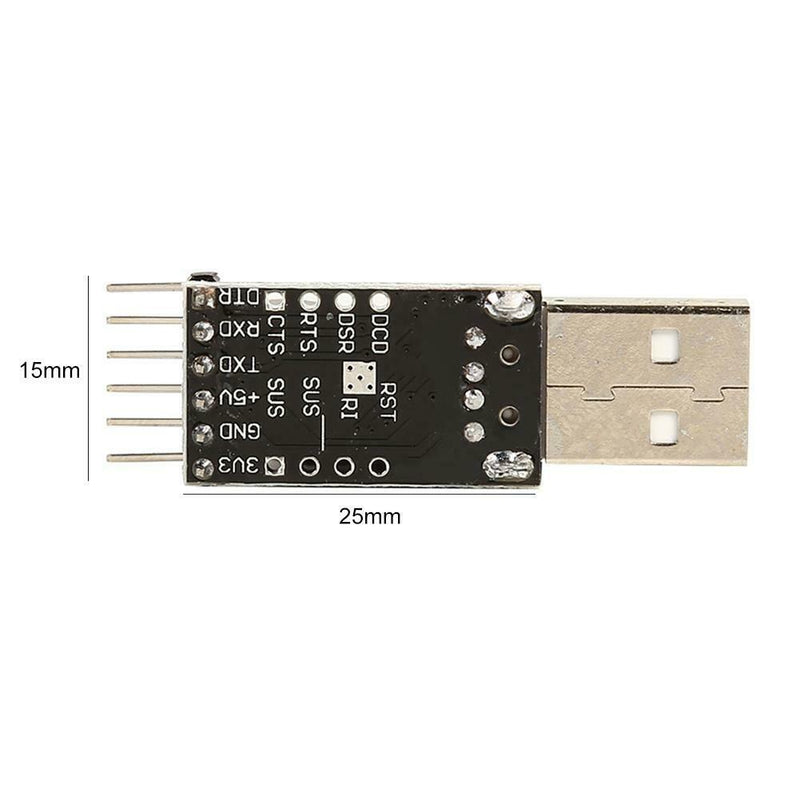

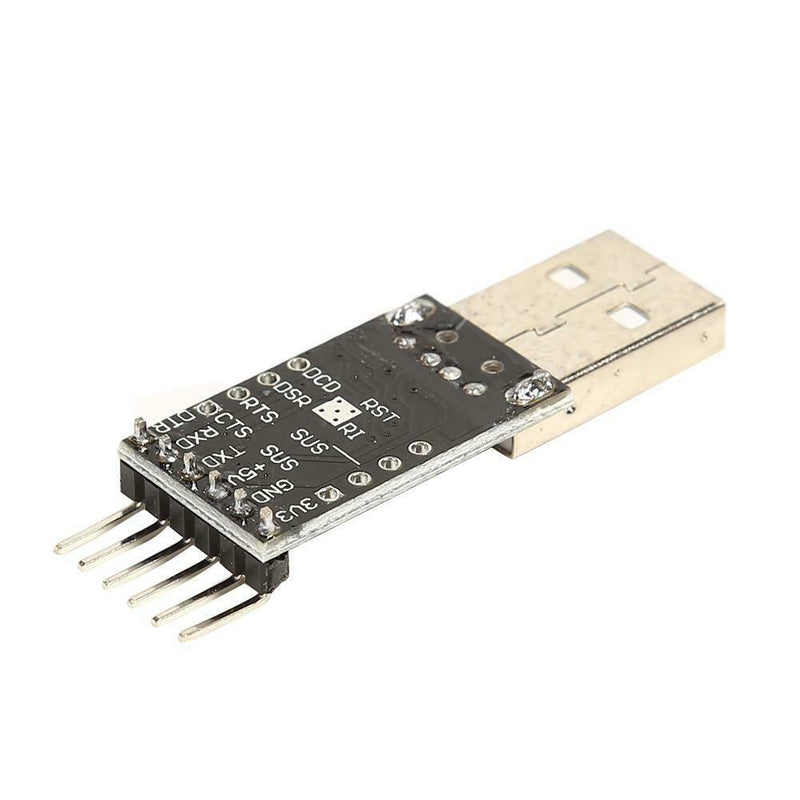

ITEM NAME:CP2102 USB 2.0 to TTL UART Module 6Pin Serial Port Converter STC Downloader #JT1 Product Description Description: Feature: 1. The main chip is CP2102, which generates virtual serial port after installing driver. 2. USB power supply, with 3.3V and 5V voltage output, eliciting all useful pins. 3. With self-recovery fuse. In the event of unexpected short circuit, it can effectively protect your downloader and computer USB port. 4. On-board status indicator lamp, transceiver indicator lamp, after properly installing the driver, the status indicator lamp will always be on, the transceiver indicator will flicker when communicating, the higher the baud rate, the lower the brightness. 5. Support baud rate from 300 bps to 1 Mbps. 6. Communication format support: 1) 5,6,7,8 bits; 2) 1,1.5,2 stop bits; 3) odd, even, mark, space, none check. 7. Support operating systems: windows 8.1/7/vista/xp/98, for Mac OS-X/OS-9, Linux. 8. The USB head is the male head, which can be directly connected to the USB port of the computer. 9. SMT process is used to produce patch components with stable quality. 10. With reset signal output, you can download programs directly to Promini and other motherboards. Specification: PCB board size: 25mm*15mm*4mm/0.98*0.59*0.15'' Package weight: 4g Note: Please allow 1-3mm differs due to manual measurement. Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding. Included: 1 X CP2102 USB 2.0 to TTL UART Module.The main chip is CP2102, which generates virtual serial port after installing driver. Included: 1 X CP2102 USB 2.0 to TTL UART Module. With self-recovery fuse. In the event of unexpected short circuit, it can effectively protect your downloader and computer USB port.
