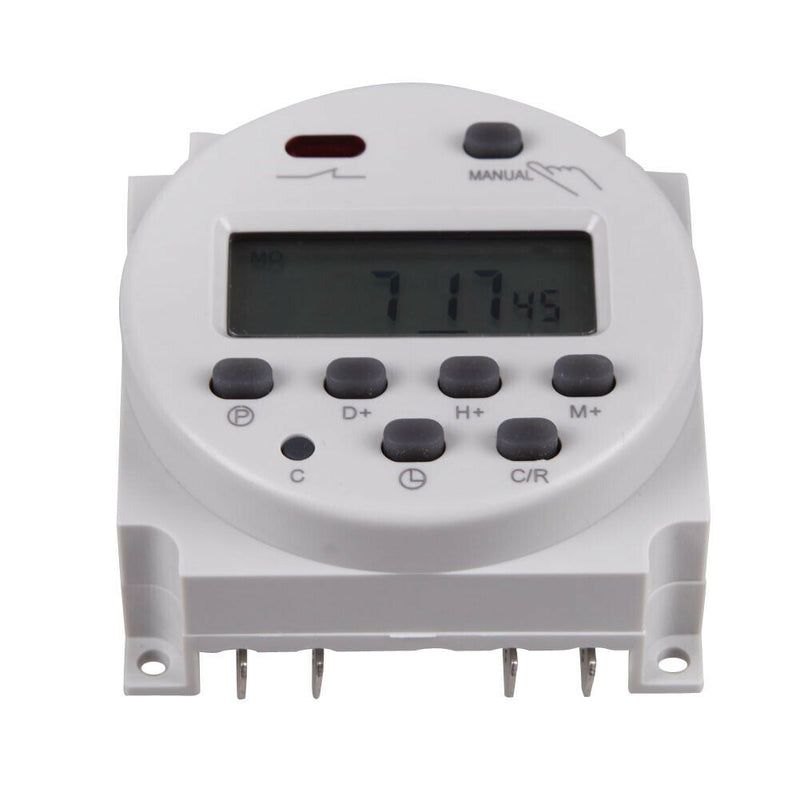

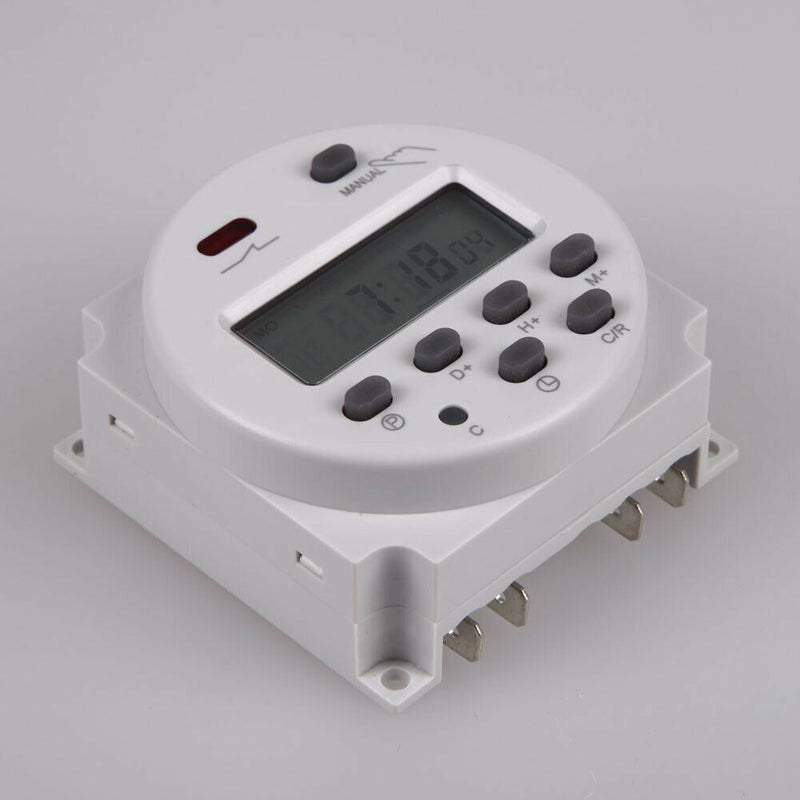

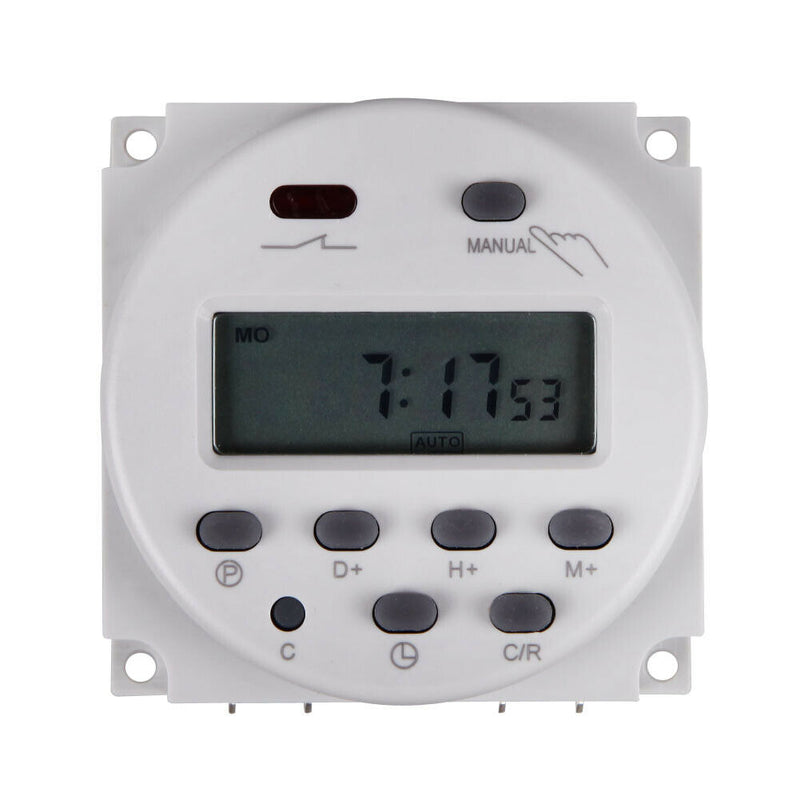

ITEM NAME:DC 12V 16A Smart Digital LCD Power Programmable Timer Time Switch Relay Product Description Description: Detailed introduction: Pannel mounted Advanced pre-setting one week before Digital electronic timer switch with daily programs Repeat programs with 17 on/off setting and manual over-ride Lithium battery power reserve when electric supply cut off Auto timer error correction  ±30sec,weekly Switching current ac Notice: Shown on the Instruction Manual is "12V Wiring diagram" The "POWER" should to connect DC 12V power. Never connect any other power on. The other side can depending on your need If want to connect 110V electrical equipment. Wiring is depending on "0-250V Wiring diagram" No matter which Wiring diagram. The "POWER" only allow to connect DC 12V power Power is not meaningful, custom-made voltage is DC12V Specification: DC: 12V Color: White Cut out (MM) : 64 Fitting Depths (mm) : 21 Power consumption : 4.4VA current consumption without load : 0.015mA Resistive Load (LVD .IEC) 16A /110 AC Inductive load cos . 0.6 8A /110V AC incandescent lamp load 1000W SWITCHING CURRENT DC : 16A DC Operation accuracy : Type(+-)1 s/day Ambient temperature : -10℃-55℃ Shortest switching time : 1 min Shortest switching interval: 1 min Number of channels " 1 Number of memory spaces : 17 Type of connection : Plug in Included: 1 X TIMER SWITCH.Resistive Load (LVD. IEC) 16A /110 AC. SWITCHING CURRENT DC : 16A DC. Switching current ac. The "POWER" should to connect DC 12V power. Never connect any other power on. The other side can depending on your need.
