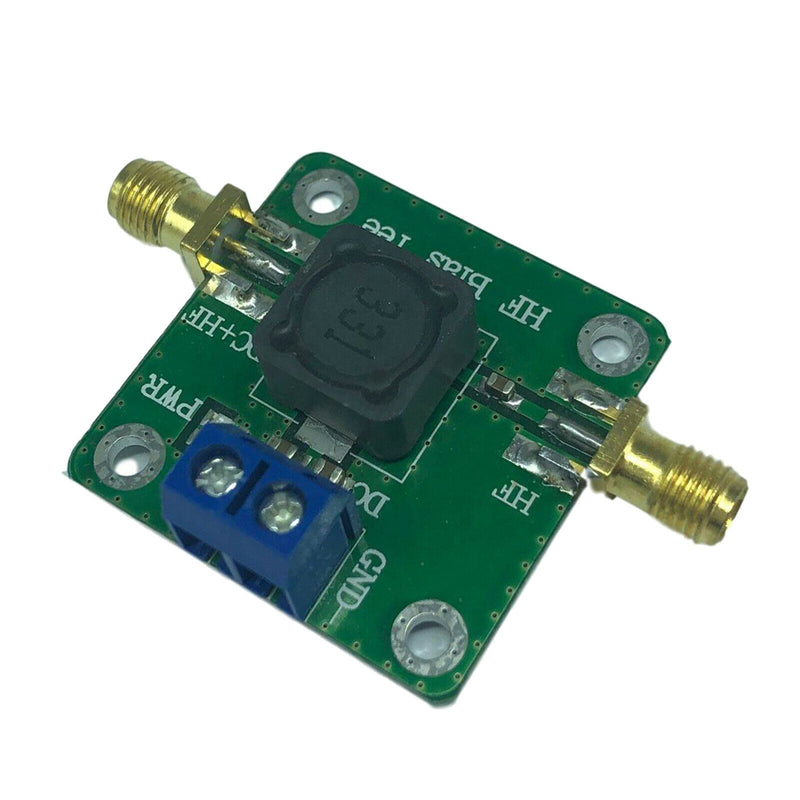

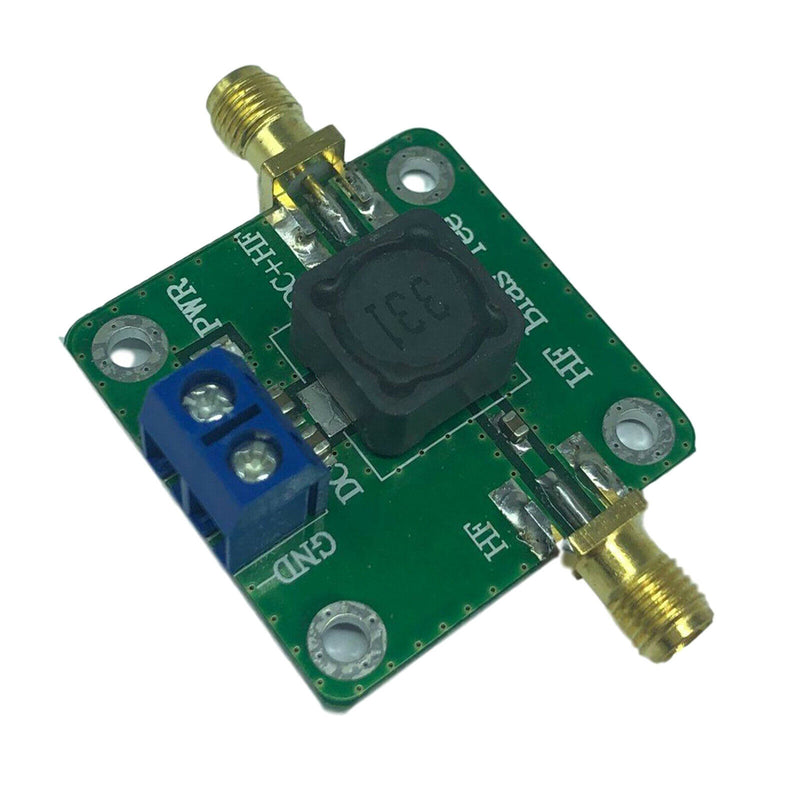

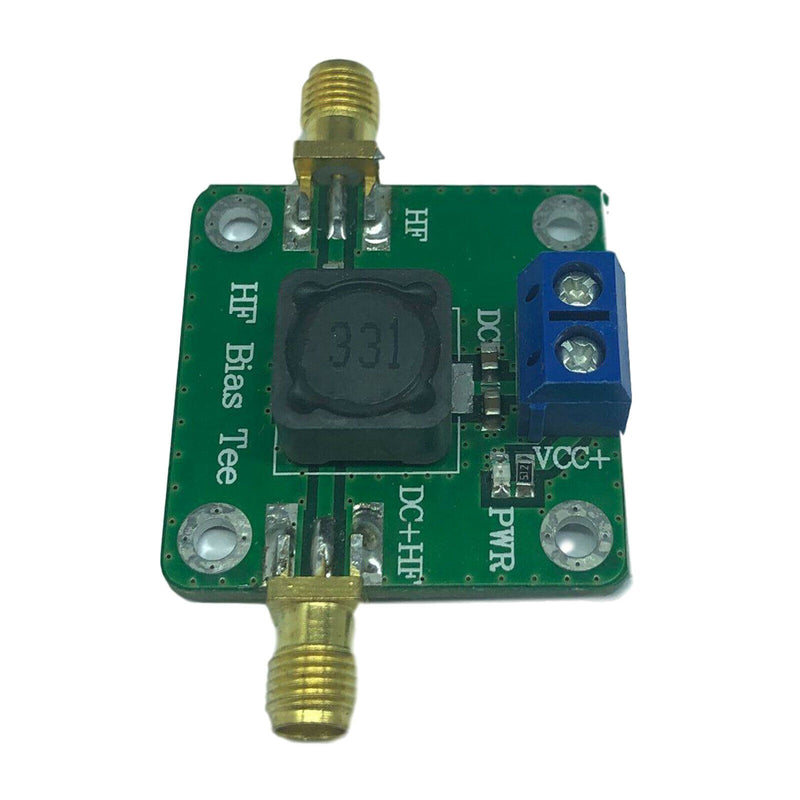

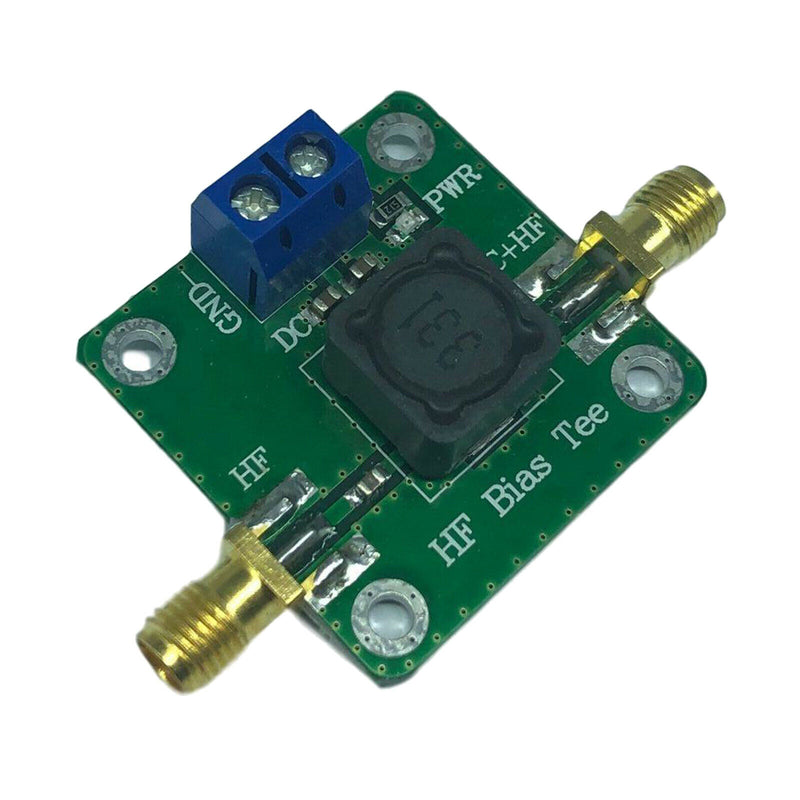

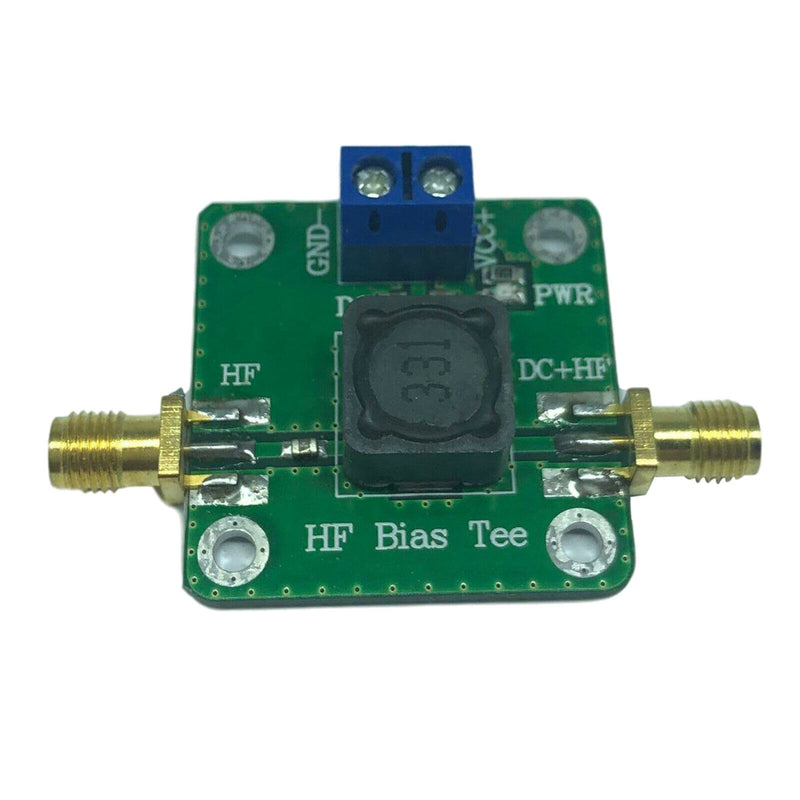

ITEM NAME:DC 50K-60MHz RF Microwave Bias Isolator 0.1dB/100KHz Max Current 600mA, RF DC Description: RF power supply for active antenna Output dc blocking of broadband amplifier Communication data is injected through the RF terminal Frequency range: 50K-60MHz Insertion loss: 0.1dB/100KHz, 0.2dB/60MHz Specification: Maximum voltage: 50V Maximum current: 600mA RF connector: SMA-K (outer screw inner hole) System impedance: 50ohm DC: External DC power supply RF: Radio frequency signal terminal (this port can only transmit radio frequency signals) RF+DC: RF DC bias (this port can transmit RF and DC bias) GND-: common ground terminal for DC power supply VCC+: the power supply terminal of DC power supply Size Chart: Size: 50x50x15mm / 1.97x1.97x0.59inch Package Includes: 1 Piece RF Microwave DC Bias Isolator Note: Color might be slightly different due to the color calibration of each individual monitor. Please allow slightly measuring deviation due to manual measurement. SKU: DMO0011815479018640.1 Piece RF Microwave DC Bias Isolator. Maximum current: 600mA. RF+DC: RF DC bias (this port can transmit RF and DC bias). System impedance: 50ohm. RF connector: SMA-K (outer screw inner hole). Frequency range: 50K-60MHz.
