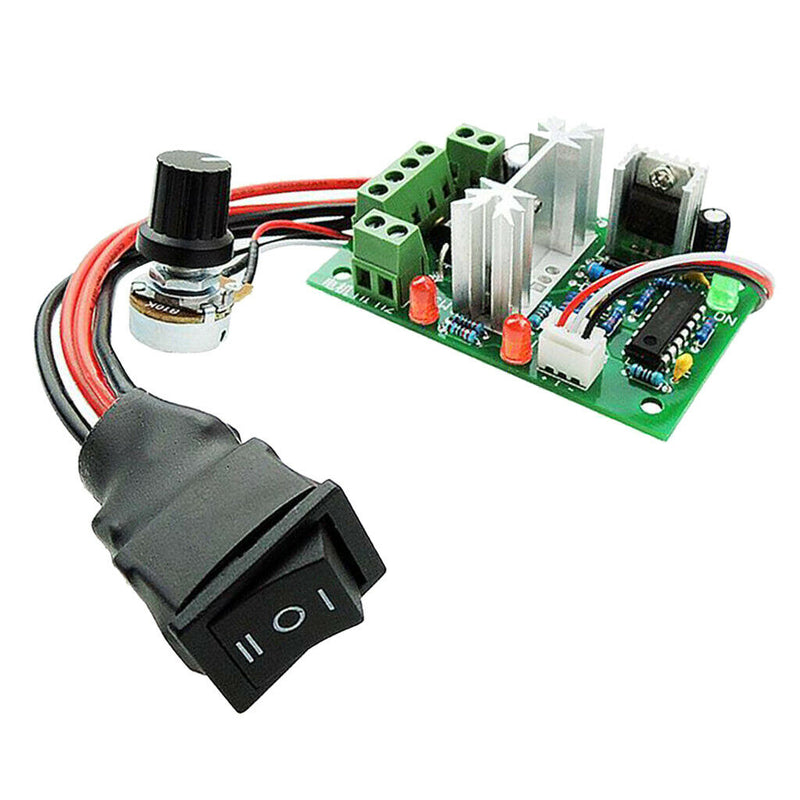

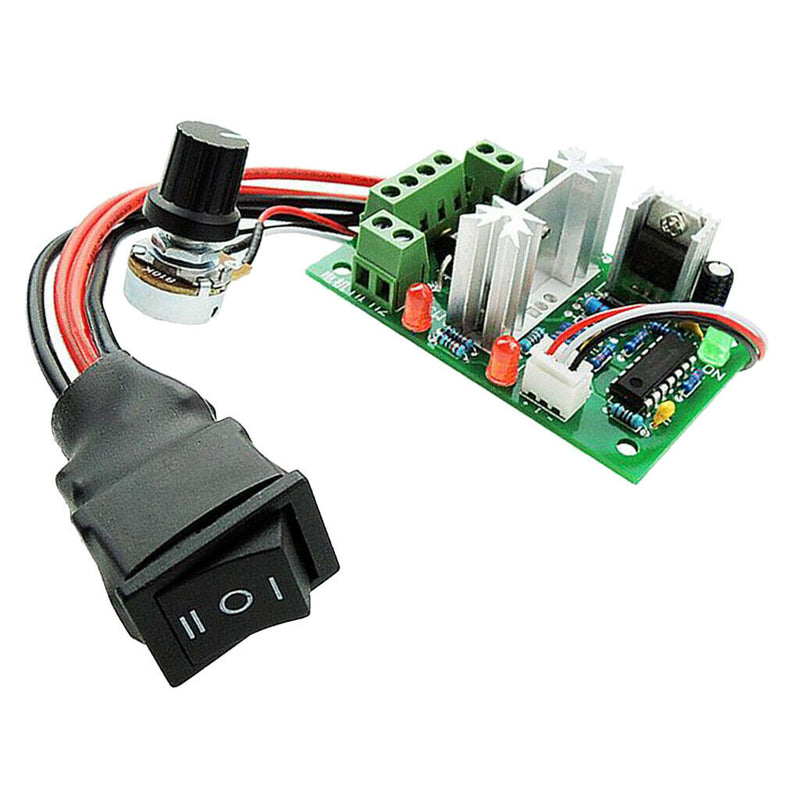

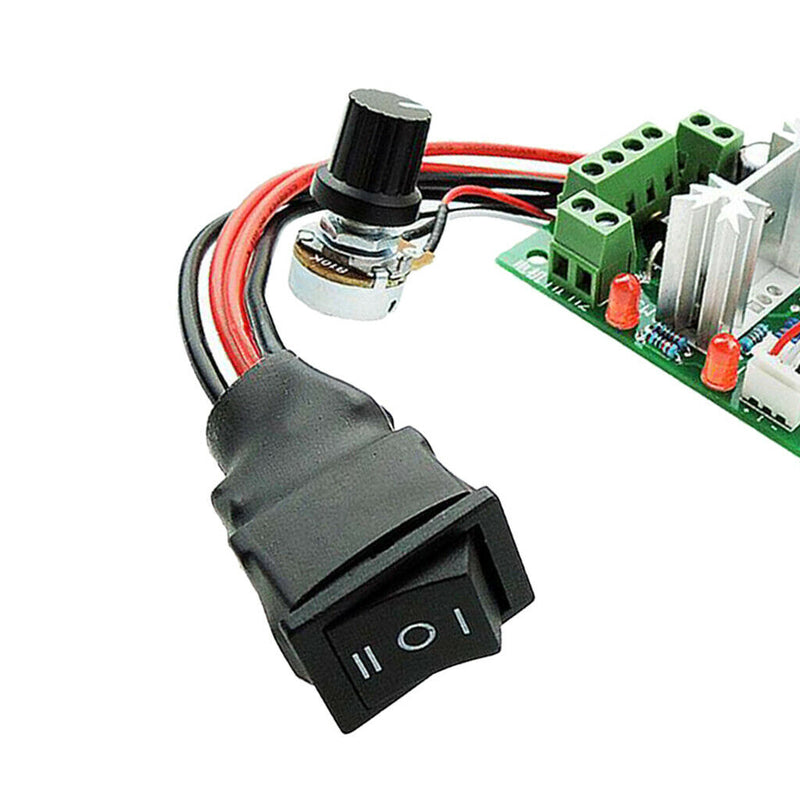

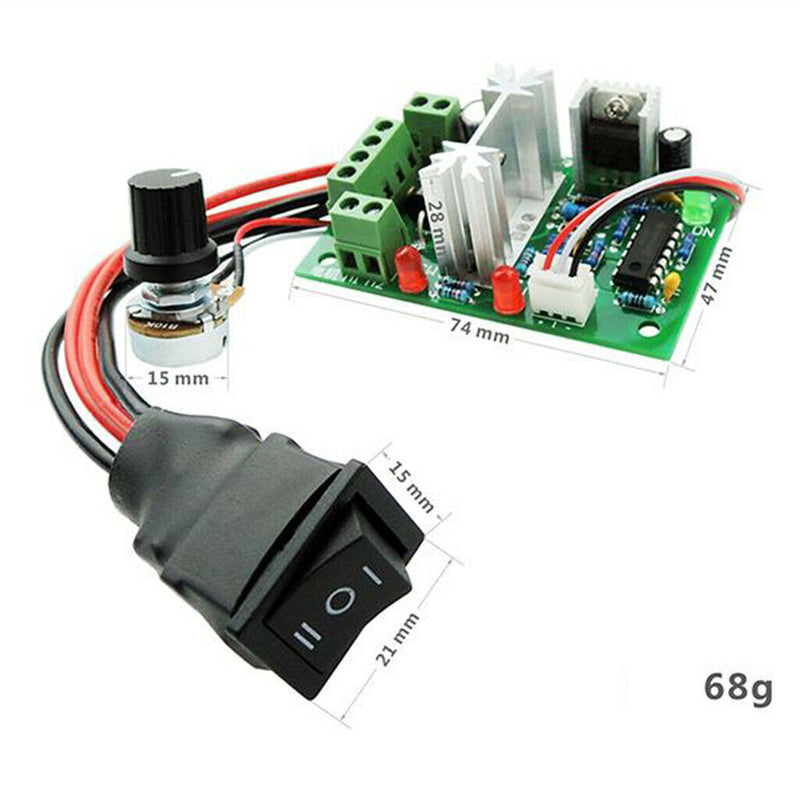

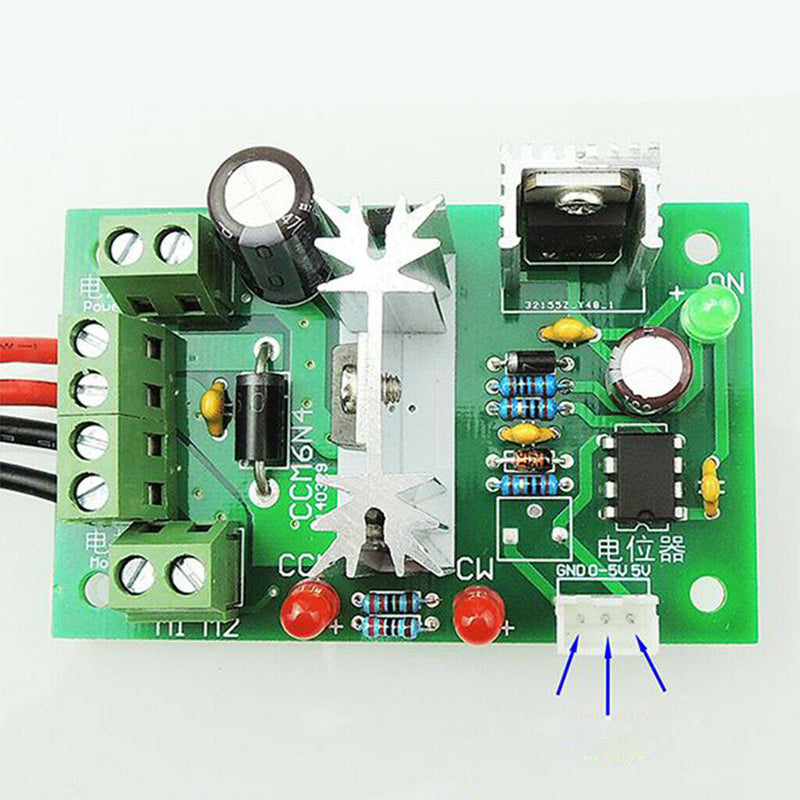

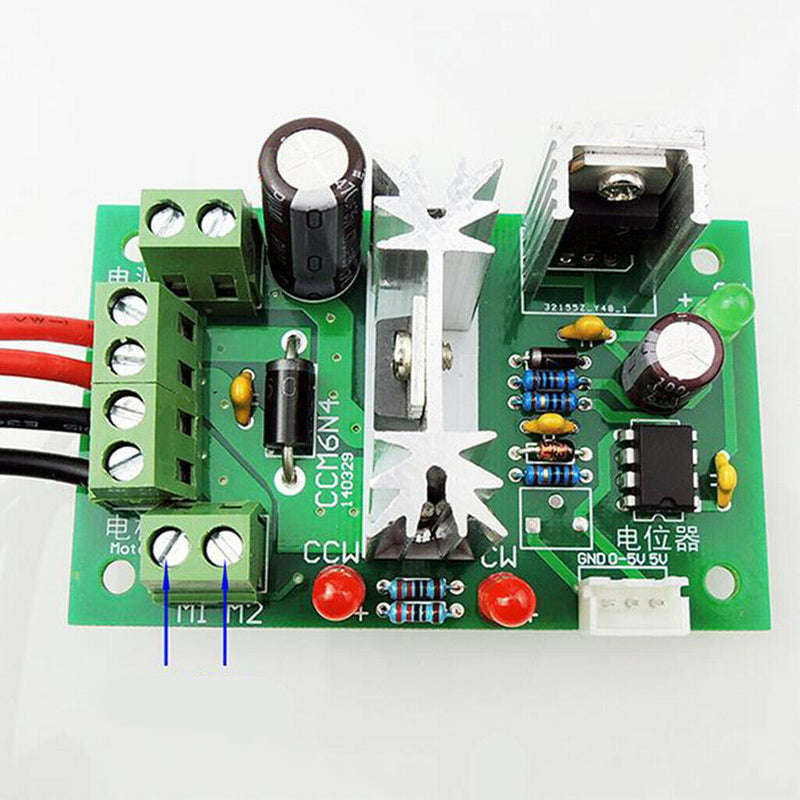

ITEM NAME:DC 6-30V 12V 24V 30V 10A PWM DC Motor Speed Controller CW CCW Reversible Switch Description: The DC Motor Speed Controller allows controlling both the speed and direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100% (both Positive and Negative DC output) The motor speed controller incorporates a high power MOSFET with a heat sink and can easily provide a continuous current of 6A to your DC motor or other DC load. The circuit also includes LED whose brightness varies proportional to the relative speed of the motor therefore giving a visual feedback of the current speed. The positive inversion switch is used to control the direction and stop of the motor. Can adjust the speed by the external 0-5V signal Main Usage: widely use to people DIY, hobby, scientic test, such as control computer Ipad fan speed, control bulb, control motor kymco, control xbox360, HHO Pluse Width modulator, Test Equipment, industrial automation, speed regulator module board support PLC, motor electric pump fan speed control, PWM HHO RC controller, remote control toys, etc. Specification: Input supply voltage: DC 6V-30V The maximum output power: 200W The maximum continuous output current : 6A The overload and short circuit protecting current is 10A PWM frequency: 16kHz Duty Cycle adjustable: 0-100% Power-On LED indicator The operation environment temperature:-20-40 Package Includes: 1 Piece DC Motor Speed Controller Note: This can NOT be used to the BRUSHLESS motor. The controller is NOT reverse-polarity protected and will be damaged if connect the supply voltage with wrong polarity. Double check all connections before applying power and always turn off the power supply before making any wiring changes. SKU: DMO0009698073021261.PWM frequency: 16kHz. The overload and short circuit protecting current is 10A. Can adjust the speed by the external 0-5V signal. Duty Cycle adjustable: 0-100%. This can NOT be used to the BRUSHLESS motor.
