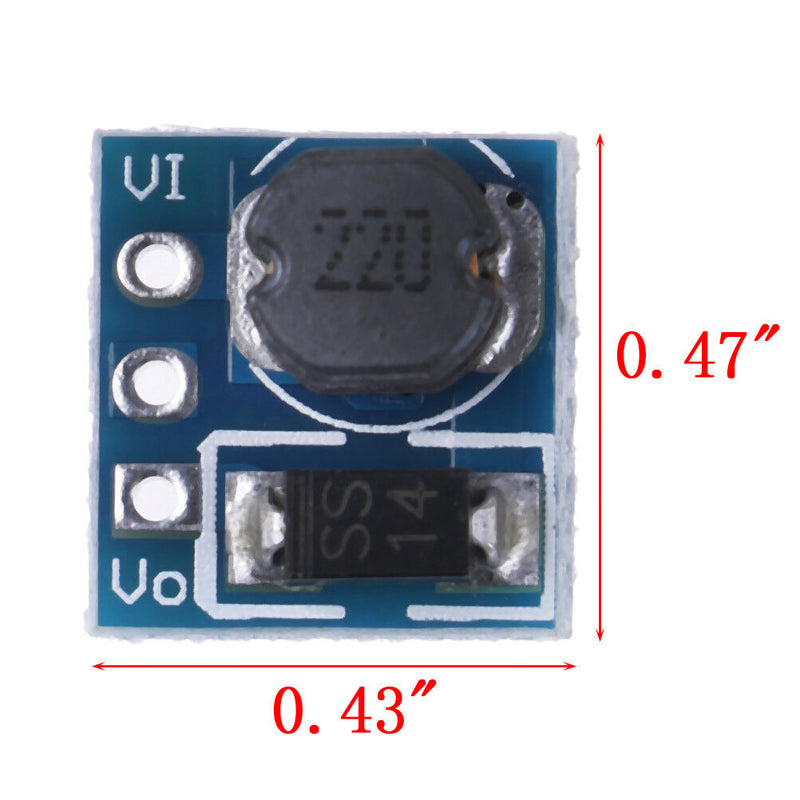

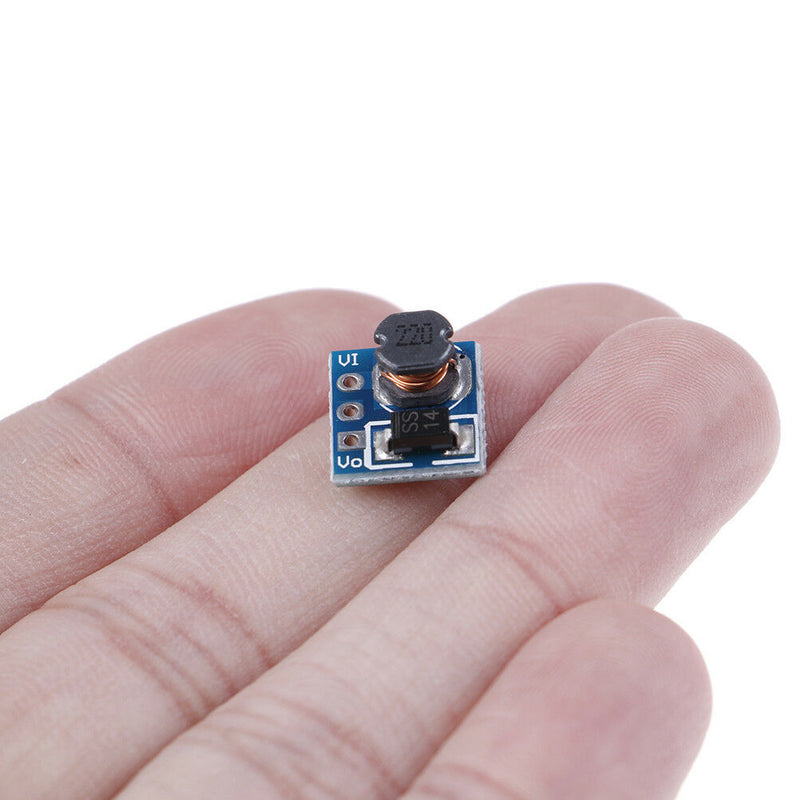

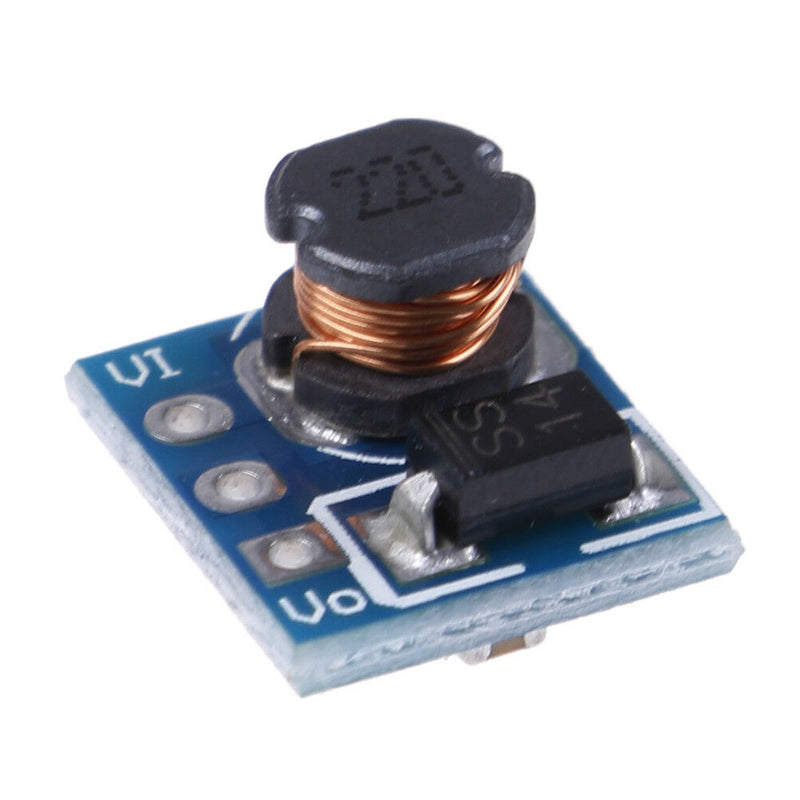

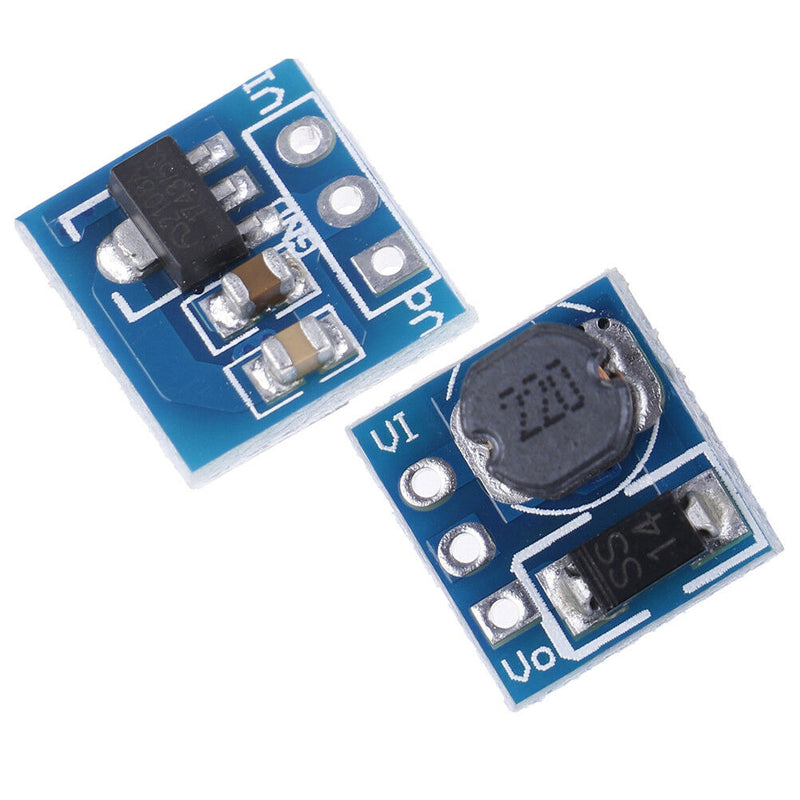

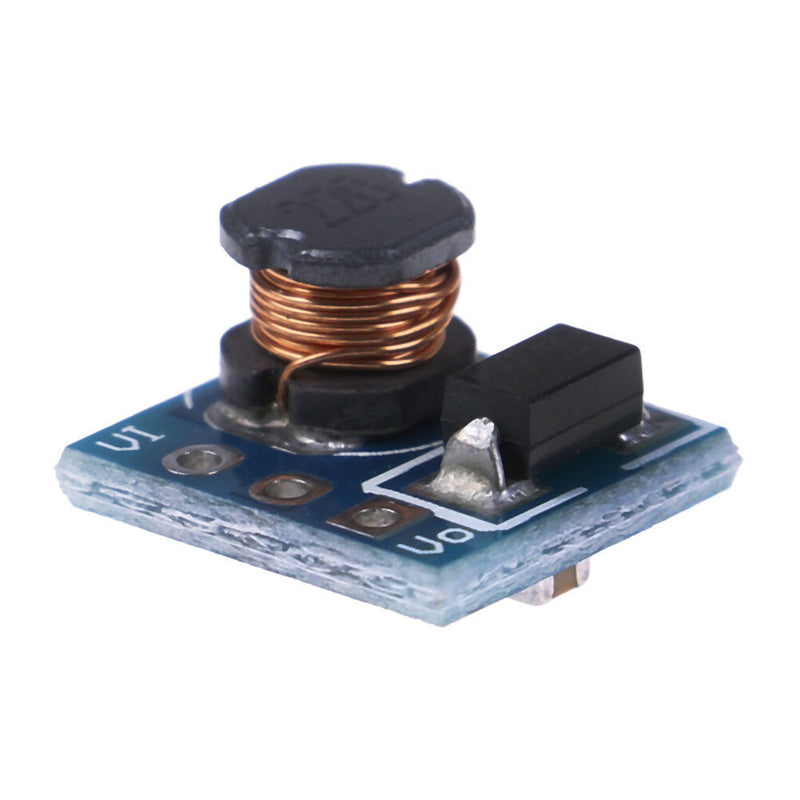

ITEM NAME:DC-DC 1.8V 2.5V 3V 3.3V 3.7V To 5V step up power voltage boost converter boar SE Product Introduction: 1.Input Voltage:0.9-5V;output voltage:5V 2.Maximum Output Current:480mA 3.Starting Up Voltage:0.8V;output current:7mA 4.Input Voltage:1-1.5V;output voltage 5V;current 40-100mA 5.Input Voltage:1.5-2V;output voltage 5V;current 100-150mA 6.Input Voltage:2-3V;output voltage 5V;current 150-380mA 7.Input Voltage:>3V;output voltage 5V;current 380-480mA 8.Operating Frequency:150KHz 9.Typical Conversion Efficiency:85% 10.Pin Space:2.54mm 11.Size:Show in the picture Package included: 1*1.8V 2.5V 3V 3.3V 3.7V To 5V DC-DC Step-Up Power Voltage Boost Converter Board Notice: 1.Input voltage should be no more than rated voltage,or the module will be burnt 2.Input power should surpass output power,or output voltage will be less than rated voltage 3.Output load should be no more than rated load,or output voltage will be less than rated voltage.Find many great new & used options and get the best deals for DC-DC 1.8V 2.5V 3V 3.3V 3.7V To 5V step up power voltage boost converter boar SE at the best online prices at !
