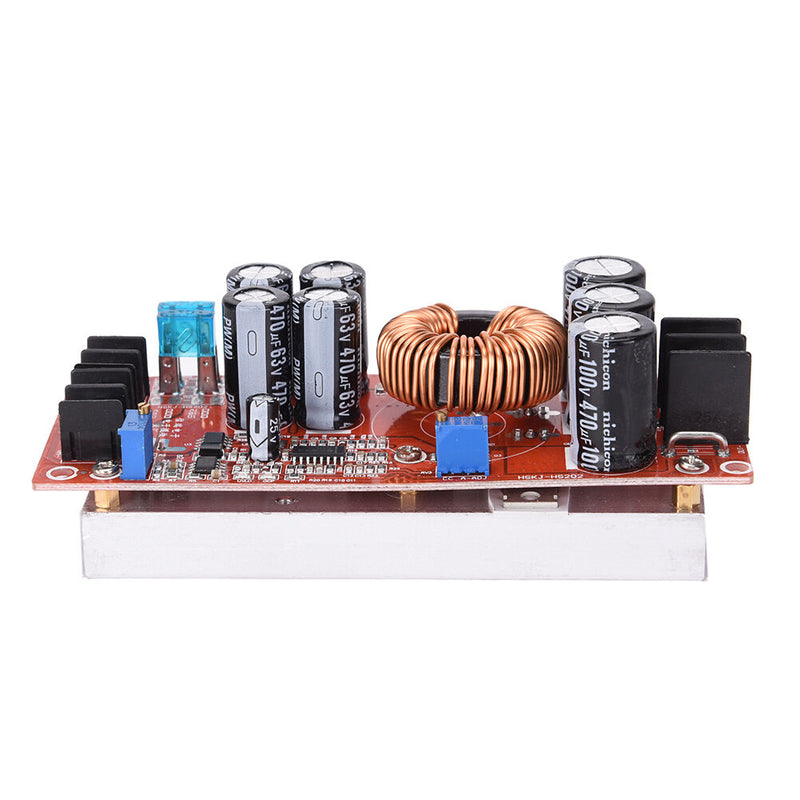

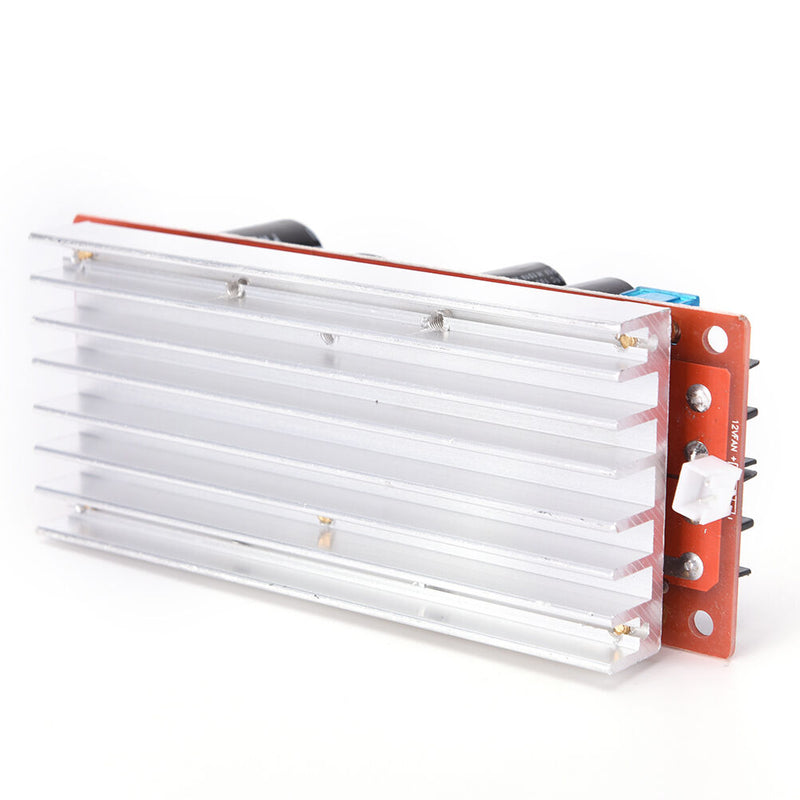

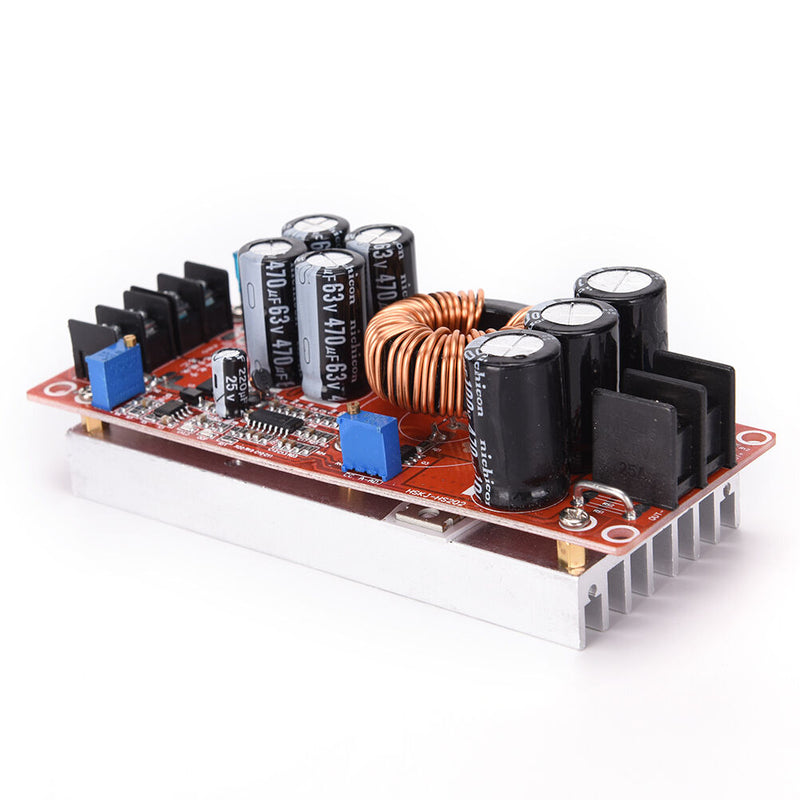

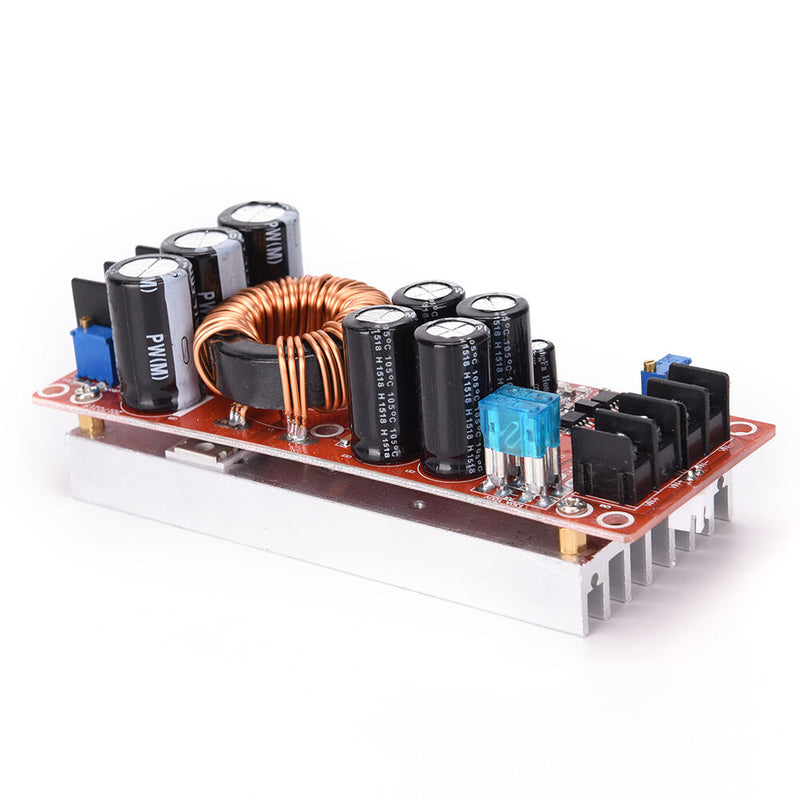

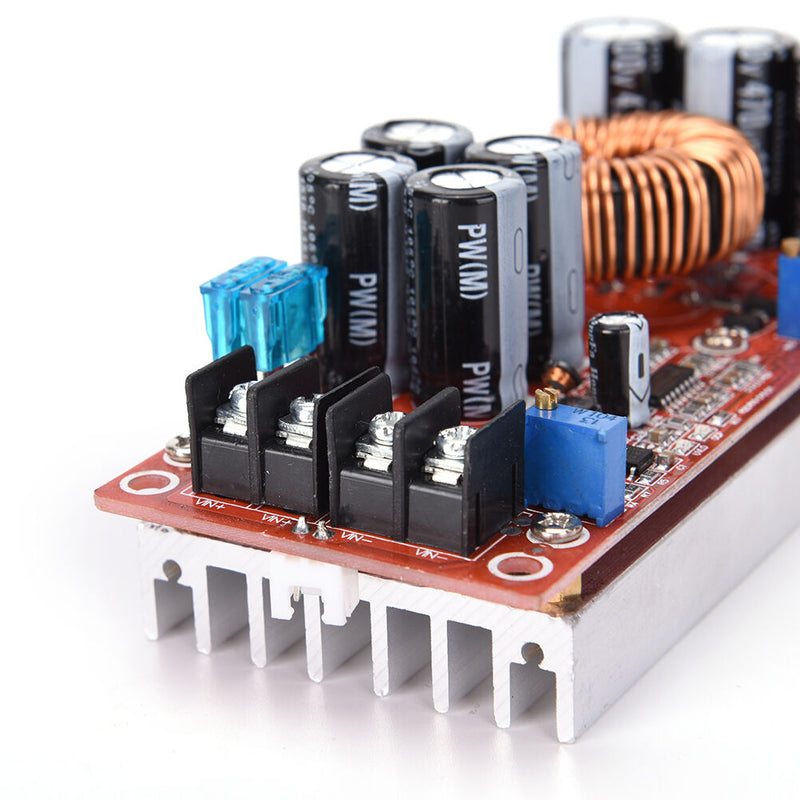

ITEM NAME:DC-DC 1200W 20A Adjustable Boost Step-Up Converter Power Module 8-60V ME FT Featureï ¼Å¡ Brand new and high quality. P roduct Features: Module Properties: non-isolated step-up module (BOOST) Input voltage: 8-60V Input Current: 20A Quiescent current: 15mA (12V liter 20V, the output voltage, the higher the current will increase too quiet) Output voltage: 12-80V continuously adjustable Output Current: 20A MAX Over 15A, please enhance heat dissipation (input, output pressure related, the greater the pressure the smaller the output current) Constant Range: 0.5-20A Output Power: Input voltage * 20A, such as: input 12V * 20A = 240W, input 24V * 20A = 480W Enter 36V * 20A = 720W, input 48V * 20A = 960W, input 60V * 20A = 1200W If you need more power, you can use two modules in parallel, such as the output to 30A, two modules can be used in parallel The current per module can be adjusted to 15A Working temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation) Operating frequency: 150KHz Conversion efficiency: up to 95% (efficiency and input and output voltage, current, pressure related) Overcurrent protection: Yes (with reduced flow adjustment, adjustable output current limit, current exceeds the current limit, the output current is automatically reduced to a minimum 5A, vary according to the nature of the load current will be.) Short circuit protection: Yes (input 20A fuse) double short circuit protection, the use of more security Input reverse polarity protection: None, (if necessary, please enter the string into the diode) Output Counter filling: Yes, for charging plus blocking diode is not required Installation: four 3mm screws Connection: solderless terminals output Module dimensions: approx. 130x 52 x 53mm Weight:263g Package included: 1x 1200W 20A DC Converter Boost Step-up Power Supply Module 8-60V TO 12-83V New Note: Due to the difference between different monitors, the picture may not reflect the actual color of the i.Enter 36V 20A = 720W, input 48V 20A = 960W, input 60V 20A = 1200W. Input Current: 20A. Short circuit protection: Yes (input 20A fuse) double short circuit protection, the use of more security. Module Properties: non-isolated step-up module (BOOST).
