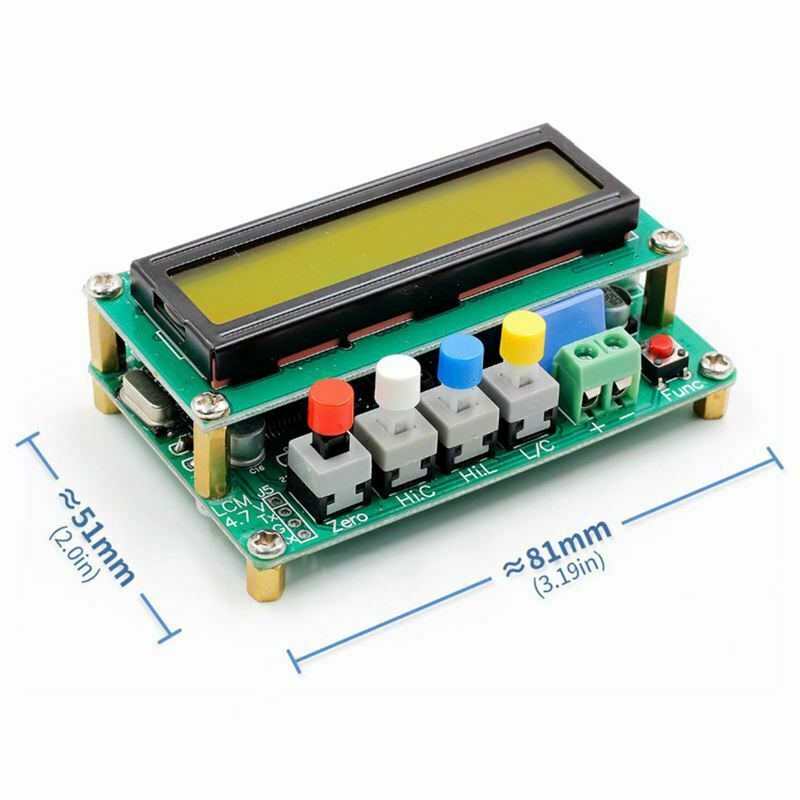

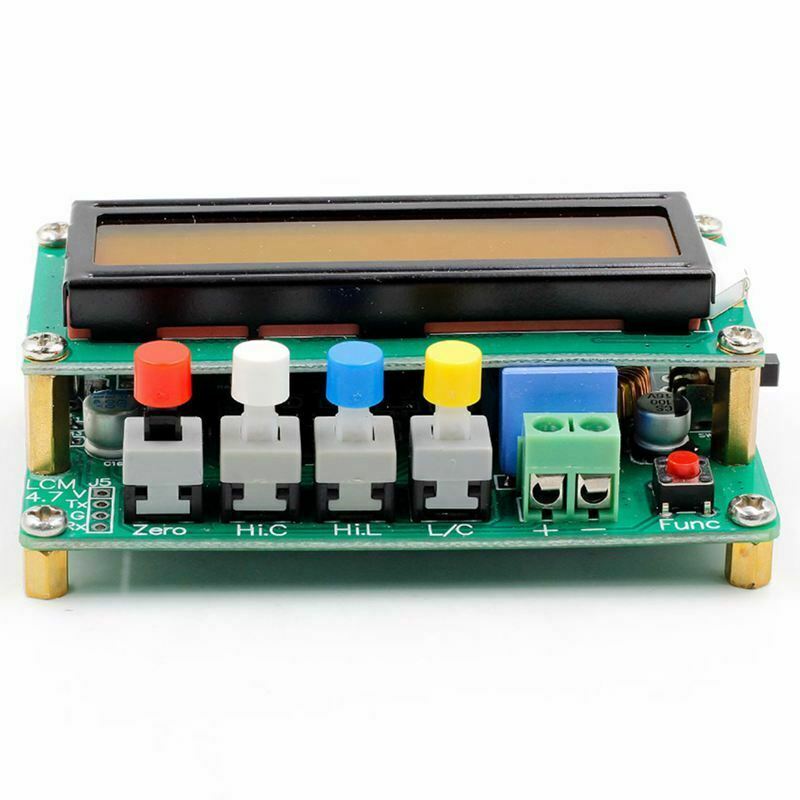

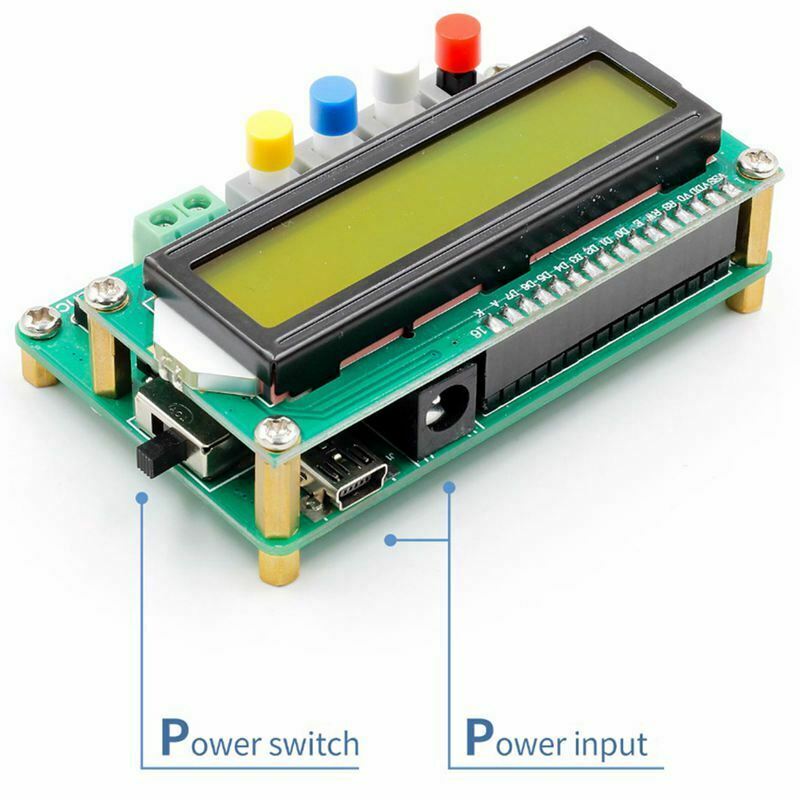

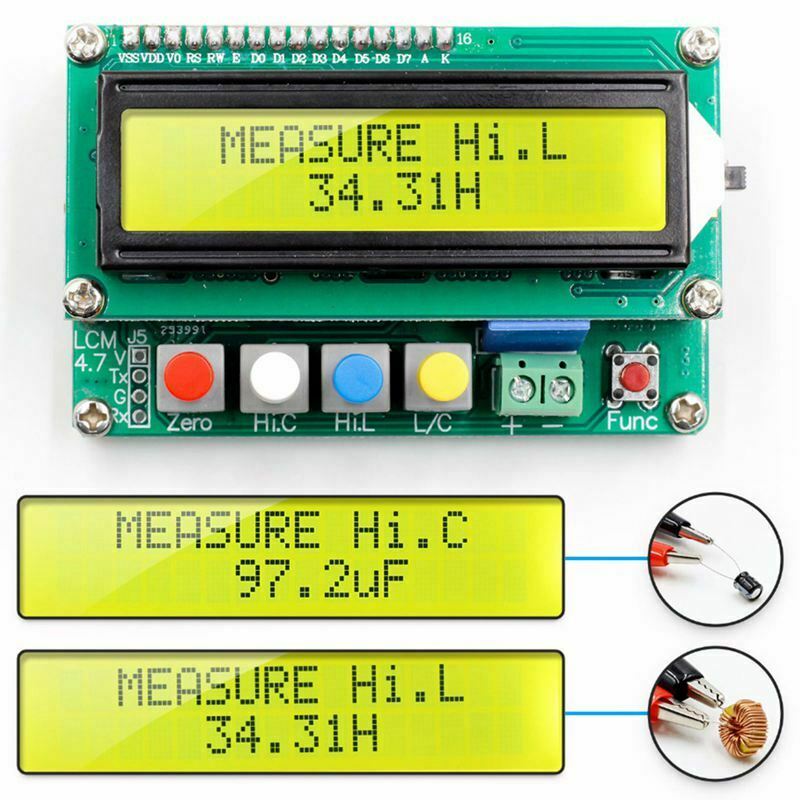

ITEM NAME:Digital LCD Capacitance meter inductance table TESTER LC Meter Frequency 1p L6U6 Digital LCD Capacitance meter inductance table TESTER LC Meter Frequency 1p L6U6 LC100-A type is a full-featured added 1uF-100mF electrolytic capacitor test function, in addition to the basic three stalls, all the stalls are auto-ranging. This product has an absolute advantage in the small value of testing with respect to the sales of finished products on the market inductance capacitance meter is the accuracy and minimum resolution, and flexible online calibration can always maintain measurement accuracy. The instrument does not use any potentiometer adjustment. Calibration parameters are completely stored in the microcontroller. Flash internal power is not lost. In the small capacitance, small inductors and large inductive test, LC100-A and LC100-S is the same, the following uses LC100-S as an example: a) The following pictures are examples of measuring small inductance, around 4 turn hollow coil wire test results 0.058uH, this result is equivalent to 58nH for the 6243 class of instrument is absolutely undetectable inductive The advantage of this is also the instrument. b) The following picture is the example of measuring small capacitance, the resolution has reached 0.01pF, you must pay attention to the impact of the test clip, to maintain test clip without access capacitance normalized to 0, and then as much as possible to maintain the relative position of the test clip into the capacitor unchanged, this is the same for testing small inductance. c) The third picture is a measure of a 0.22uF safety capacitor, the figures are very stable measurement results. If you use the test results beating very powerful that this capacitor stability is poor or poor high-frequency characteristics, and the good capacitive display results very stable. d) The fourth picture is the view measuring inductance test frequency, current use, press the black button when measuring inductance, capacit.If you use the test results beating very powerful that this capacitor stability is poor or poor high-frequency characteristics, and the good capacitive display results very stable. LC100-A type is a full-featured added 1uF-100mF electrolytic capacitor test function, in addition to the basic three stalls, all the stalls are auto-ranging.
