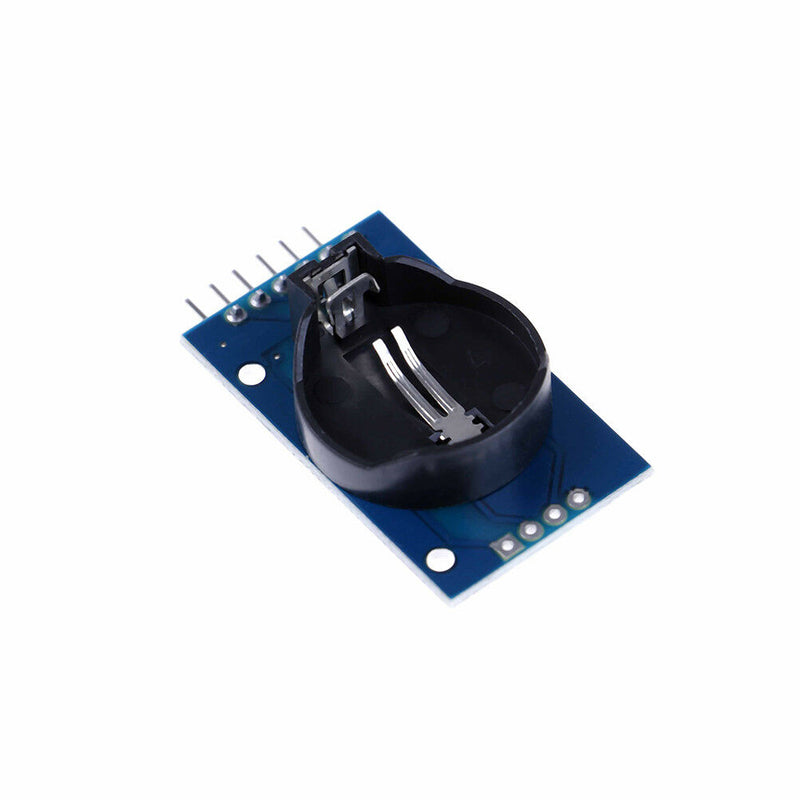

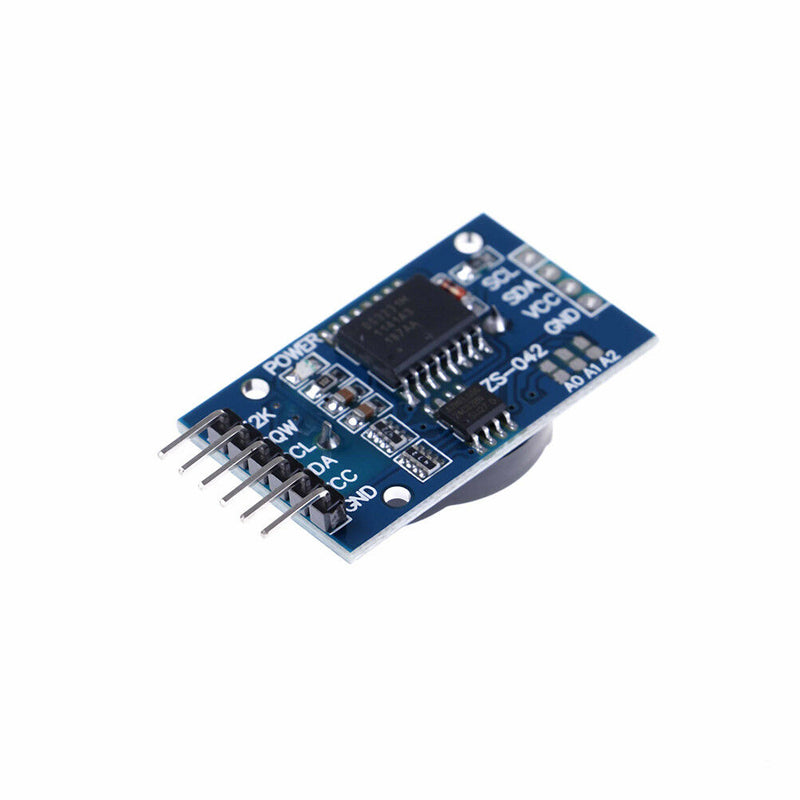

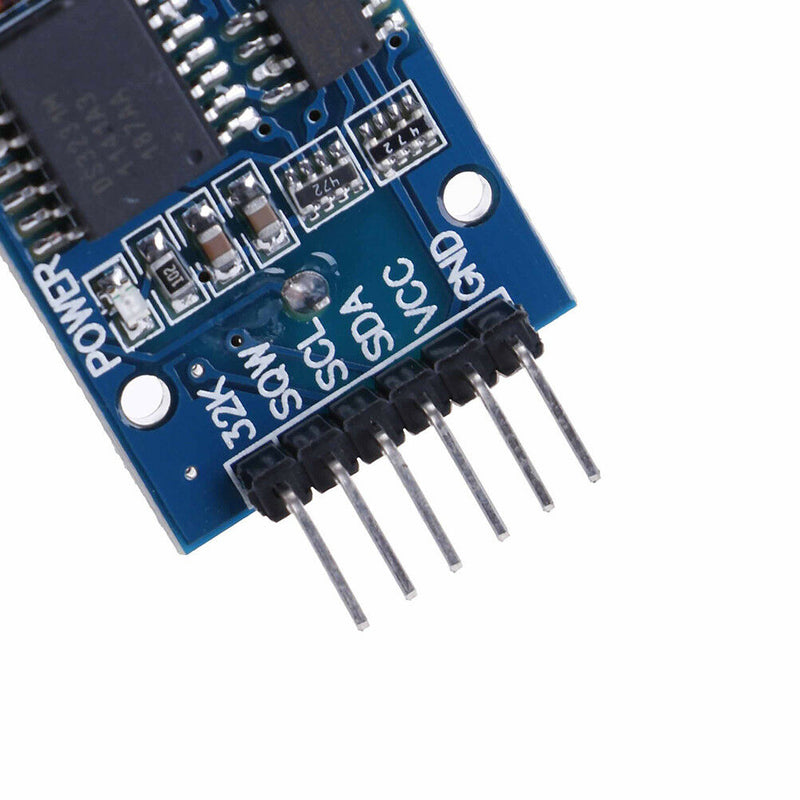

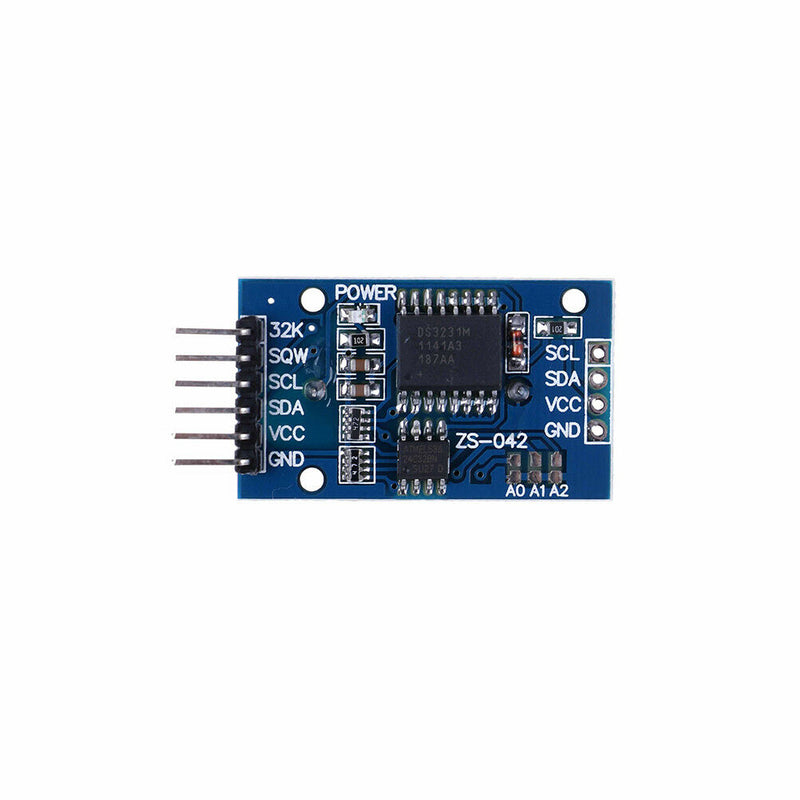

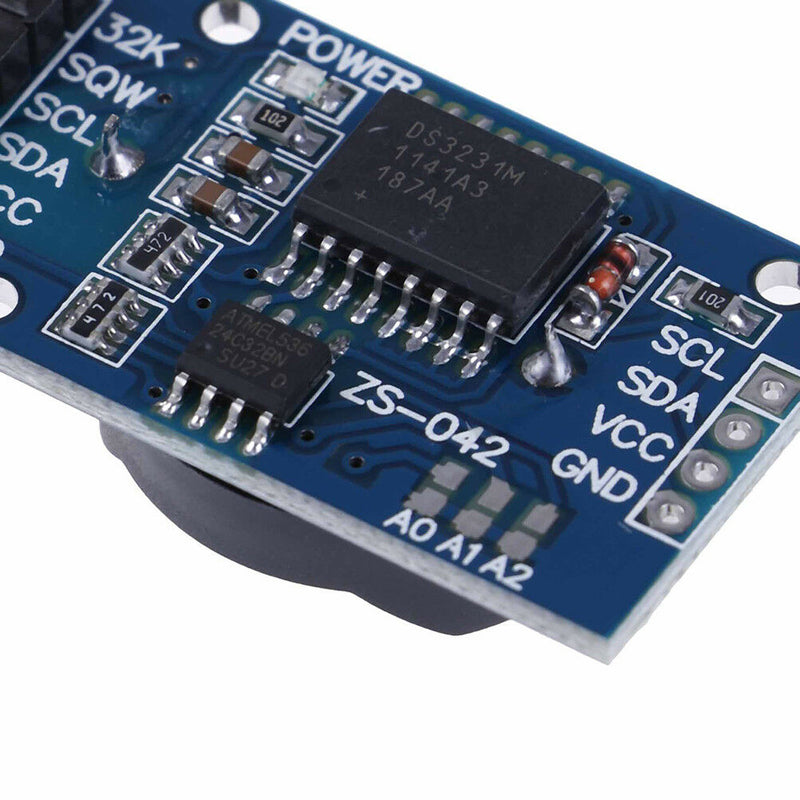

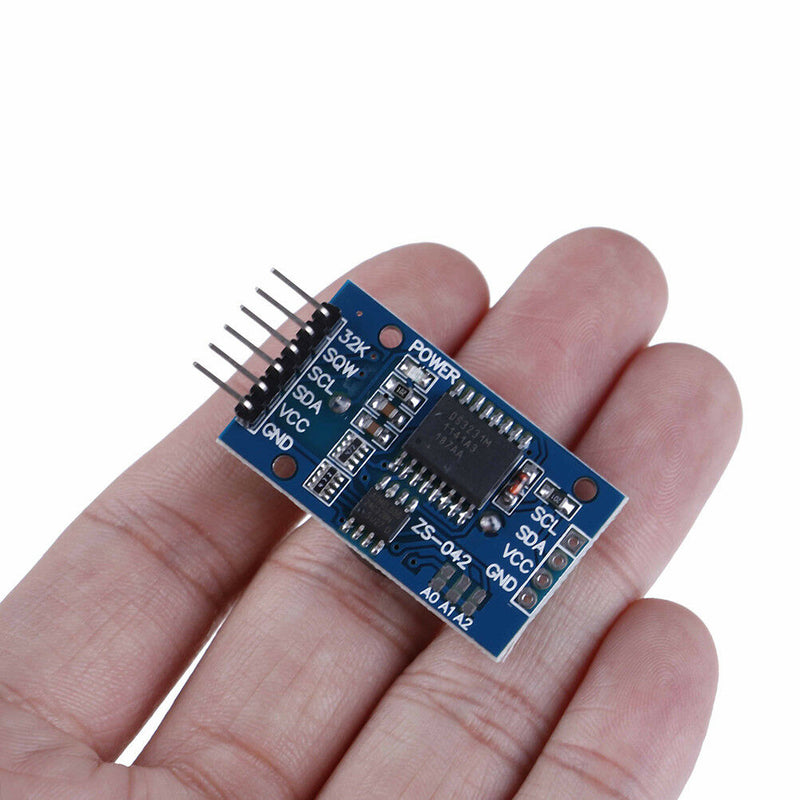

ITEM NAME:DS3231 AT24C32 IIC precision Real time clock module memory module Arduino JR Product descriptionï ¼Å¡ This module don't have battery,please know it DS3231 is a low-cost, extremely accurate I2C real-time clock (RTC), with an integrated temperature-compensated crystal oscillator (TCXO) and crystal. The device incorporates a battery input, disconnect the main power supply and maintains accurate timekeeping. Integrated oscillator improve long-term accuracy of the device and reduces the number of components of the production line. The DS3231 is available in commercial and industrial temperature ranges, using a 16-pin 300mil SO package. RTC maintains seconds, minutes, hours, day, date, month, and year information. Less than 31 days of the month, the end date will be automatically adjusted, including corrections for leap year. The clock operates in either the 24 hours or band / AM / PM indication of the 12-hour format. Provides two configurable alarm clock and a calendar can be set to a square wave output. Address and data are transferred serially through an I2C.If the main power failure, the device can continue to provide accurate timing and temperature, performance is not affected. Clock chip: high-precision clock chip DS3231. Wiring instructions (with Arduino uno r3 for example).
