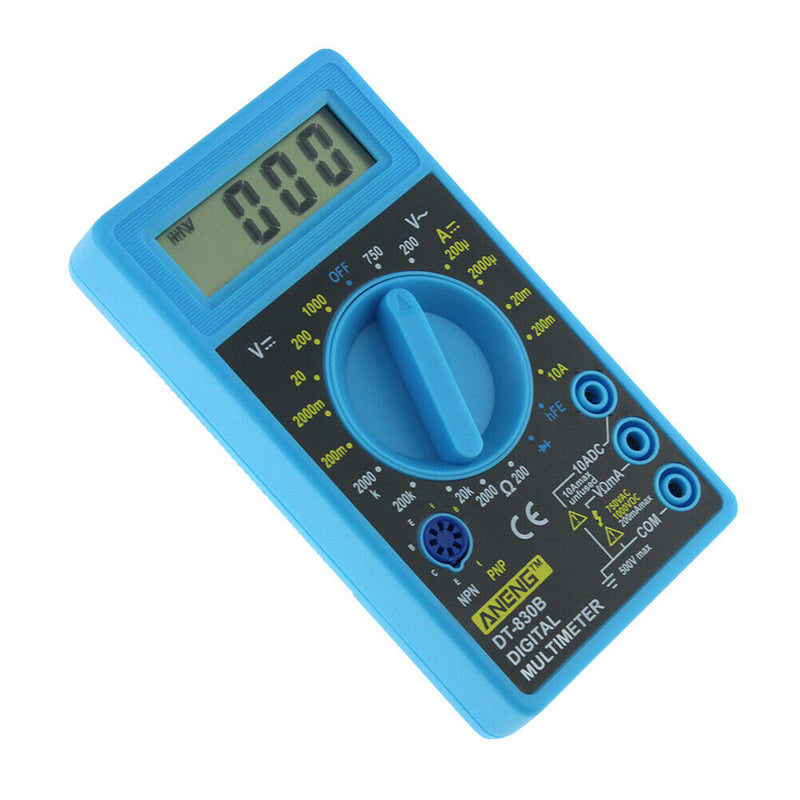

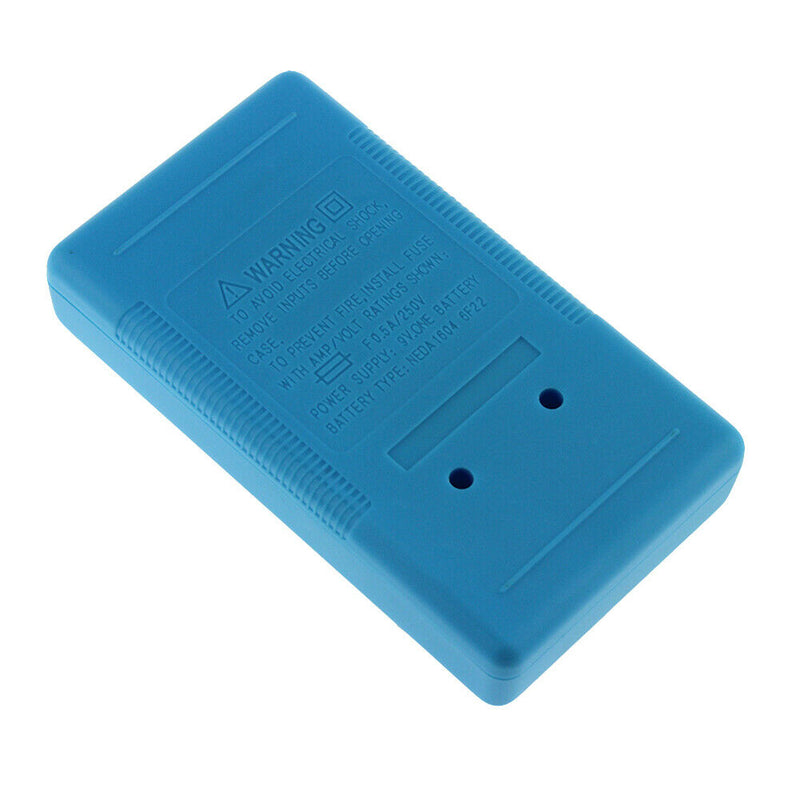

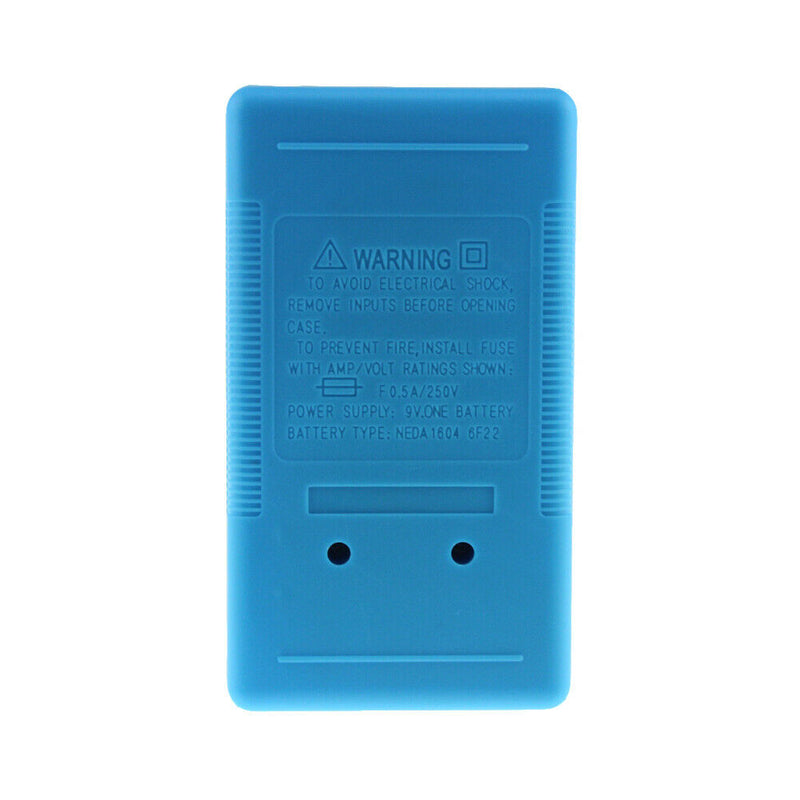

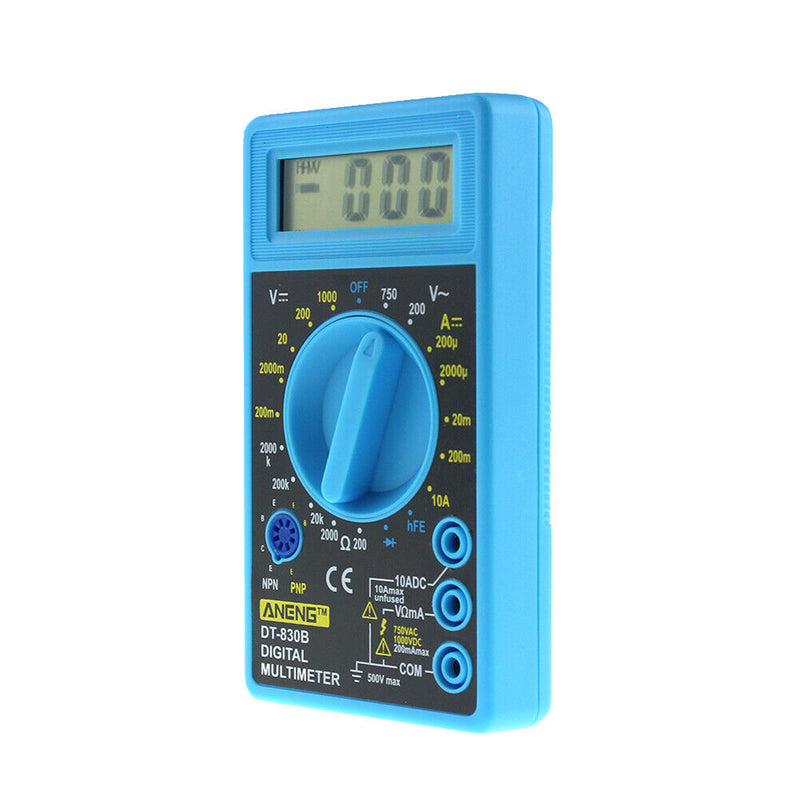

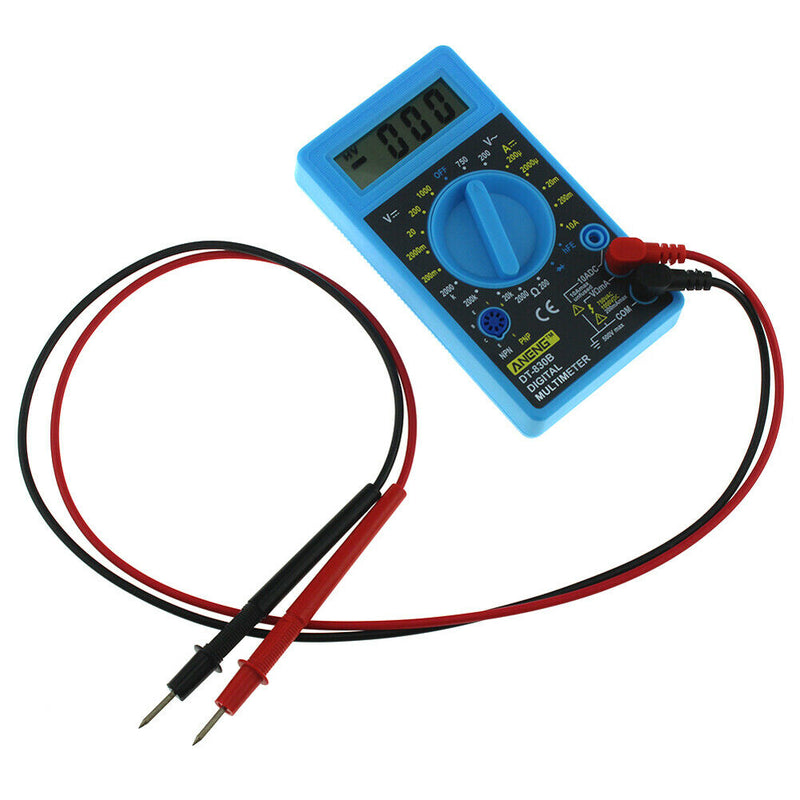

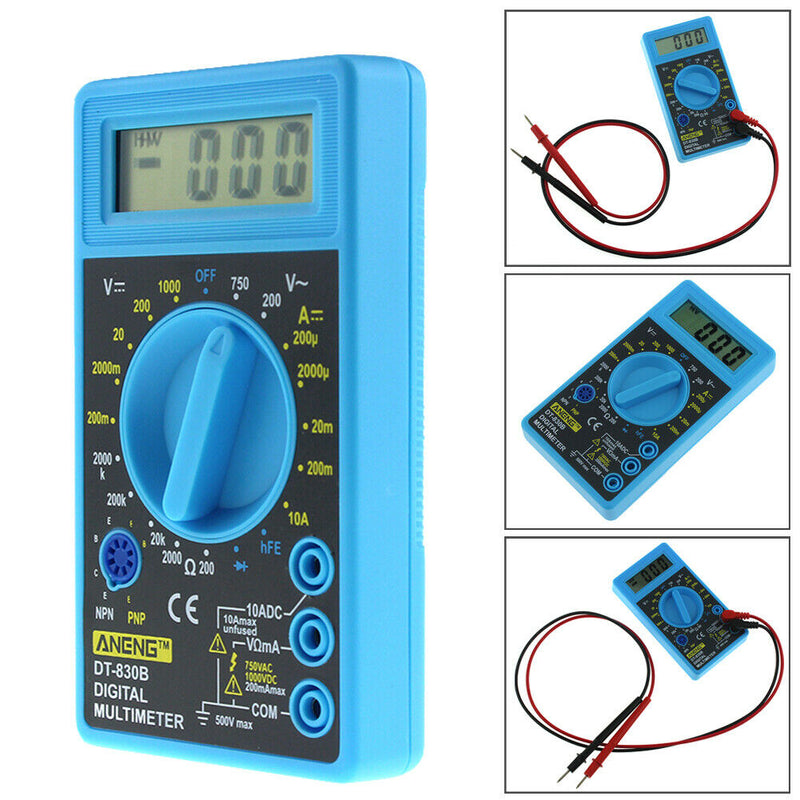

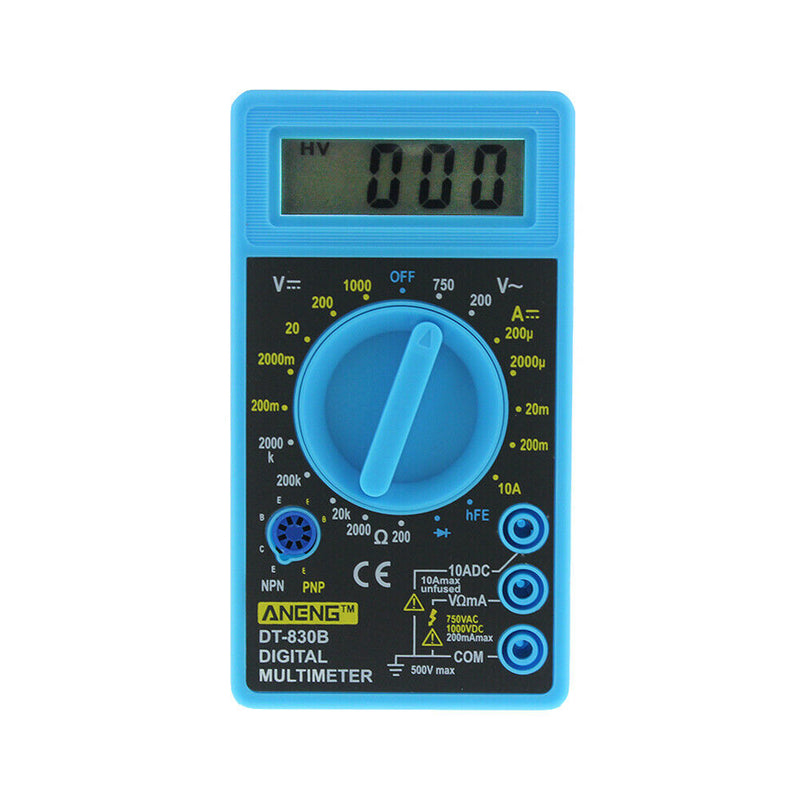

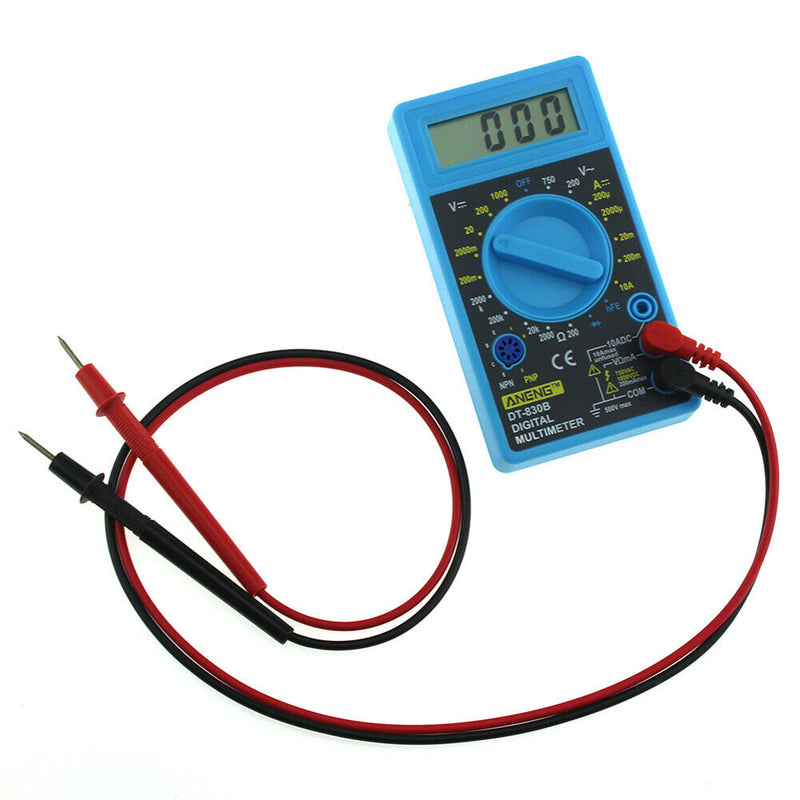

ITEM NAME:DT-830B Digital LCD Multimeter AC/DC 750/1000V Amp Volt Ohm Tester Meter Product Description Description: Description: A practical tool for electrician use. It is easy to operate and the readings indicated directly on the screen. It can be used to overhaul all kinds of circuit boards. It is also an ideal teaching instrument for students. Features: 3 1/2 digits, 7segment, 0.5"high LCD Display. Max display: 1999, Auto polarity display. Small and compact design. Overload protection on all ranges. Sampling 2~3 times readings per second. Diode assembly test / Transistor hFE test. Low battery voltage indication. Specification: Model: DT830B Measuring range: Max AC Current: 10A Max AC Voltage range: 1000V Max DC Voltage range: 750V Resistance Measurement: 200 Ohm-2000K Ohm range Power Supply: 9V Battery (Not Included Here) Color: Blue Scale degree & Accuracy: DC Voltage: 200mV/100uV; 2000mV/1mV; 20V/10mV; 200V/100mV  ±(0.5%+2) ; 1000V/1V  ±(0.8%+2) AC Voltage: 200V/100mV; 750V/1V  ±(1.2%+10) DC Current: 2000uA/1uA; 20mA/10uA  ±(1%+2); 200mA/100uA  ±(1.2%+2) ; 10A/10mA  ±(2%+2) Resistance: 200ÃŽ ©/0.1ÃŽ ©; 2000ÃŽ ©/1ÃŽ ©; 20KÃŽ ©/10ÃŽ ©; 200KÃŽ ©,100ÃŽ ©Ã‚  ±(0.8%+2) ; 2000KÃŽ ©/1000ÃŽ ©  ±(1%+2) Accuracy:  ±3% Size: approx. 120*68*20mm Weight: approx. 90g Please note: It is manual measurement, there may be 1-3mm error. And item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.hope understanding. Included: 1 x Digital Multimeter 2 x Test Lead Set 1 x User Manual.Max AC Current: 10A. DC Current: 2000uA/1uA; 20mA/10uA  ±(1%+2); 200mA/100uA  ±(1.2%+2) ; 10A/10mA  ±(2%+2). Scale degree & Accuracy If item is defective after 3 months, you can still send it back to us.
