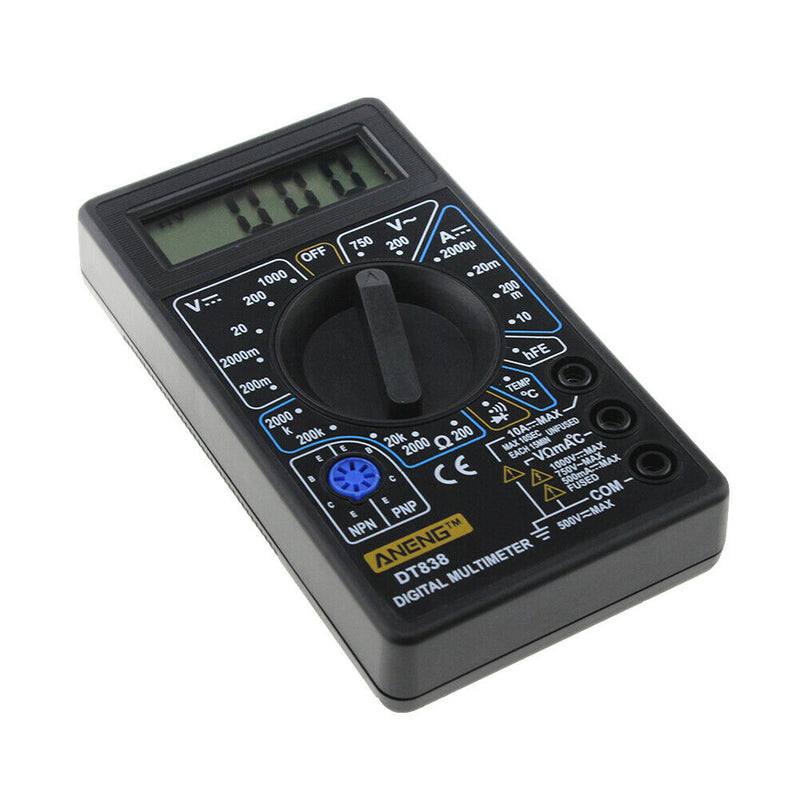

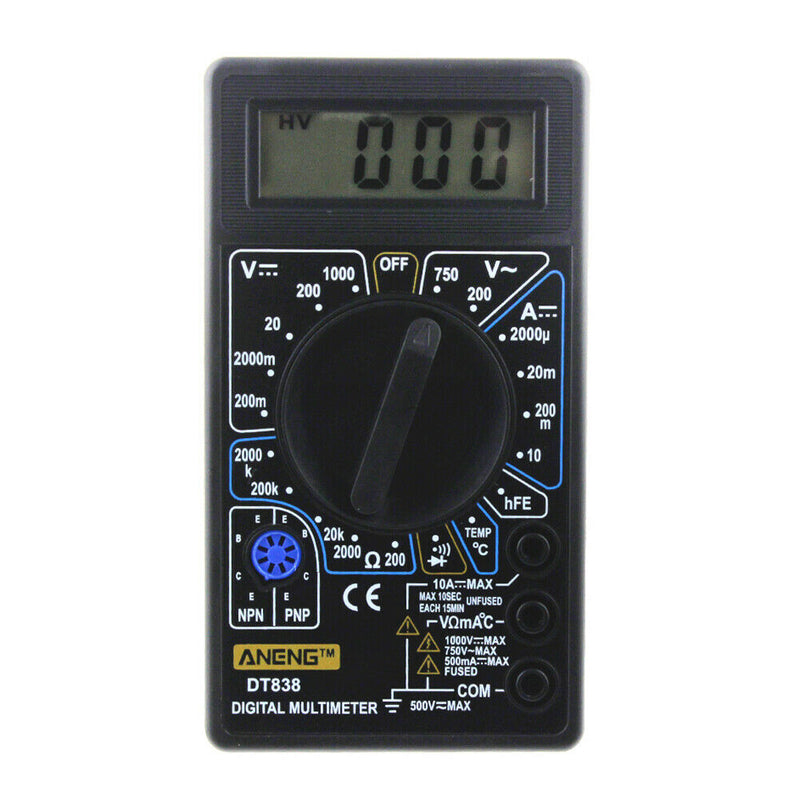

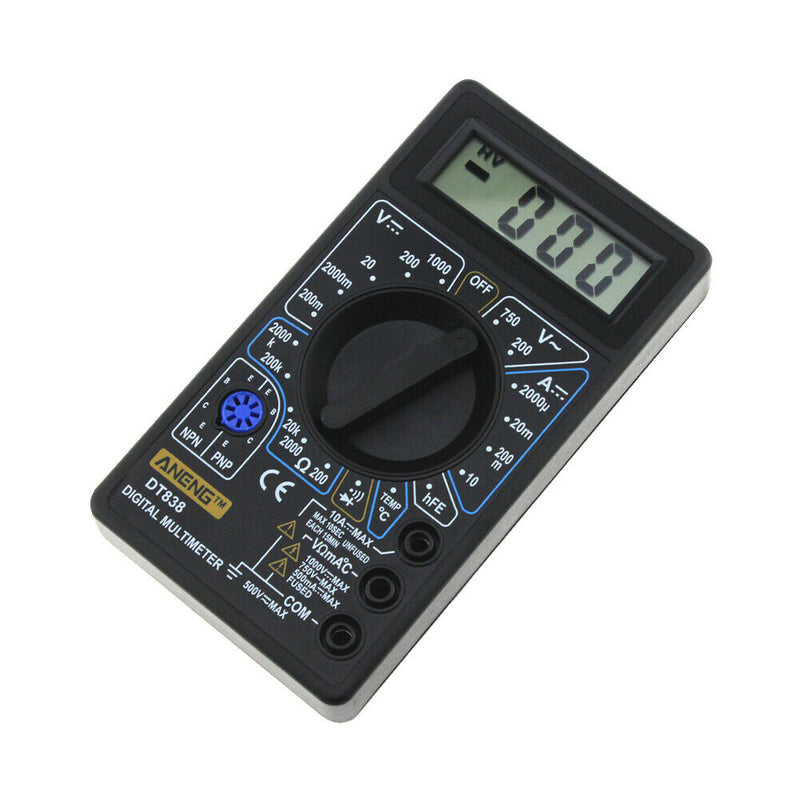

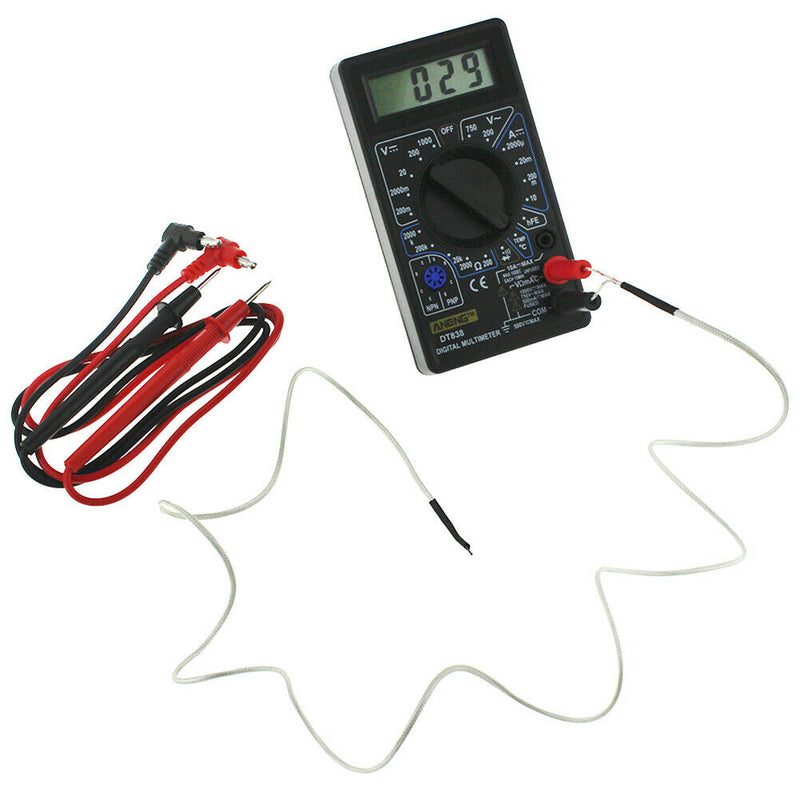

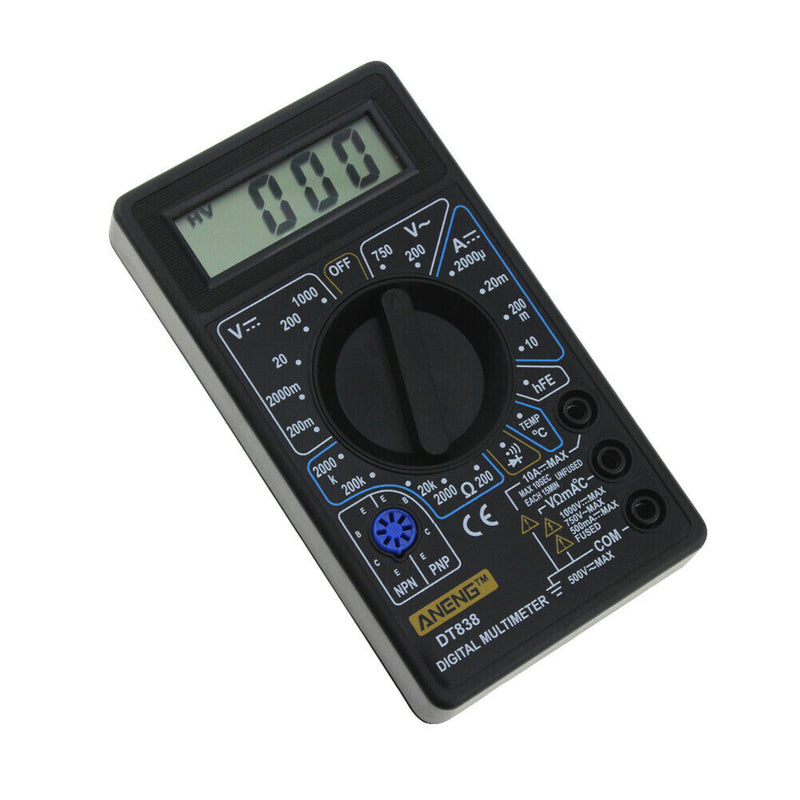

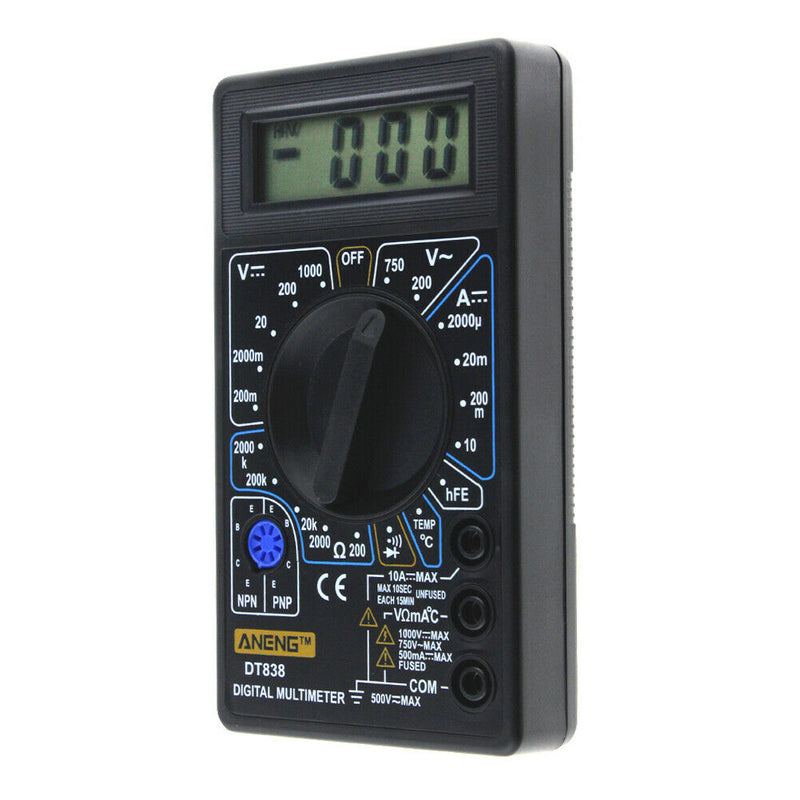

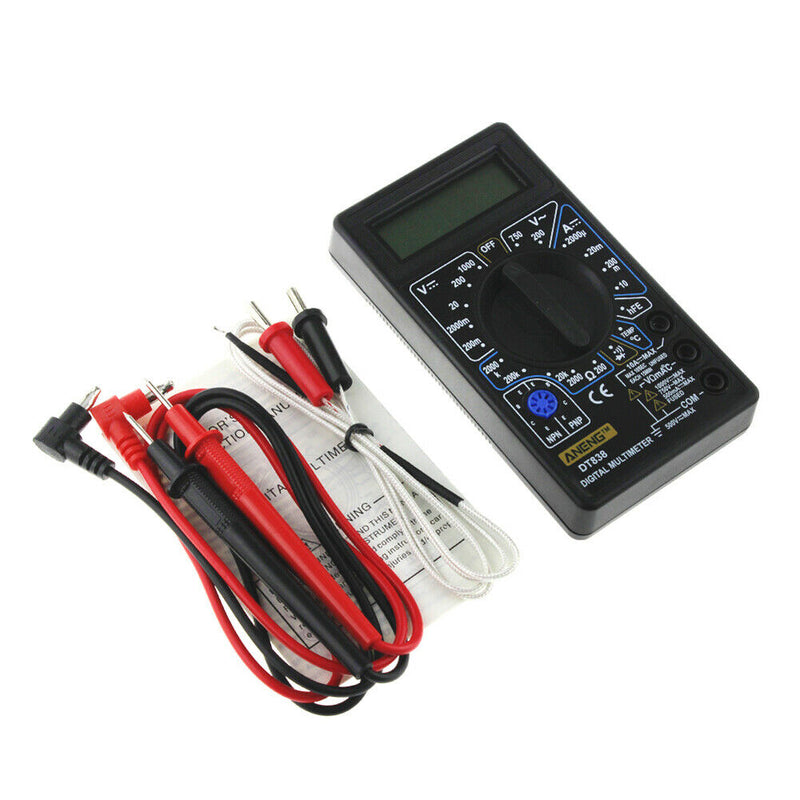

ITEM NAME:DT-838 LCD Digital Multimeter AC/DC 750/1000V Amp Volt Ohm Tem Tester Black A#S Product Description Description: A practical tool for electrician use. It is easy to operate and the readings indicated directly on the screen. It can be used to overhaul all kinds of circuit boards. It is also an ideal teaching instrument for students. Features: 3 1/2 digits, 7segment, 0.5"high LCD Display Max display: 1999, Auto polarity display Small and compact design Overload protection on all ranges Sampling 2~3 times readings per second Diode assembly test / Temperature test/Transistor HFE test Low battery voltage indication Specifications: Model: DT838 Measuring range: Max AC Current: 10A Max AC Voltage range: 1000V Max DC Voltage range: 750V Resistance Measurement: 200 Ohm-2000K Ohm range Temperature Test: -40-1000 ℃ Power Supply: 9V Battery (Not Included Here) Color: Black Size: Approx. 120 x 66 x 20mm (L*W*H) Scale degree & Accuracy: Showed as in the table: Function    Range    Resolution    Accuracy DC Voltage    200mV    100uV      ±(0.5%+2) 2000mV   1mV 20V        10mV 200V     100mV 1000V     1V        ±(0.8%+2) AC Voltage    200V      100mV     ±(1.2%+10) 750V      1V DC Current    2000uA    1uA       ±(1%+2) 20mA      10uA 200mA    100uA      ±(1.2%+2) 10A        10mA       ±(2%+2) Resistance    200ÃŽ ©       0.1ÃŽ ©       ±(0.8%+2) 2000ÃŽ ©     1ÃŽ © 20KÃŽ ©       10ÃŽ © 200KÃŽ ©      100ÃŽ © 2000KÃŽ ©    1000ÃŽ ©     ±(1%+2) Temperature -40-1000℃    1℃     ±3% Included: 1 x Digital Multimeter 2 x Test Lead 1 x Temperature Probe 1 x User Manual.1000V 1V  ±(0.8%+2). Max AC Current: 10A. Diode assembly test / Temperature test/Transistor HFE test. Temperature Test: -40-1000 ℃. DC Current 2000uA 1uA  ±(1%+2). Color: Black.
