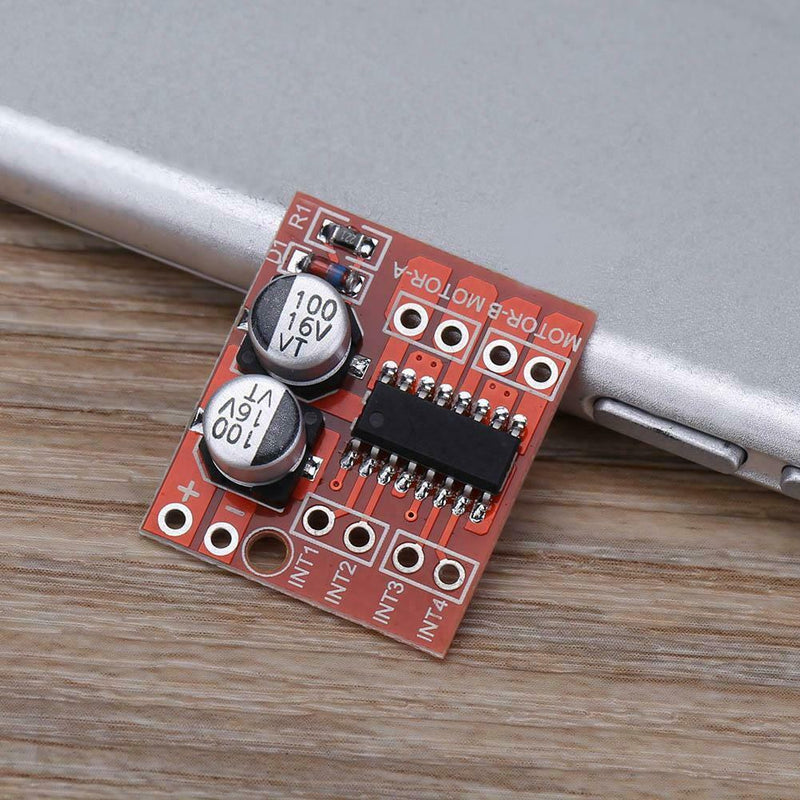

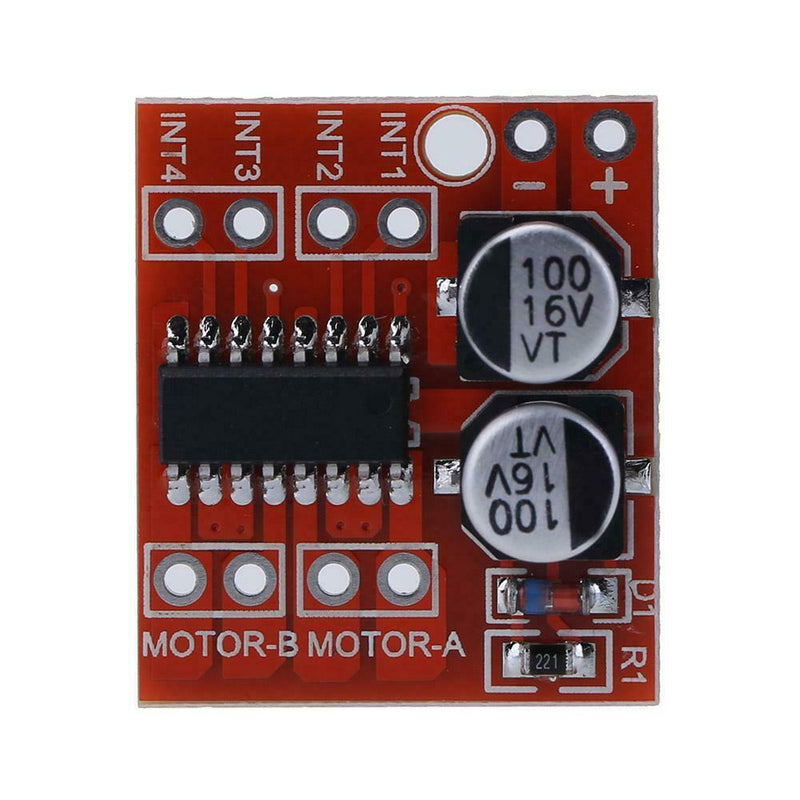

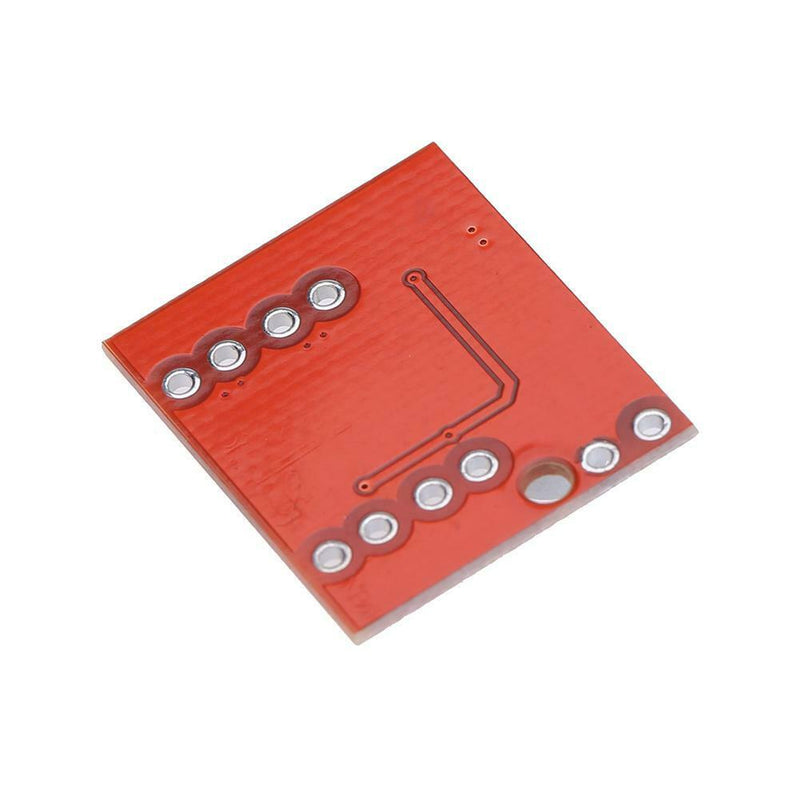

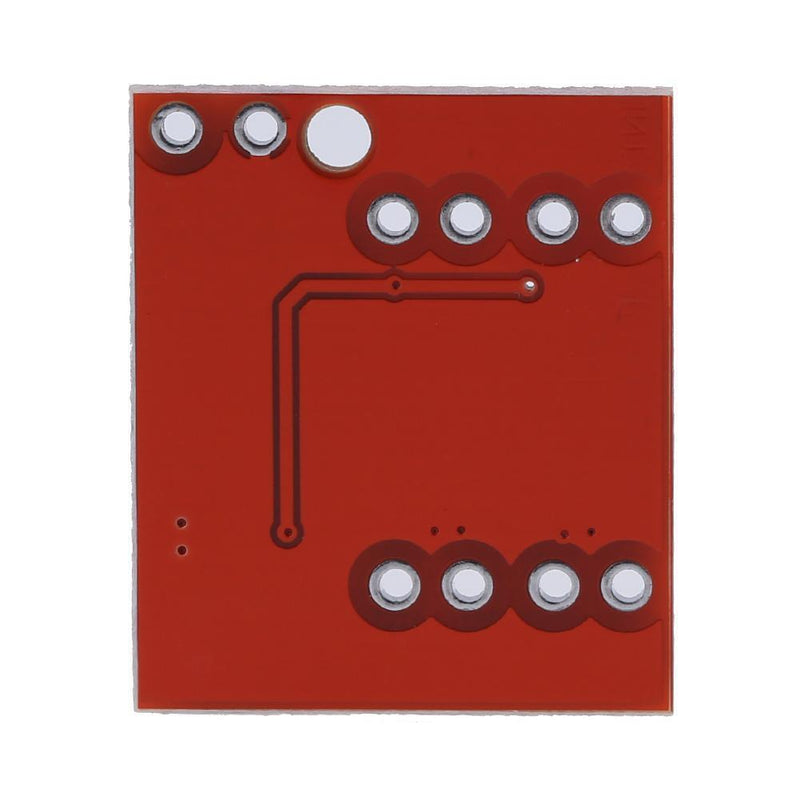

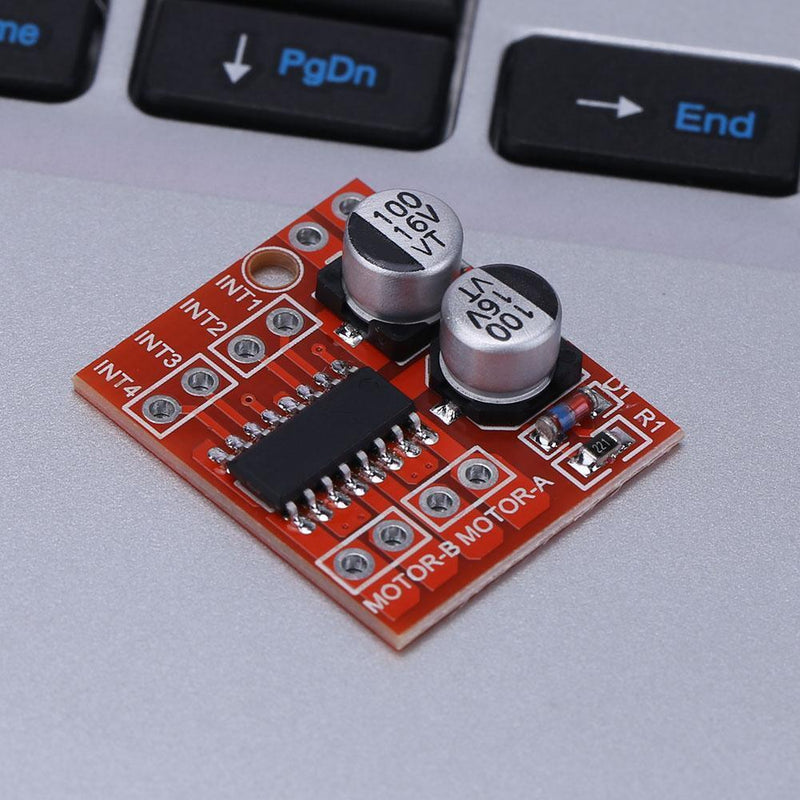

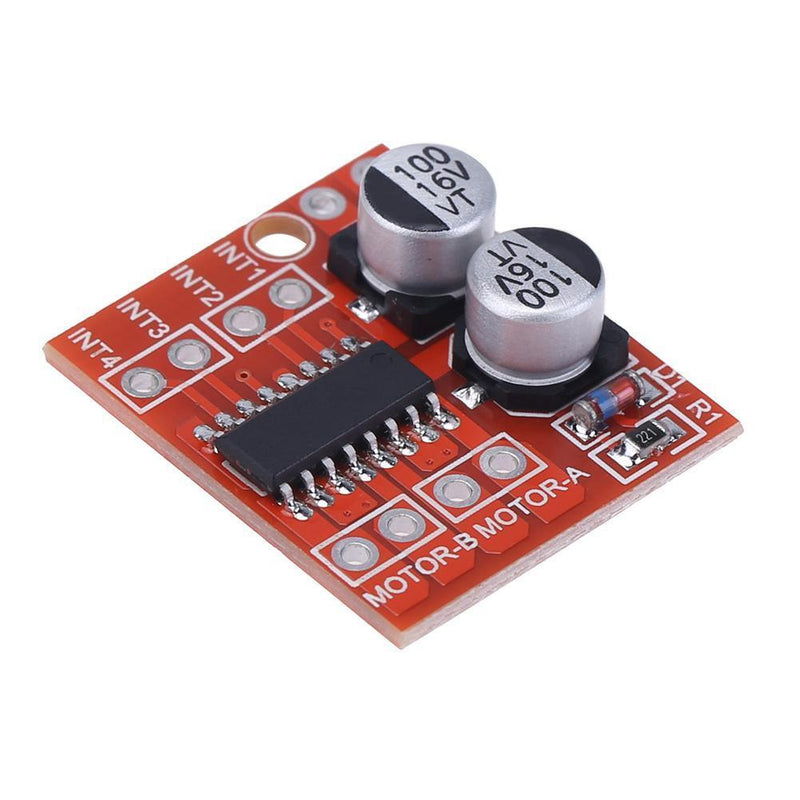

Item Name: Dual H Bridge 2 Channel DC Motor Driver Module for Arduino Raspberry Pi. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK
Features:
Imported professional motor driver chip, built-in low conduction switch, MOS tube, heating very little, no radiator, small size, energy saving, is the ideal choice for battery power supply.
Dual 1.5A, peak current of 2.5A, built-in overheating protection circuit, do not be afraid of motor blocking, burning, automatically recovery after temperature drop. (smart cars voltage, current are all within the market.)
Small size, lightweight, standby current 0, is your ideal model choice.
Dual H bridge motor drives two DC motors or 1 4 wire two phase stepper motor.
Single circuit operating current 1.5A, peak current up to 2.5A, low standby current. (less than 0.1uA)
Built in anti common conduction circuit, when the input is suspended, the motor will not malfunction.
Built in thermal protection circuit (TSD) with hysteresis effect, no need to worry about motor blocking.
Super small size, suitable for assembly and car.
Specification:
Module Power Supply Voltage: 2V-10V
Signal Input Voltage: 1.8-7V
Product Size: approx. 24.7 X 21 X 5 mm/0.97 X 0.83 X 0.2 in
Installation Hole Diameter: 2 mm
Weight: approx. 5 g
