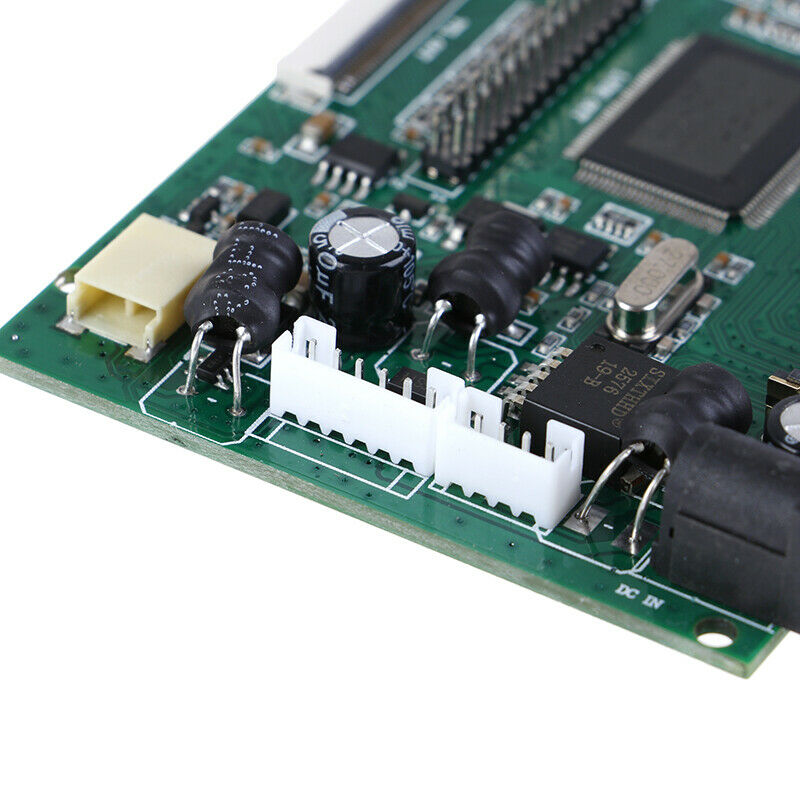

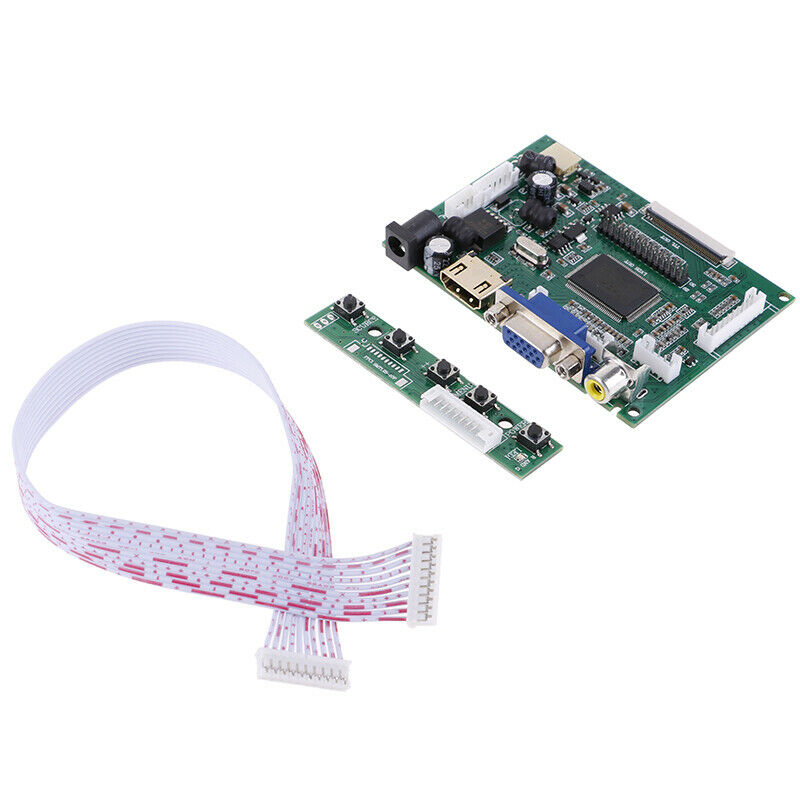

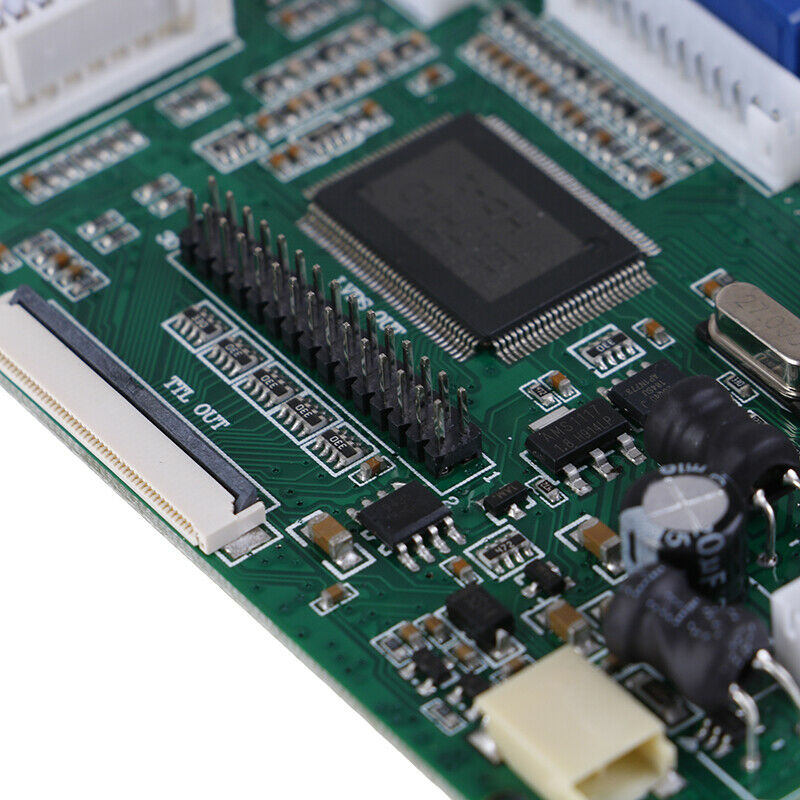

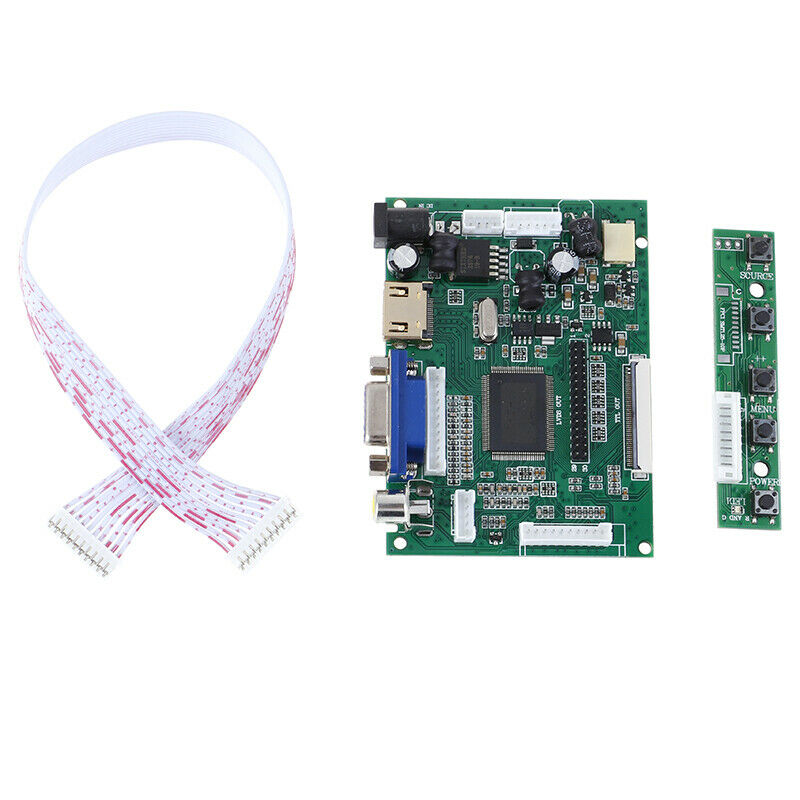

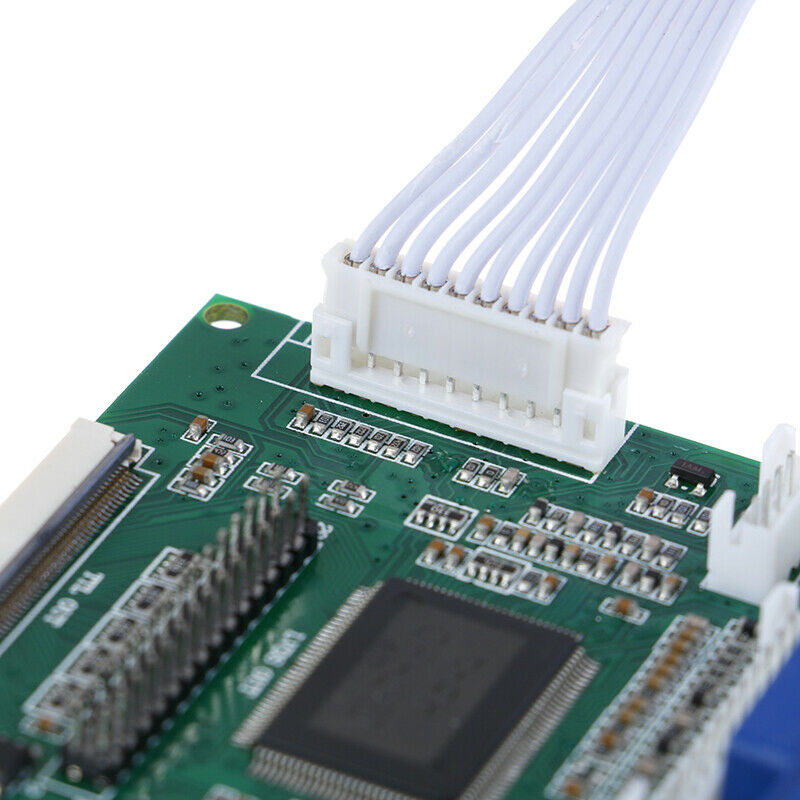

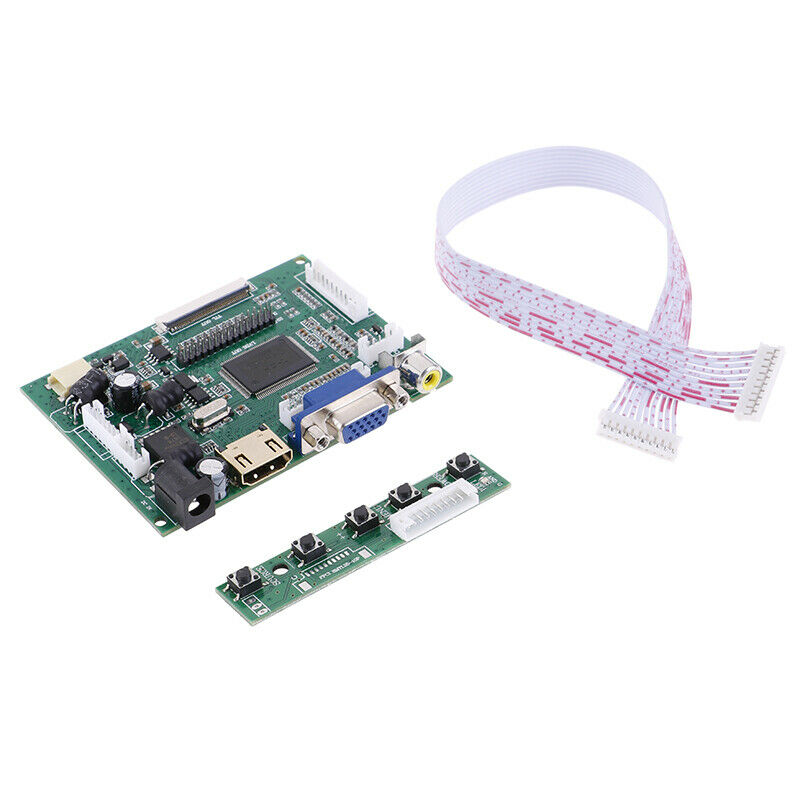

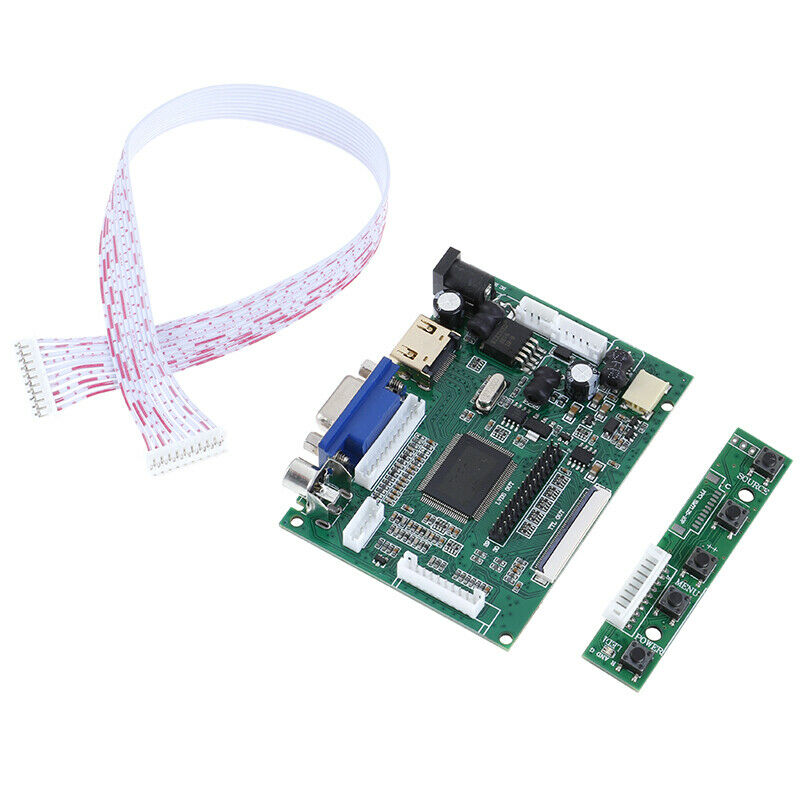

ITEM NAME:HDMI VGA 2AV LVDS LCD Display Controller Board Pi Kit for LCD Monitor FT Product Features: 1.1-way VGA signal input 2.2 channel AV signal input 3.1 channel HDMI signal input and support of the IC is HDMI1.1 / 1.2 / 1.3 4.1-way reversing signal input 5. Support wide voltage input, and can work in between 5V-24V, 6. Standard backlight 6PIN, interface, external pressure plate 7. The integrated LCD driver board LED backlight driver board road, 8. Standard LVDS signal output, can support single 6, 8 single, double 6, 8, etc. LCD double standard LVDS signals, but only supports Screen LCD whose power supply is 3.3V 9. The standard key board interface, and supports dual color LED display 10. Support TTL signal output can support AT070TN92 AT065TN14 AT080TN52 AT090TN12 AT090TN10 AT070TN90 AT070TN93 AT070TN94 etc. Universal 50PIN interface, TTL LCD screen 11. Compatible with the company NO PCB800039 LCD adapter board that can support the following LCD screen EJ070NA01-1024X600 Resolution EJ080NA04B-1024X768 resolution ZJ070NA01, Universal 40PIN score type LCD 12. Compatible with the company's PCB800039L adapter board can also support China's LVDS10.1 60PIN-inch LCD screen,Other associated drive LCD specifications, please contact customer service 13. The driver board Maximum output display resolution, 1920X1080 over, 1440X900 resolution display, depending on the work required of the IC,increase heat sink to reduce the IC's operating temperature) 14. This IC, VGA section can be directly input YPBPR signals, through the program achieve 15. The driver board to increase the remote control function (through software) 16. The driver board can automatically detect and display the associated input voltage information ----- Note that this feature is a custom function, you need to contact my company Division of Technical Department 17. The driver board can support automatically detects the signal switch function - this function is a custom function 18. The driver board can be .Standard LVDS signal output, can support single 6, 8 single, double 6, 8, etc. 1.1-way VGA signal input. 3.1 channel HDMI signal input and support of the IC is HDMI1.1 / 1.2 / 1.3. This IC, VGA section can be directly input YPBPR signals, through the program achieve.
