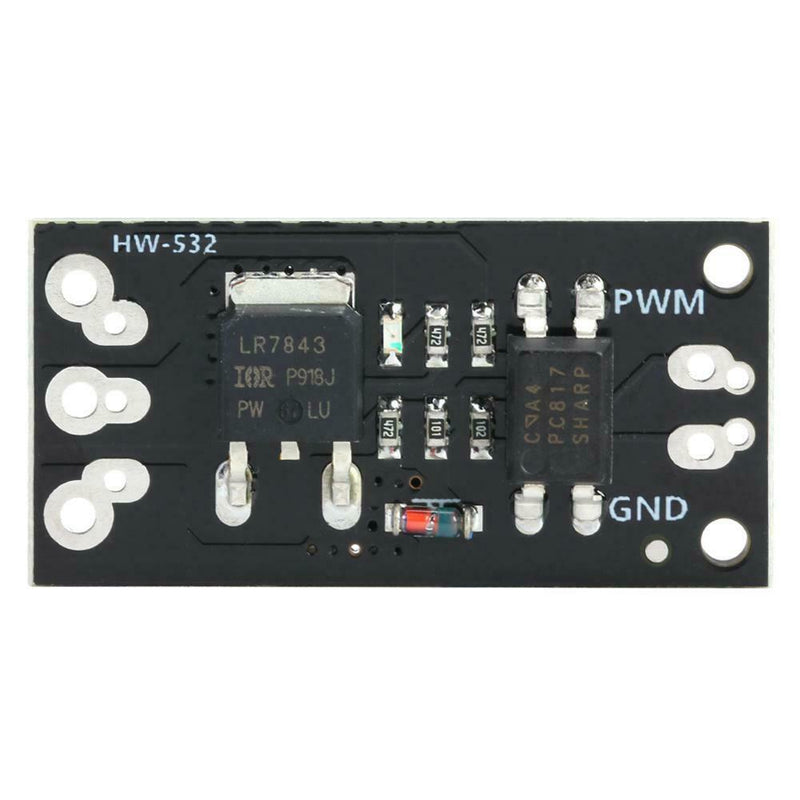

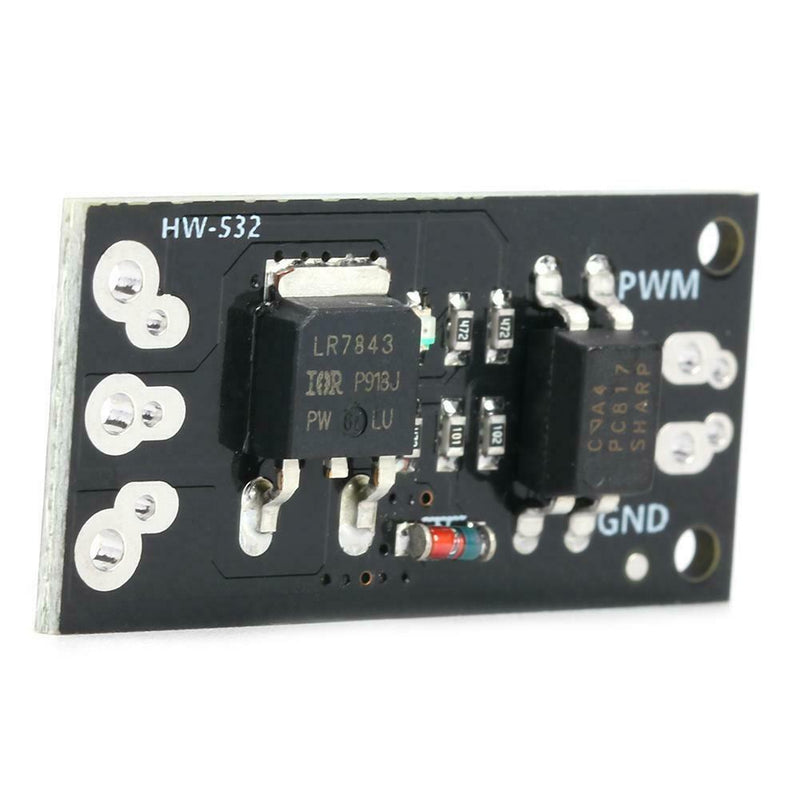

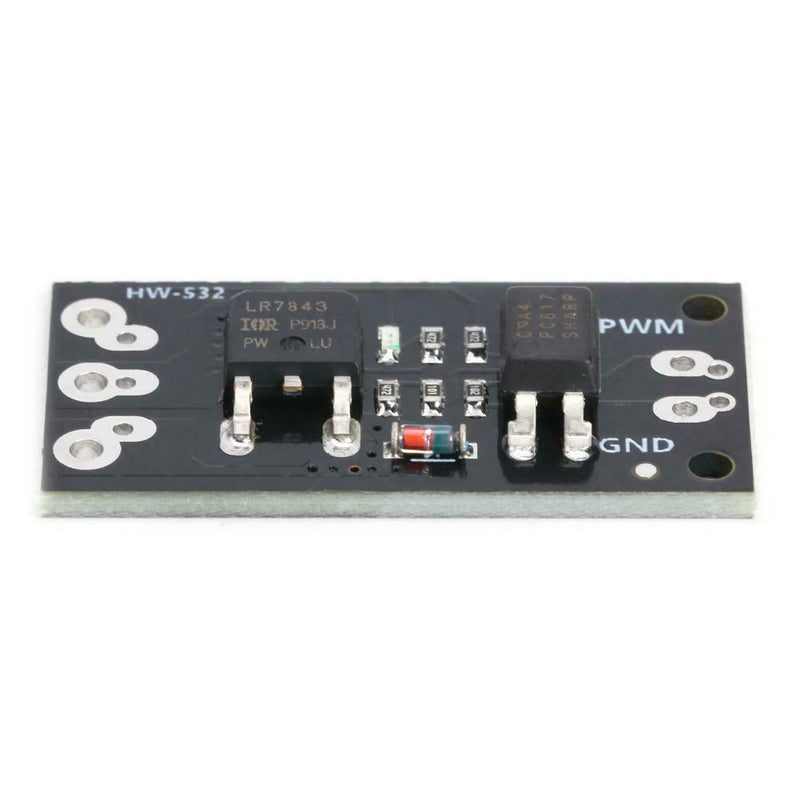

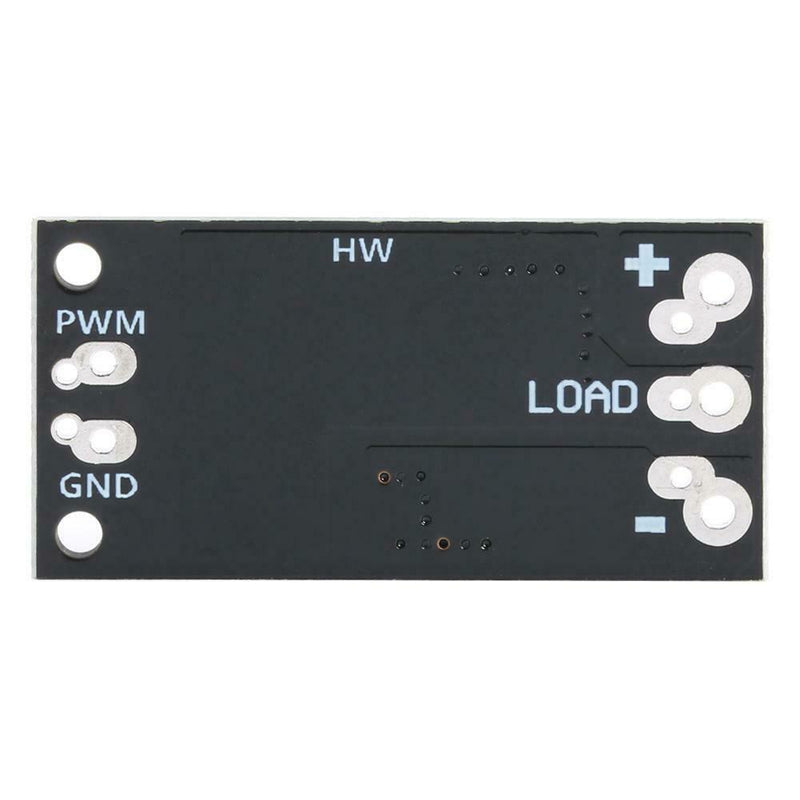

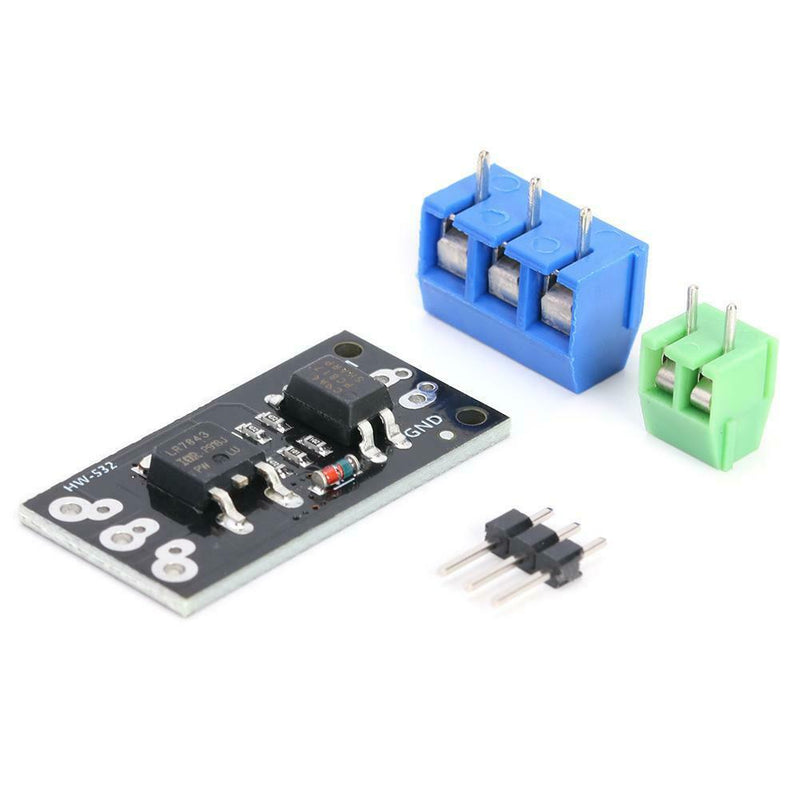

ITEM NAME:HW-532B LR7843 Isolated MOSFET MOS Tube FET Module Replacement Relay Board A#S Product Description Description: Feature: 1. Compatible with MCU and control board, 3V or 5V signal. 2. High level start, low level stop, PWM speed regulation. 3. It is widely used to control the start and stop of motor, solenoid valve and other mainstream equipment. 4. With optocoupler isolation, control signal and controlled equipment power supply isolation, greatly improving anti-interference. 5. PC817 linear optocoupler is used to transmit continuously changing analog voltage or current signals. Specification: Product Name: FET MODULE Product model: HW-532B MOS tube model: LR7843 Voltage regulation mode: PWM modulation Input voltage: DC5-30V Maximum current: 161A Package size: 80 * 60mm/3.14*2.36'' Warm Tips: 1. The current and supply voltage of the controlled equipment depend on the MOS tube model and specification. 2. Do not connect the positive and negative poles reversely, which will burn the module. 3. MCU output, high level, start, low level, stop, PWM, speed regulation. Note: Please allow 1-3mm differs due to manual measurement. Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding. Included: 1 X Isolated MOSFET MOS Tube FET Module.MOS tube model: LR7843. Included: 1 X Isolated MOSFET MOS Tube FET Module. Do not connect the positive and negative poles reversely, which will burn the module. High level start, low level stop, PWM speed regulation.
