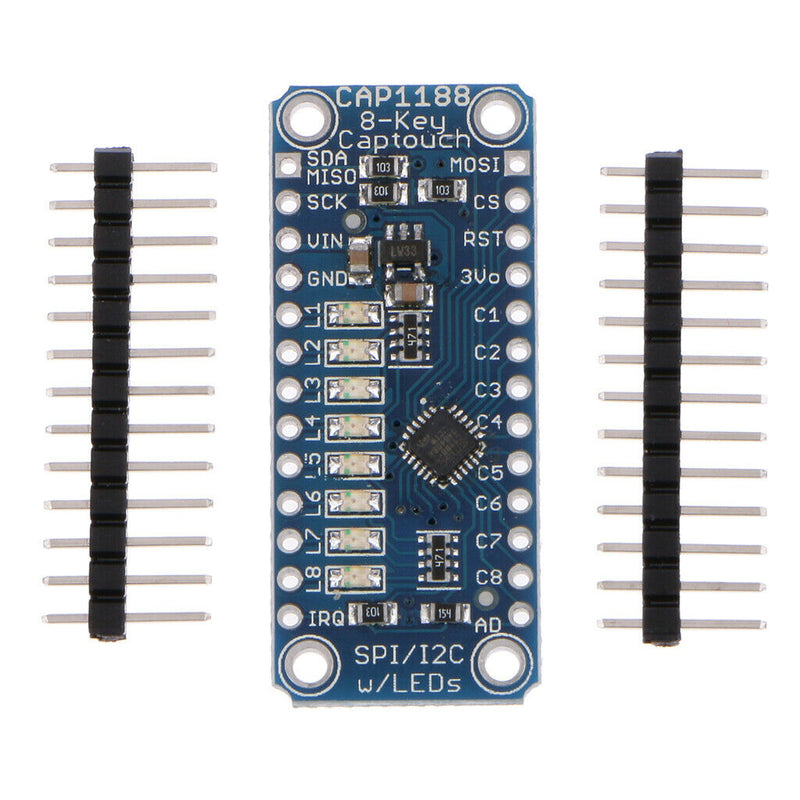

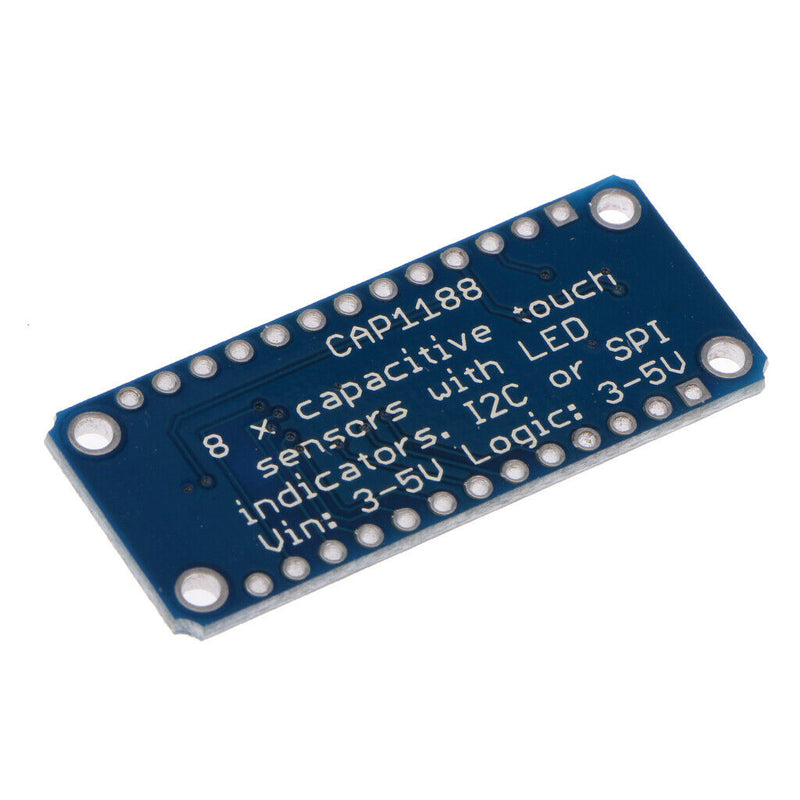

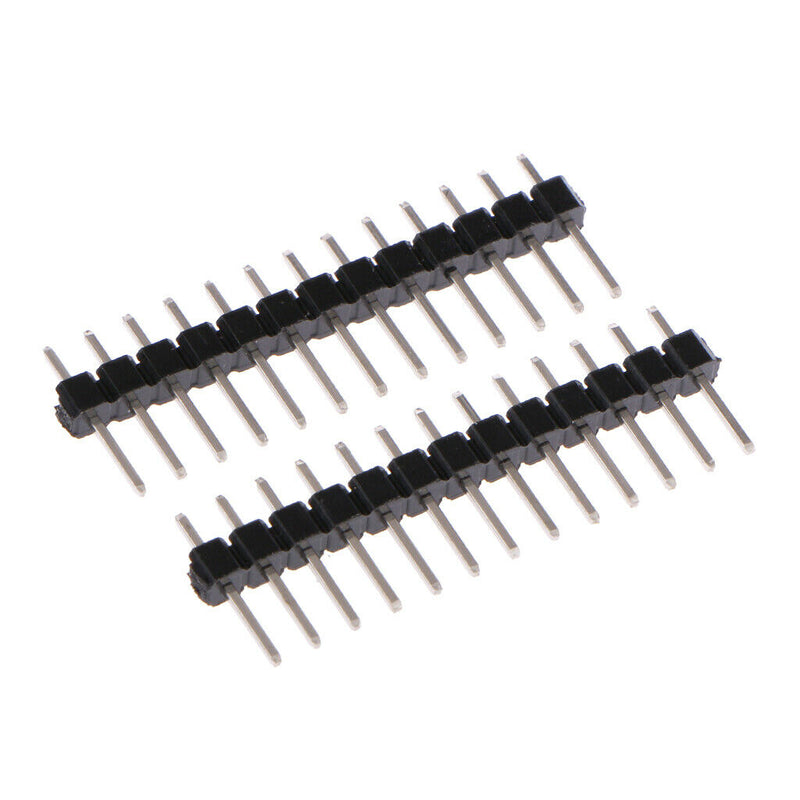

ITEM NAME:Industries CAP1188-8-Key Capacitive Touch Sensor Breakout 12C For Description: Capacitive touch sensor Requires soldering of header pins Perfect for your project Comes with a fully assembled board, and a stick of 0.1" header so you can plug it into a breadboard. Using this chip is a lot easier than doing the capacitive sensing with analog inputs The CAP1188 has support for both I2C and SPI, so it easy to use with any microcontroller If you are using I2C, you can select one of 5 addresses, for a total of 40 capacitive touch pads on one I2C 2-wire bus Sensor Type: Capacitive Touch Sensing range: 8 button / key interfaces Sensitivity: I2C, SPI Voltage - Supply: 3 V ~ 5V Material: Plastic Size: Approx.40*18*4mm Add lots of touch sensors to your next microcontroller project with this easy-to-use 8-channel capacitive touch sensor breakout board, starring the CAP1188. This chip can handle up to 8 individual touch pads, and has a very nice feature that makes it stand out for us: it will light up the 8 onboard LEDs when the matching touch sensor fires to help you debug your sensor setup Package includes: 1xCapacitive touch sensor 2xPin Header SKU: DMO0011849151002637.This chip can handle up to 8 individual touch pads, and has a very nice feature that makes it stand out for us: it will light up the 8 onboard LEDs when the matching touch sensor fires to help you debug your sensor setup.
