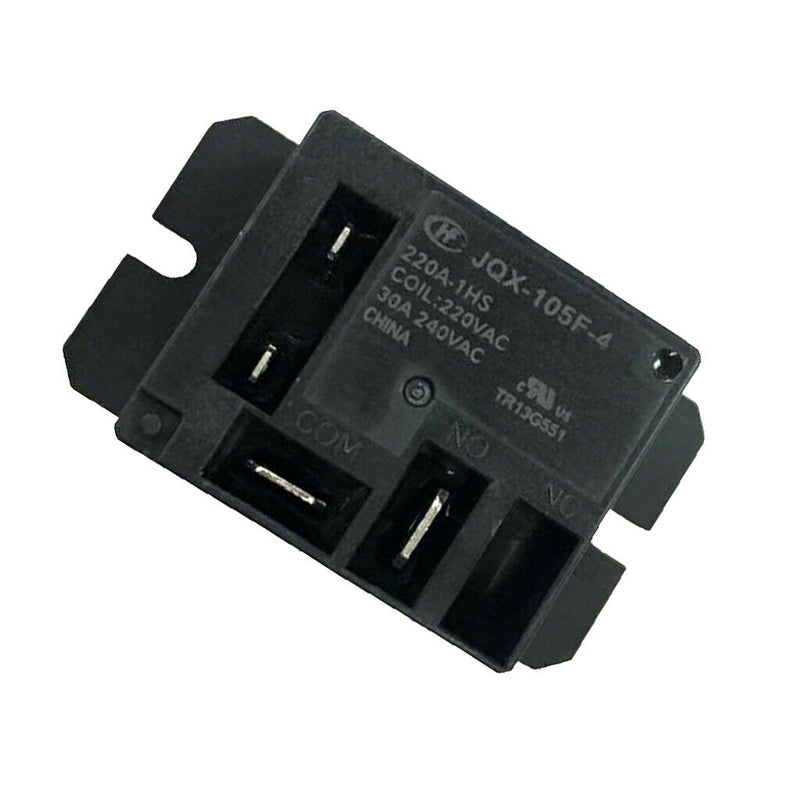

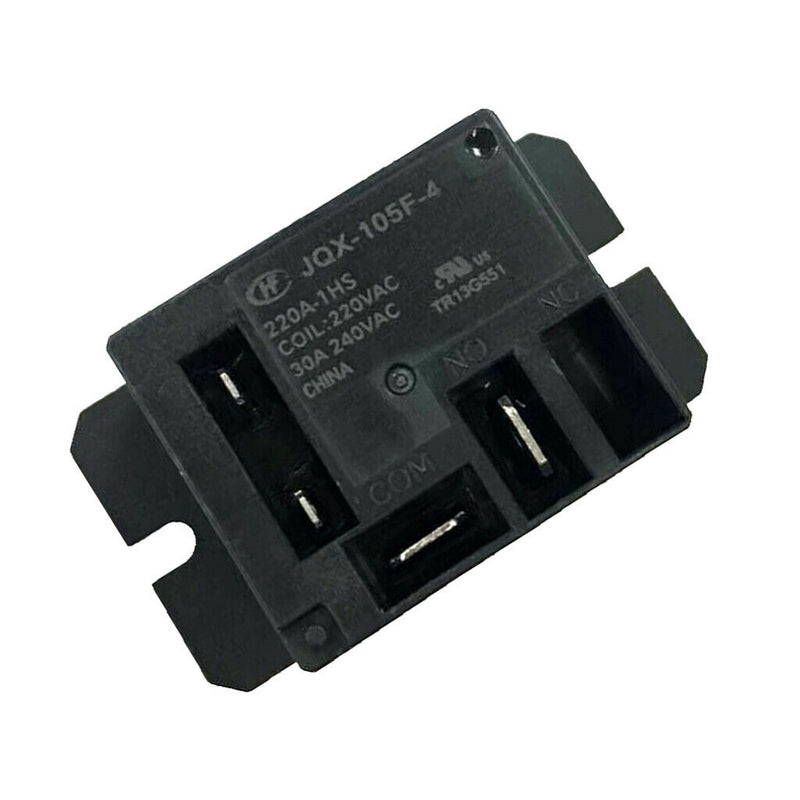

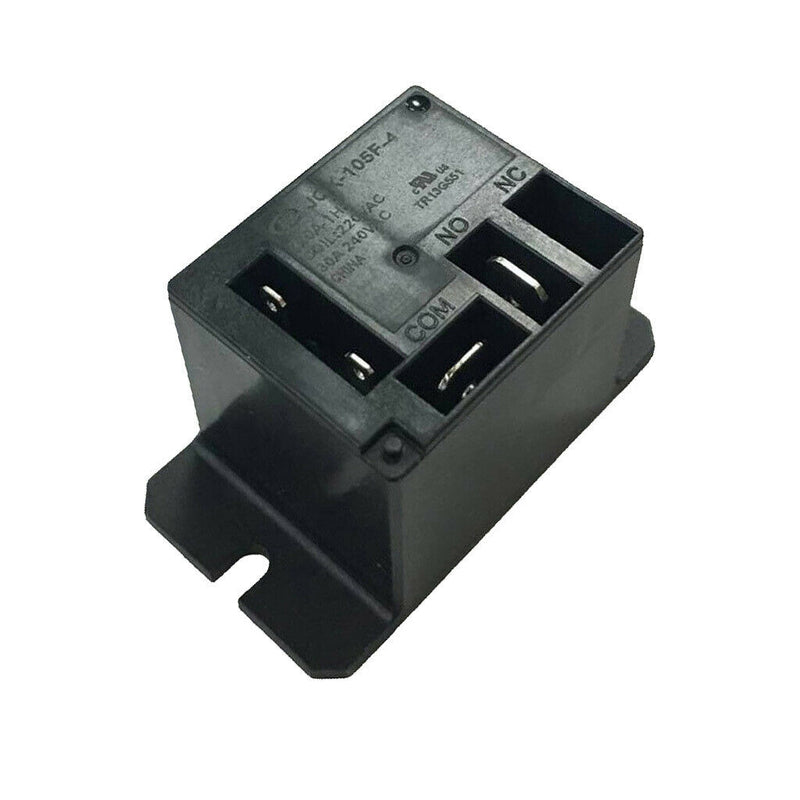

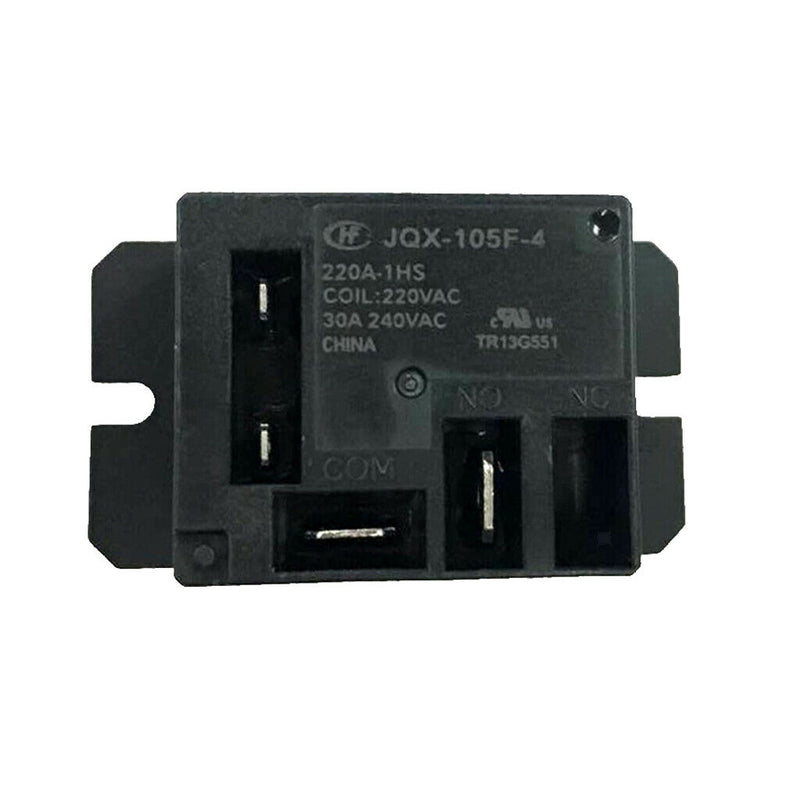

ITEM NAME:JQX-105F-4 220A-1HS Mini High Power Relay 220VAC/30A Description: 30A contact switching capability Withstand voltage between the contacts and the coil is 2.5kV Printed board terminals, coils and contacts for fast connection Environmental-friendly (RoHS certificated), Class F coil insulation Size: 50.2 x 27.5 x 27.8 mm Specification: Insulation Resistance: 1000MÃŽ © (500VDC) Withstand Voltage: between coil and contacts 2500VAC 1min between disconnect contacts 1500VAC 1min Movement Time: ≠¤15ms Release Time: ≠¤10ms Impact: Stability 100m/s ²(10g) Intensity 1000m/s ² (100g) Vibration: 10Hz~55Hz 1.5mm Double-amplitude Weight: About 36g Package Includes: 1 Piece Mini Power Relay SKU: DMO0011891473001513.1 Piece Mini Power Relay. Intensity 1000m/s ² (100g). Insulation Resistance: 1000MÃŽ © (500VDC). SKU: DMO0011891473001513. Weight: About 36g. Vibration: 10Hz~55Hz 1.5mm Double-amplitude.
