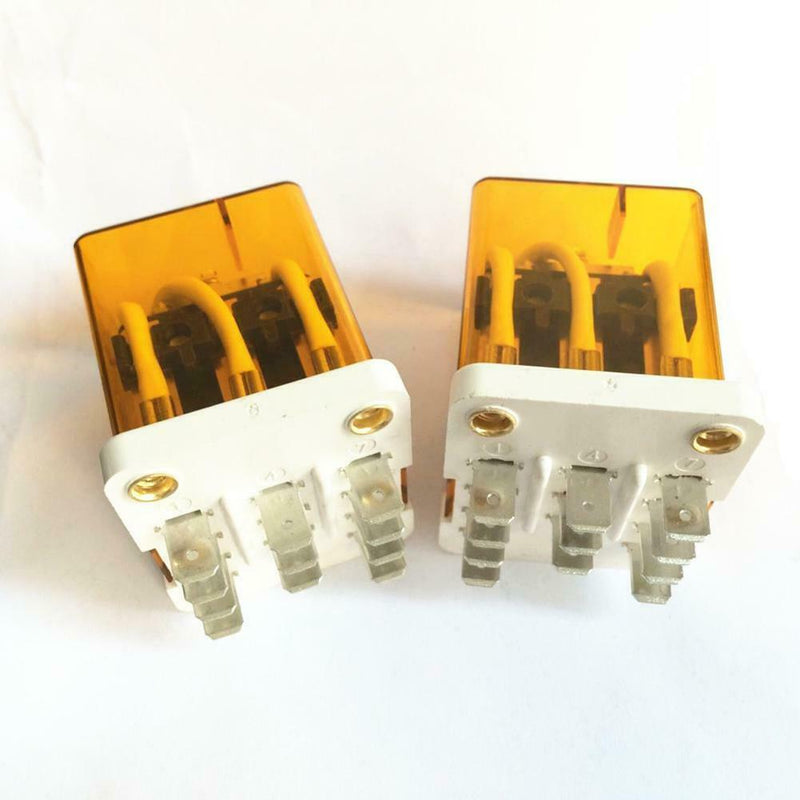

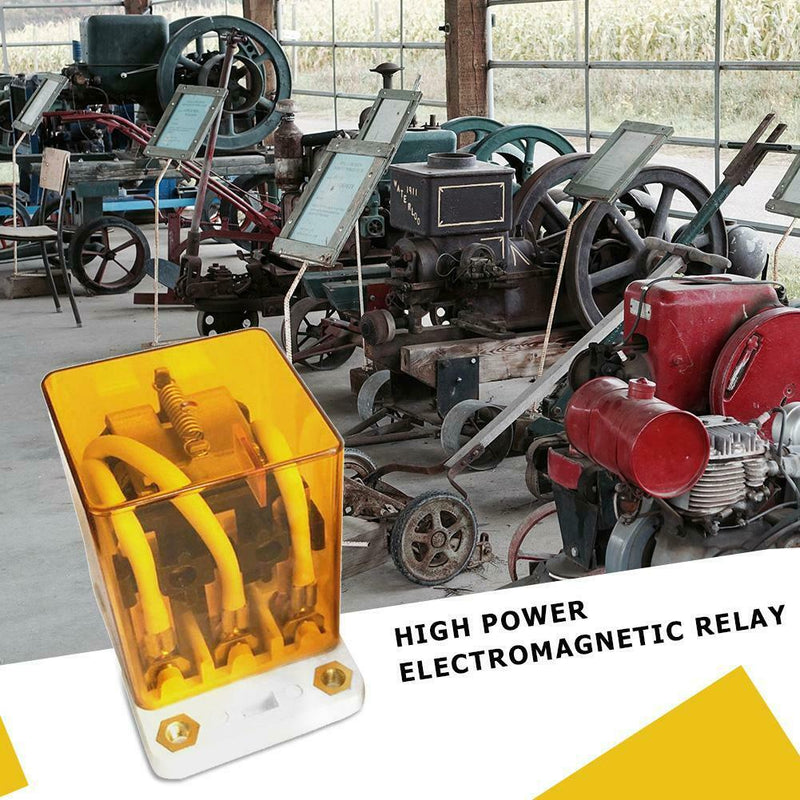

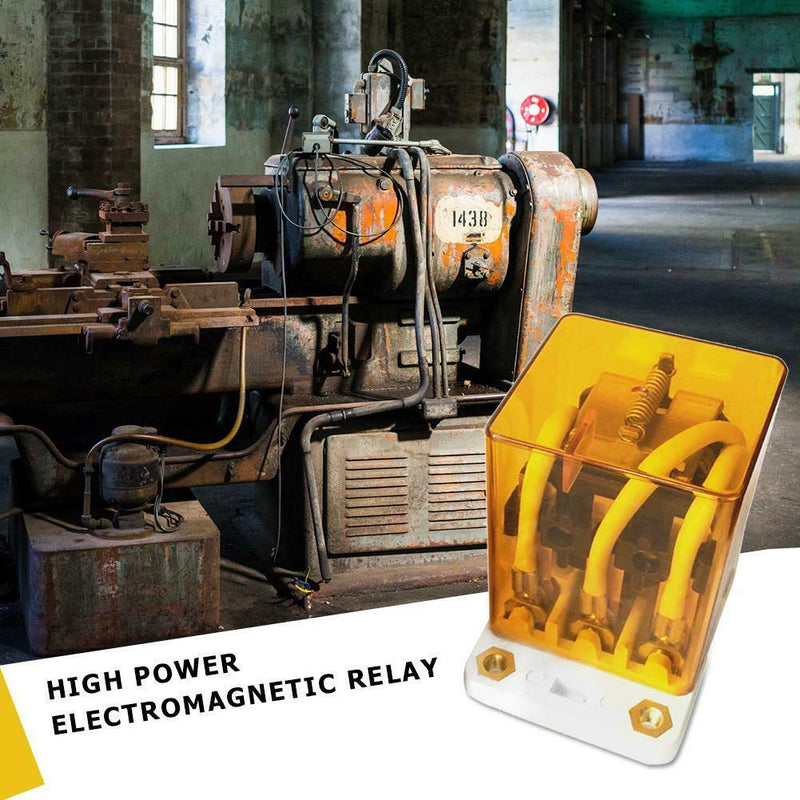

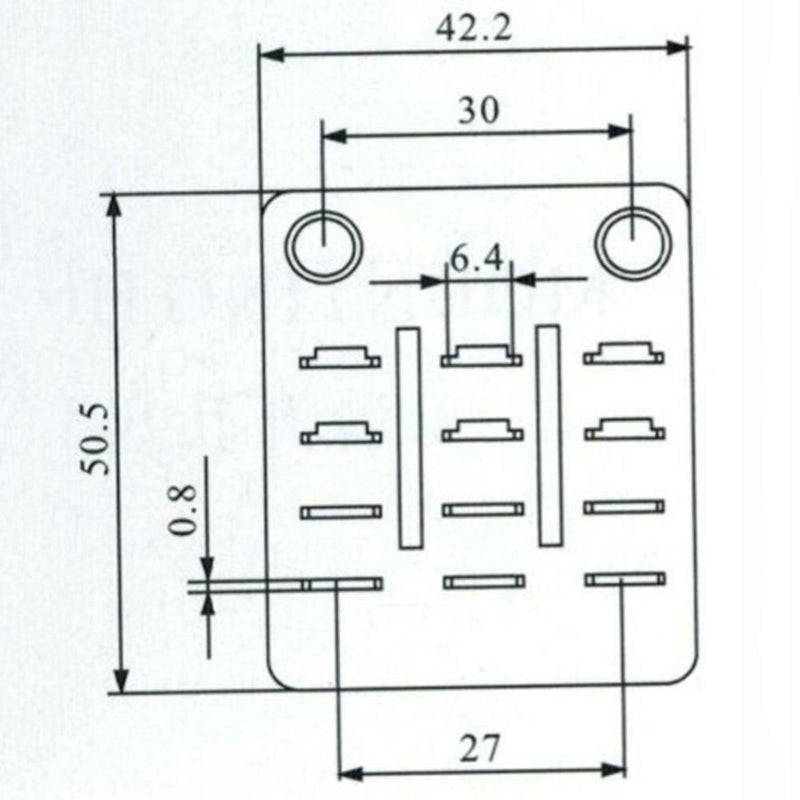

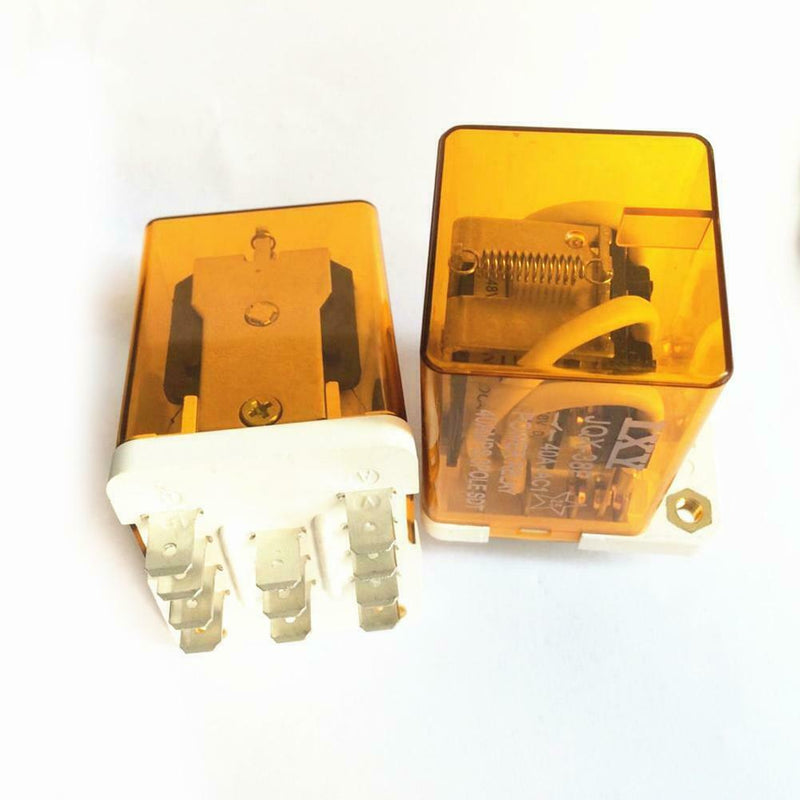

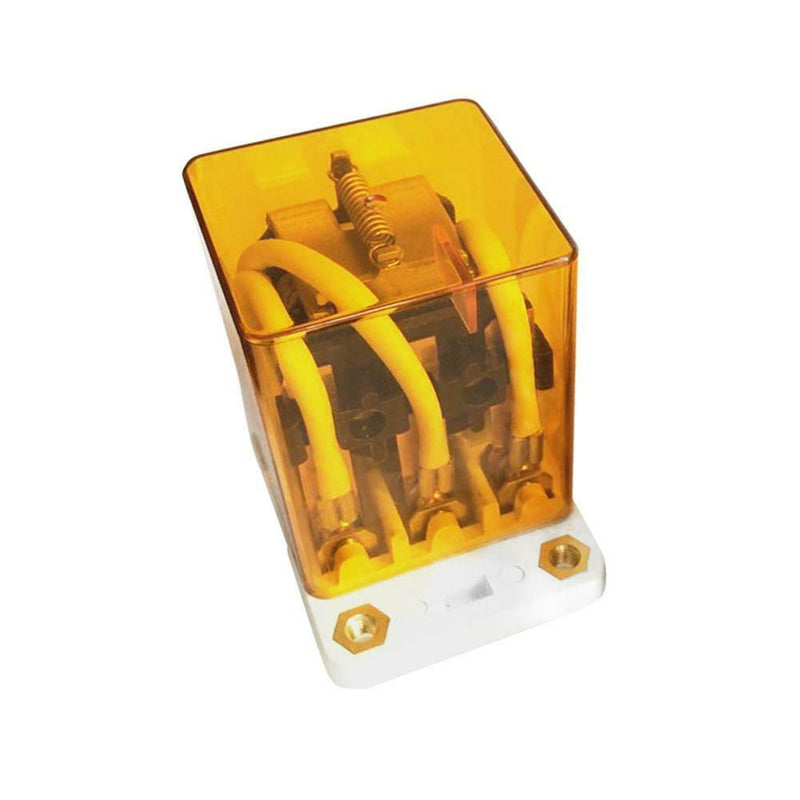

ITEM NAME:JQX-38F 40A DC12V 3Z Intermediate Relay High Power Electromagnetic Relay Product Description Description: JQX-38F 40A DC12V 3Z Intermediate Relay High Power Relay Electromagnetic Relay Module with Base 11pin Specifications: Model: JQX-38F Contact Load: 40A Contact switching current: 40A Contact switching voltage: 12VDC Rated current: 40A Rated voltage: 12-380VAC/VDC Protection features: sealing Size: 50.5 X 42.2 X 55.3 mm/1.99 X 1.66 X 2.18" Contact form: 3Z Contact capacity: 30/40A 120V AC 30/40A 250V AC Coil voltage: DC:6~220V,AC:6~380V Coil power consumption: DC: ≠¤2.0W AC: ≠¤3.2VA Absorption voltage: DC: ≠¤75% AC: ≠¤80% Release voltage: DC: ≠¥10% AC: ≠¥30% Contact resistance: ≠¤50MÃŽ © Insulation Resistance: ≠¥500MÃŽ © Life: Electricity: 105 times Machinery: 107 times Medium strength: between open contacts: 1500V Between coil contacts: 2500V Installation Form: Welding Ambient temperature: - 40 C ~ + 60 C Weight: 130g Material: Plastic Shell Scope of application: Current Notes: 1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! 2. Please allow slight measuring deviation due to manual measurement. Included: 1 x Relay.Rated current: 40A. Included: 1 x Relay. Insulation Resistance: ≠¥500MÃŽ ©. Coil power consumption: DC: ≠¤2.0W AC: ≠¤3.2VA. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.
