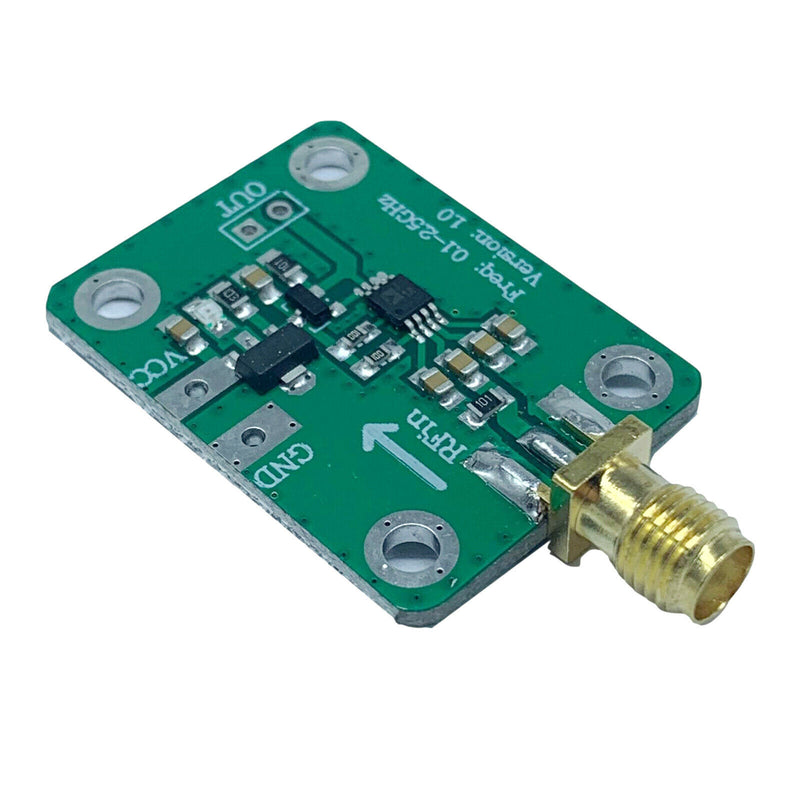

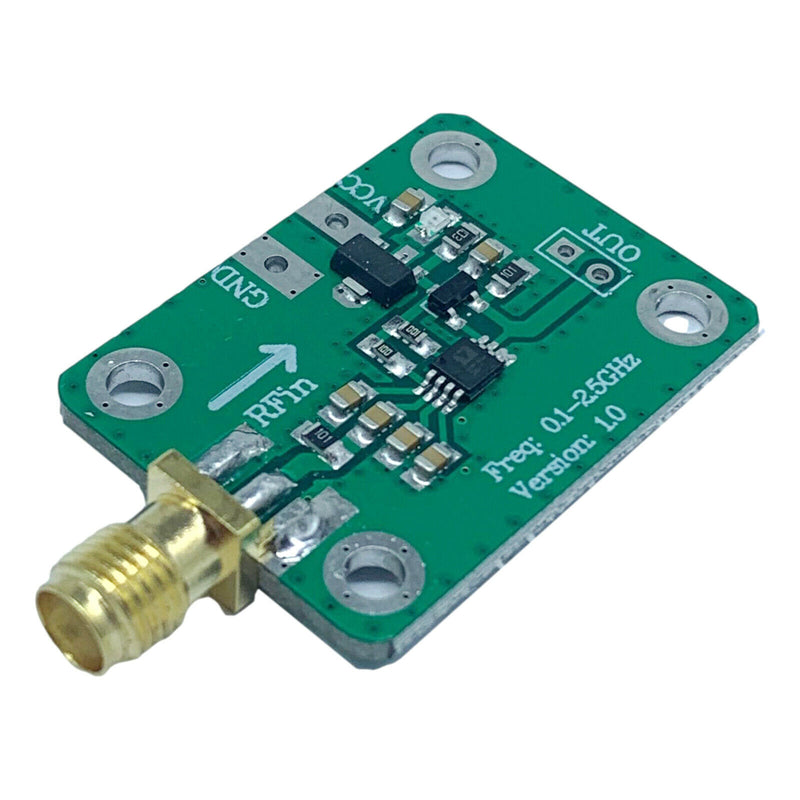

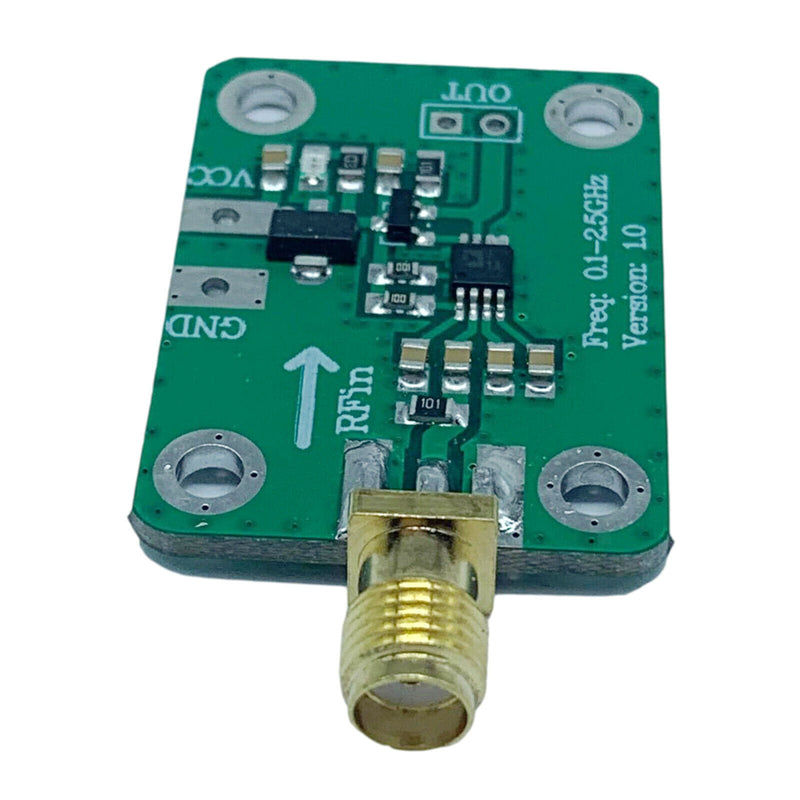

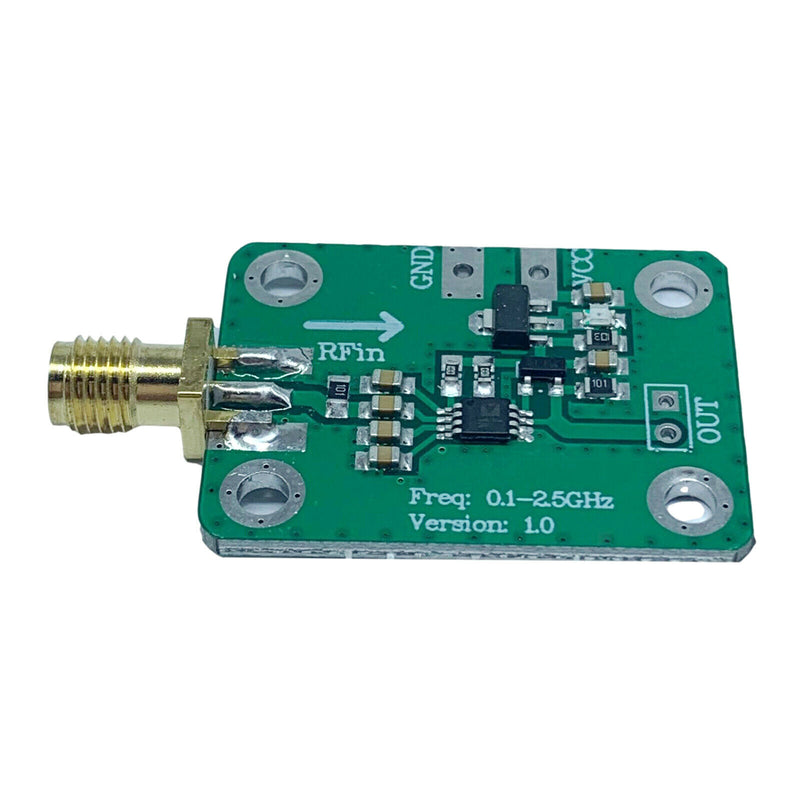

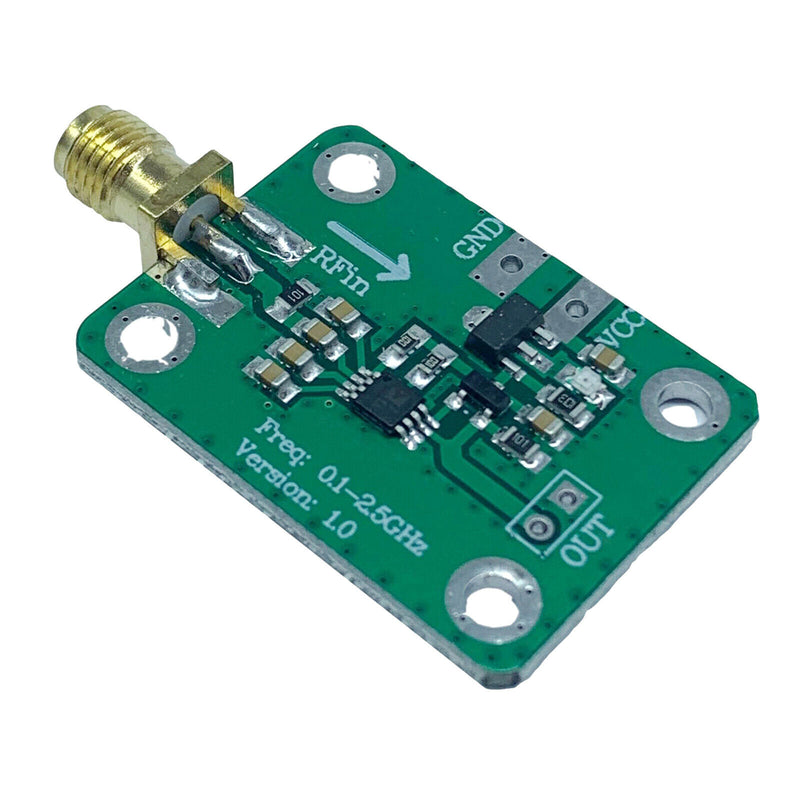

ITEM NAME:Logarithmic Detector RF Signal Power Module for RF Signal Detection Module Description: RF Power Meter Logarithmic Detector Power Detection (0.1--2.5GHz) Used for RF signal power detection, the detection frequency range is 0.1---2.4GHz, and it can detect a radio frequency signal with a power of -72dBm to -2dBm, and convert this radio frequency signal into a DC voltage output. The greater the RF signal amplitude or power, the higher the output voltage, and the output voltage is proportional to the logarithm of the input signal amplitude, which expands the dynamic range of the detected signal to 70dB. It can be widely used in radio frequency signal detection, signal power measurement, environmental field strength detection, and can also be used as a component of automatic gain control and automatic level control. You can also output power as a product conformance testing standards. Specification: Operating frequency: 0.1-2.5GHz Measuring Power: -72 to -2dBm Output voltage: 0.5-1.65V Detection slope: 18mV / dBm (typ) Input Impedance: 50 ohms Supply voltage: 7-15V Dimension: 33x24mm Weight: 4.5g Package Includes: 1 Piece RF Power Meter Logarithmic Detector Note: Color might be slightly different due to the color calibration of each individual monitor. Please allow slightly measuring deviation due to manual measurement. SKU: 0016395779018783.Detection slope: 18mV / dBm (typ). You can also output power as a product conformance testing standards. Input Impedance: 50 ohms.
