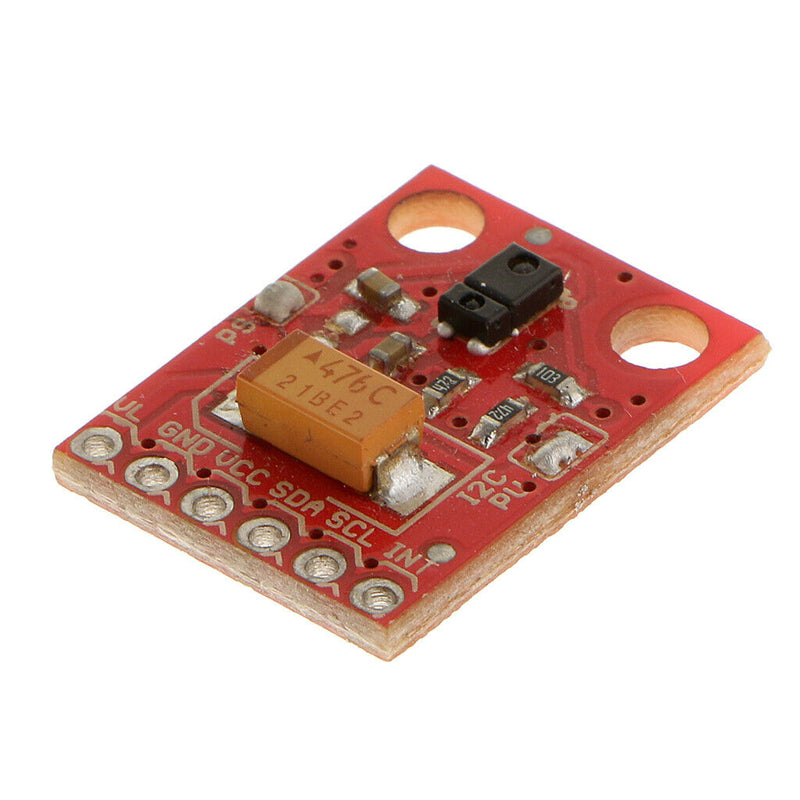

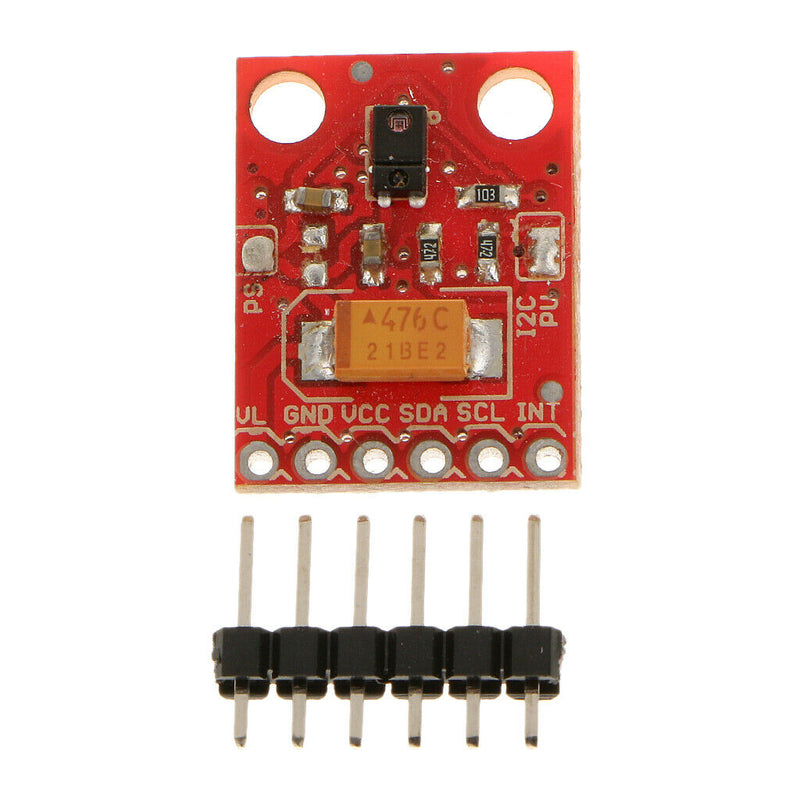

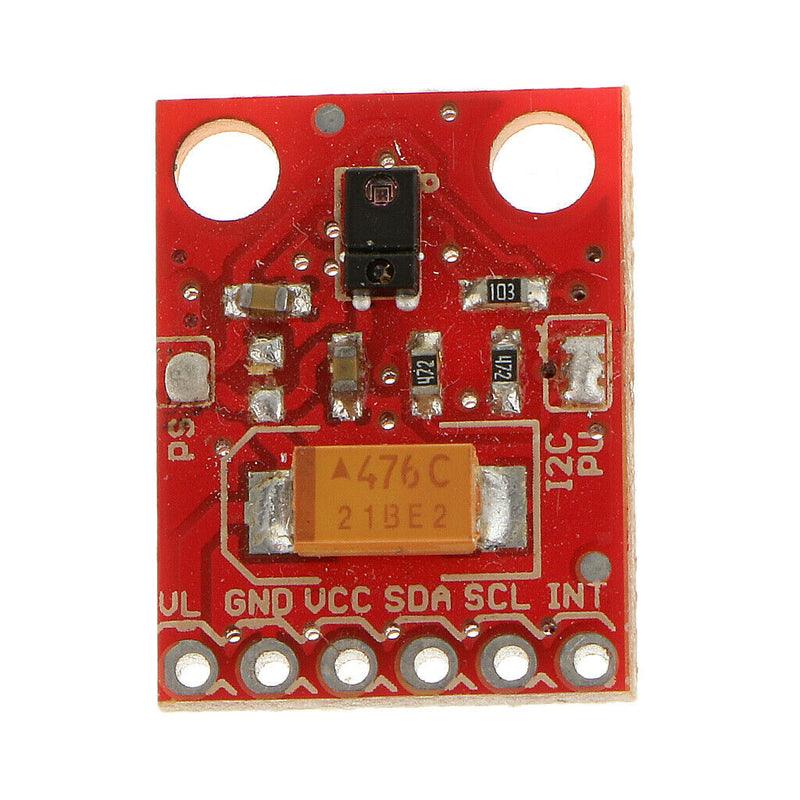

ITEM NAME:RGB Gesture Sensor Light Color Measuring I2C Description: This is the CJMCU RGB and Gesture Sensor, a small breakout board with a built in CJMCU-9960 sensor that offers ambient light and color measuring, proximity detection, and touchless gesture sensing With this RGB and Gesture Sensor you will be able to control a computer, microcontroller, robot, and more with a simple swipe of your hand! This is, in fact, the same sensor that the Samsung Galaxy S5 uses and is probably one of the best gesture sensors on the market for the price The CJMCU-9960 is a serious little piece of hardware with built in UV and IR blocking filters, four separate diodes sensitive to different directions, and an I2C compatible interface Size: approx.20mm*15.3mm*3mm Specification: Power supply: 3.3 v Communication: IIC communication protocol For your convenience we have broken out the following pins: VL (optional power to IR LED) GND (Ground) VCC (power to CJMCU-9960 sensor) SDA (I2C data) SCL (I2C clock) INT (interrupt) Each CJMCU-9960 also has a detection range of 4 to 8 inches (10 to 20 cm) Package Includes: 1x Gesture Sensor Breakout Board SKU: DMO0011851951004898.The CJMCU-9960 is a serious little piece of hardware with built in UV and IR blocking filters, four separate diodes sensitive to different directions, and an I2C compatible interface. SDA (I2C data). SCL (I2C clock).
