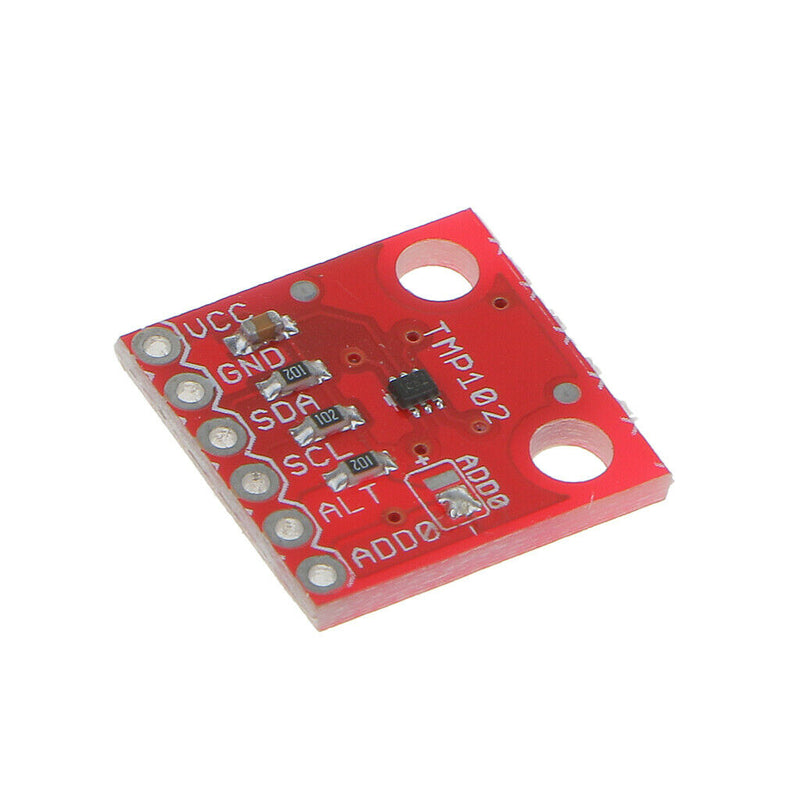

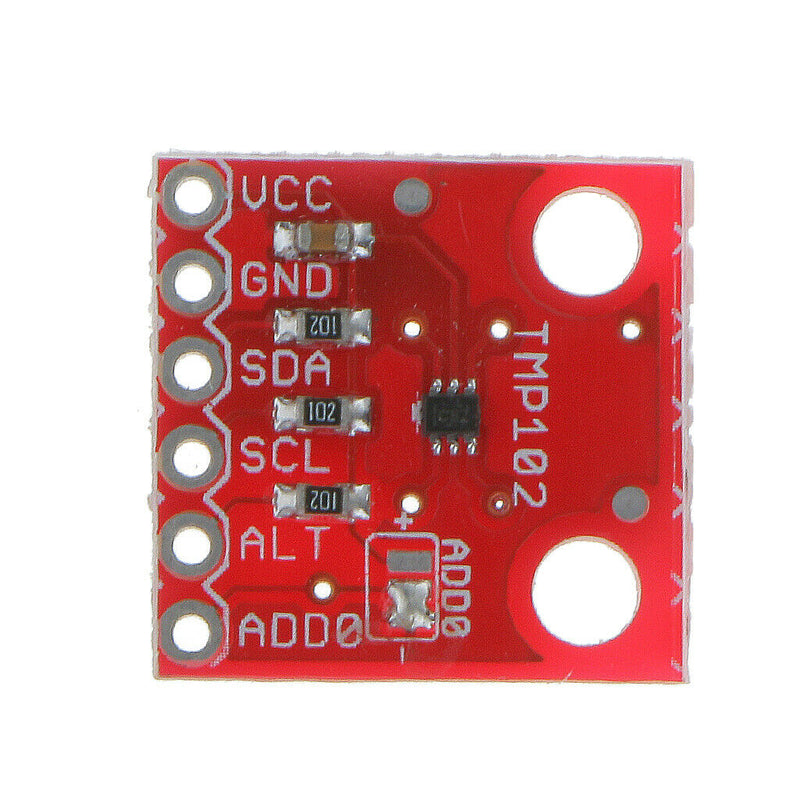

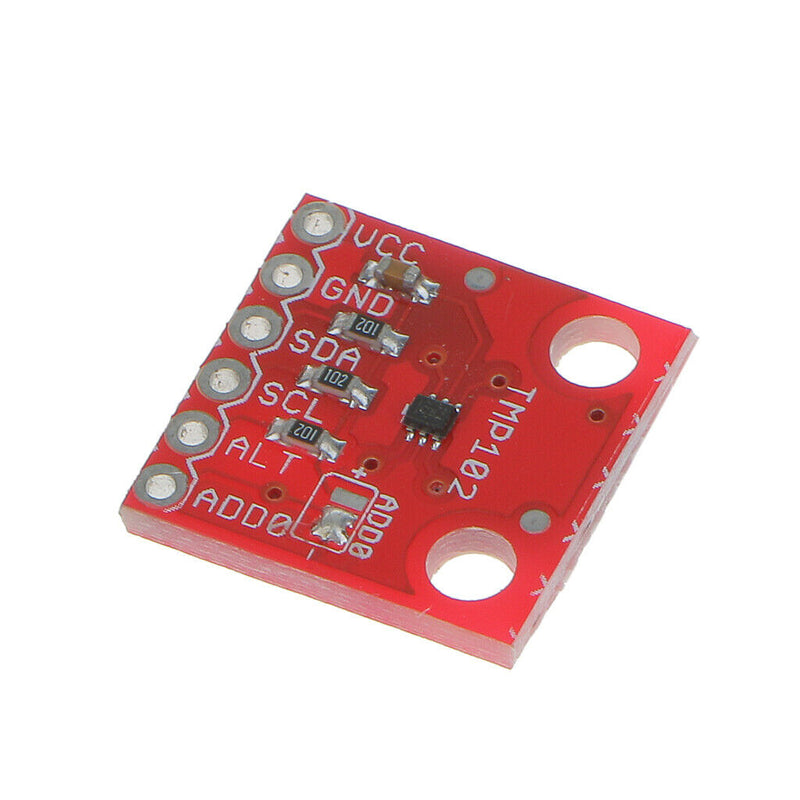

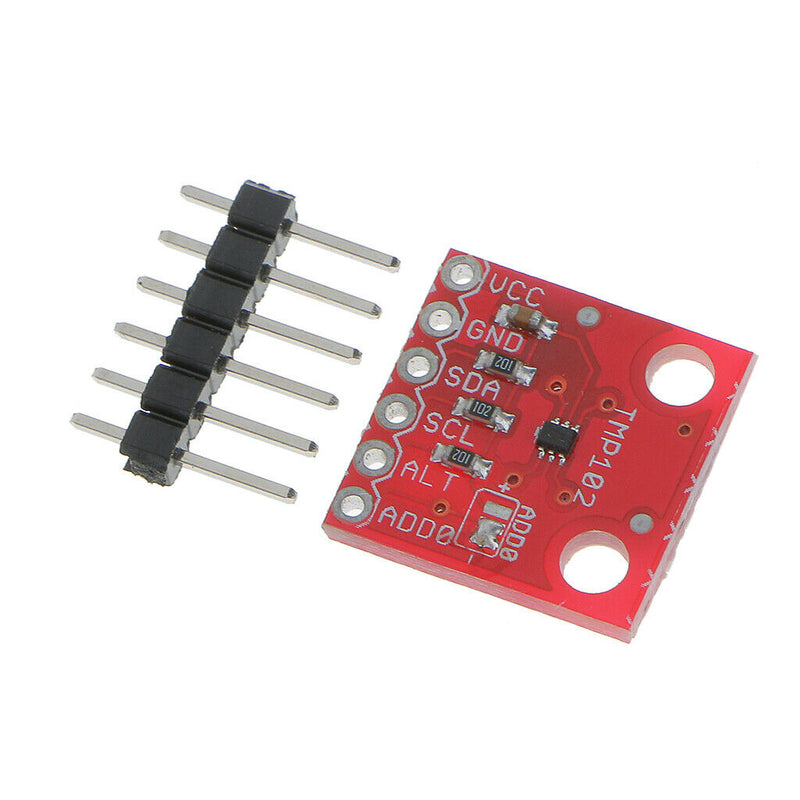

ITEM NAME:TMP102 Description: This is a breakout board for the incredibly small TMP102 digital temperature sensor. The TMP102 is a digital sensor (I2C a.k.a. TWI), has a resolution of 0.0625Â °C, and is accurate up to 0.5Â °C. This is a very handy sensor that requires a very low-current. Communication with the TMP102 is achieved through a two-wire serial interface. There is no on-board voltage regulator, so supplied voltage should be between 1.4 to 3.6VDC. Filtering capacitors and pull-up resistors are included. Specification: 12-bit, 0.0625Â °C resolution Accuracy: 0.5Â °C (-25Â °C to +85Â °C) Low quiescent current 10ÃŽ ¼A Active (max) 1ÃŽ ¼A Shutdown (max) 1.4V to 3.6VDC supply range Two-wire serial interface 2x Mounting Holes Material: Plastic Package Includes: 1x TMP102 Digital Temperature Sensor Breakout SKU: DMO0015614051009168.This is a breakout board for the incredibly small TMP102 digital temperature sensor. The TMP102 is a digital sensor (I2C a.k.a. TWI), has a resolution of 0.0625Â °C, and is accurate up to 0.5Â °C. Communication with the TMP102 is achieved through a two-wire serial interface.
