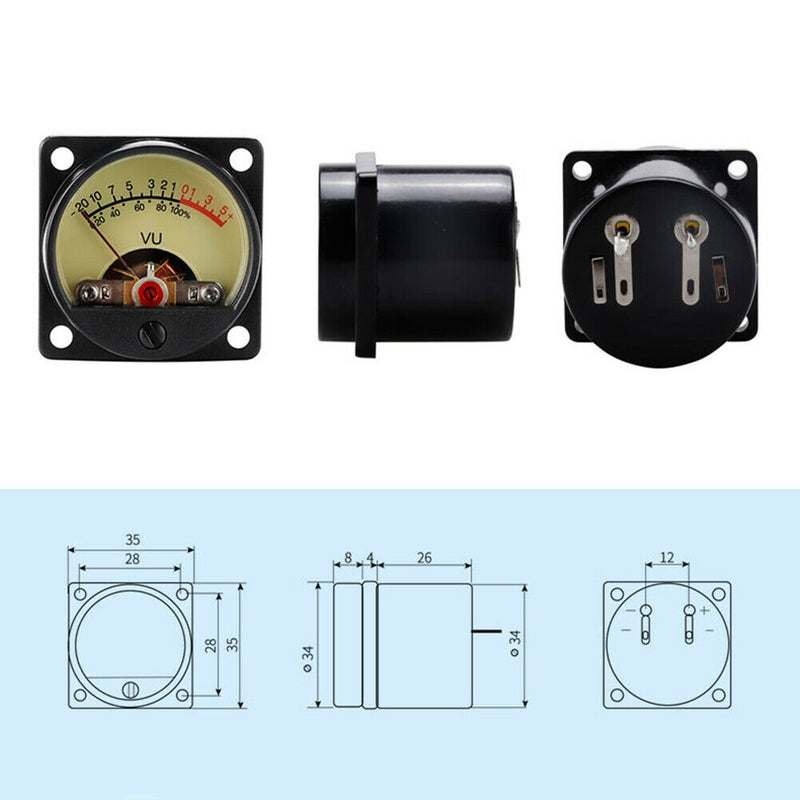

ITEM NAME:TR-35 VU Meter Power Amplifier DB Table Audio Level Head Meter w/Backlight Product Description Description: TR-35 VU Meter Power AMP Amplifier DB Table Audio Level Head Meter Sound Pressure Meter with Backlight Feature: 1. High quality, beautiful, stable and reliable performance, high display accuracy, backlight. 2. DB: - 20 ~ + 5dB 0dB = 1.288 V + / - 10%, calibration DCR = 650 & ÃŽ ©; 3. Adjustable: horizontal swing is adjustable, compatible with various instrument heads. Two blue 500 ohm potentiometers on the board can respectively adjust the sensitivity of the two connectors, and clockwise rotation can improve the sensitivity. 4. LED lamp voltage: 2.2 ~ 2.6V, DCR = 650, As = 450uA. Specification: Material: ABS + PC Size: 45 * 35mm/1.77*1.37'' Note: 1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! 2. Please allow 1-2cm measuring deviation due to manual measurement. Included: 1 X VU Meter.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. If item is defective after 3 months, you can still send it back to us.
