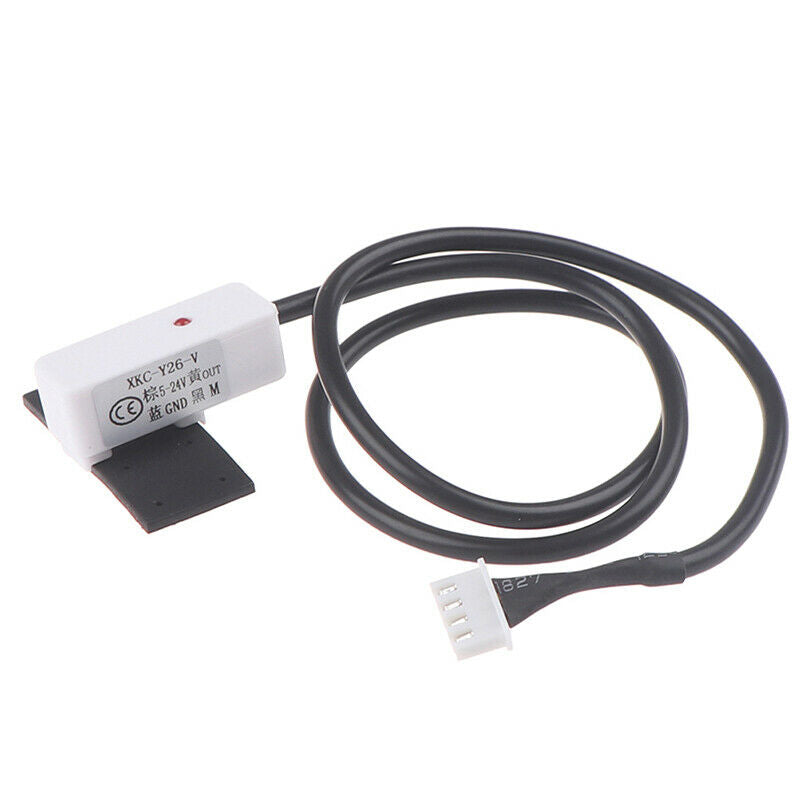

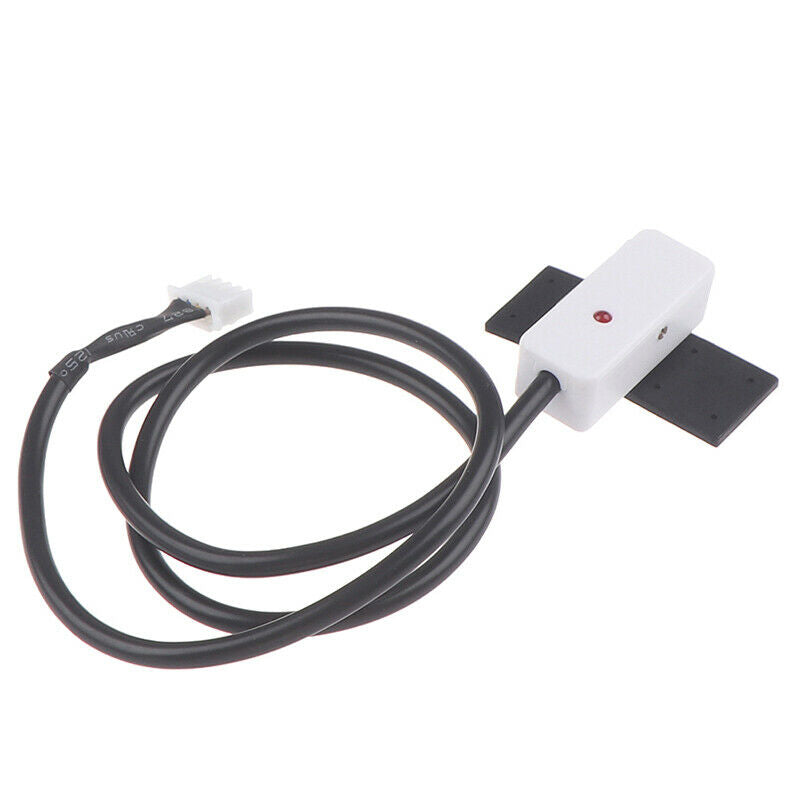

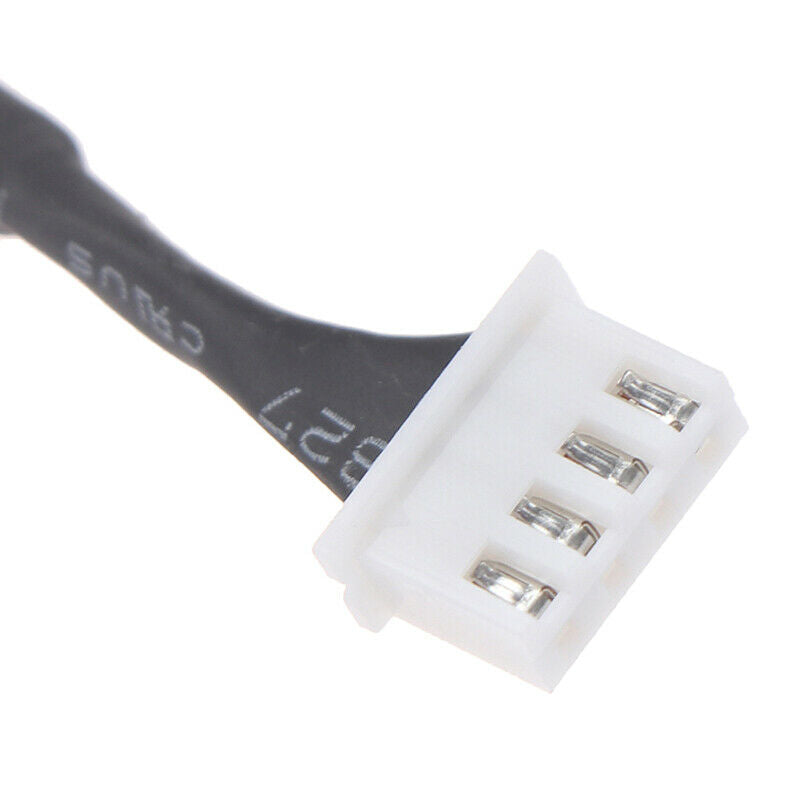

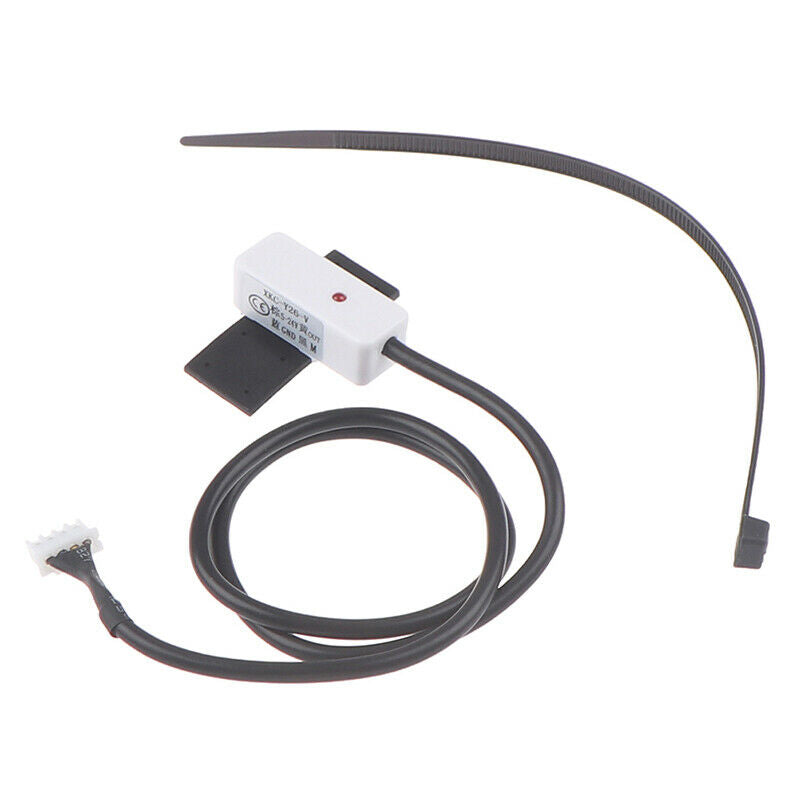

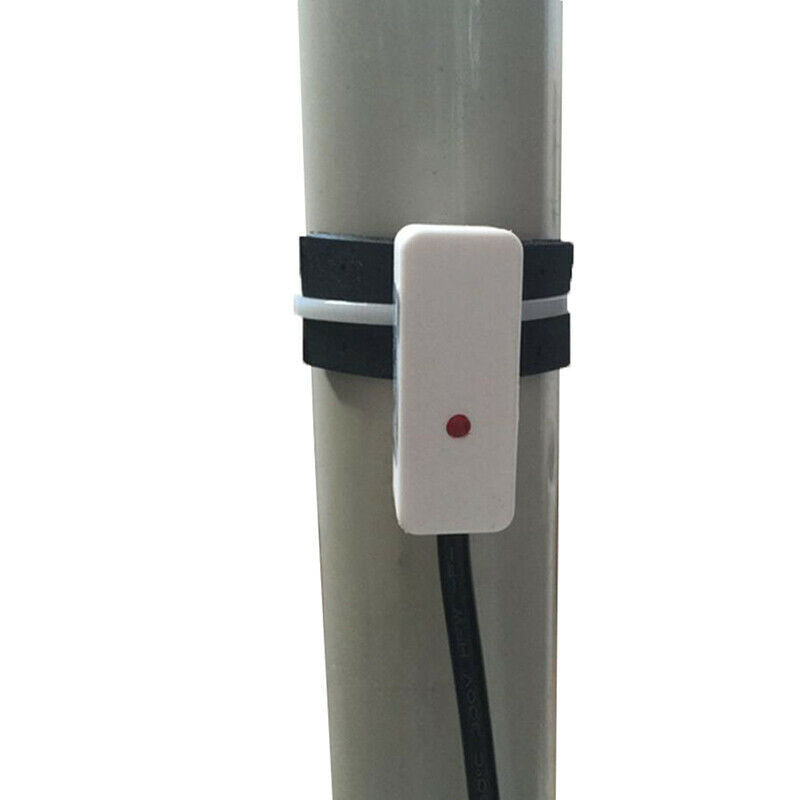

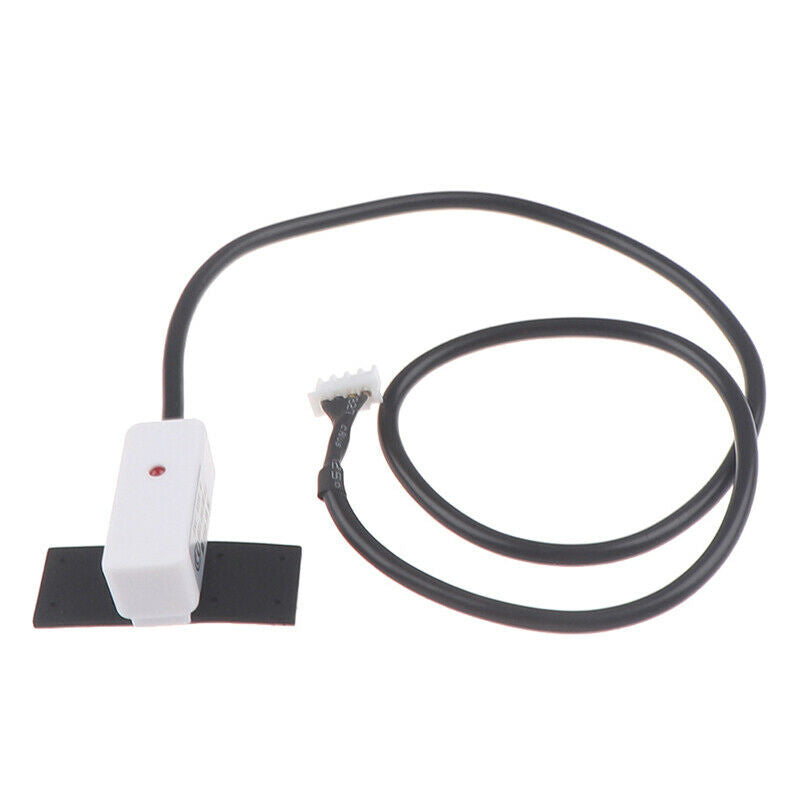

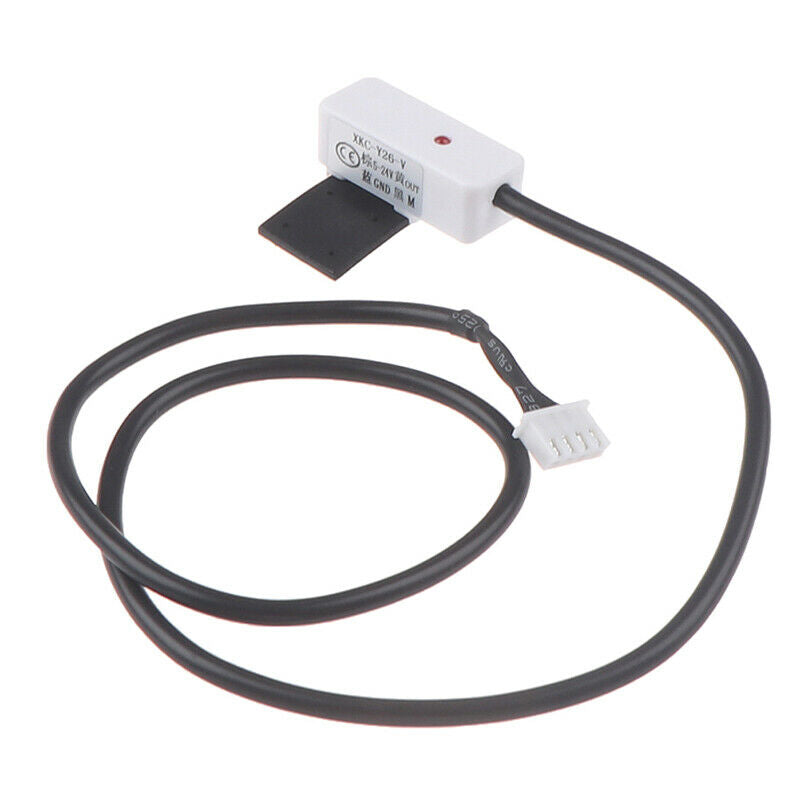

ITEM NAME:XKC-Y26-V Non-contact Water Liquid Level Sensor Induction Switch Detector 5-.SE The liquid level sensor has no special requirements for liquid type and container materials and can be widely used. The installation is simple and does not affect the production. The output signal is High and Low Level Specifications: Product model:XKC-Y26-V Input voltage (Vin): DC 5~24V Output Signal:High and Low Level Current consumption: 5mA Output voltage (high level): Vin Output voltage (low level): 0V Output current: 1~100mA Response time: 500mS Working environment temperature: 0~85 °C Humidity: 5%~100% Material: ABS Waterproof performance: IP65 SIze:18 x 13 x 11mm Cable Length:45cm Sensitivity: Pipe outer diameter D(mm) Sensing wall thickness L(mm) D ≠¥ 100, L: 20 ±2 100ï ¼Å¾100 ≠¥ 80, L: 15 ±2 80ï ¼Å¾100 ≠¥ 60, L: 12 ±2 60ï ¼Å¾100 ≠¥ 40, L: 7 ±1 40ï ¼Å¾100 ≠¥ 30, L: 5 ±1 30ï ¼Å¾100 ≠¥ 20, L: 3 ±1 20ï ¼Å¾100 ≠¥ 10, L: 1.5 ±0.5 Applicable pipe diameter range: ≠¥10mm Level error:  ±1.5mm Description Intelligent non-contact type level detector(Hereinafter referred to level detector) adopts advanced signal processing technology and high speed signal processing chip, break through the effects of vessel wall thickness, realized the real non-contact measurement for the level height in the sealed vessel. Level sensor(probe) installed on the top and bottom(the high level and the low level) of the measuring vessel wall, non-metal vessel do not need to drill a hole, easy installation, good for the production. Can be used for different kinds of toxic, strong acid, strong alkali, and all kinds of level measurement in the high pressure sealed vessel or tank. The application of this product is very wide, no special requirements for liquid media and vessel material. Product Feature XKC-Y26-V suitable for non-metal pipe wall, and do not need to contact the liquid, will not corrode by strong acid, strong alkali, and other corrosive liquid. Will not affected by incrustation or other impurities. Intelligent level adjustment and le.The liquid level sensor is installed on the upper and lower sides of the container (the liquid level is high and low). Will not affected by incrustation or other impurities. The output signal is High and Low Level.
