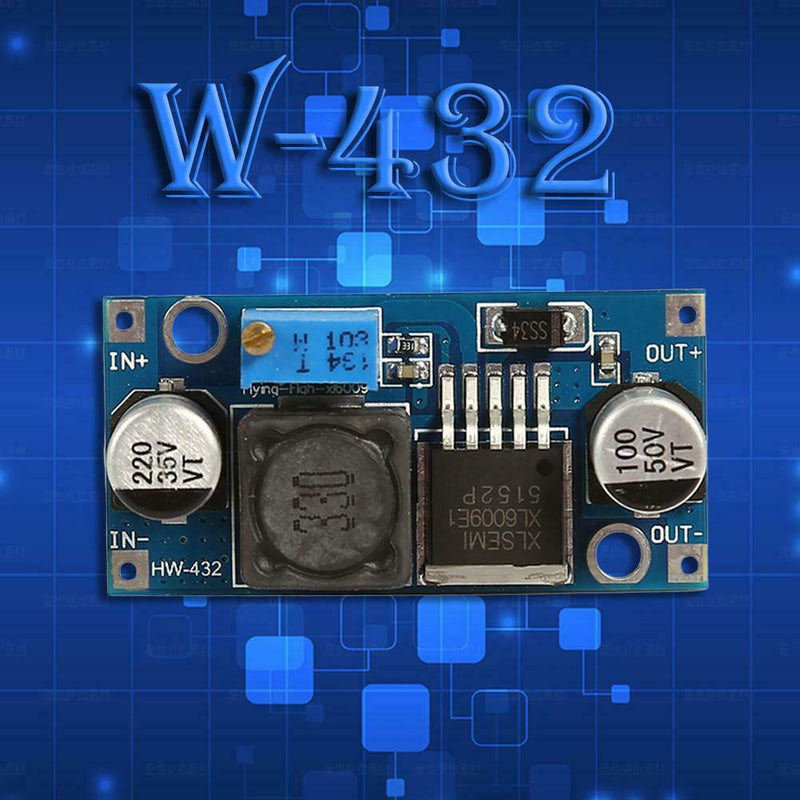

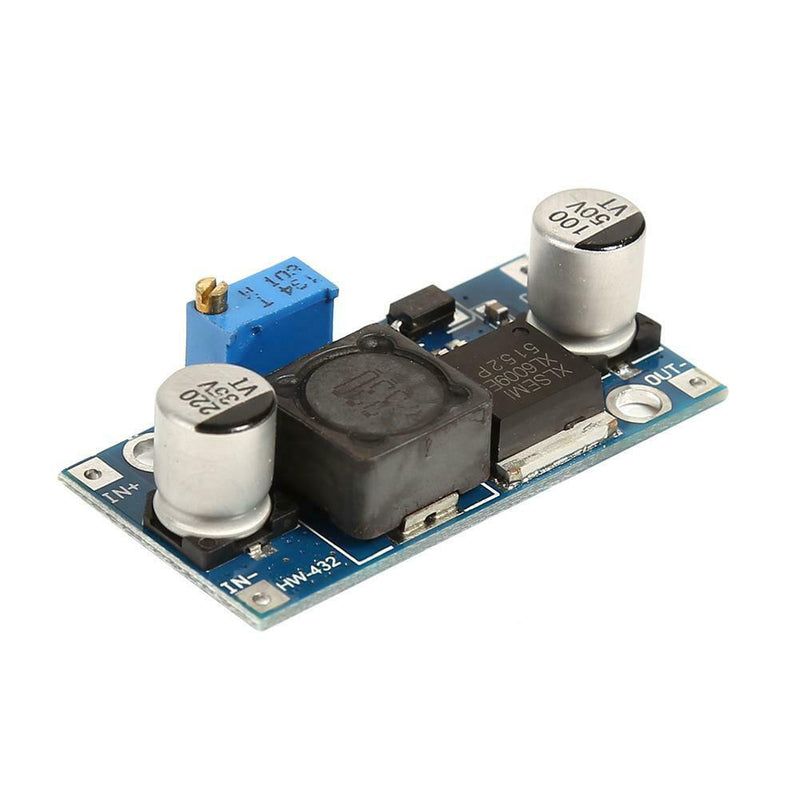

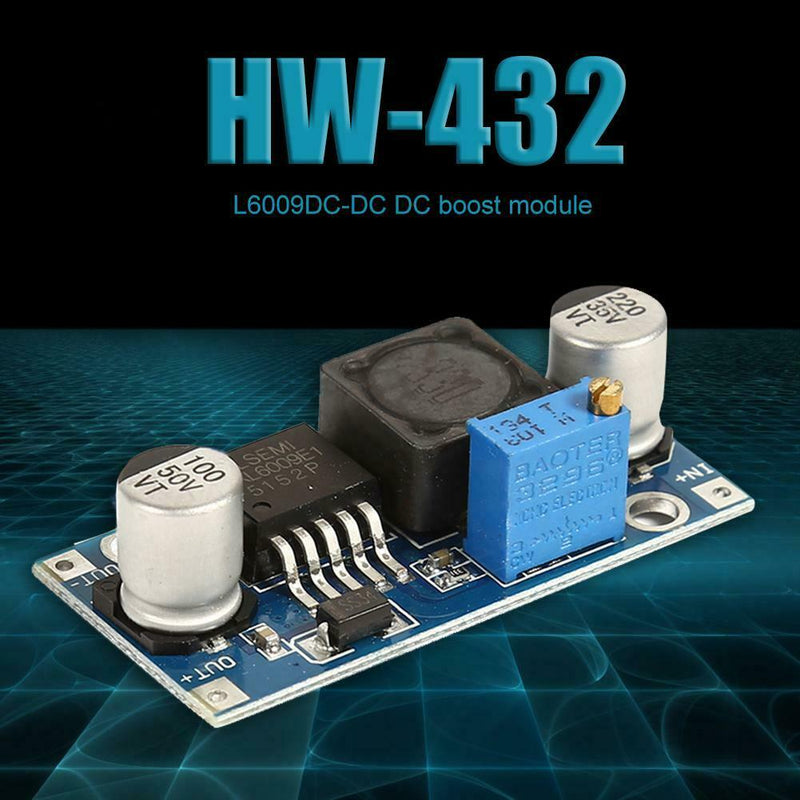

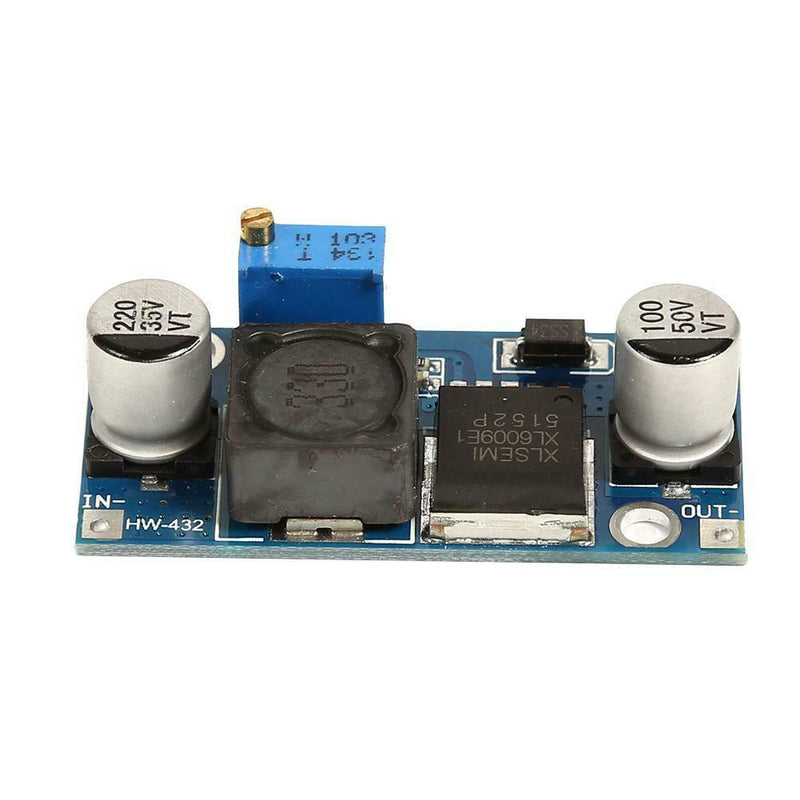

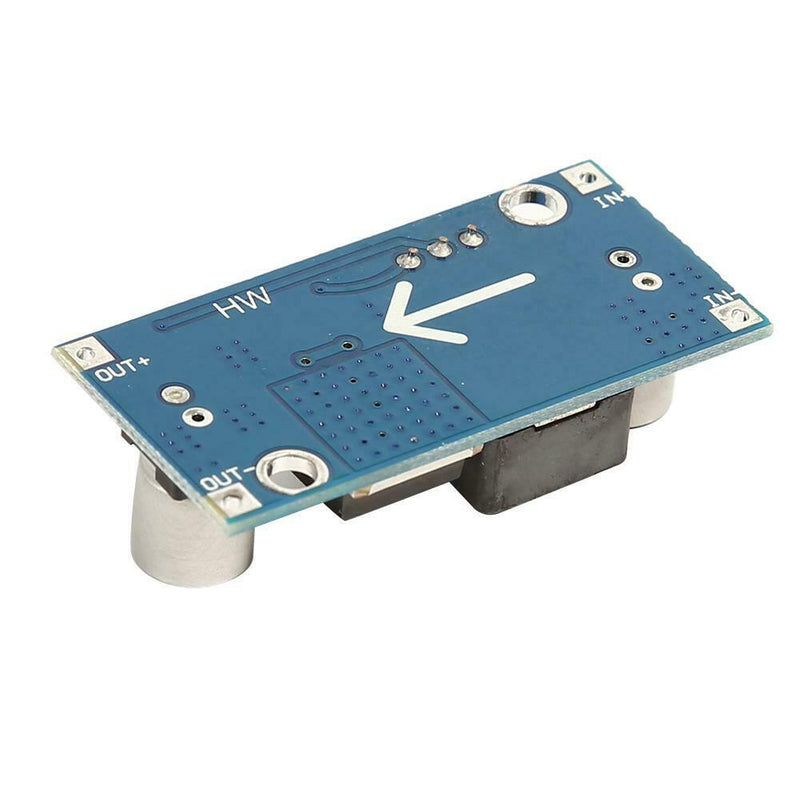

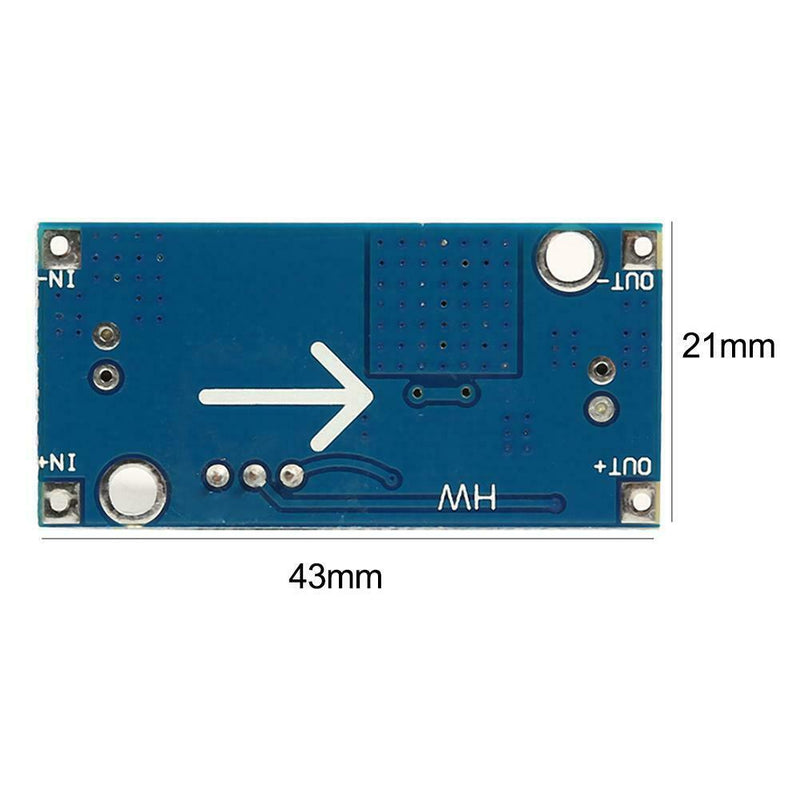

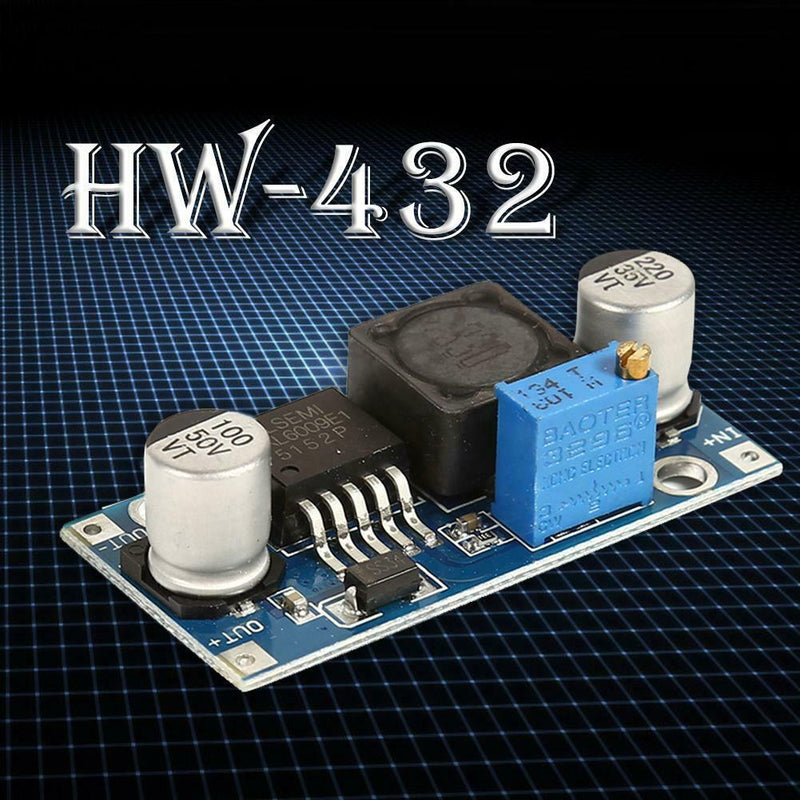

ITEM NAME:XL6009DC-DC Boost Module Power Module Output Adjustable Step Up Converter A#S Product Description Description: Description: 1. DSN6009 is a high performance boost (BOOST) module for 4A switching current. The module uses XL6009E1 as the core chip of the second generation high frequency switch technology, and its performance is far superior to LM2577 of the first generation technology. XL6009 booster module has lower cost and better performance. 2. Ultra-wide input voltage is 3V~32V, and the optimum operating voltage range is 5~32V. Ultra-wide output voltage 5V~35V. 3. Built-in 4A high-efficiency MOSFET switch, making efficiency up to 94%; (LM2577 current only 3A). 4. Ultra-high switching frequency 400KHz, can use small capacity filter capacitor that can achieve very good results, smaller ripple, smaller volume. (LM2577 frequency is only 50KHz). Specification: Modular Properties: Non-Isolated Boost (BOOST) Rectifier: Asynchronous Rectifier Input range: 3V-32V Output range: 5V-35V Input current: 4A (maximum), no-load 18mA (5V input, 8V output, no-load less than 18mA). The higher the voltage, the greater the no-load current. Conversion efficiency:
