12 Channel 10A 315MHZ Wireless Programable RF Remote Control Switch Transmitter + Receiver DC24V

Specifications:
Operating Voltage:24V
Channel:12 CH
Static Operating Current: ≤ 10mA
Operating Temperature: -20 Degrees - +70 Degrees
Receiver Sensitivity: ≥ -107dBm
Operating Frequency: 315MHz
Output Current: ≤10A
Size:98*78*28mm

Main Function:
*Control Lights, TV, Motors, Fans, Cameras, Video Signals, Audio Signals, Electric Doors/Locks/Windows/Curtains/Cars
*You can turn on/off the receiver with transmitter (remote control) from any place, the wireless signal can pass through
walls, floors, and doors.
*Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bits code.
*One/several transmitters can control one/several receivers.
*If you use two or more receivers in same place, you can set them with different codes.

Control Types:
1.The signal jog: with the remote control on the "3" key to learn, then 12 are moving.
Press the remote control 1 key, the corresponding A1 relay pull, release, A1 relay disconnected, all relays are such work.
2.The signal interlock: the remote control on the "6" key to learn, then 12 are interlocked.
Press the remote control 1 key, the corresponding A1 relay pull and keep the other 11 relay off: press the remote control 2 key, the other 11 relay disconnect, A2 relay pull and keep, and then cycle work.
3.The signal from the lock: the remote control on the "9" key to learn, then 12 are self-locking.
Press the remote control 1 key, the corresponding A1 relay pull and hold, and then press the remote control 1 button, A1 relay off, and its work has nothing to do with other keys, all 11 are such work.
Study Method:
Press the learning key on the receiver board, the buzzer Bi immediately after pressing the button on the remote control (according to the second point) to learn to receive the control panel receives the signal, the buzzer Bi sound, that learning success.
Clearly saved:
Press and hold the receiver module to learn the button for about 10 seconds to the buzzer Bi sound, indicating that the stored information has been successfully clear.

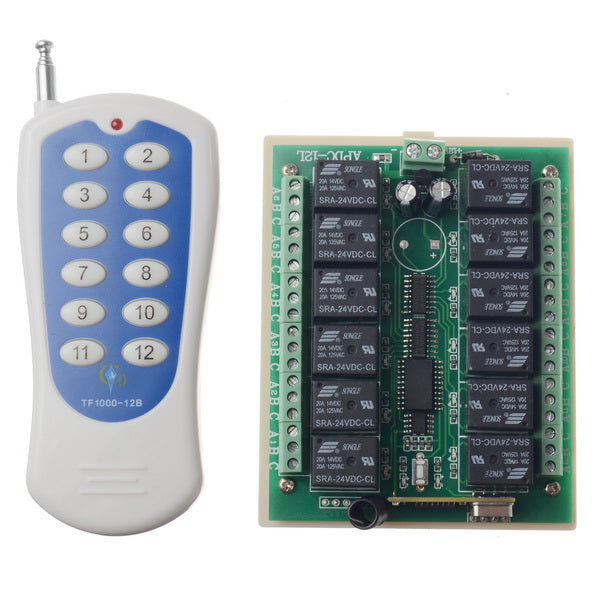

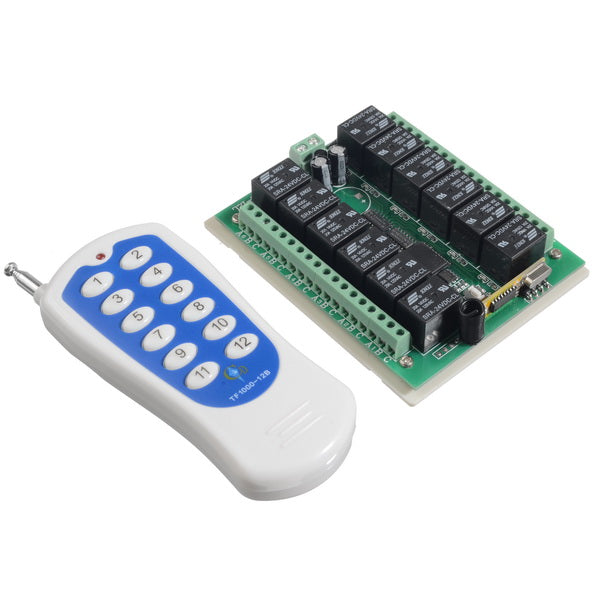

Package Included:
1 X Controller

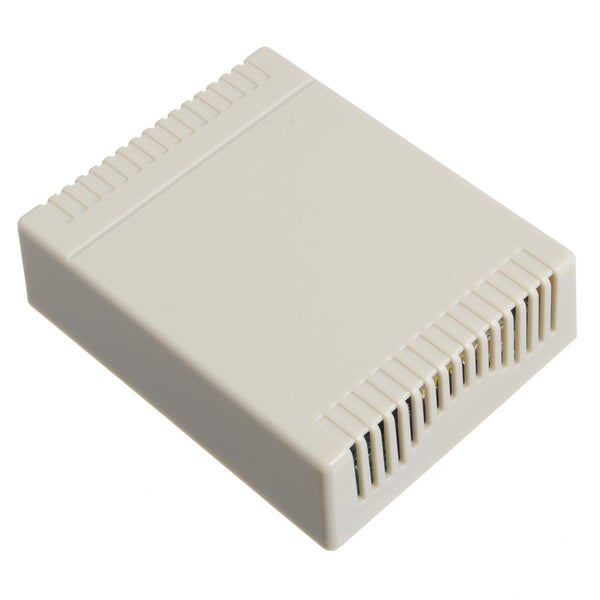

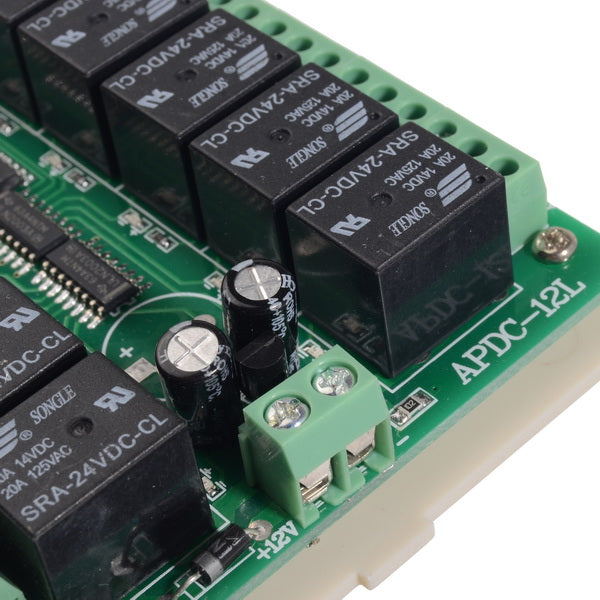

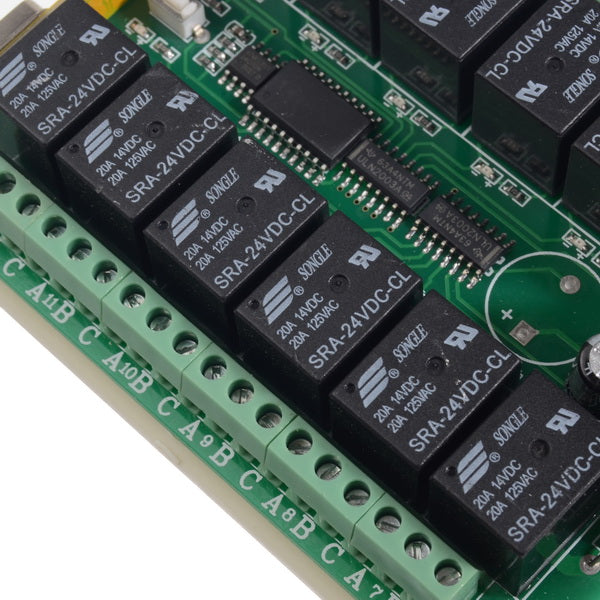

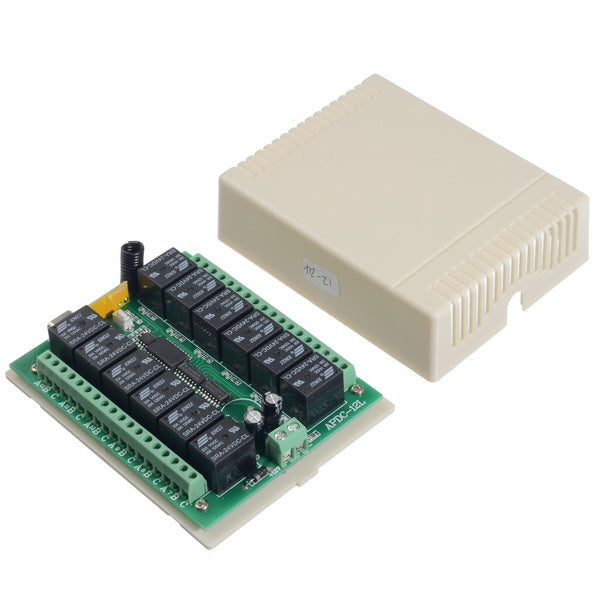

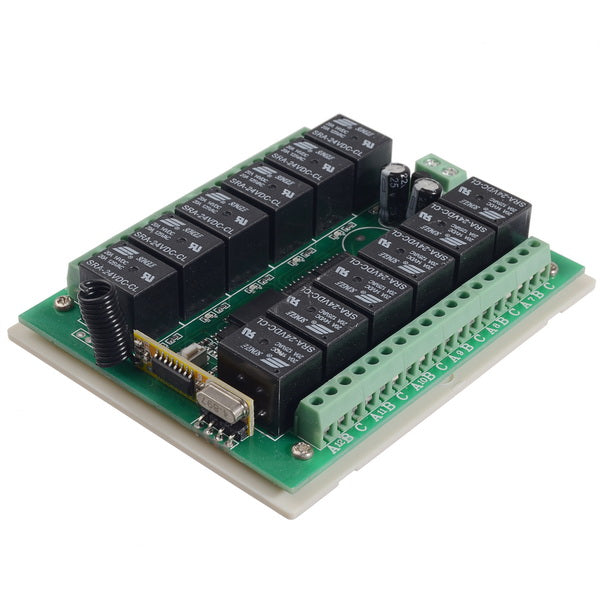

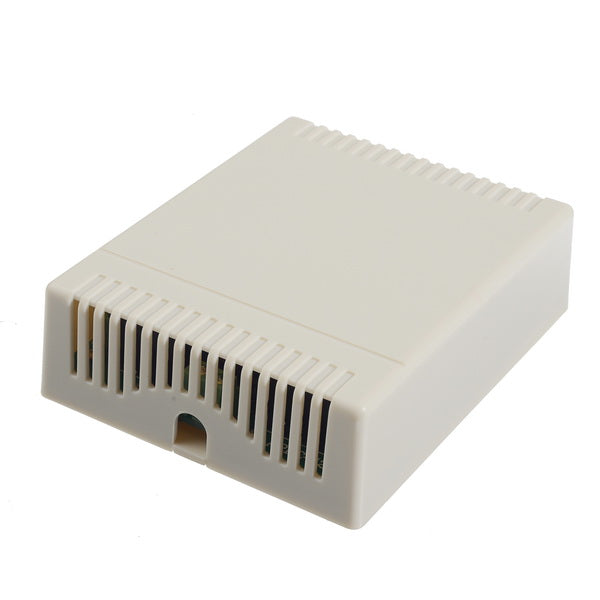

1 X Receiver
