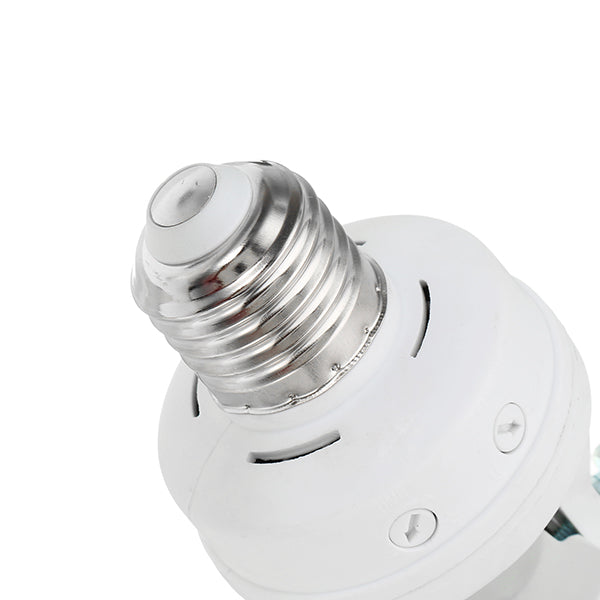

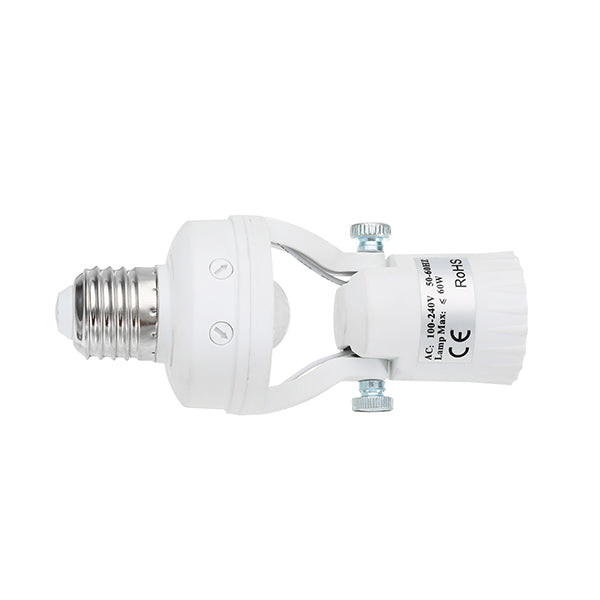

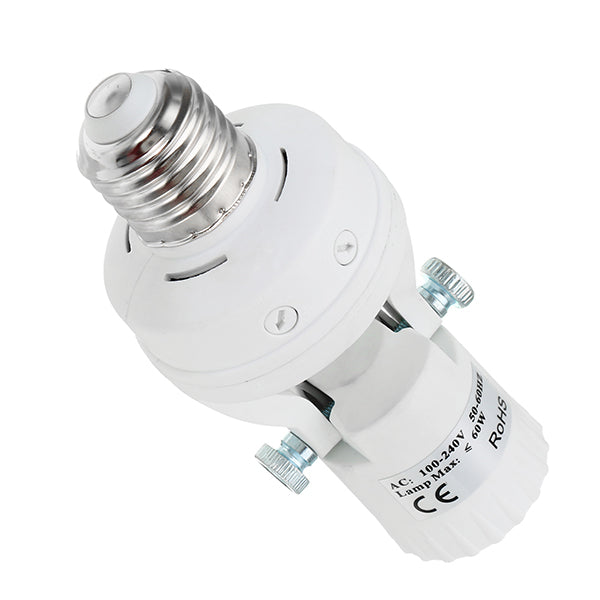

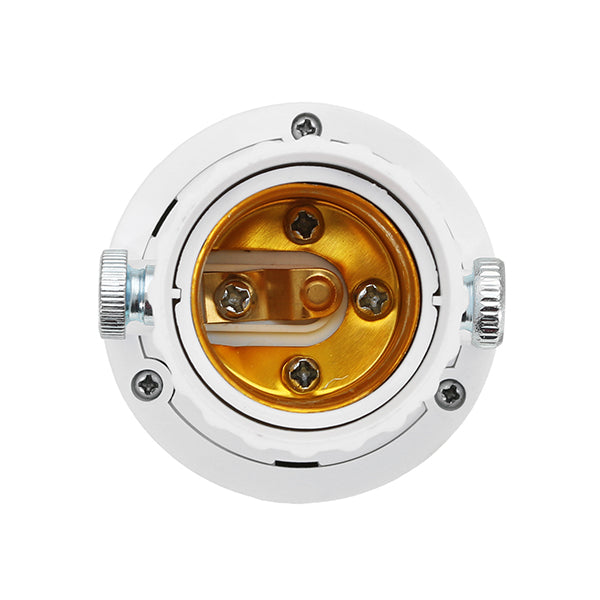

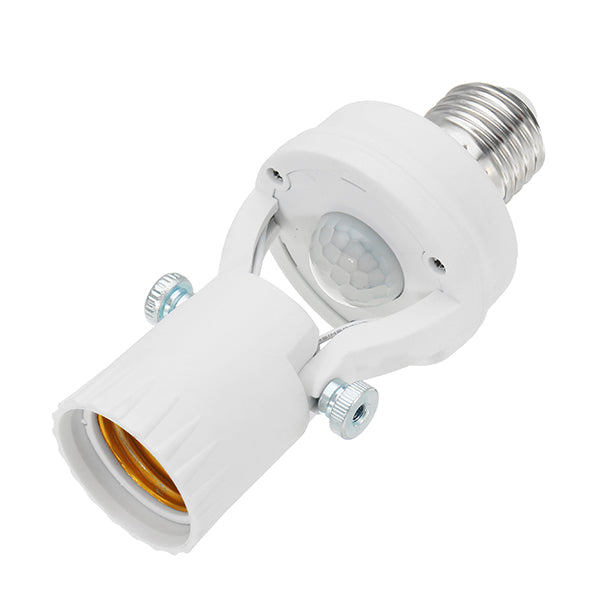

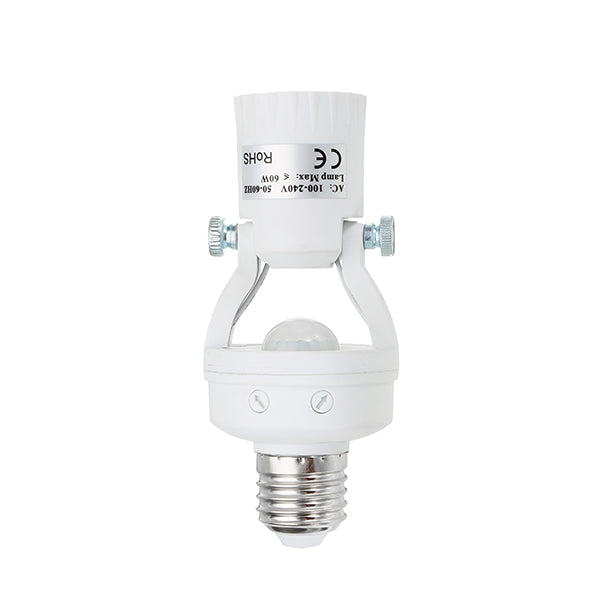

LUSTREON AC100-240V 60W E27 to E27 Rotatable Infrared PIR Motion Sensor Bulb Socket Lampholder

Description:
The product adopts good sensitivity detector integrated circuit. It gathers automatism convenient sate saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source. It can start the load at since when someone enters detecting field. It can identify day and night automatically. It is easy to install and used widely.

Specification:
Brand:LUSTREON
Plug type:E27
Voltage:AC100V-240V, 50/60Hz
Max overload power:60W
Sensor degree:360°
Suitable installation height:2-4M
Detection range:max. 6m (temperature:22-24℃)
Time delay:min. 10sec±3sec, max. 5min±1min
Ambient light:3-2000LUX(adjustable)
Material:plastic and metal

Feature:
It is convenient and easy to use
You can conveniently to let the light auto on/off.
The switch can detect human body's infrared, and use infrared to control the load.
Suitable for energy-saving lamps, LED lamp
Compatible with other lamp with E27 connector
Great for home, office, hotel, etc

Test:
Turned LUX knob clockwise to the maximum(SUN). Turned time knob anti-clockwise to the minimum.
Turn on the power the sensor will be electrify and warm up 30sec later. the item will be entered into working estate 5-10 seconds after the light goes out for the first time and then sensing the load should be worked.
Turns LUX knob anti-clockwise to the minimum . If it is tested under the circumstance below 3LUX should not work after induction stop working. but if you cover the detection window with opaque objects(towel etc). the load work. Under the condition of no induction signals the load should stop working within 5-15 sec.

Note:
When testing in daylight, please turn LUX knob to(SUN) position. Otherwise, the sensor lamp could not work.

Package included:
1*LUSTREON E27 PIR sensor lamp holder
