Specification:
| Product name: |

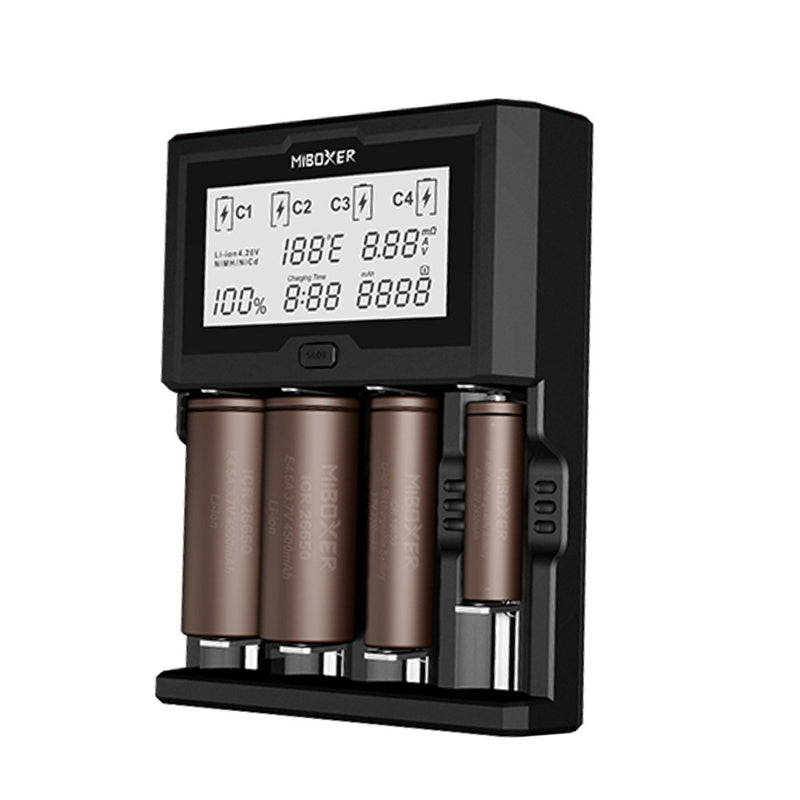

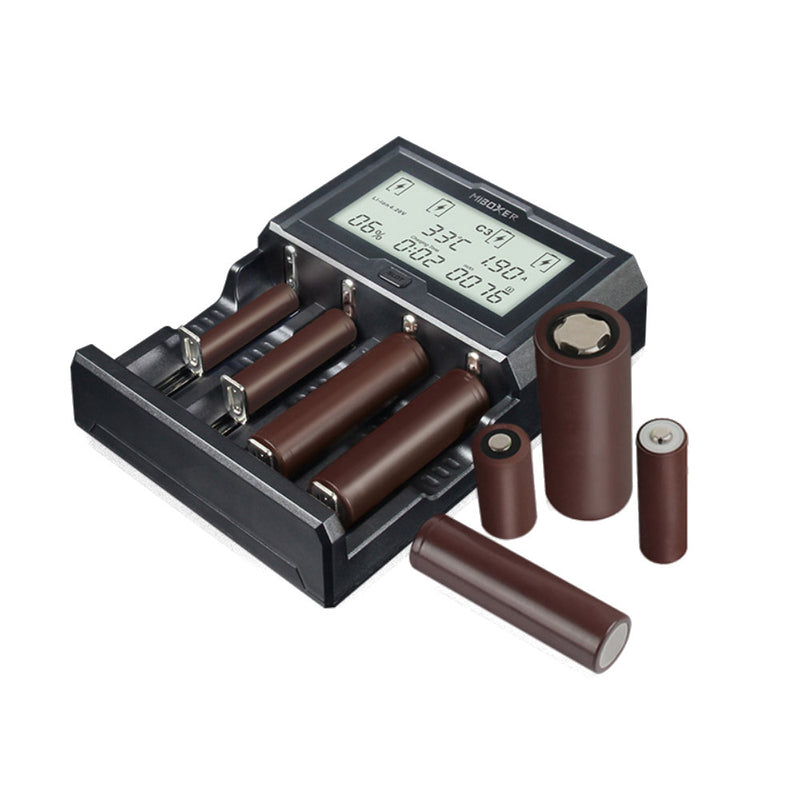

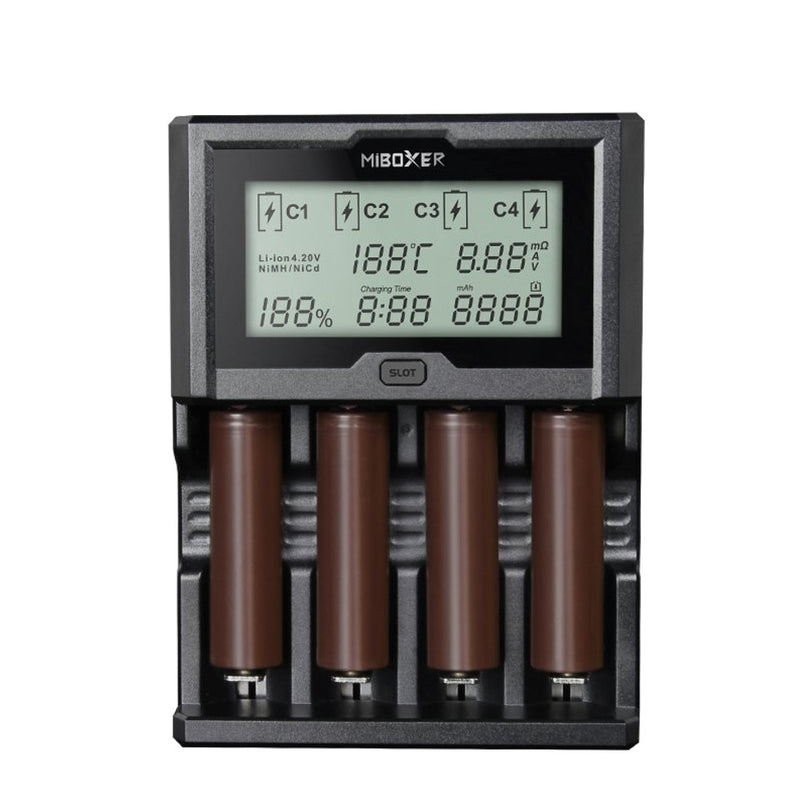

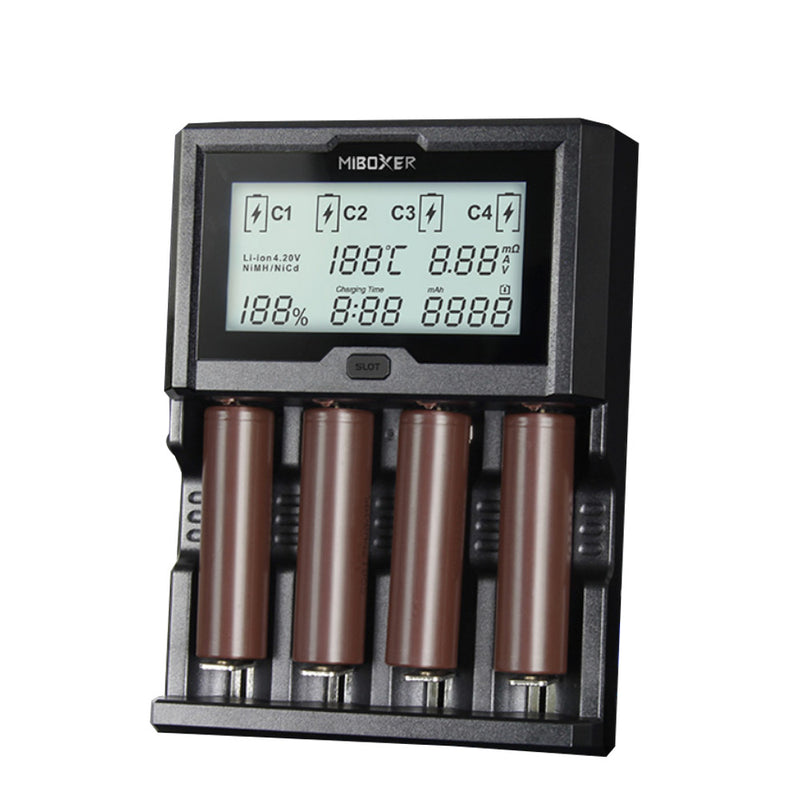

Miboxer C4-12 LCD Smart Battery Charger 4 Slots |
| Brand: |
Miboxer |
| Model: |
C4-12 |
| Input Voltage: |
DC12V(AC100-240V ) |
| Input Current: |
5A |
| Output Voltage: |
4.2V±0.1%/1.48V±0.1% |
| Output Current: |
Li-ion maximum 4*3A /Ni-MH/Ni-Cd maximum4*1A |
| Apply to: |
Li-ion(4.2V) (IMR/INR/ICR): 10340 / 10350 / 10440 / 10500 / 12340 / 12500 / 12650 / 13450 / 13500 / 13650 / 14350 / 14430
/ 14500 / 14650 / 16500/16340(RCR123) / 16650 / 17350 / 17500 / 17650 / 17670 / 18350 /
18490 / 18500 / 18650 / 18700 / 20700 /21700 / 22500 / 22650 / 25500 / 26500 / 26650
Ni-MH / Ni-Cd(1.48V): AAAA / AAA / AA / A / SC / C / D |
| Plugs: |
US Plug |
| Material: |
Fireproofing PC+ABS |
| Color: |
Black |
| Weight: |
485g(Excluding battery) |
| Size: |
158mmx118mmx44mm (LengthxWidthxThickness) |
Features:◆ Charging with 3.0A/slot only takes 50 minutes to charge 4pcs 3000mAh IMR battery to 85%.
◆ Input:DC12V *5A

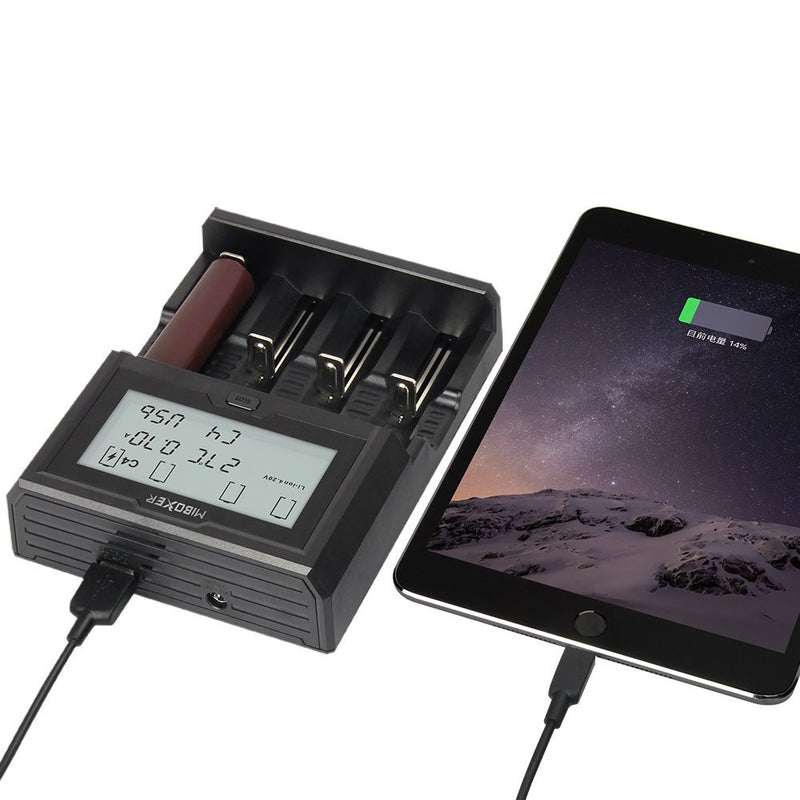

◆ Out put 5V*1A use as power bank,and 4 slots charging independently with a power bank function.
◆ C4-12 has different charging features and modes according to different type battery charging.
It use standard Li-ion battery charging mode when work with Li-ion/IMR/INR/ICR batteries;
Use a full charge mode for Ni-MH, Ni-Cd batteries charging process.
◆Listed:
Li-ion(4.2V) (IMR/INR/ICR): 10340 / 10350 / 10440 / 10500 / 12340 / 12500 / 12650 / 13450 / 13500 / 13650 / 14350 / 14430
/ 14500 / 14650 / 16500/16340(RCR123) / 16650 / 17350 / 17500 / 17650 / 17670 / 18350 /
18490 / 18500 / 18650 / 18700 / 20700 /21700 / 22500 / 22650 / 25500 / 26500 / 26650
Ni-MH / Ni-Cd(1.48V): AAAA / AAA / AA / A / SC / C / D

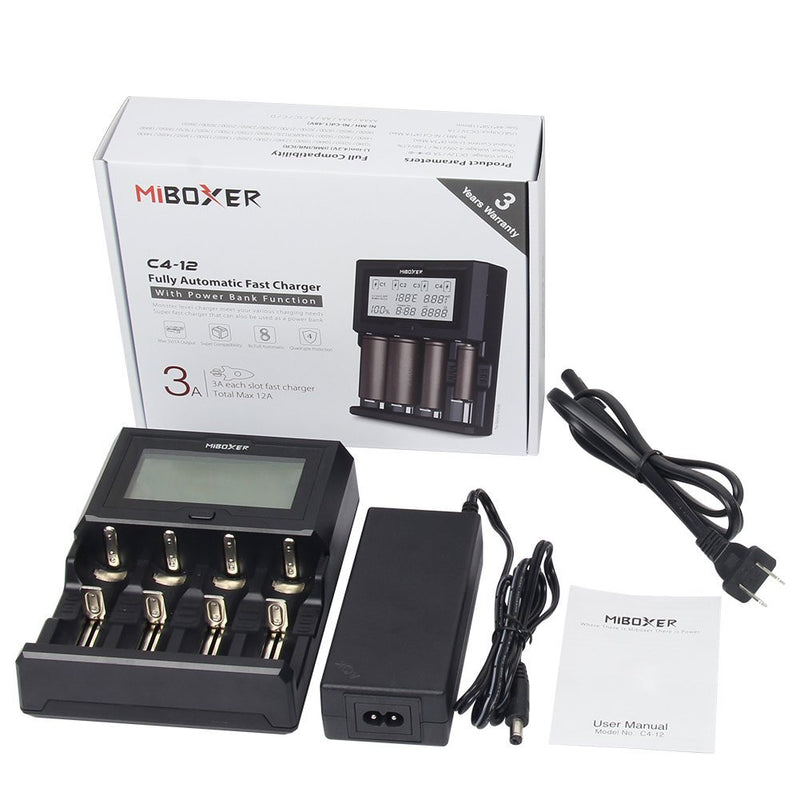

Package included:1 x Miboxer C4-12 LCD Smart Battery Charger 4 Slots(Battery not included)
1 x US Wall Charger Cable
1 x Plug Adapter according to your country's socket size
1 x User Manual
Attention:Only 4th slot have the usb output function, and only for li-ion battery. It can’t charge for LifePO4 and 4.35V li-ion battery.
