Description:
Smart panel controller is a newly high-end controller. The appearance is made of a pretty and fashionable glass panels.
Also it has memory function (Turn off the light, then turn on again, the lamps will keep the same light as before).
Brightness dimming, made of fashionable glass panel. Adopt a high precision capacitive touch screen IC. Touch screen is very stable. Widely used on the controlling of led strip, panel light, etc.

Specification:
Working voltage:DC12-24V
Total output max:15A
Output max:5A/channel
DIM:brightness dimming touch panel controller
CCT:color temperature panel controller
RGBW:RGB RGBW RGB+CCT Panel controller
Output connection:common anode
Working temperature:-20-60℃
Size:L86*W86mm

Attention:
1.Please check the input voltage of the constant voltage power supply is in accordance with the controller,and
please check the connection of both the cathode and anode.
2.The working voltage is DC12-24V,the controller will be broken if the voltage is higher than 12-24V.
3.When installation,please handle with care to avoid the broken of the glass panel.

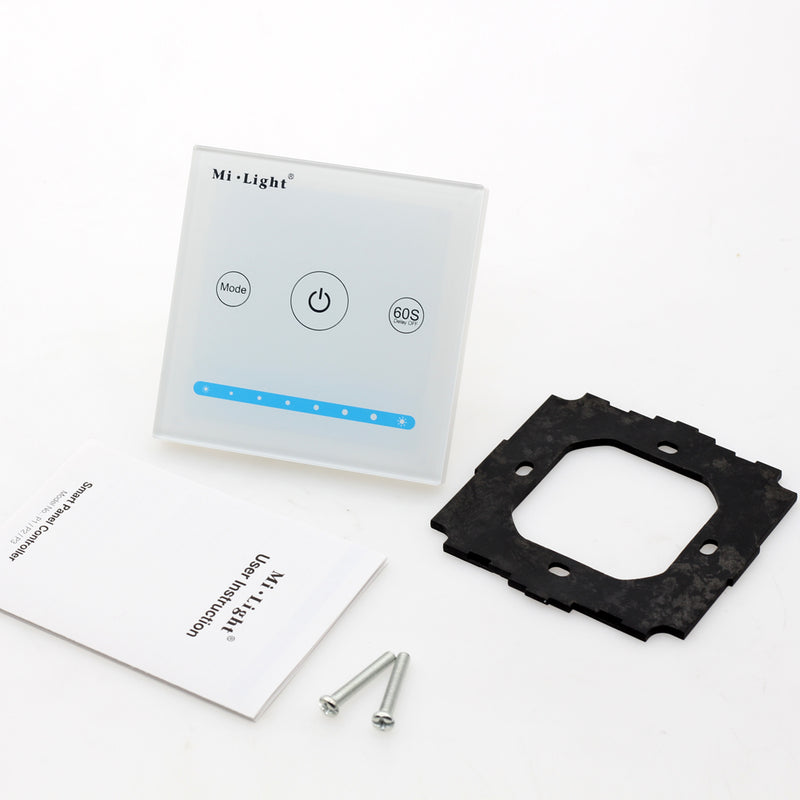

Package Included:
1*P1 mi light led touch switch controller
