Specification:
| Input |
AC 110 ~ 240V / 50HZ ~ 60HZ, DC 12V ~ 30V |
| Output voltage |
4.2V ± 0.05V / 1.36V ±. 05V. Chr |
| Output current |
650mA ± 50mA / 200mA ± 50mA |
| Rechargeable lithium battery |
18650 18500 18350 17670 16340 14650 14500 10440 3.7vNI-MH Battery AAA AA etc |
| Working temperature |
-40 ~ 55 |
| Dimensions |
139 x 125 x 36.8mm |
| Weight |
246g |
Features:Multi-output interfaces. That can charge six batteries at the same time.
Six loading slots controlled independently of each other.
Six LEDS display charging status.
Perfect protection function.
Over-voltage protection.
Over-current protection.
Short circuit protection.
Anti-reverse protection.
Great voltage input. Suitable for different countries and regions.
Excellent heat dissipation design.
Support car charger.Use instructions:
1. Put the power cord (or car adapter) of the TR-012 charger end plug into the charger. Another end in a socket. 6 LEDS light of the charger is green and light up at the same time

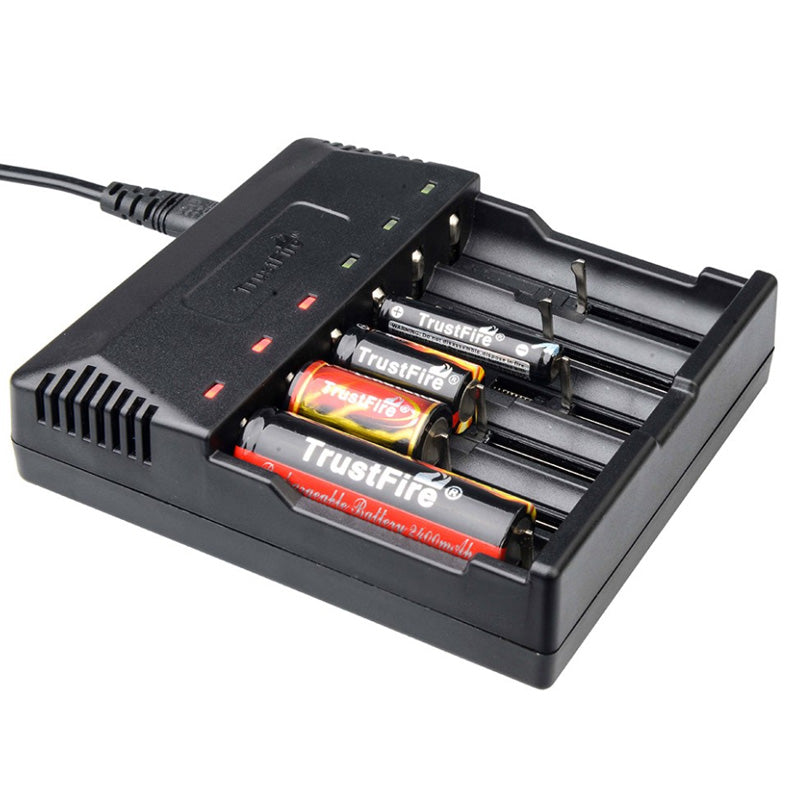

2. This charger has six charging slots each charging slot can be independently controlled 3.7V lithium battery or 1.2V Ni-MH battery. Also could charge 3.7v and 1.2v lithium Ni-Mh batteries at the same time. Figure 2. When placed in the battery. The positive and negative direction in accordance with the logo is placed on the charger reversing the positive and negative load battery will not be charged. When charged battery polarity is correct. The charger indicator color red charge reversed the battery charger indicator color is green.
Note: The battery according to the specifications described above
3 during the normally loading processing. When the battery is fully charged. The charger indicator light from red to green. Then you can remove your battery and unplug the plug.

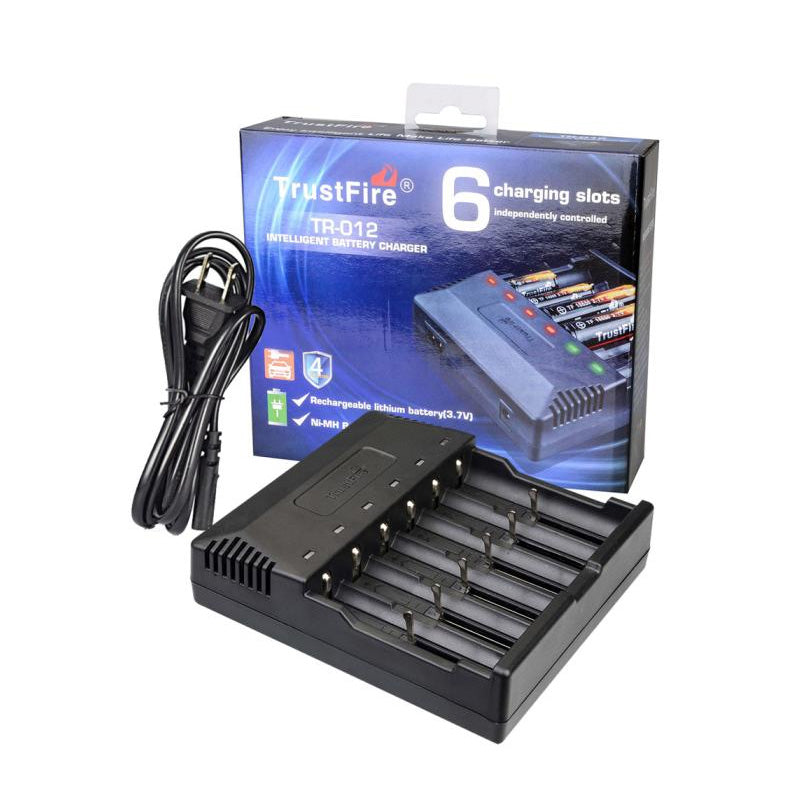

Package included:
1 x Charger
1 x US/EU plug cable
1 x Manual
