Specification:
| Input port |
Type-C, support QC 3. 0 |
| USB output port |
5V = 2.1A, MAX 2.4in |
| Output voltage |
4.35V / 4.2V / 3.6V / 1.45V |
| Output current |
1.5A x 2 (the 2/3 slots are free, the 1/4 slots are datal)
1A x 4 (the 2/3 slots set battery condition, the 1/2/3/4 slots charge current data at the same time)
0.5A x 4 (1.2V battery of charge current data)
|
| USB output |
5V = 2.1A (MAX 2.4A) |
| Compatible battery |
Li-ion / IMR / INR / ICR |
| Battery |
10440 / 10500 / 12340 / 12500 / 12650 / 13450 / 13500 / 13650 / 14350 / 14430 / 14500 / 14650 / 16340 / 16650 / 17350 / 17500 / 17650 / 17670 / 18350 / 18490 / 18500 / 18650 / 22500 / 22650 / 25500 / 26650 / 32650 |
| Working temperature |
-10 ℃ -55 ℃ |
| Size |
120 x 49 x 152mm |
| Weight |
235g |

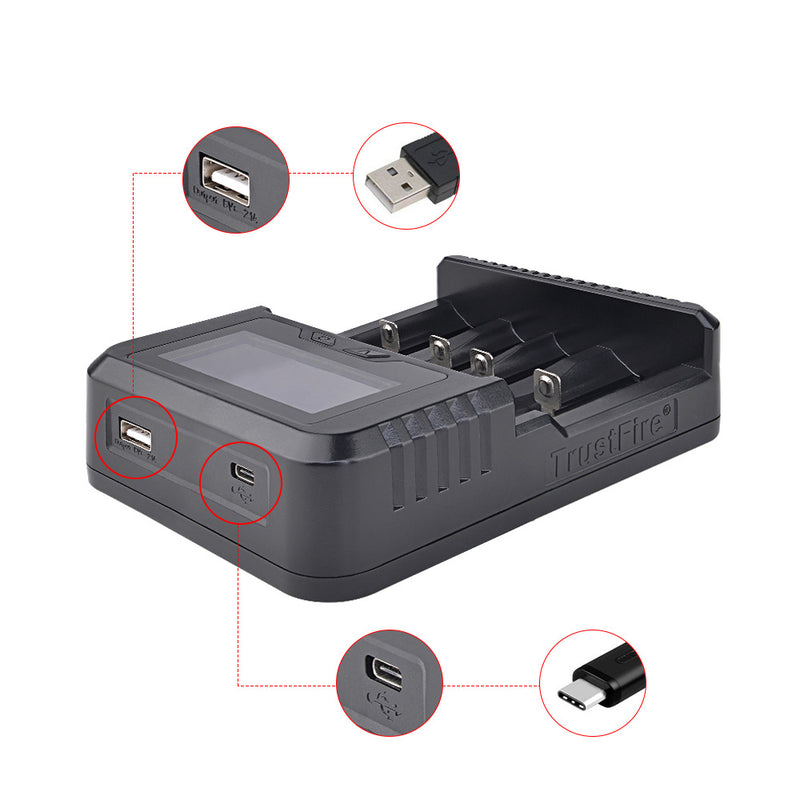

Features:Input port: Type-C, support QC 3. 0.
USB output port: 5v = 2.1A, MAX 2.4in
Four slots intelligent and independent circuit.
Applicabe many batteries type: NiMH / NiCd, LiFePO4, Li-Ion, IMR.
Adopt STN HD coverings on LCD crystal display
The loading status voltage, capacity from each slot can be queried in real time * Intelligent recognition fast recharge mode.
Inteligent recognition 1.2V battery and detection not battery.
A variety of safety protection functions overcharge, over the relief, and reverse short cirouit, high temperature protection.
0 v activation, rescue via discharge battery.USB output / power function:
1. Connect the USB port for output, the four slots can be placed in different voltage batteries at the same time [4 2v and 4. 35v are recommended].
2. Press the key of "O" It could charge the mobile and other devices, the key "V" to check the charging status and data.
3. When the battery is discharged when the voltage of a slot istNiedriger than 2.8 v, the USB stops issuing and the power raumBlinkt 10 times and then turns down.
Packaging incuding:
1 x Charger
1 x USB cable
1 x Manual
