Please Know:
User manual, PC software installation instruction and PC software and Android APP download link: http://www.mediafire.com/folder/0jt6xx2cyn7jt/UM24
Technical Parameter:

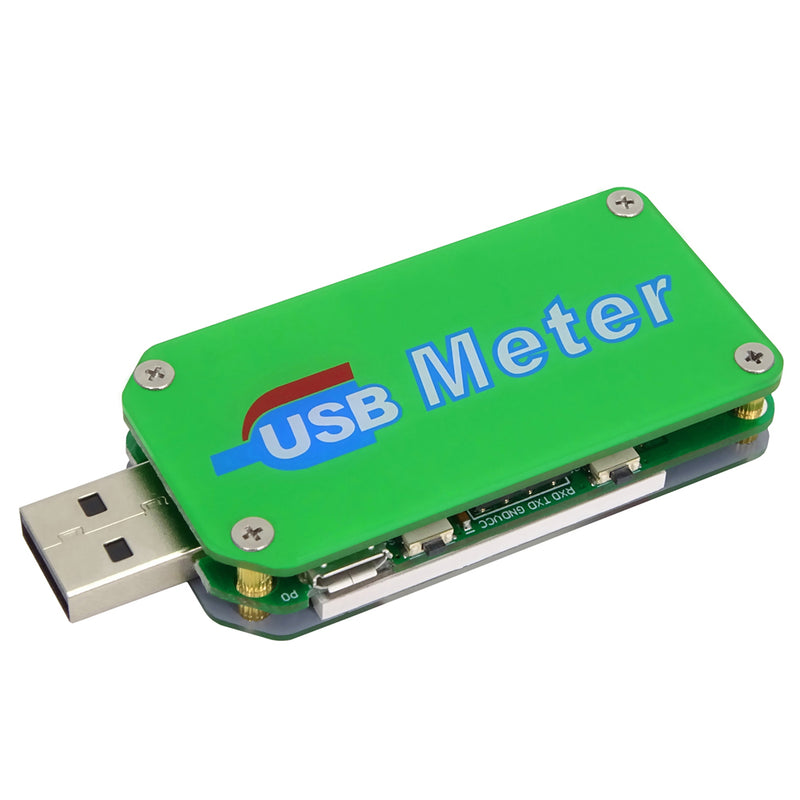

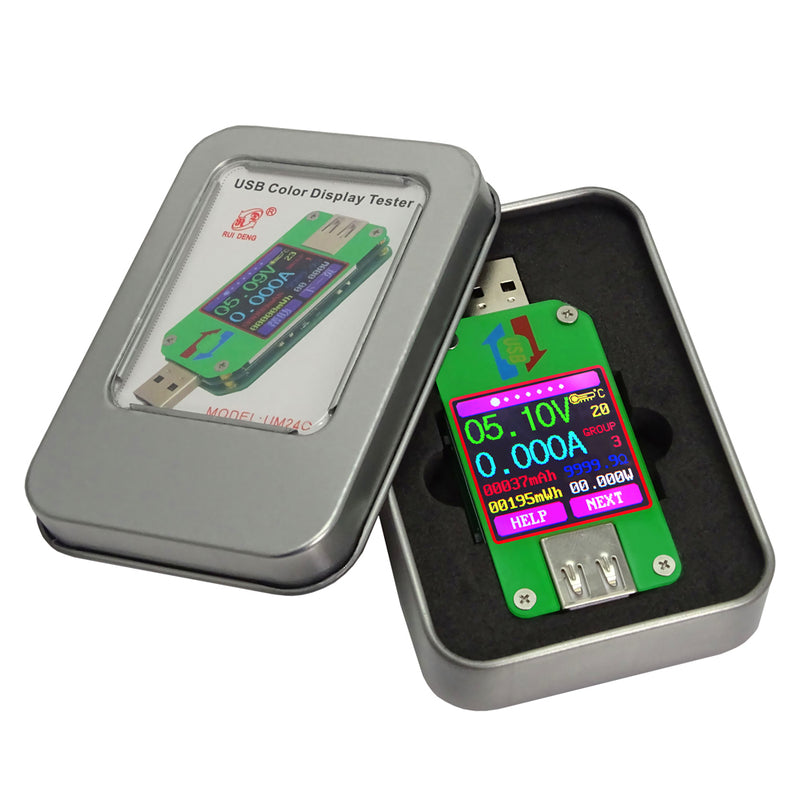

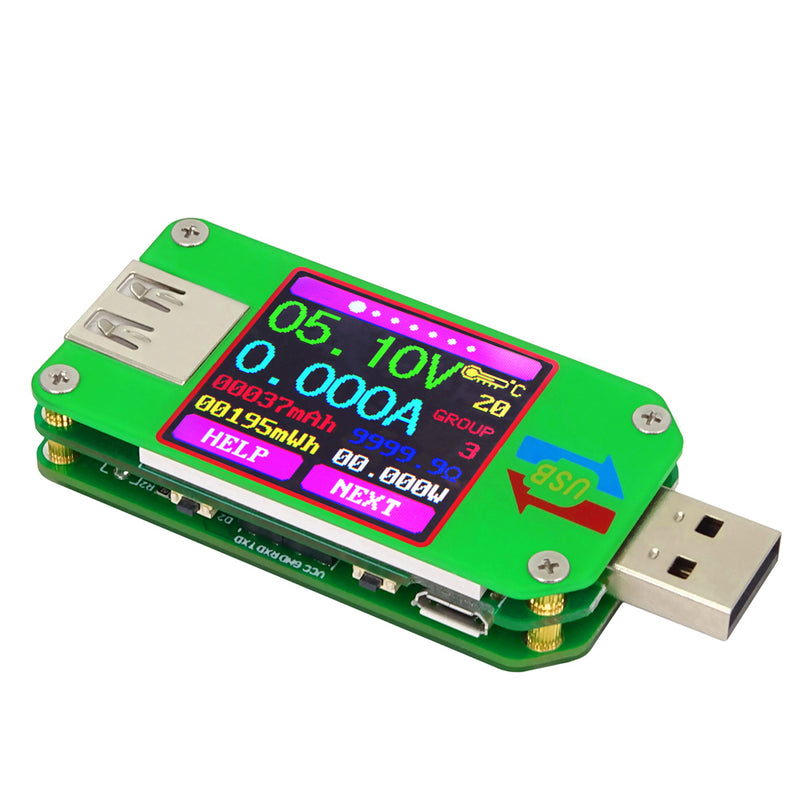

Product Model: UM24 Product Weight: 18.83g
Voltage Measurement Range: 4.50-24.00V Voltage Measurement Resolution: 0.01V
Current Measurement Range: 0.000-3.000A Current Measurement Resolution: 0.001A
Capacity Accumulation Range: 0-99999mAh Voltage Measurement Accuracy: ±(0.2%+1 digit)
Energy Accumulation Range: 0-99999mWh Current Measurement Accuracy: ±(0.8%+3 digit)
Load Impedance Range: 1.5-9999.9Ω Time Measurement Range: 0-99h59min59s
Temperature Range: -10℃~100℃/0℉~200℉ Temperature Measurement Error: ±3℃/±6℉
Screen Brightness Setting: 0-5 level Auto Screen Off Time: 1-9mins
Voltage Graphing Range: 04.5-24.0V Current Graphing Range: 0.00A-3.00A
Display Screen: 1.44 Inch color LCD display Quick Charge Recognition Mode: QC2.0, QC3.0
Refresh Rate: 2Hz Product size: 71.2mmx31.8mmx11.3mm
Note:
1. UM24 is no communication version.
2. PC software support PC window (Win 7 and above) and Phone Android (Android 5.0 and above, support 12 kinds language, chinese, english and Russia .... )
3. User manual, PC software installation instruction and PC software and Android APP download link: http://www.mediafire.com/folder/0jt6xx2cyn7jt/UM24
4. For Android APP:
A: APP only support android 5.0 and above . B: Allow APP to do in the background, not be cleaned. C: allow APP self-starting. D: Allow APP stay after screen locked, not be cleaned.
