More document click to download: MAX3010Overview:
The MAX30100 is an integrated pulse oximetry and heart-rate monitor sensor solution. It combines two LEDs, a photodetector, optimized optics, and low-noise analog signal processing to detect pulse oximetry and heart-rate signals.
The MAX30100 operates from 1.8V and 3.3V power supplies and can be powered down through software with negligible standby current,permitting the power supply to remain connected at all times.
Applications:
● Wearable Devices
● Fitness Assistant Devices
● Medical Monitoring Devices
Features:
● Complete Pulse Oximeter and Heart-Rate Sensor
Solution Simplifies Design
• Integrated LEDs, Photo Sensor, and
High-Performance Analog Front -End
• Tiny 5.6mm x 2.8mm x 1.2mm 14-Pin Optically
Enhanced System-in-Package
● Ultra-Low-Power Operation Increases Battery Life for
Wearable Devices
• Programmable Sample Rate and LED Current for
Power Savings
• Ultra-Low Shutdown Current (0.7µA, typ)
● Advanced Functionality Improves Measurement
Performance
• High SNR Provides Robust Motion Artifact Resil-
ience
• Integrated Ambient Light Cancellation
• High Sample Rate Capability
• Fast Data Output Capability
Package Included:

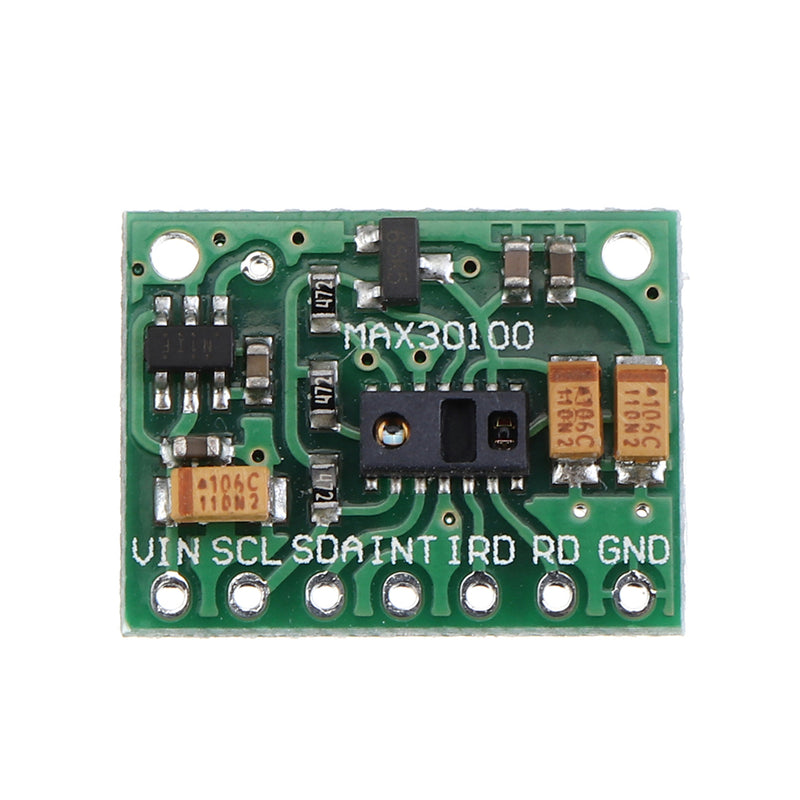

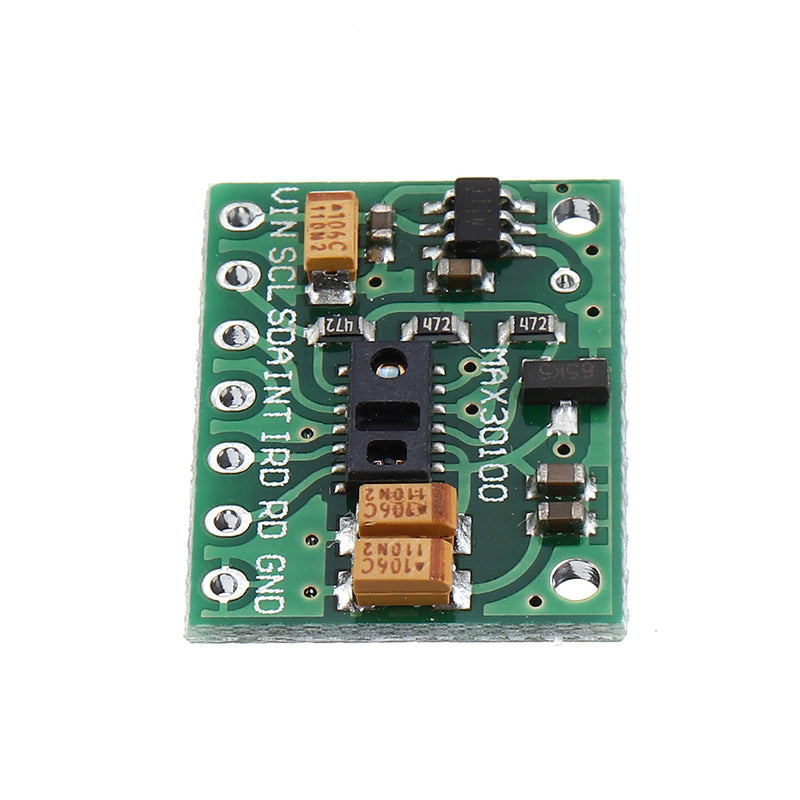

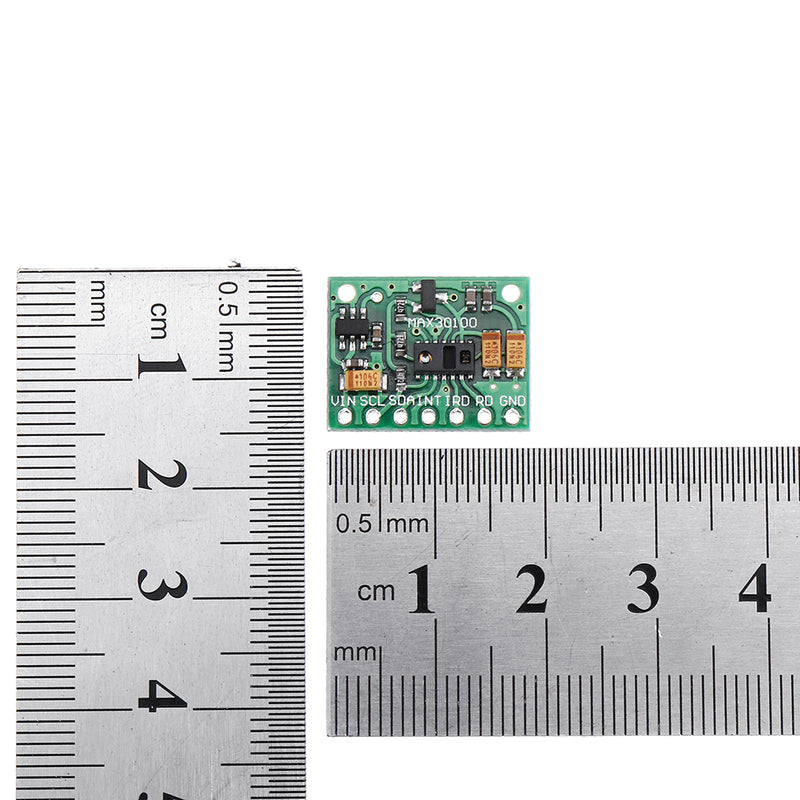

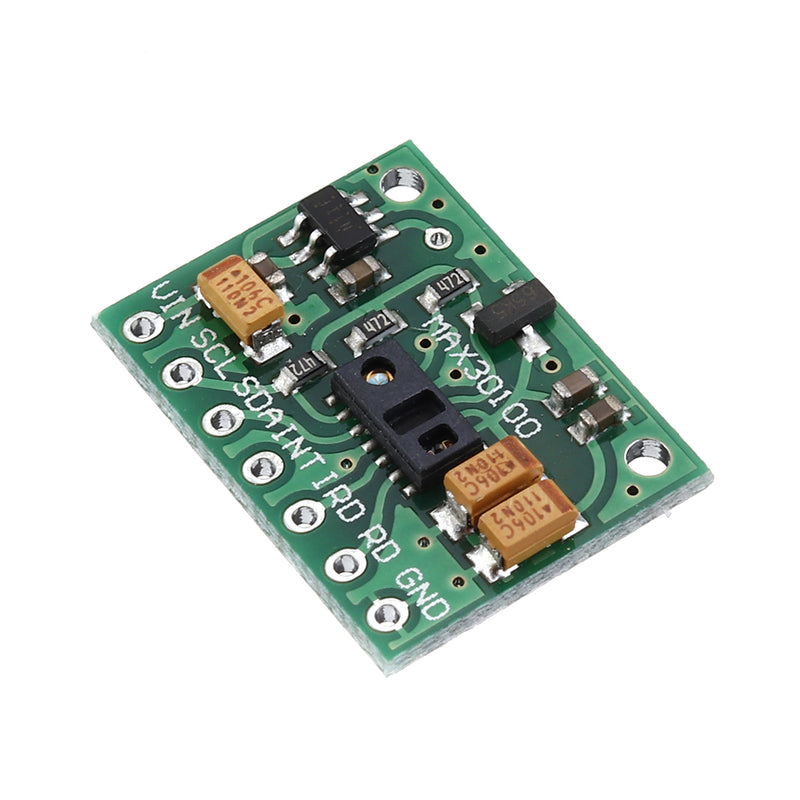

3 x MAX30100 Heartbeat Sensor Module
