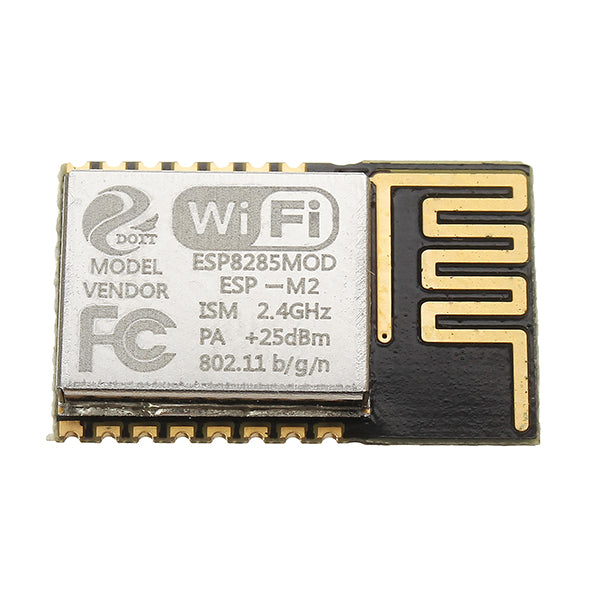

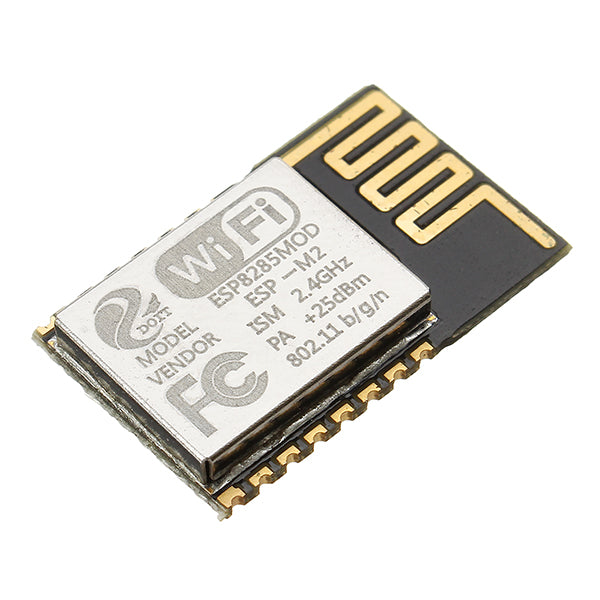

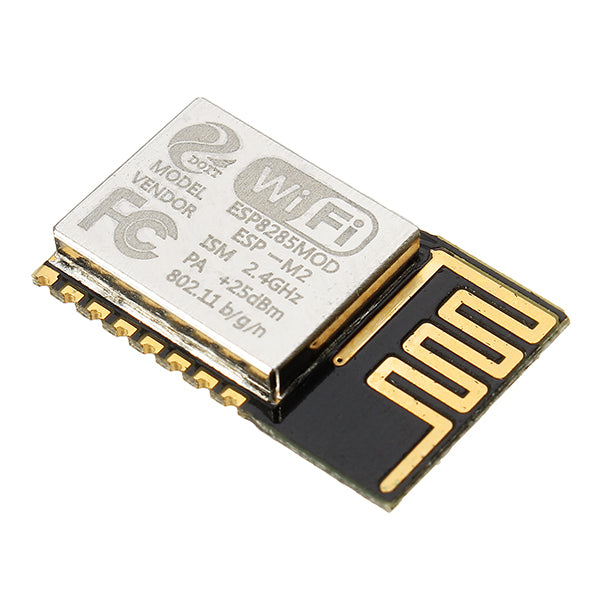

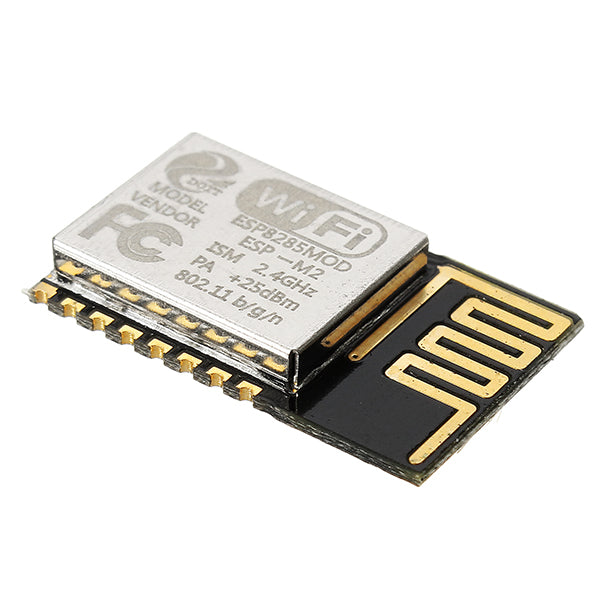

3Pcs Mini ESP-M2 ESP8285 Serial Wireless WiFi Transmission Module SerialNET MODE
Save 0
SKU: U2I-BG-1153160
Share this product
Description
Introduction:
What is ESP8285? ESP8285=ESP8266+1M Flash application temperature up to 125℃! First and foremost the code programmed in ESP8266 could be used for ESP8295 intact.
ESP-M2 module core processor is the high-performance chip ESP8285, which is equal to ESP8266 chip plus 1M Flash. The chip ESP825 is encapsulated an advanced Tensilica’s L106 32-bit CPU, together with SRAM. ESP825 has the full and complete WiFi function, which can be used independently and also used as a slave with other Hoster MCU, which can start directly from the out-built Flash. In addition, the built-in high-speed buffer is a benefit for the system performance. Especially, ESP8285 can be used as a WiFi adapter by SPI/SDIO and/or I2C/UART interface, when it is applied to the other MCU design.
Features:
Ultra-small size; Support serial to WiFi; Wireless transparent transmission; Long distance transmission with ultra-low power; Support outboard antenna; Bearing high temperature to 125 ℃, compared to the 85℃ for ESP8266.
Specifications:
SOC characteristics Built-in Tensilica L106 ultra-low power 32-bit CPU, main frequency supports 80MHz and160MHz and RTOS; Built-in TCP/IP protocol; Built-in one-channel 10-bit high precision ADC; Outboard interface: HSPI, UART, I2C, I2S, IR Remote Control, PWM, GPIO; Deep sleep current is 10uA, the cut-off current is smaller than 5uA; Wake, connect and transmission data package within 2ms; The consumer power is smaller 1.0Mw (DTIM3) when at standby status; Built-in 1M byte for SPI Flash.
WiFi characteristics Support 802.11 b/g/n/e/I; Support Station, Soft AP, Soft AP+STA mode; Support WiFi Direct (P2P); Support CCMP (CBC-MAC, computation mode), TKIP (MIC, RC4), WAPI (SMS4), WEP (RC4), CRC etc., for hardware acceleration. P2P finding, P2P GO mode/ GC mode and P2P power manage WPA/PA2PSK and WPS; 802.11securitycertification: pre-certification and TSN Support 802.11n (2.4GHz); 802.1h/RFC1042 frame encapsulation; Support seamless roaming; Support AT remote update and cloud update (OTA); Support Smart Config function (including Android and Ios device).

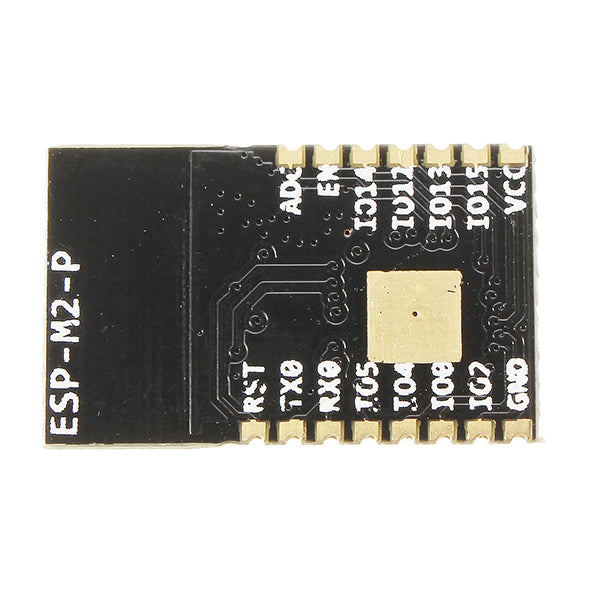

Module interface:

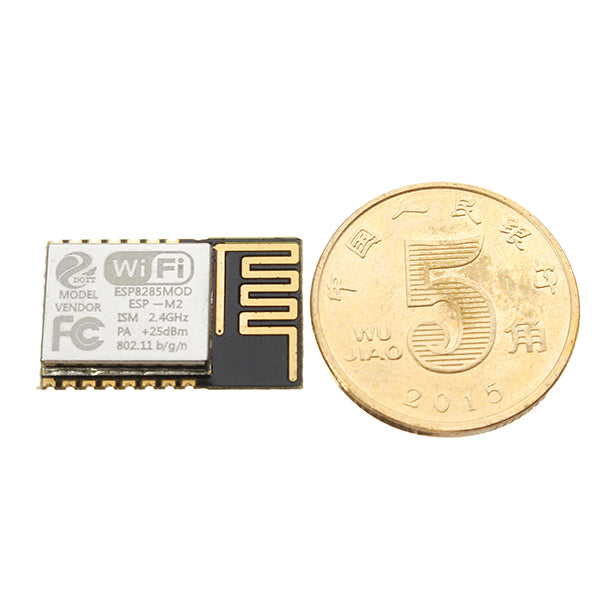

2* UART; 1*ADC; 1*En; 1*wakeup pin; 1*HSPI; 1*I2C; 1*I2S More than 10*GPIOs Working temperature: -40℃-+125℃; Module size: 12.3*20mm
Applications:
Electrical appliance; Smart power plug, smart light; Infant monitor; Sensor networks; Security ID label; Wireless location beacon; Home automation; Mesh networks; IP video camera; Wearable electronics; Wireless location recognition; Industrial wireless control;
Package included:
3 x Mini ESP-M2 ESP8285 Serial Wireless WiFi Transmission Module
