Description:
1. Put on the power relay and delay suction. Specifically: after supplying 12V power supply to relay, relay will not absorb immediately. The state of output terminal of relay is: normally open and public disconnect, normally closed and public conduction; when the delay is 1-10S (adjustable), the relay sucks. At this time, the state of output terminal of relay is: normally open and public conduction, often closed and public disconnection; as long as the module is continuously powered, this state will be maintained. Hold.
2. Adjustable delay time, (0-10 seconds)
4. Increasing potentiometer can increase delay time
5. Increasing capacitance C1 can increase delay time
6. Indicator lamp with input power supply
7. Suction indicator with relay

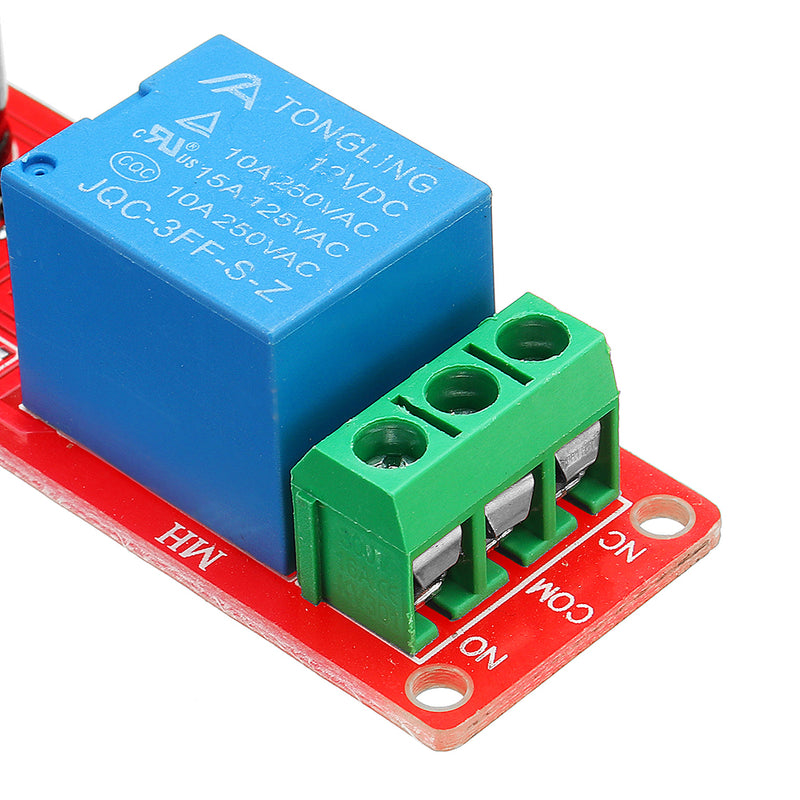

8. Controllable 220V/10A AC equipment. (Maximum Control Equipment 2000W)
9. It has relay continuous current protection.
10. Delay time formula: T = 1.1RC. For example: capacitance 100uF resistance 100KT = 1.1 * 100000 * 0.0001 = 11 seconds
Feature:

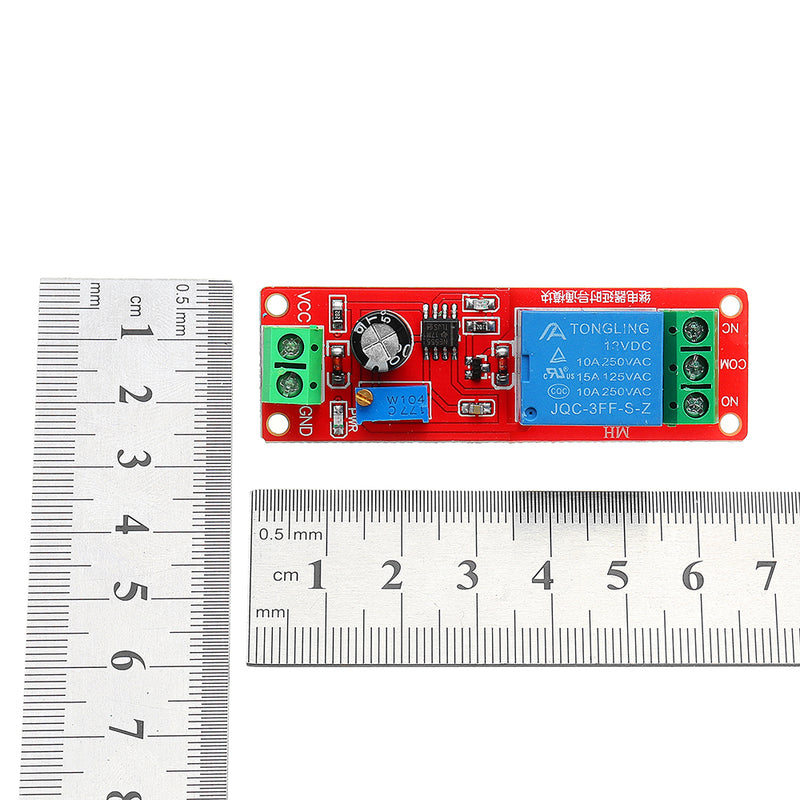

Size: 6.8CM x 2.1CM

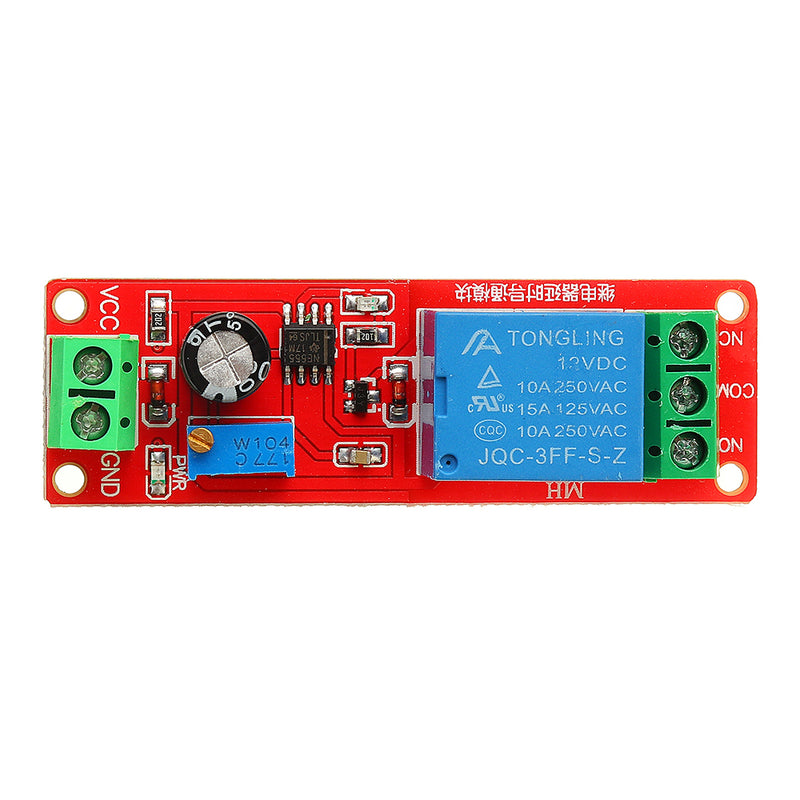

Main chip: NE555
Working Voltage: 12V DC
Package Included:

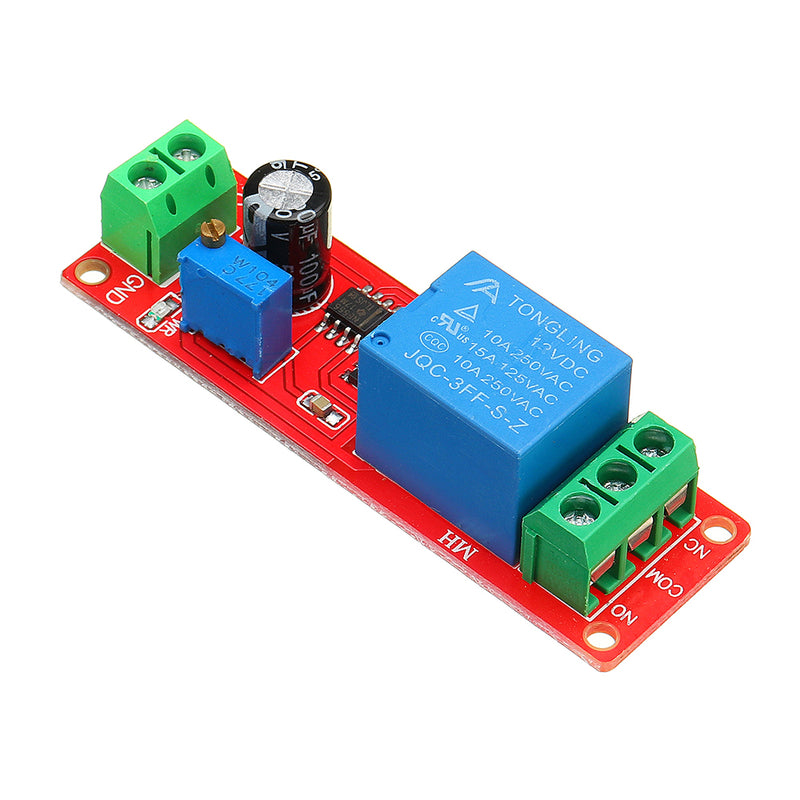

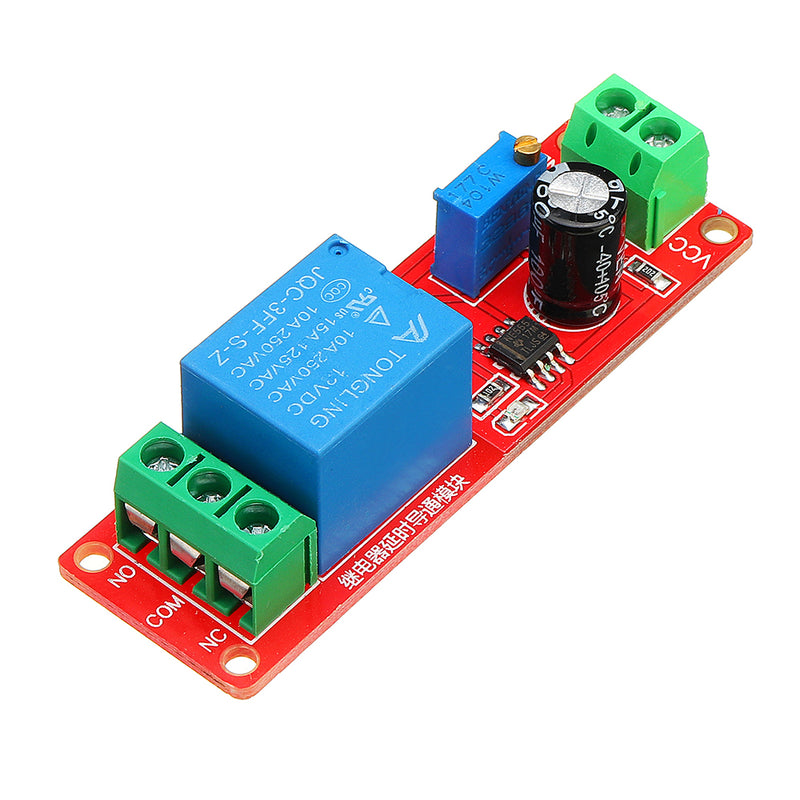

3 x NE555 Chip Time Delay Relay Module
