Feature:
If you need to control the AC power (lights, home equipment's), a thyristor is what you need.

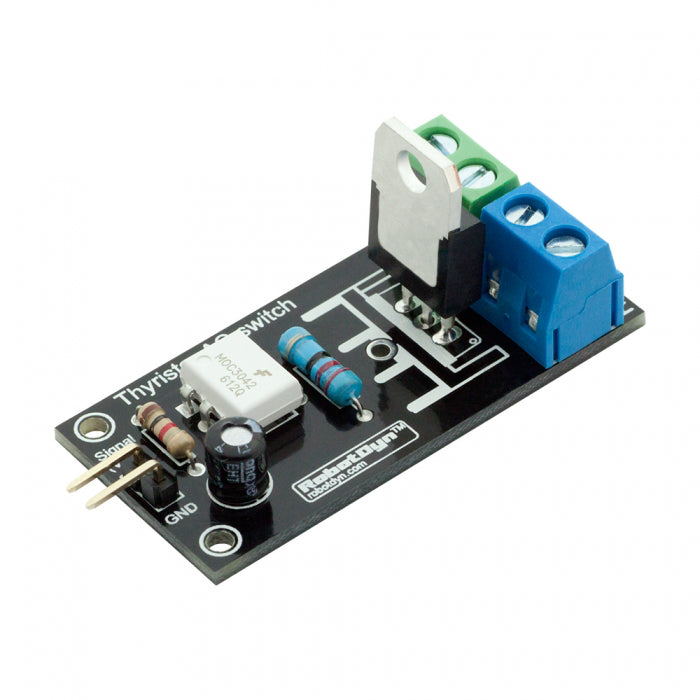

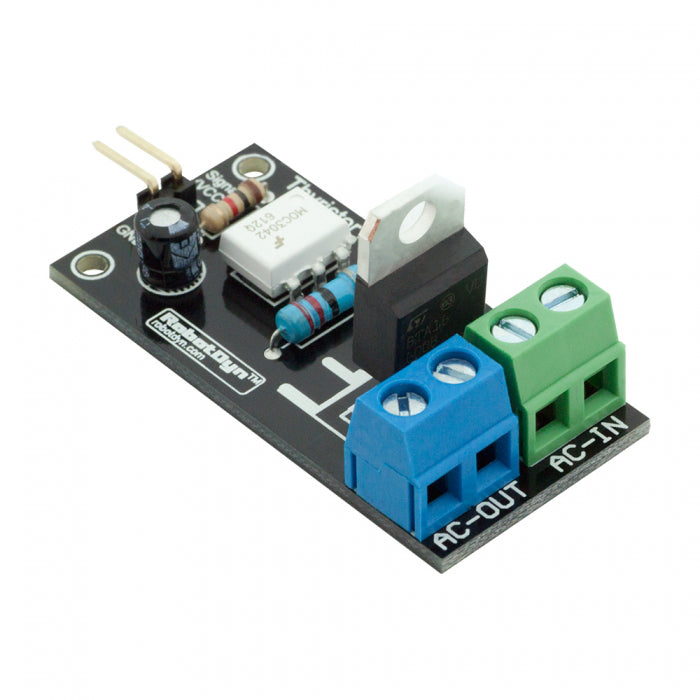

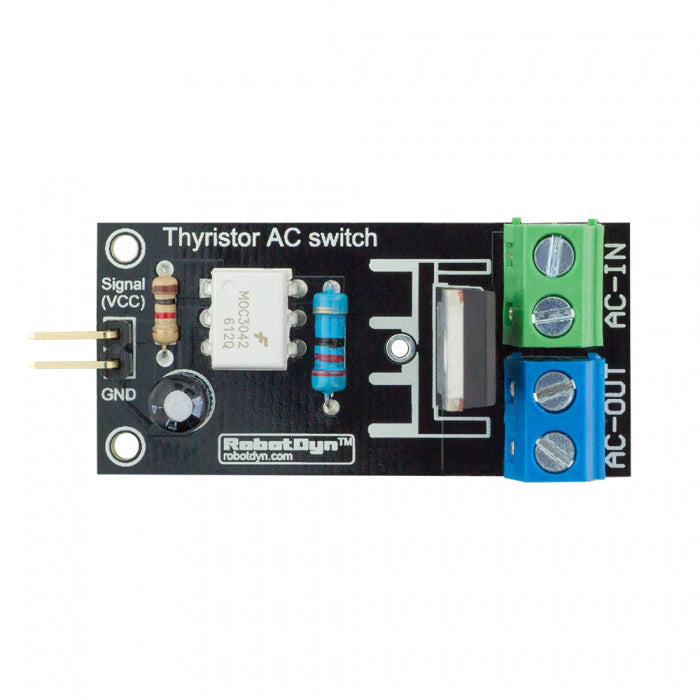

This is a very common thyristor module with very low on-resistance and a control voltage, that is compatible with any 3.3V or 5V micro-controller or mechanical switch.
This allows you to control high-power devices with very low-power control mechanisms.
This board has an optoisolator to protect your micro-controller from high AC currents.
We also left more space, if you need to install the heat sink for thyristor.
Characteristics:

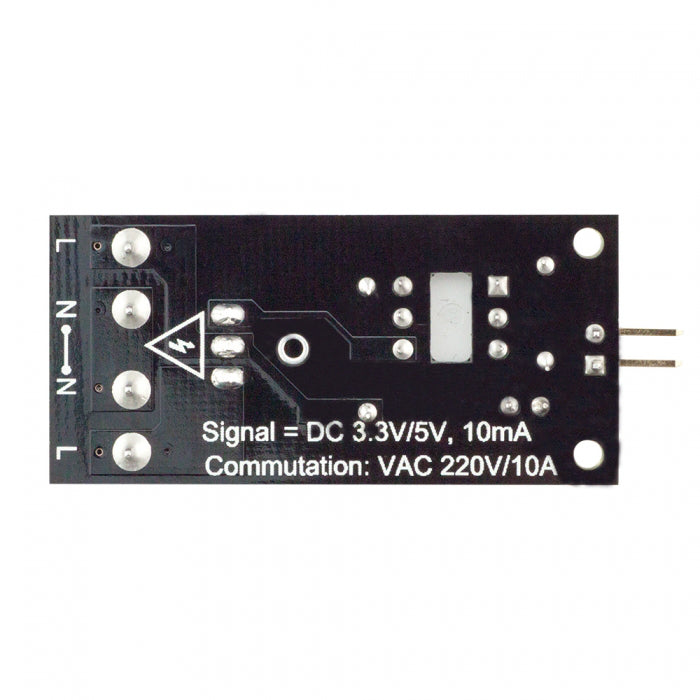

Signal: DC3.3V/5V 10mA
Commutation: VAC 220V/5A (peak 10A)
Size: 22 x 46 mm
Technical Instruction:
GND to GND
Signal (VCC) to Digital I/O, or 3.3V~5V
Package includes:
3 x Thyristor AC Switch Relay Module
