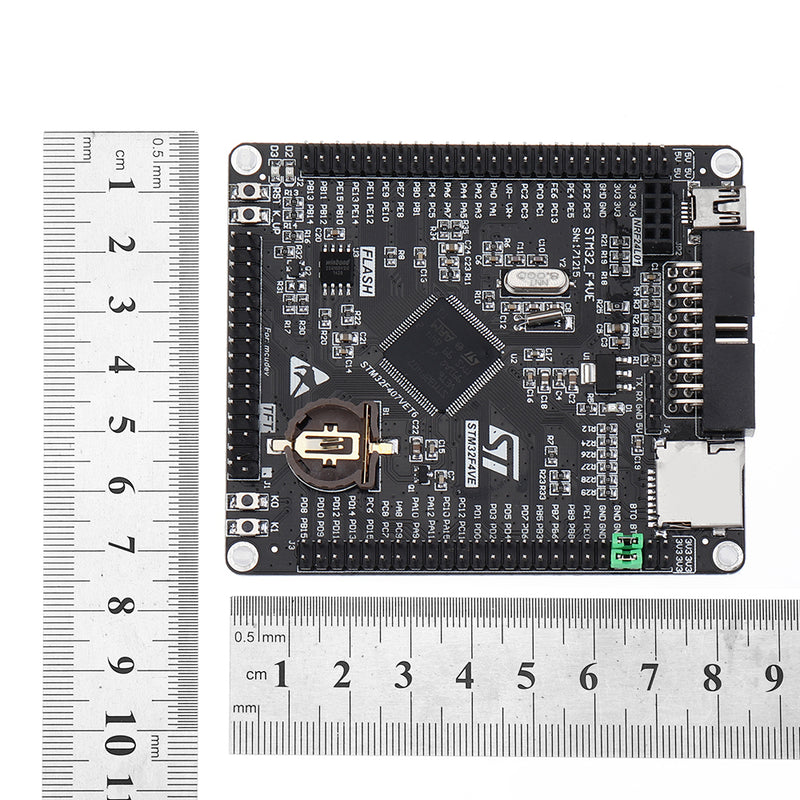

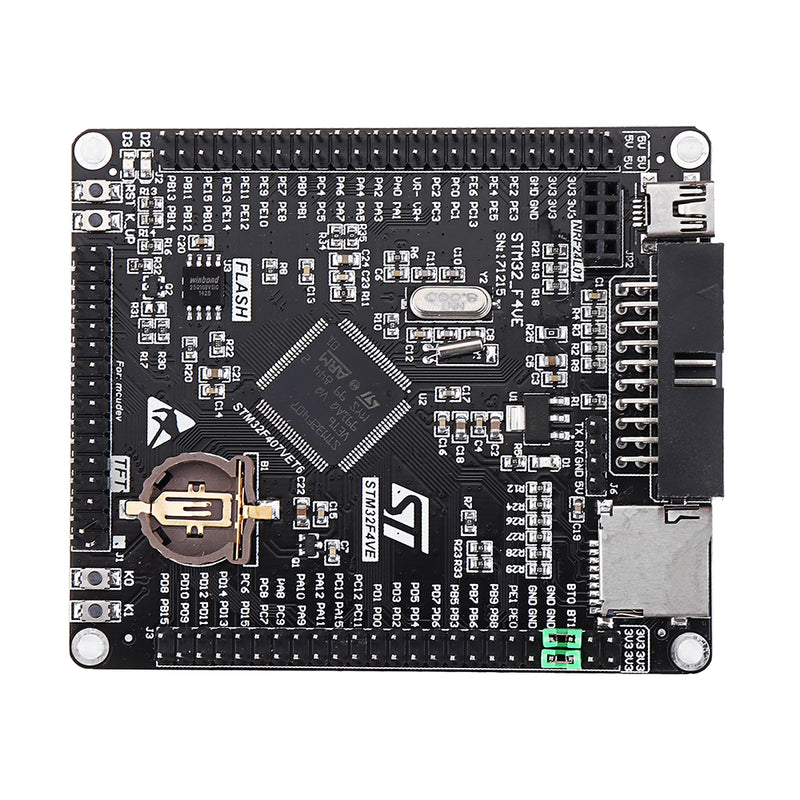

Tips: The USB cable is powered separately to the development board, not USB to serial port.Features:
Onboard: SD card holder

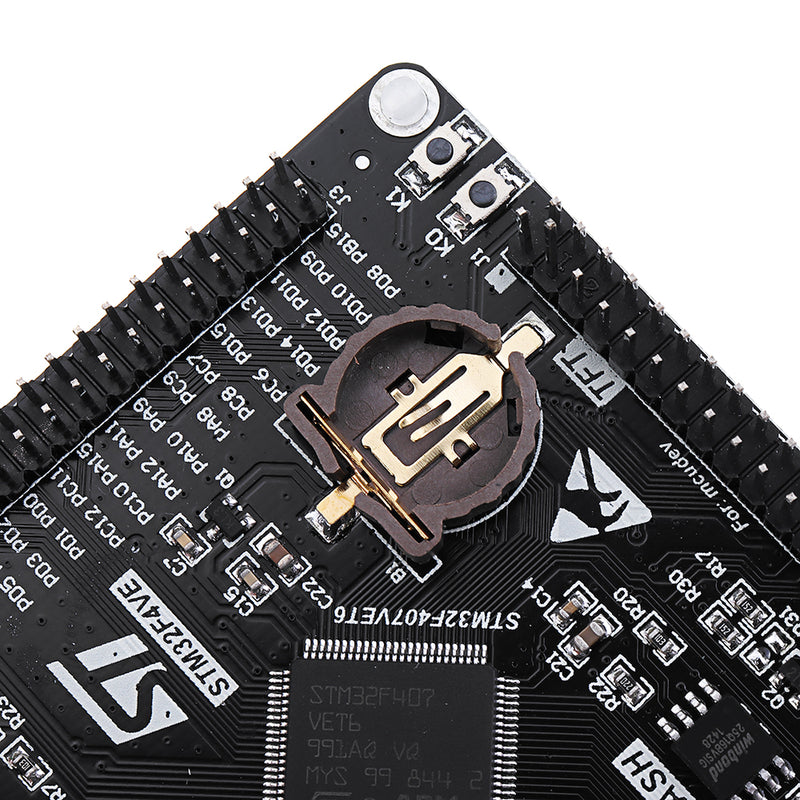

RTC battery: CR1220 (not includes)
Wireless communication: NRF2401 interface
Data storage: W25Q16
Support FMSC liquid interface
Multi-user pressa
All CPUs - IO lead
2.54mm integer double pitch pinChip introduction:
STM32F407VET6
Core: Cortex-M4 32-bit RISC;
Features: Single-cycle DSP instructions:
Working frequency: 168MHz, 210 DMIPS/1.25 DMIPS/MHz
Working voltage: 1.8V-3.6V
Package: LQFP100
Storage resources: 512kB FIash, 192+4kB SRAM
Resources: 3 x SPI, 3 x USART, 2 x UART,
2 x l2S, 3xl2C;
1 x FSMC, 1xSDIO, 2xCAN;
1 x USB 2.0 FS/HS controller (with dedicated DMA);
1 x USB HS ULPI; (for external USB HS PHY)
1 x 10/100 Ethernet MAC;
1 x 8 to 12-bit parallel camera interface;
3 x AD (12-bit, 1us, time-sharing 24), 2xDA (12-bit)

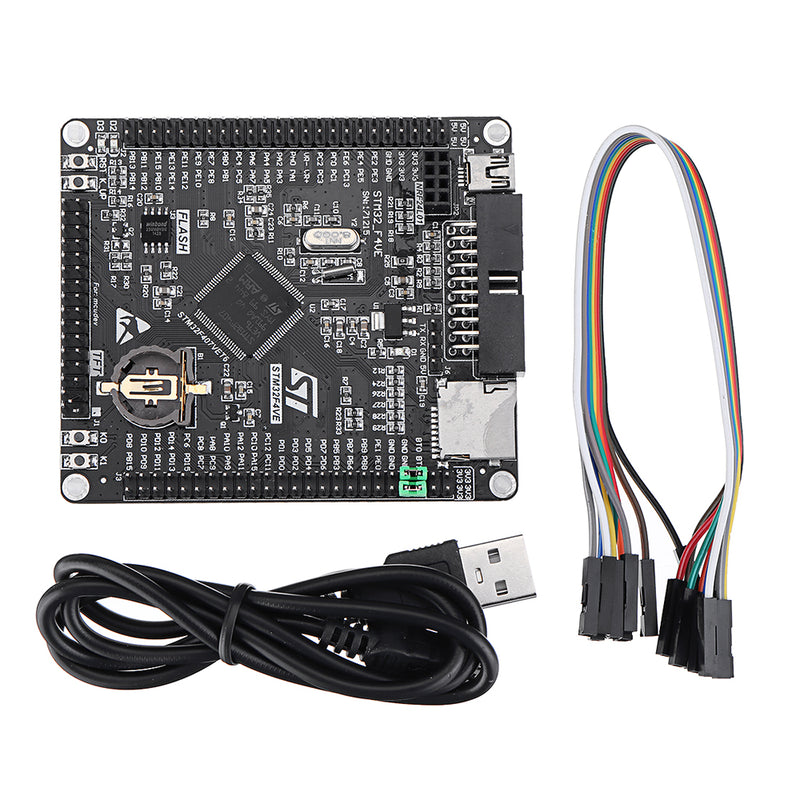

Package includes:
3 x Development board

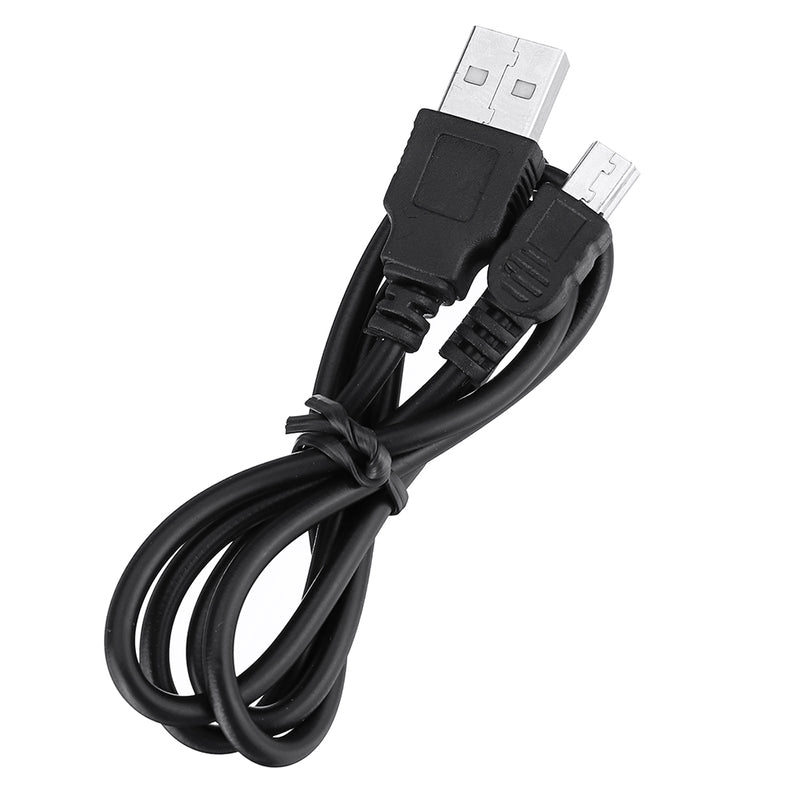

3 x USB cable for development board

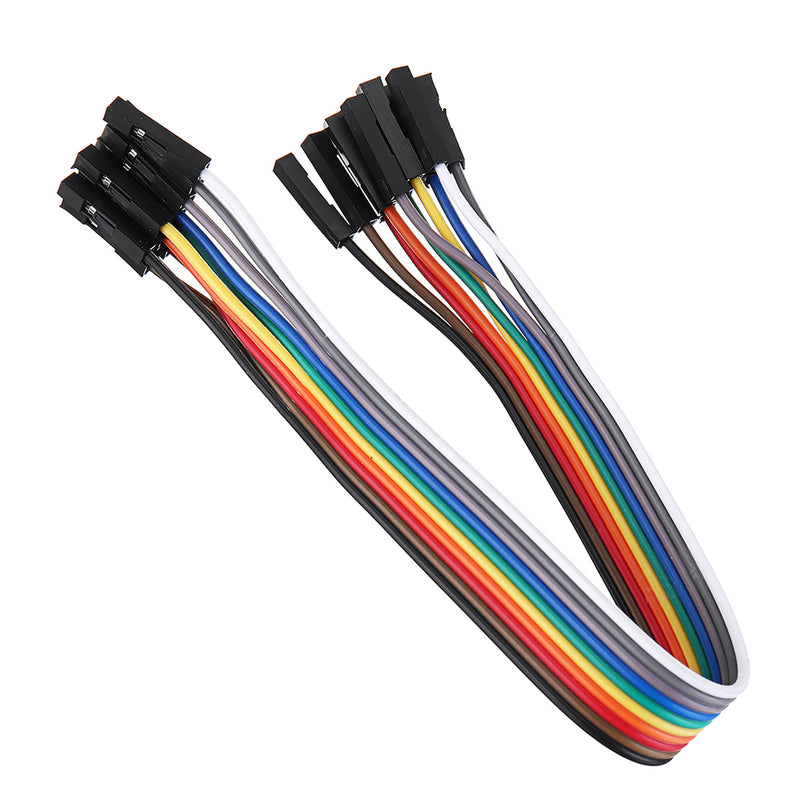

3 x Dupont cable
