3pcs TL494 PWM Speed Controller Frequency Duty Ratio Adjustable

3pcs TL494 PWM Speed Controller Frequency Duty Ratio Adjustable

Name: 3pcs TL494 PWM Speed Controller Frequency Duty Ratio Adjustable
Brand: Banggood
SKU: U2I-BG-1293006
Price: 2,120.00 INR
Availability: InStock

SKU: U2I-BG-1293006

Share this product

Function Description:

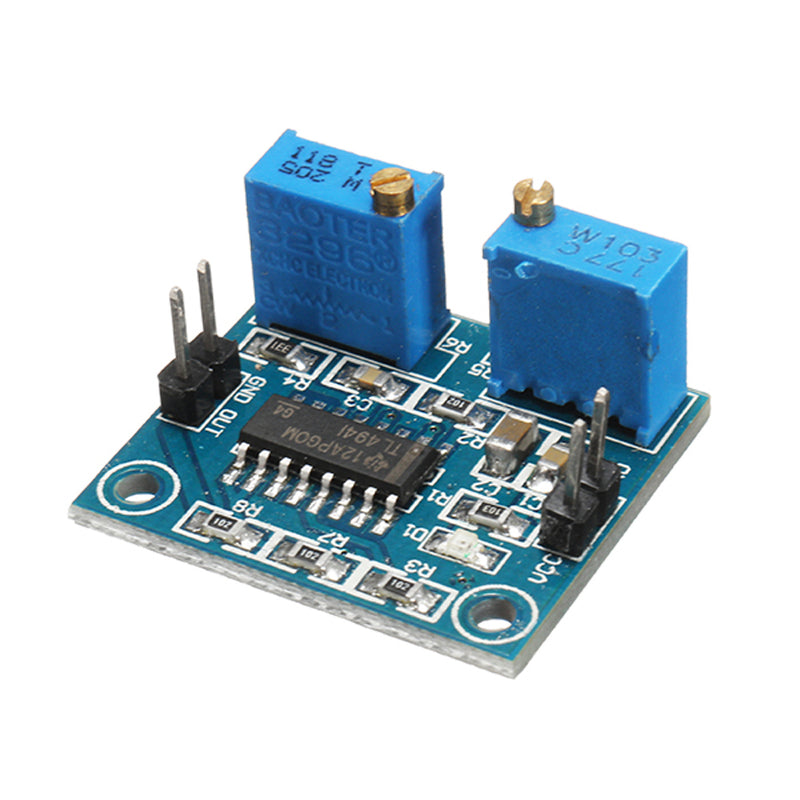

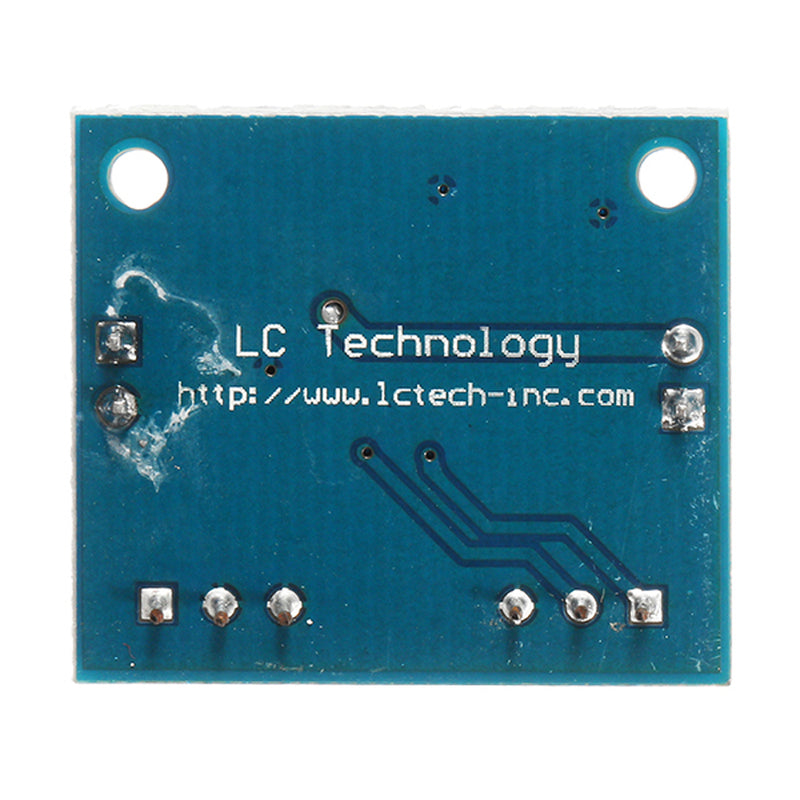

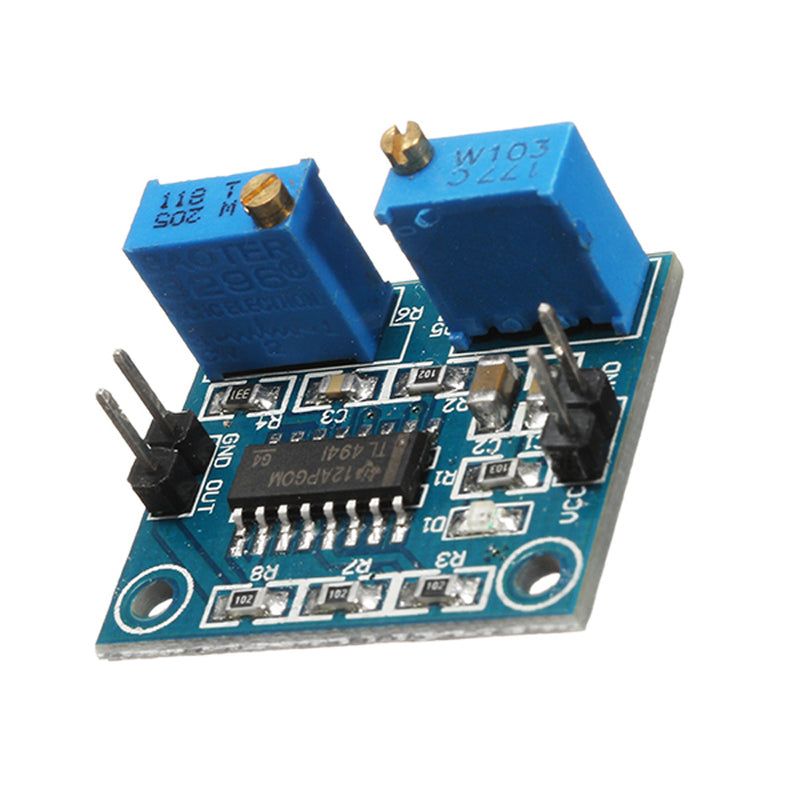

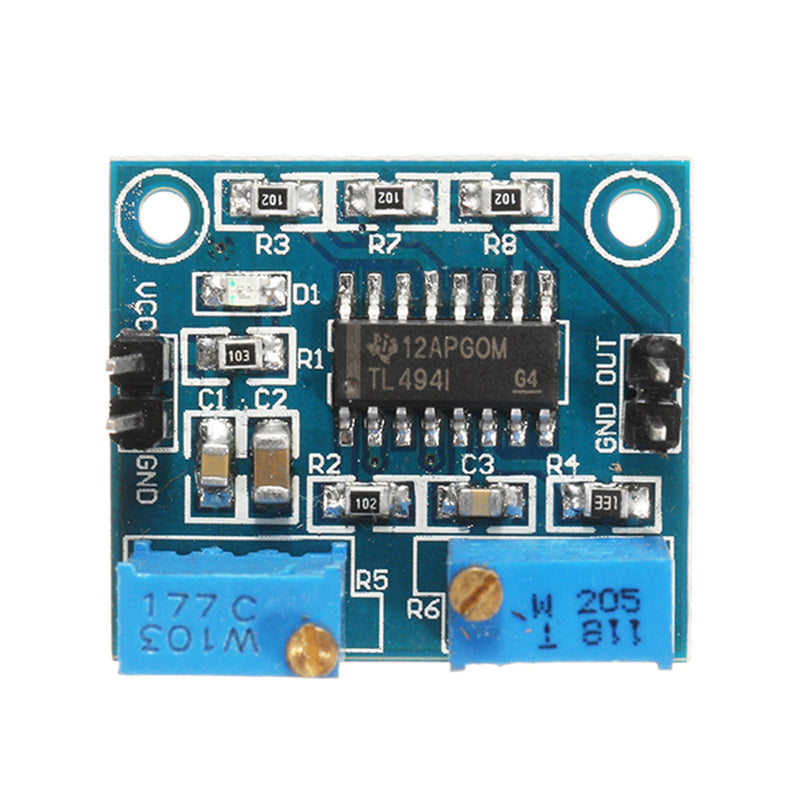

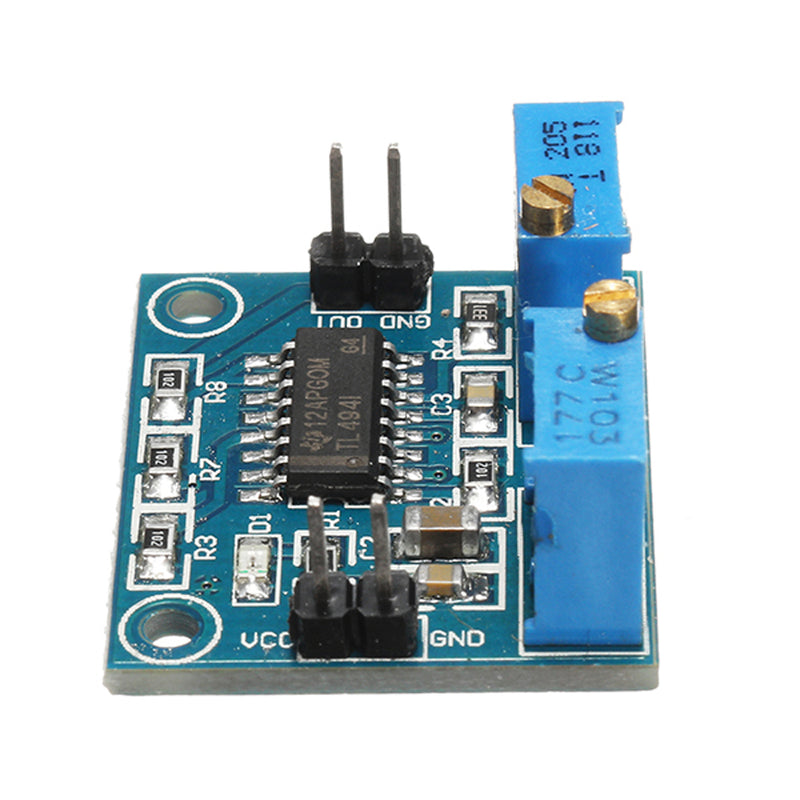

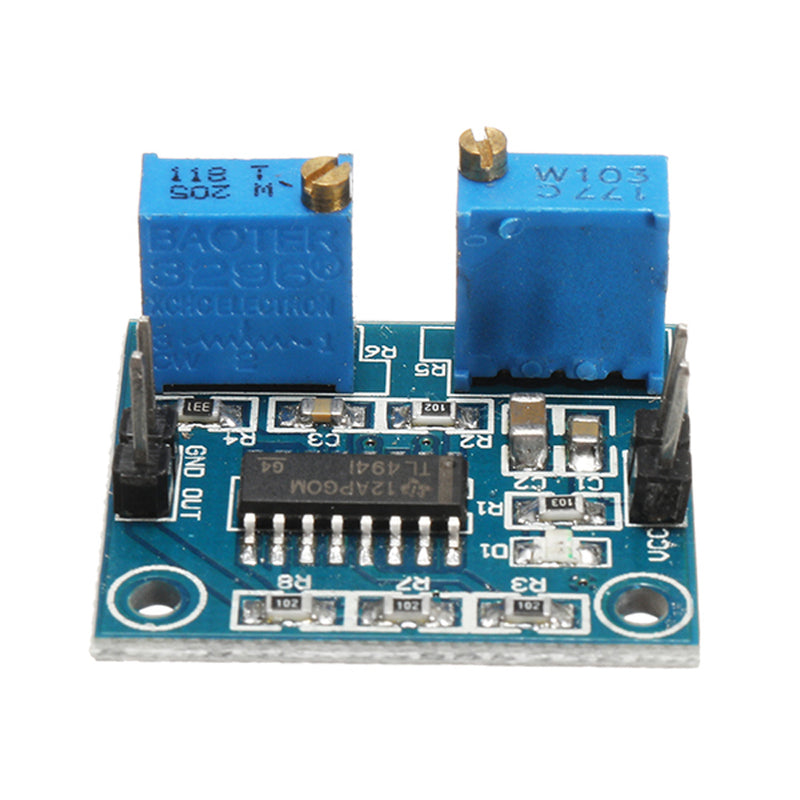

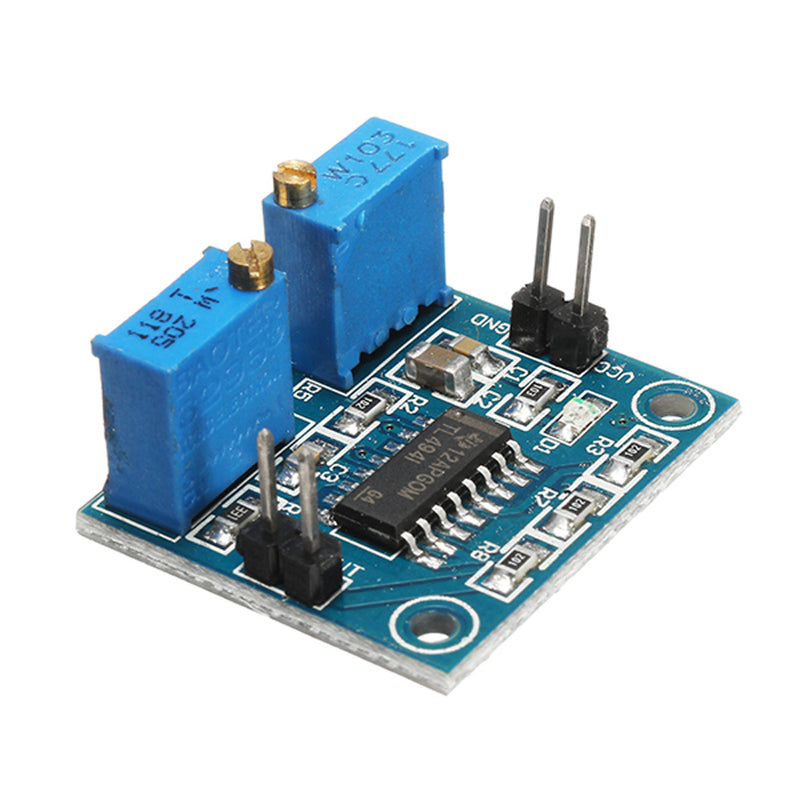

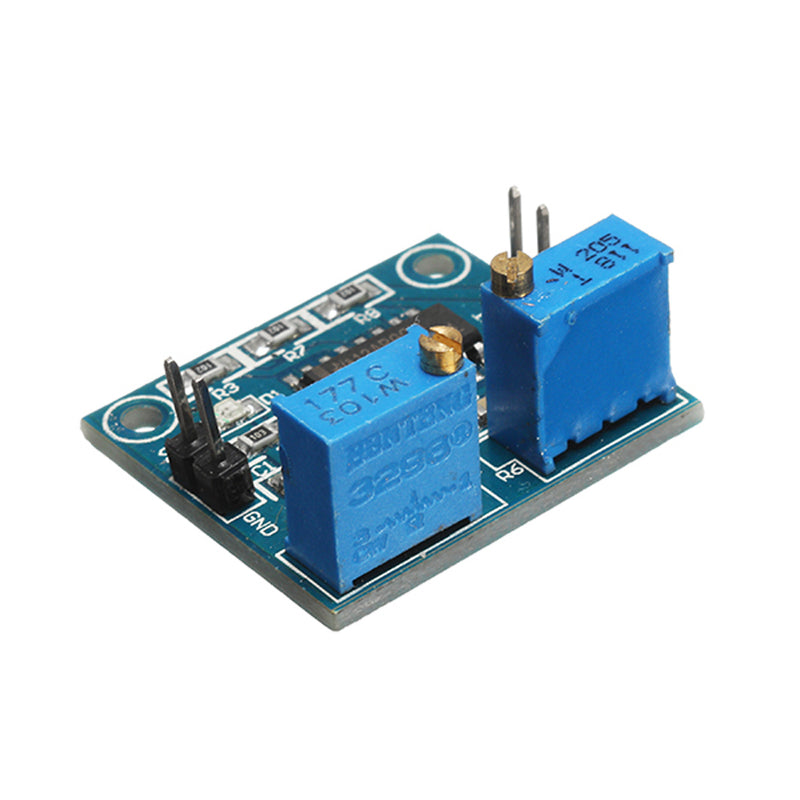

TL494 PWM regulator module, can adjust the output frequency and duty radio, widely used in switching power supplier, PWM drive circuit.

Feature:

PWM output frequency in the range 500Hz-100KHz can be adjustable, maximum duty cycle to 96%.
Output drive capability, signal stability;
Working voltage: DC 7V-40V Limit 42V;
Maximum output current: 250mA;
Output voltage: DC5V
Maximum power consumption: 1000mW;
Working ambient temperature: 0-70 ℃
Positioning hole: 2.7mm diameter(M2.5)
Board size: 26mmx23mm

Package included:

3 x TL494 PWM Controller
