Feature:
Rated Voltage: DC5V-12V
4-phase
Reduction Ratio: 1/64
Step Torque Angle: 5.625°/64
DC Resistance: 200ω±7% (25°)
Insulation Resistance: >10Mω (500V)
Insulation Grade: A
No-load Pull in Frequency: >600Hz
No-load Pull out Frequency: >1000Hz
Pull in Torque: >34.3mN.m(120Hz)
Detent Torque: >34.3mN.m
Temperature Rise: <40 K(120Hz)
Noise: <40dB (120Hz, No load, 10cm)

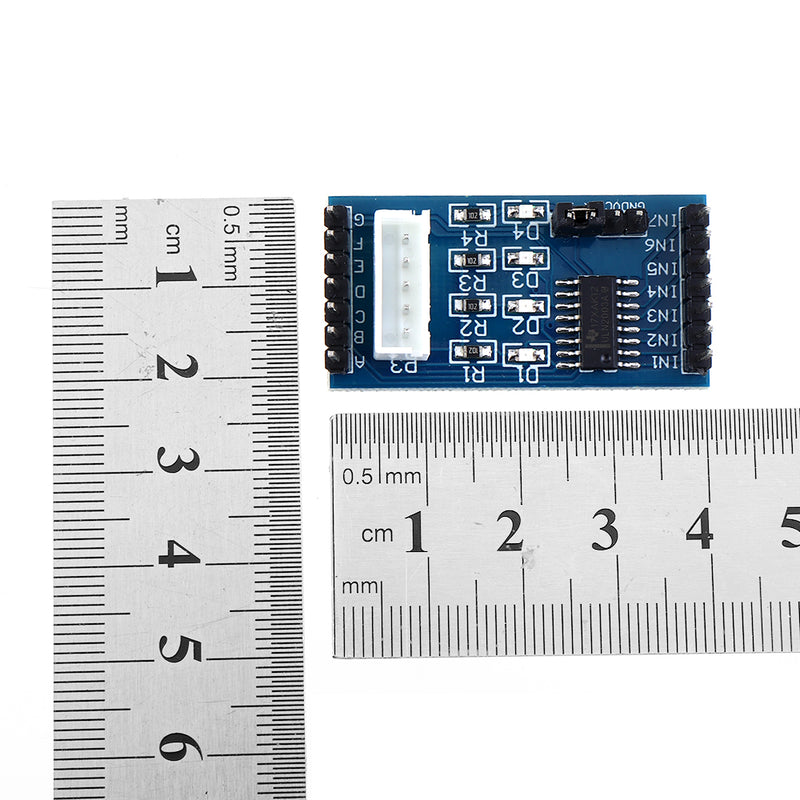

Board Size: Approx. 40×21 mm
On-board XH-5 P socket.connect 28BYJ-48 Stepper Motor direct .
Package Included:
3 x Stepper Motor Driver Board Module
