Parameter:
Input voltage: DC 12V
Output voltage: DC 12V
Load current: 3A
Standby current: 10mA
Output form: single output
Sensing range: 3cm
Induction principle: distance
Load power: 36W-72W
Delay off time: none
Scope of application: DC, constant pressure
VIN: 12V
Application scope:
Cabinet light bar, night light, beauty equipment
Instructions:
Exchange use: need to add rectifier;
When installing, make sure that the isolation medium and the touch surface are tightly combined and fixed with no air gap in the middle;
After powering on, wait for 3 seconds to initialize and normal operation.
Installation method:
First type, the housing is designed with a card slot, and the touch button can be locked tightly.
The second, using hot melt adhesive, the touch buttons and housing close, glue can live with hot melt.
The third, using double-sided tape, directly sticks the touch button inside the housing.
Package included:

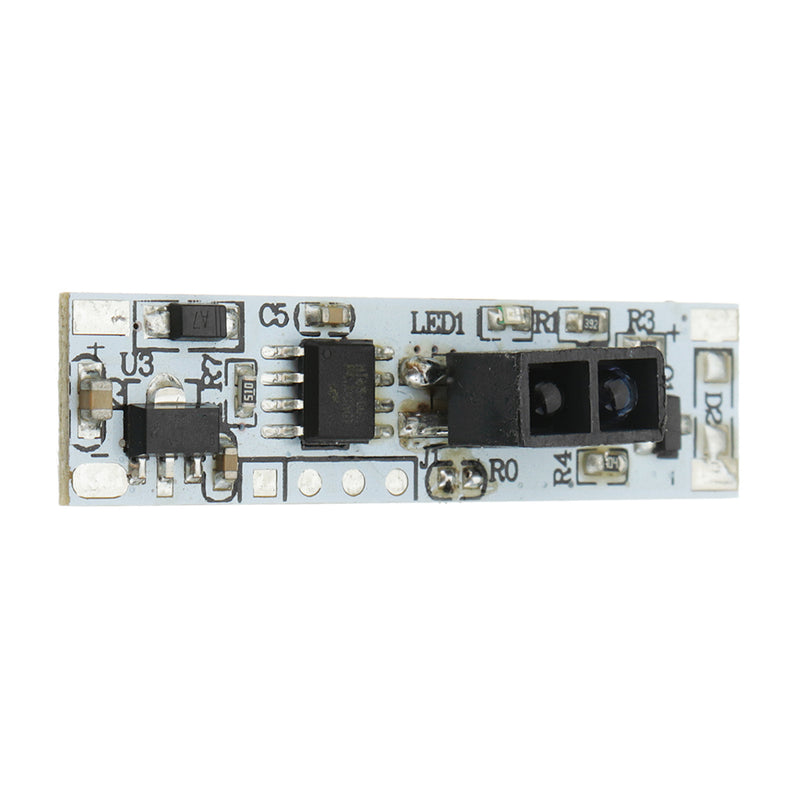

3 X XK-GK-4010A sweep sensor switch
