Specifications:

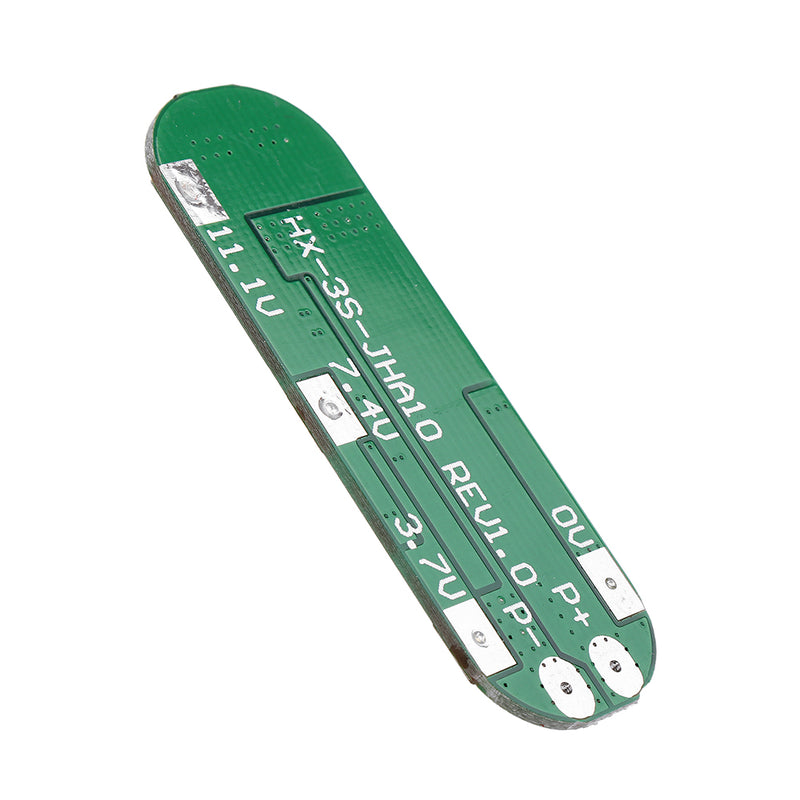

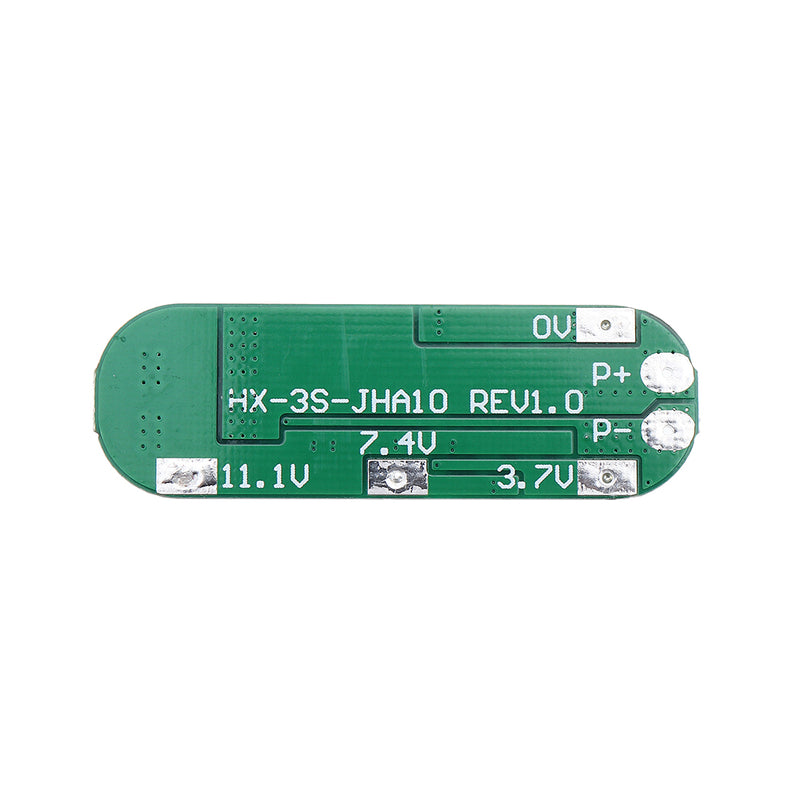

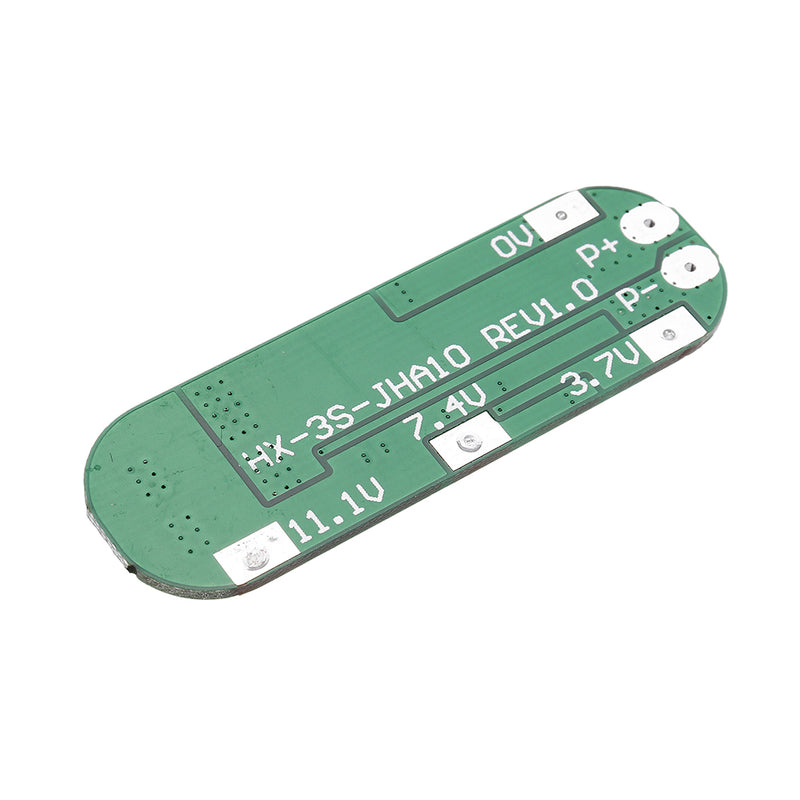

Model: HX-3S-JHA10

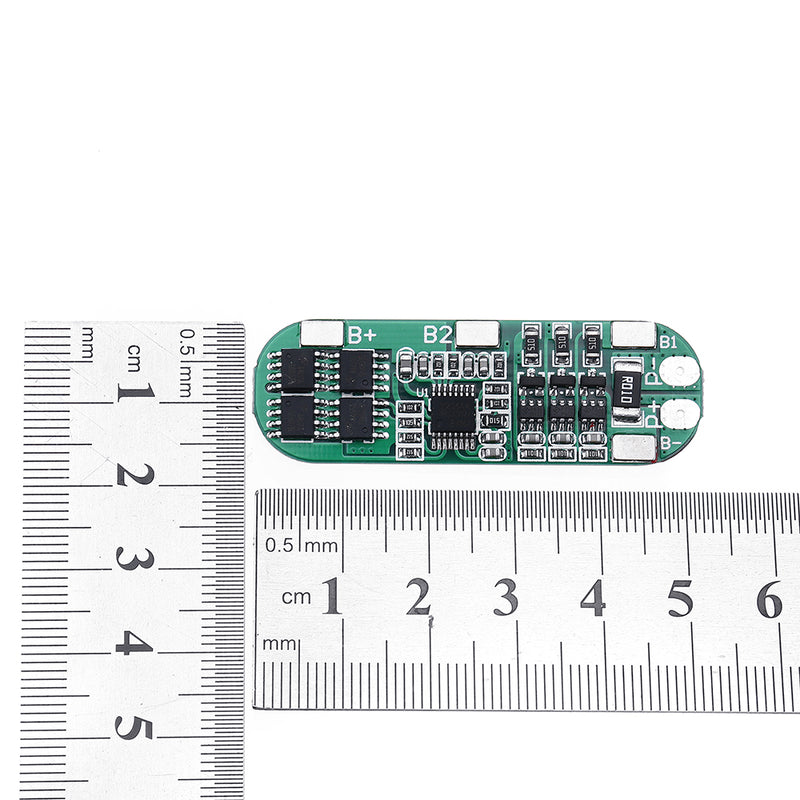

Size: 53x17x2.7mm
Overcharge voltage range: 4.25-4.35V±0.05V
Over-discharge voltage range: 2.3-3.0V±0.05V
Upper limit working current: 6-8A
Working temperature: -40~+50°C
Upper limit instantaneous current: 9-10A
Storage conditions: -40~+80°C
Quiescent current: less than 30uA
Effective life: more than 30,000 hours
Internal resistance: less than 100mΩ
Short circuit protection: protection, delay self-recovery
Charging voltage: 12.6V-13V
Package Included:

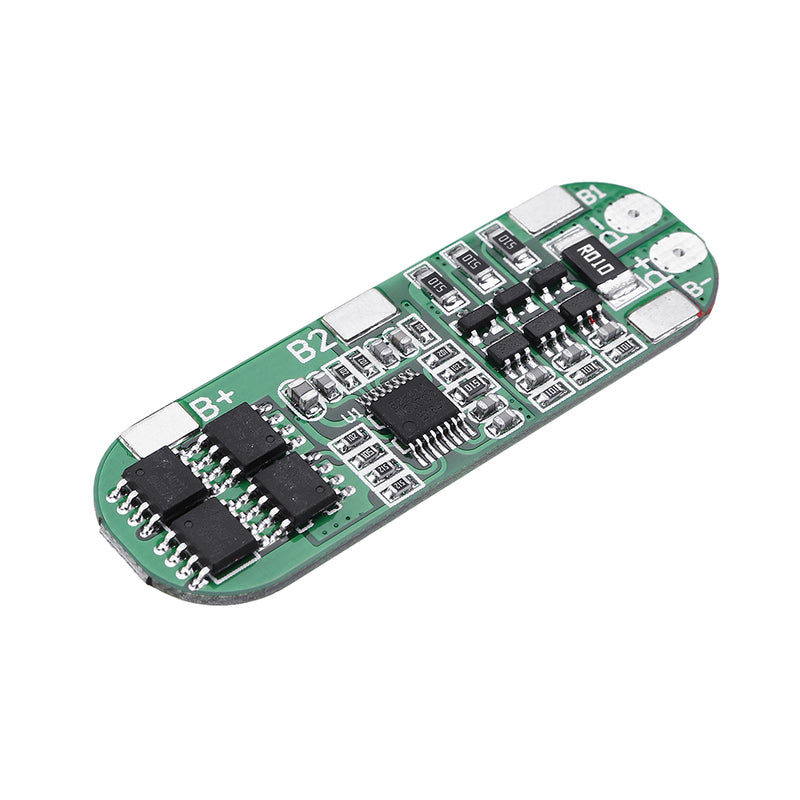

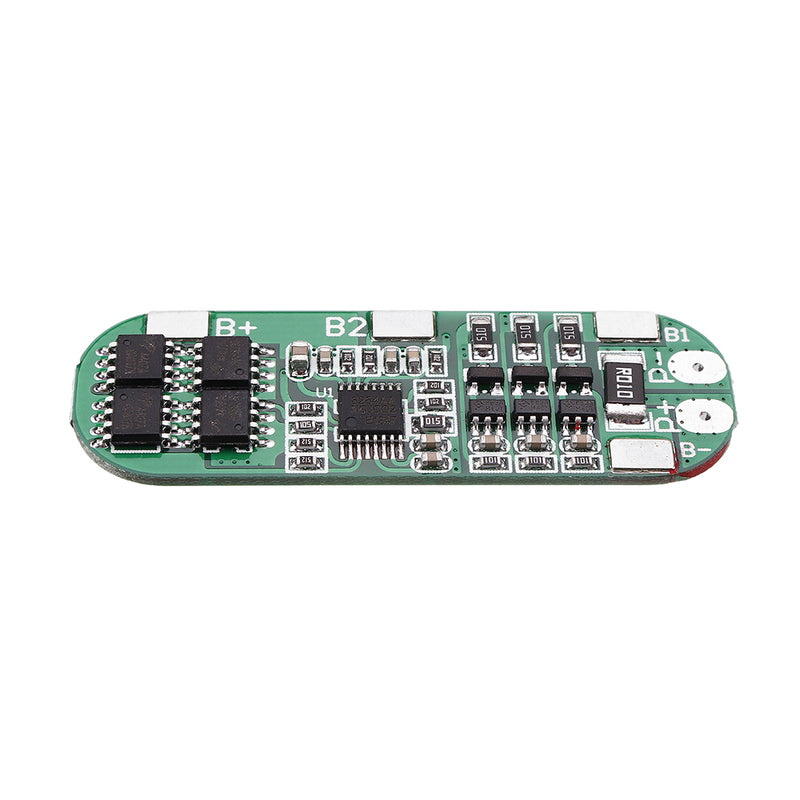

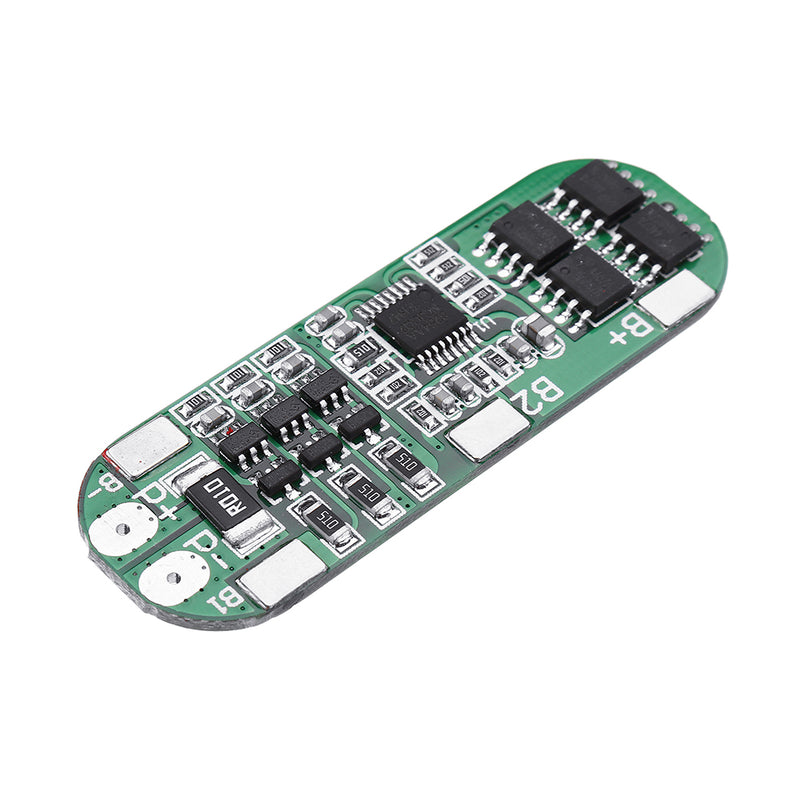

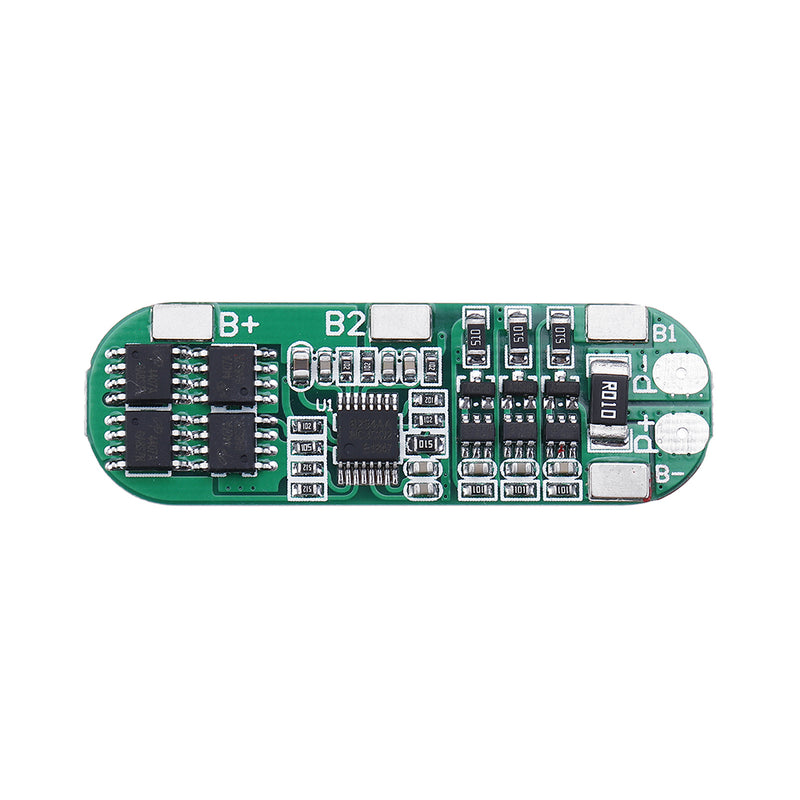

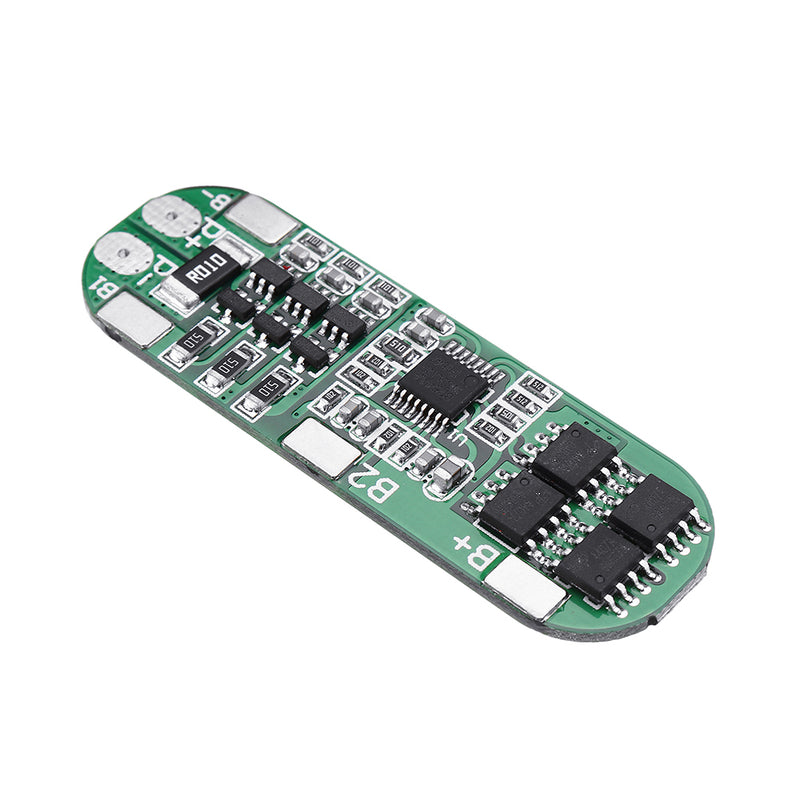

1 x 3S 10A 12.6V Lithium Battery Protection Board
