Feature:
Input: 3V-35V
Output: 4V-40V adjustable
Efficiency: 94% (MAX)
Dimensions: 37 x 32 x 15mm (L x W x H)
Operating temperature: -40°C to +85°C
Load capacity: Limited 80W
Connection mode: Terminals are not welded, IN is input, and OUT is output
Note: The smaller the differential voltage between the input and output voltages, the greater the carrying capacity and the higher the efficiency.
Test parameters:
| Input voltage |
Output voltage |
Limited output current |
Power |
| 3V |
15V |
1A |
5W |
| 5V |
12V |
1A |
12W |
| 5V |
9V |
1.5A |
13.5W |
| 9V |
12V |
2A |
24W |
| 12V |
19V |
1.5A |
28.5W |
| 12V |
24V |
1.2A |
28.8W |
| 19V |
24V |
2A |
48W |
| 24V |
30V |
2A |
60W |
| 30V |
35V |
2A |
70W |
Package includes:

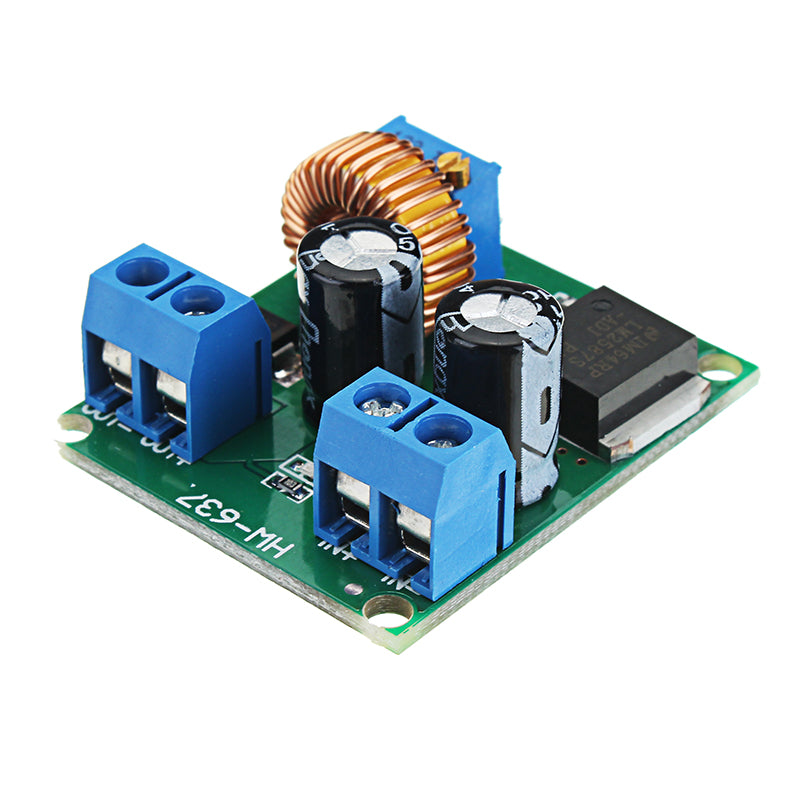

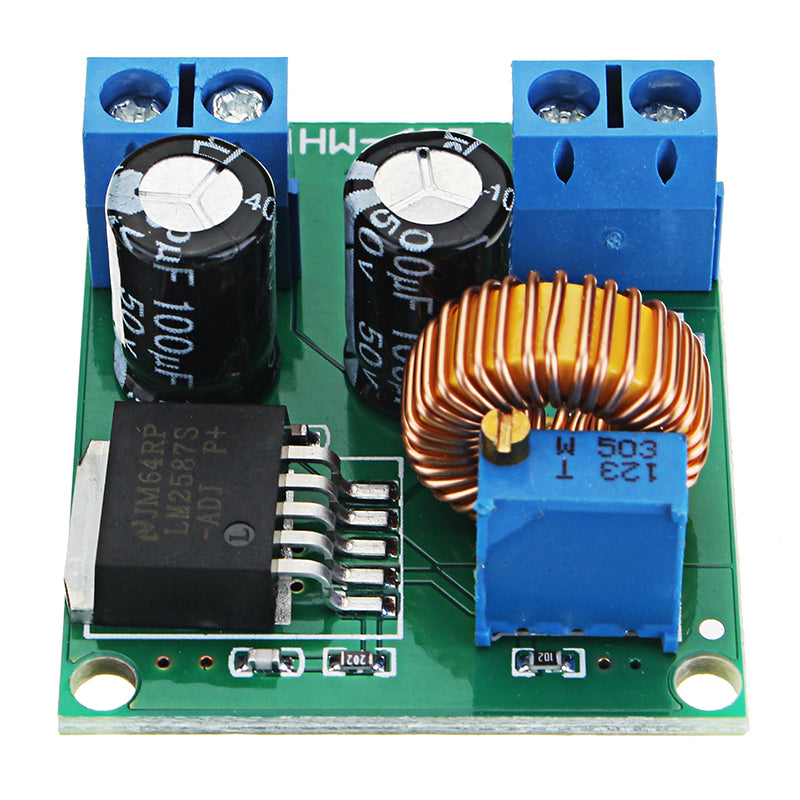

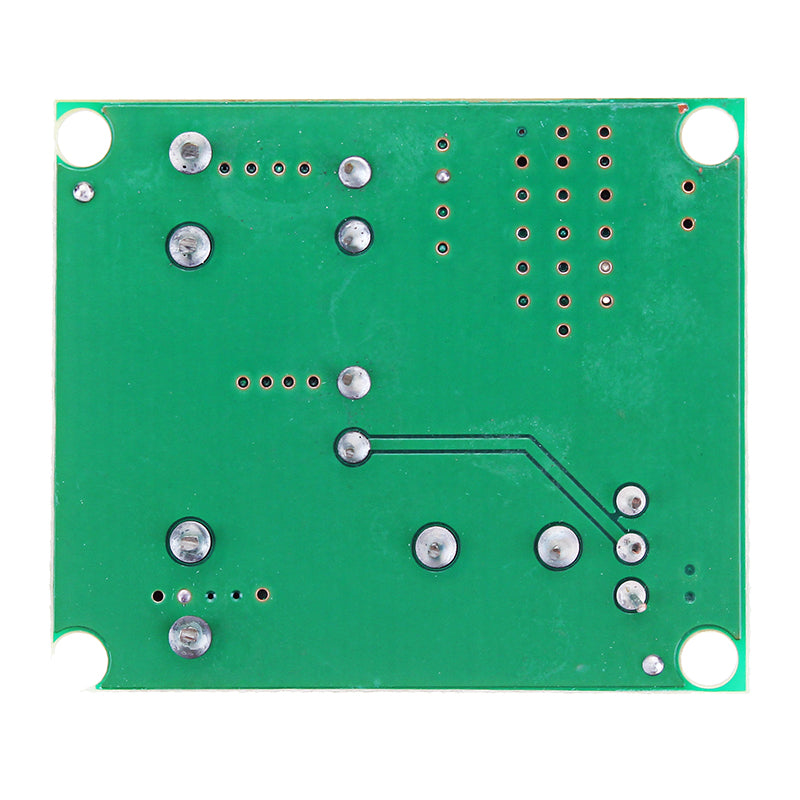

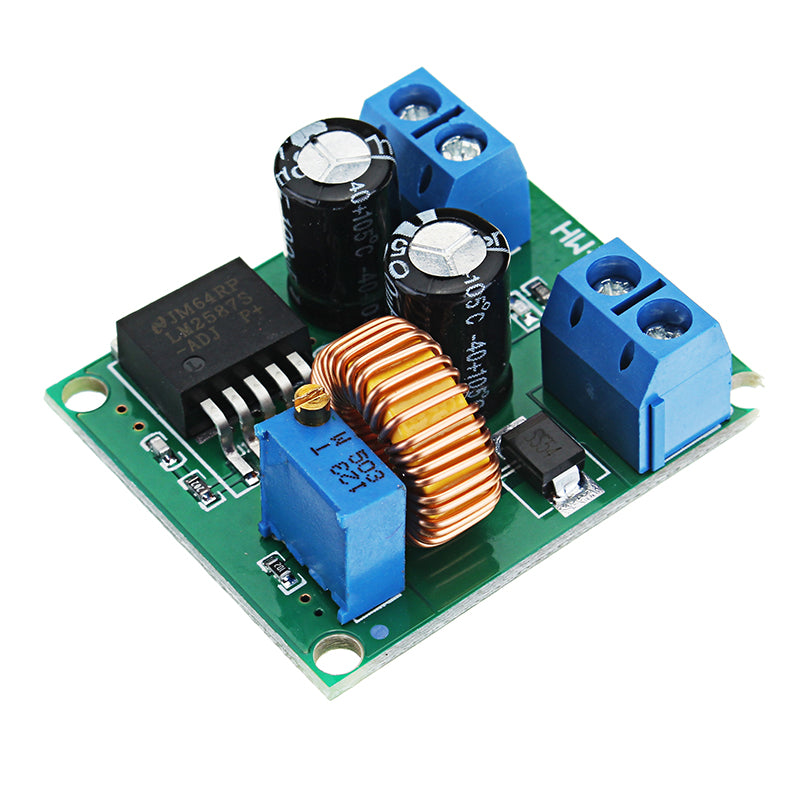

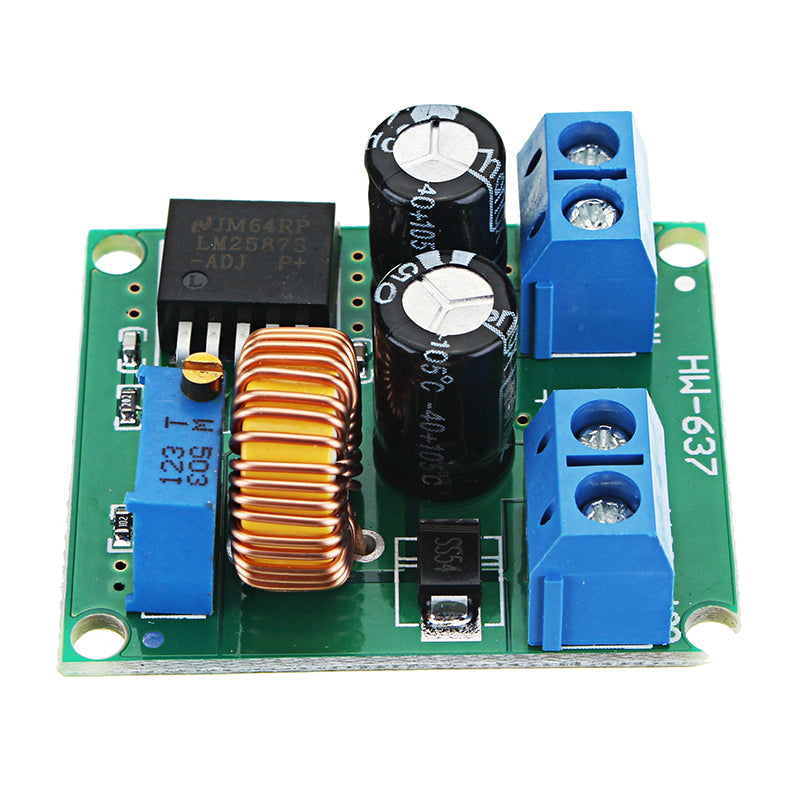

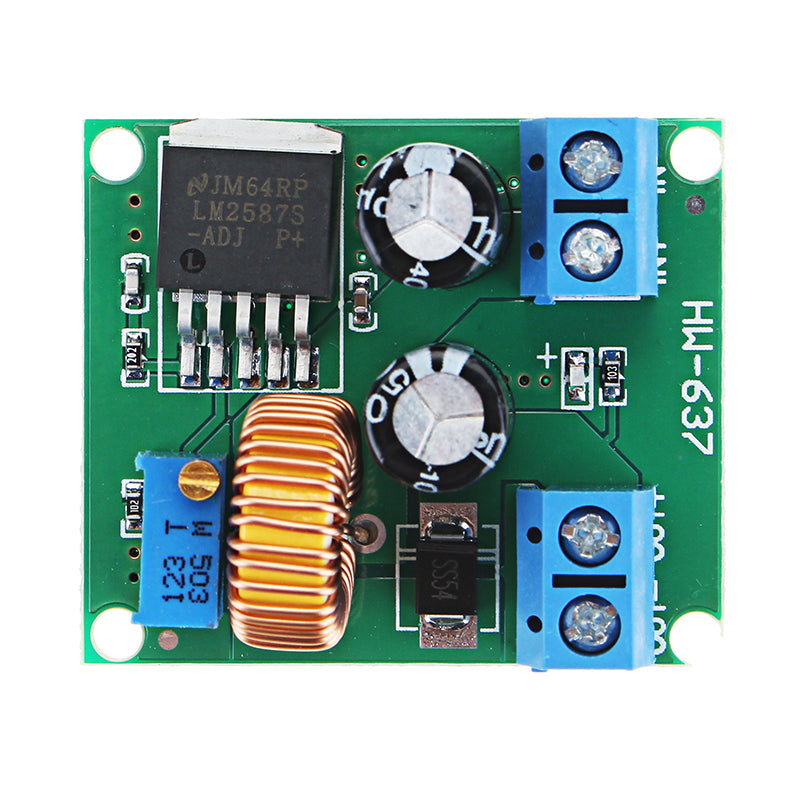

1 x DC Adjustable Boost Module
