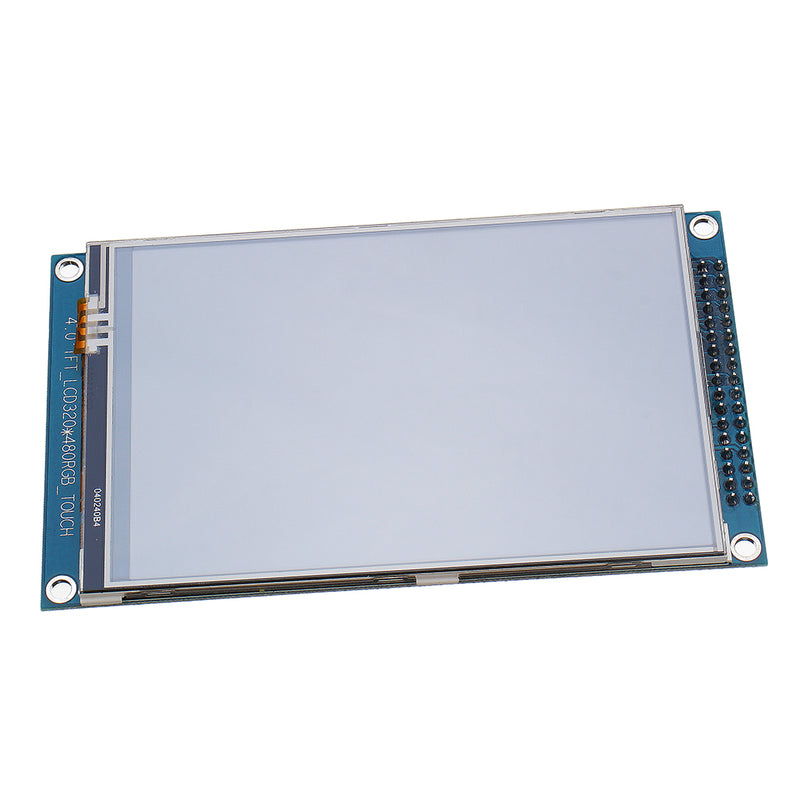

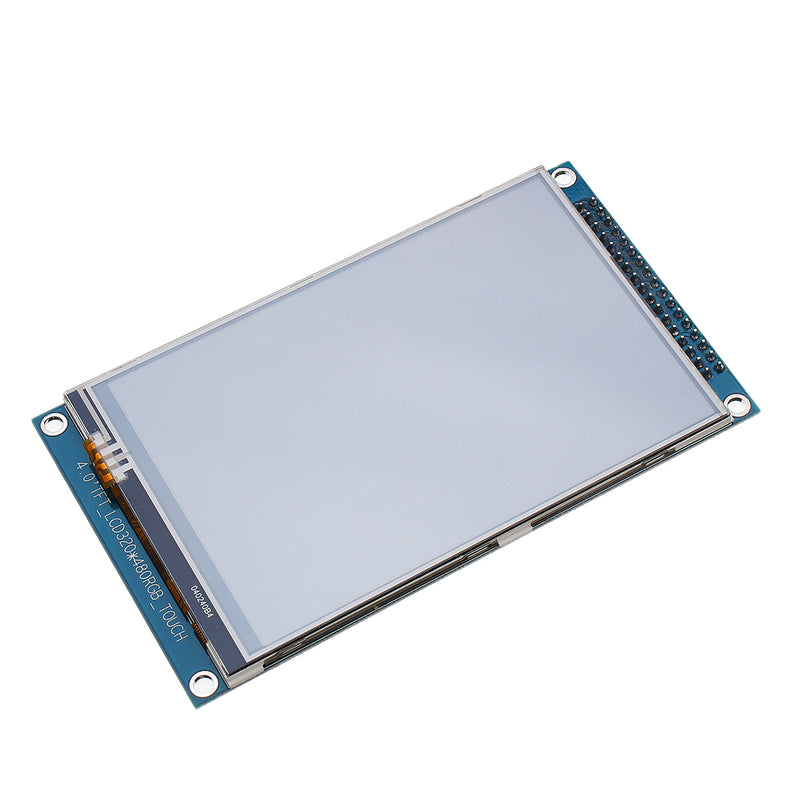

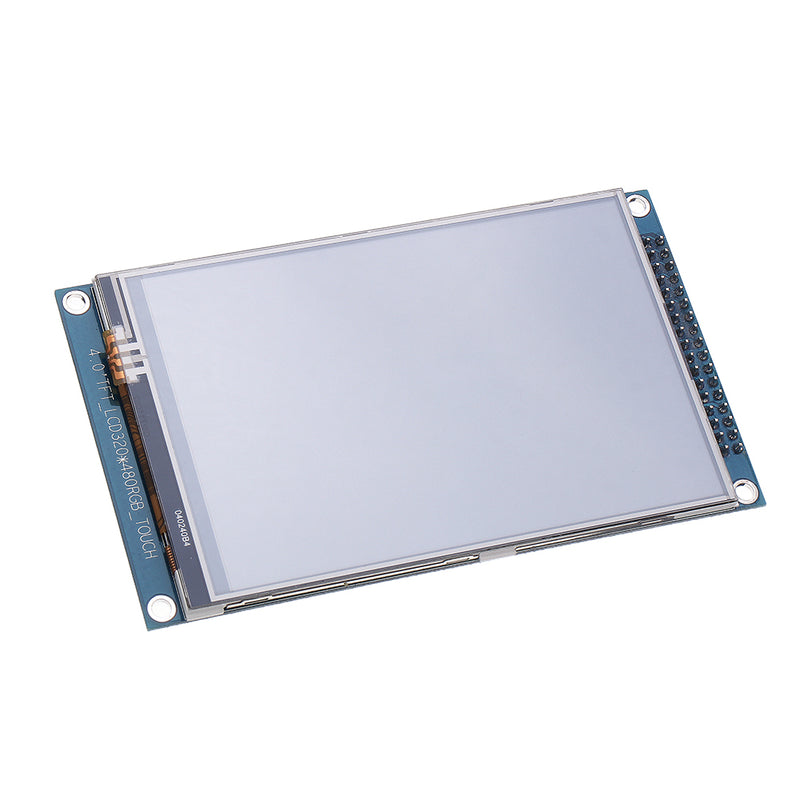

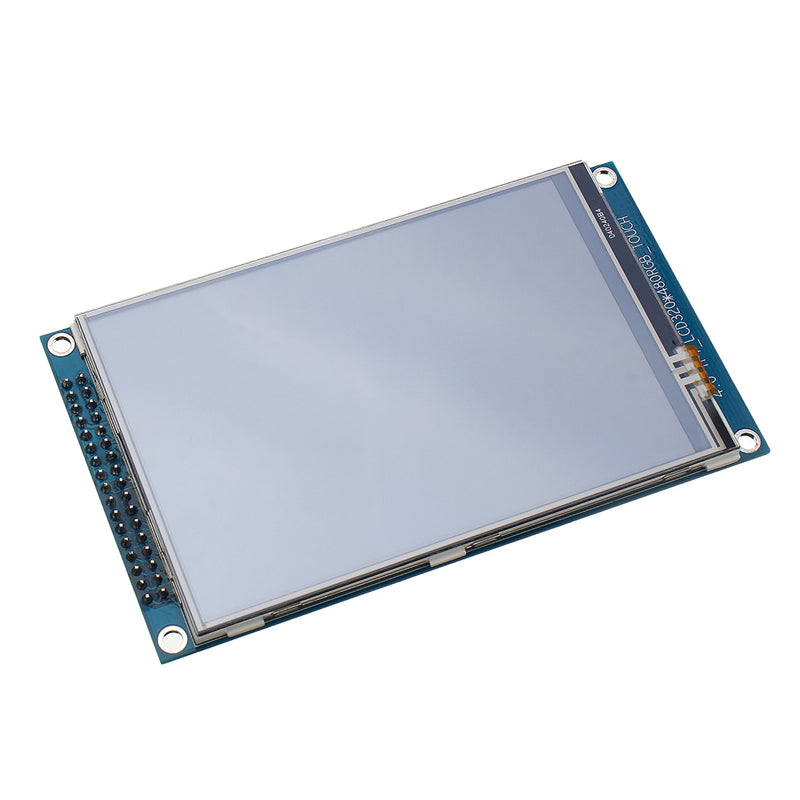

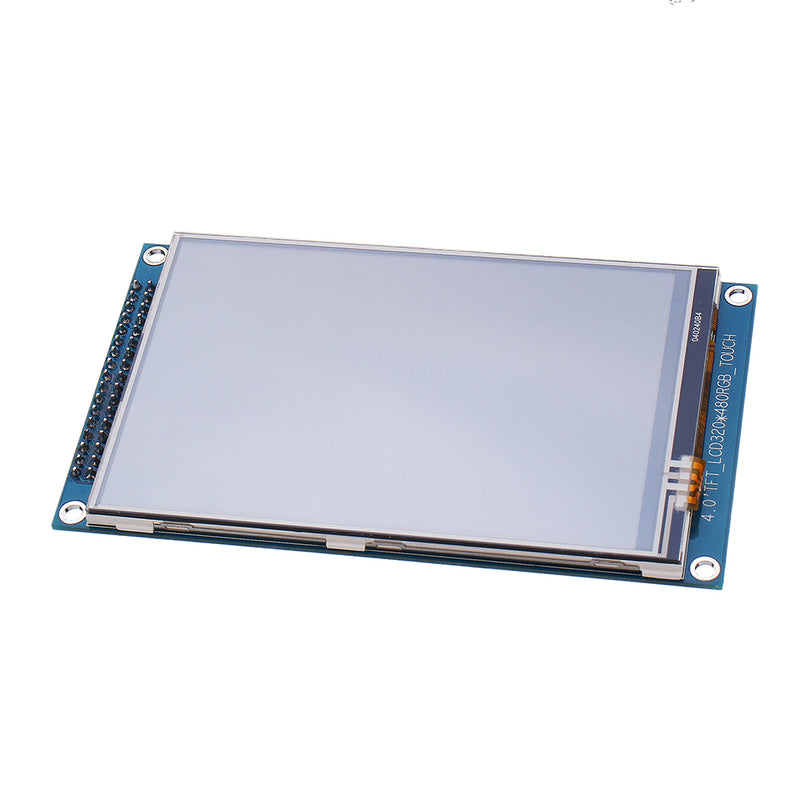

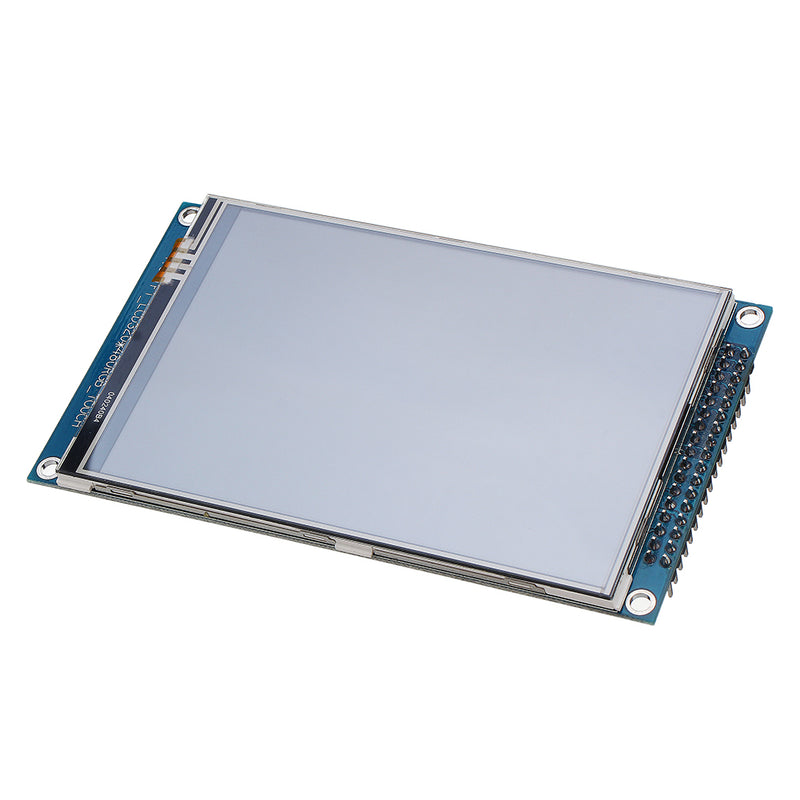

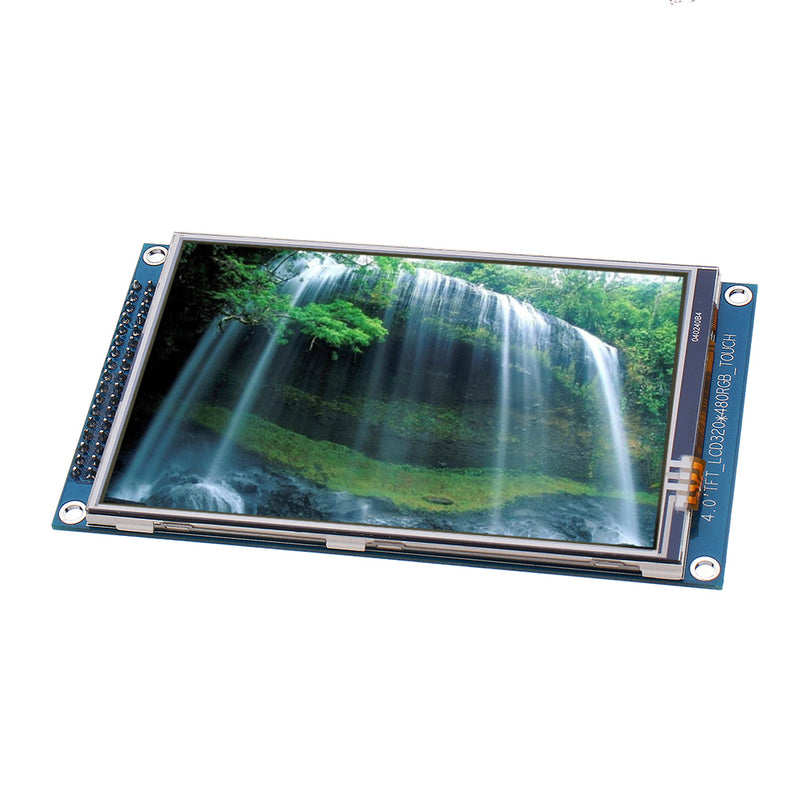

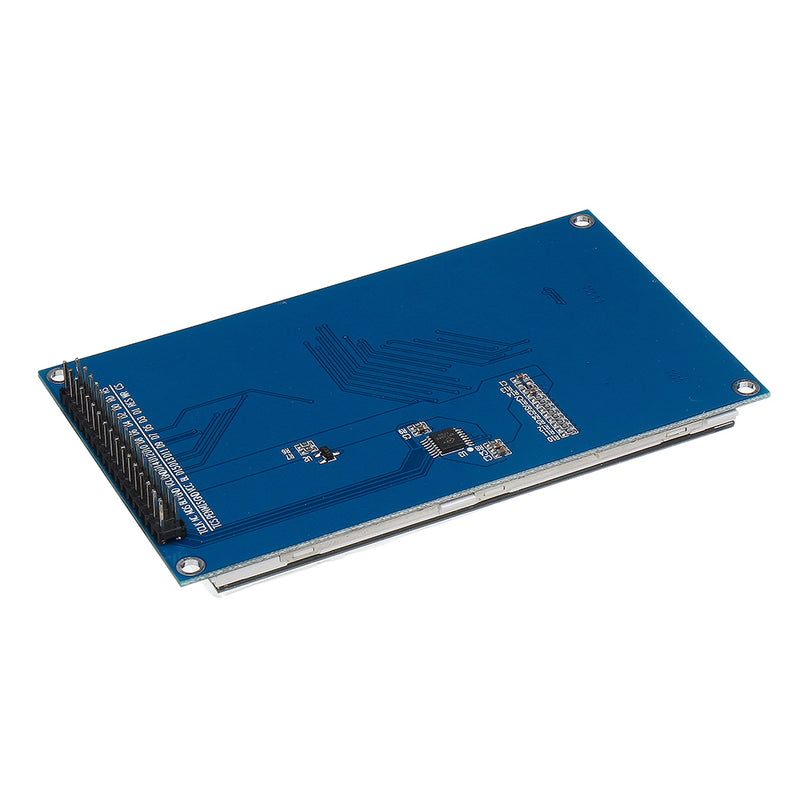

4 Inch TFT LCD Display Module with XPT2046 Touch Color Screen 320*480 ILI9486 Chip

4 Inch TFT LCD Display Module with XPT2046 Touch Color Screen 320*480 ILI9486 Chip

Name: 4 Inch TFT LCD Display Module with XPT2046 Touch Color Screen 320*480 ILI9486 Chip
Brand: Banggood
SKU: U2I-BG-1549809
Price: 6,962.00 INR
Availability: InStock

SKU: U2I-BG-1549809

Share this product

Feature:

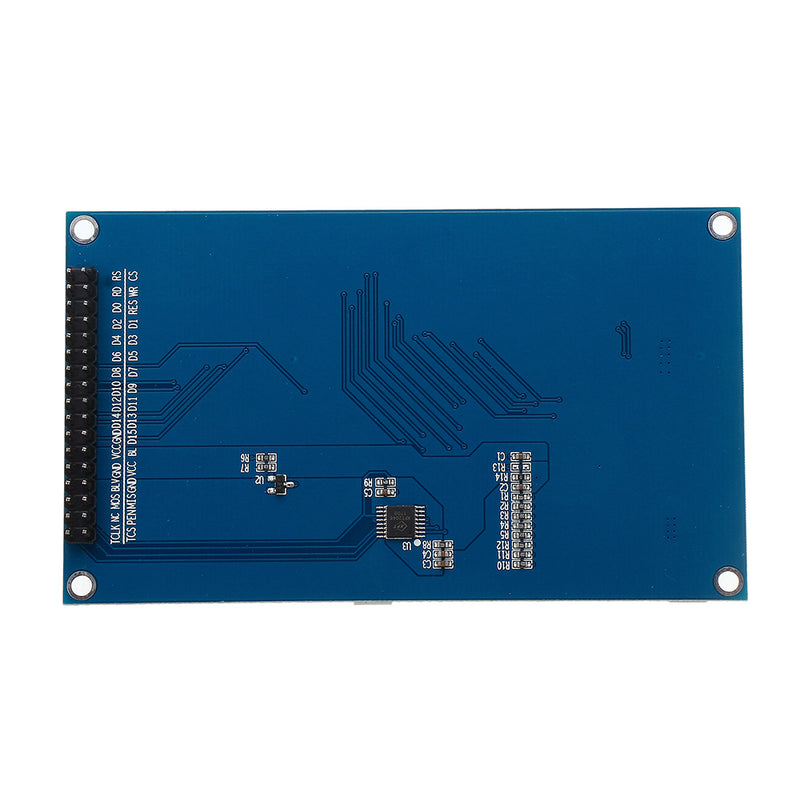

PIN No.	Symbol	Descriptions
1	CS	Screen driver chip select pin, active low
2	RS	RS = 1 select data RS = 2 select register
3	WR	Parallel write control pin
4	RD	Parallel read control pin
5	RES	Screen reset pin, low level reset
6~13	D0~D7	Low 8-bit data line
14~21	D8~D15	High 8-bit data line
22,26,27	GND	Power ground
23	BLK	Backlight control; default is on, backlight is off when low
24,25	VCC	Power supply
28	BL_VDD	Backlight voltage adjustment, default to the screen voltage, can be adjusted
29	MIS	Touch chip output signal
30	MOS	Touch chip input signal
31	PEN	Touch chip interrupt
32	NC	Hanging
33	TCS	Touch chip chip select, active low
34	TCLK	Touch chip clock

Package includes:

1 x 4 inch screen
