x3 Matrix Array 12 Key Membrane Switch Keypad Keyboard is available now from our US and UK warehouse
Free shipping to US and UK in 3-6 business days
ship to Canada, Brazil in 7-10 days in US warehouse
ship to European countries in 7-10 days in UK warehouse

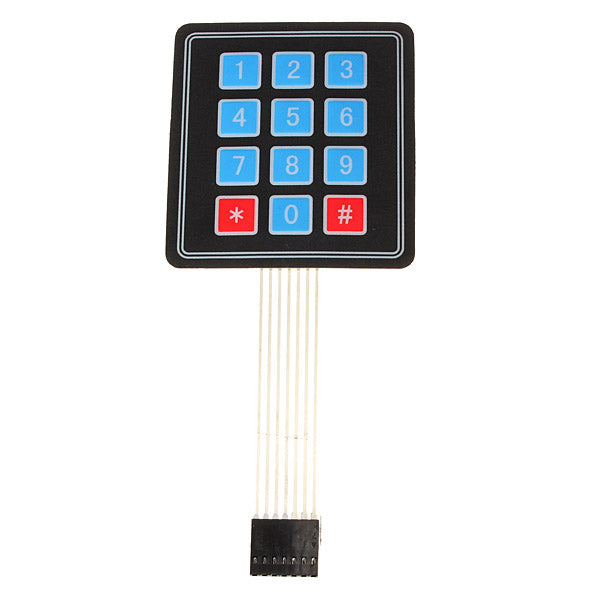

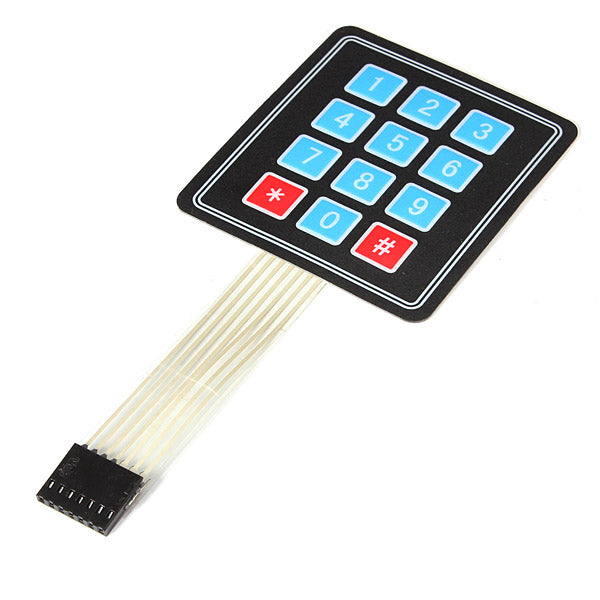

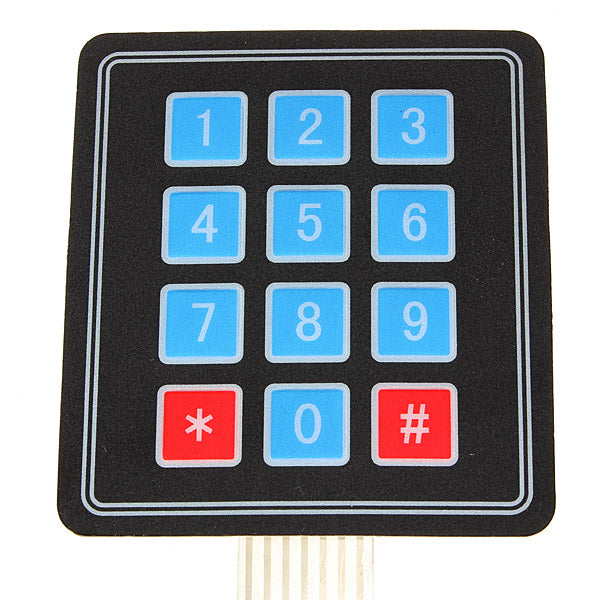

4 x 3 Matrix 12 Key Array Membrane Switch Keypad Keyboard For
Description:
Pad Size: 68.9 x 76 x 0.8mm
Cable length: 85mm (include connector)

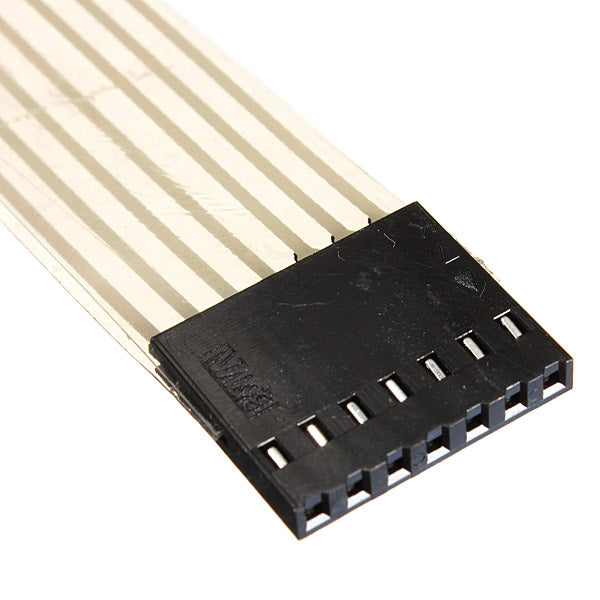

Connector: dupont 7 pins, 0.1 inch (2.54mm) Pitch

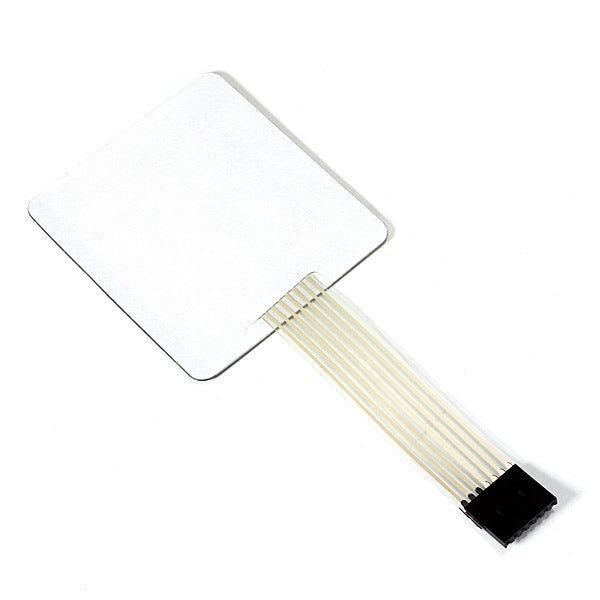

Mount style: Self-Adherence
Max. circuit rating: 35VDC, 100mA
Insulation spec.: 100M Ohm, 100V
Dielectric withstand: 250Vrms (60Hz, 1min)
Contact bounce: ≤5ms
Life expectancy: 1 million closures
Weight: 7g
Package included:
1 x 12 key membrane switch 4 x 3 Matrix Array
,,,,
