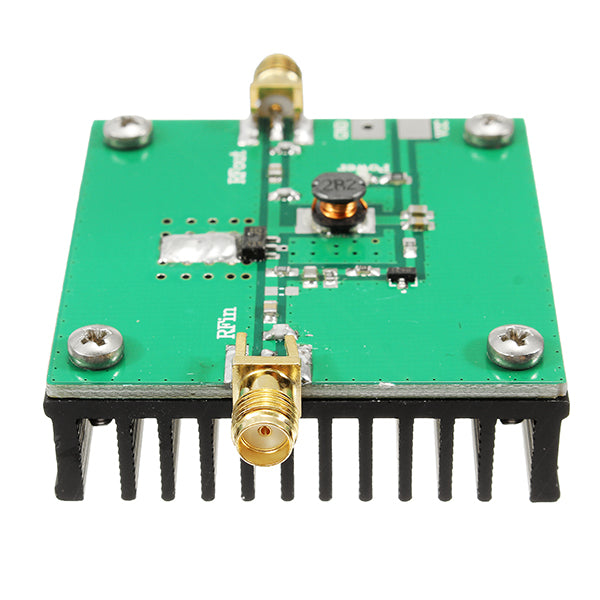

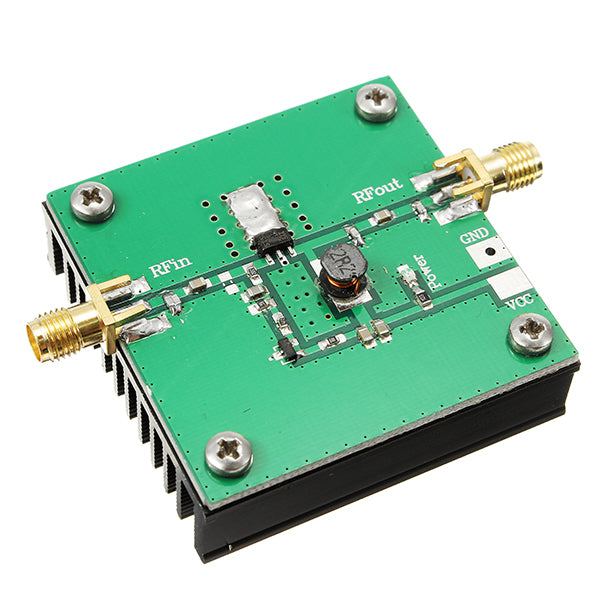

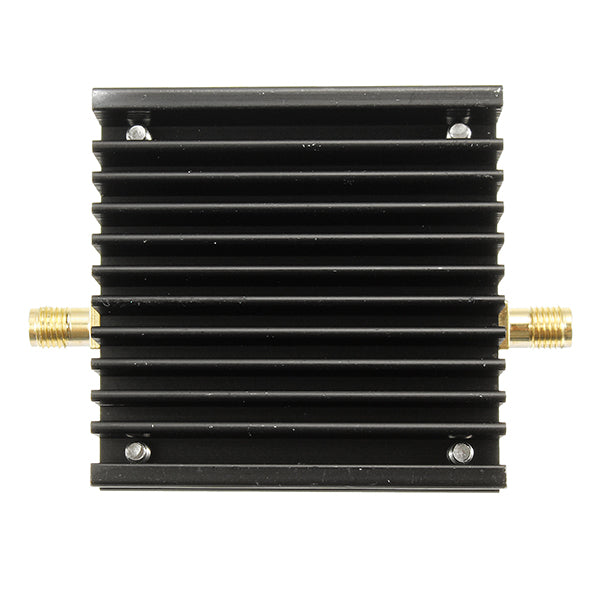

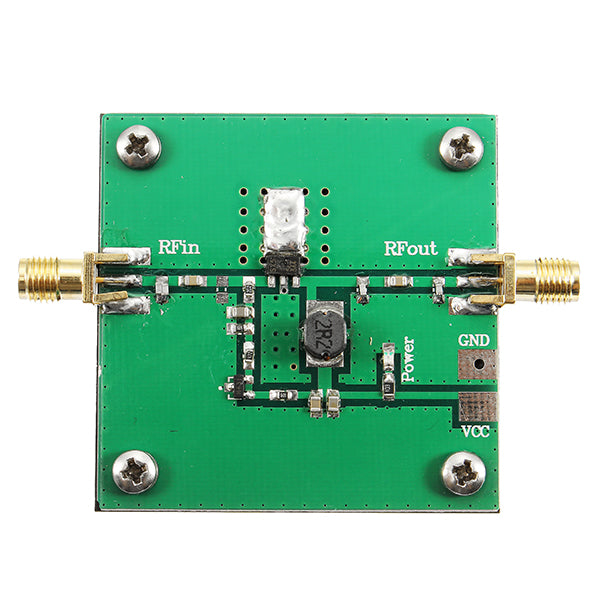

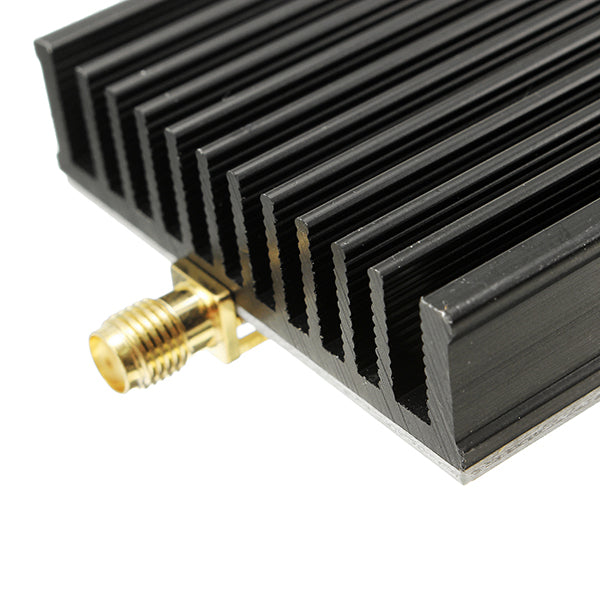

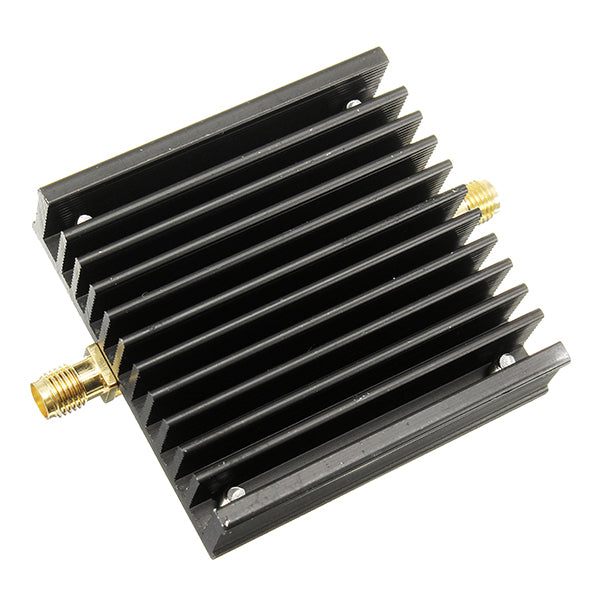

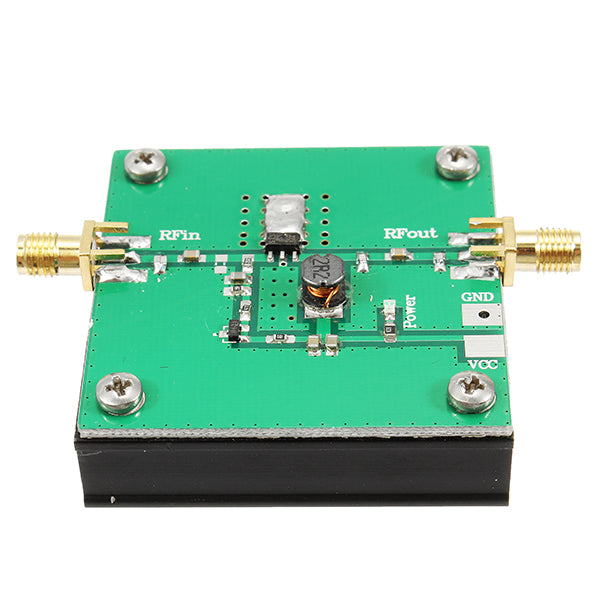

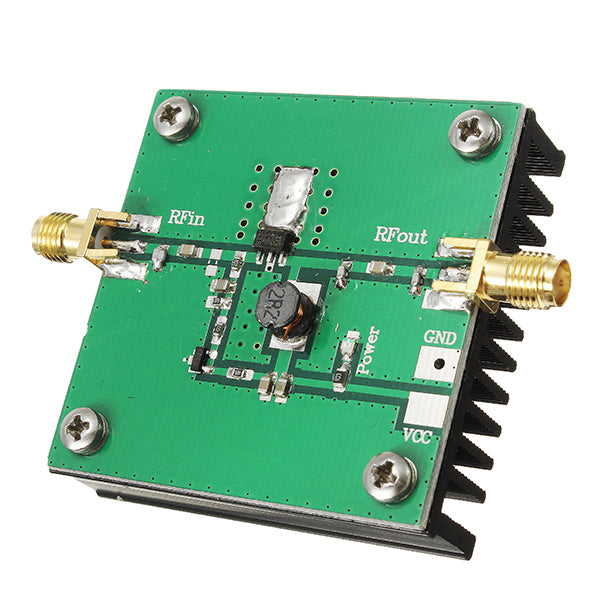

The broadband RF small power amplifier, suitable for all kinds of 380--450MHz launch use, such as: wireless remote control, walkie-talkie and other launch use. Input 0.1W can output 5.0W@7.2V power, the amplifier is equipped with heat sink, long-term stable operation.
Technical Parameters:

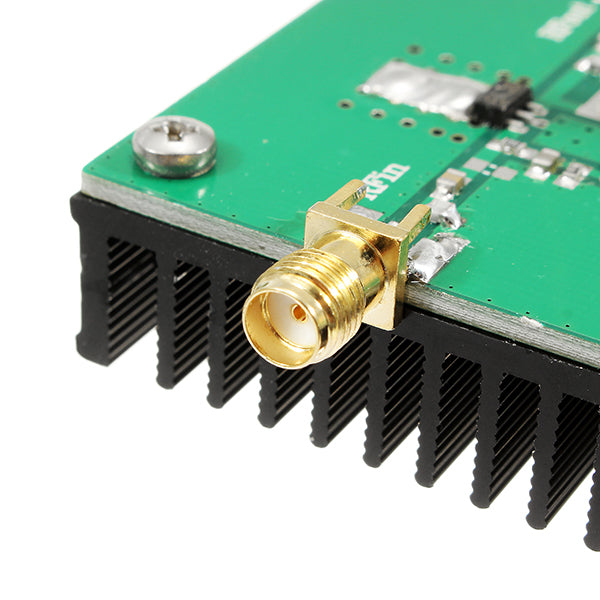

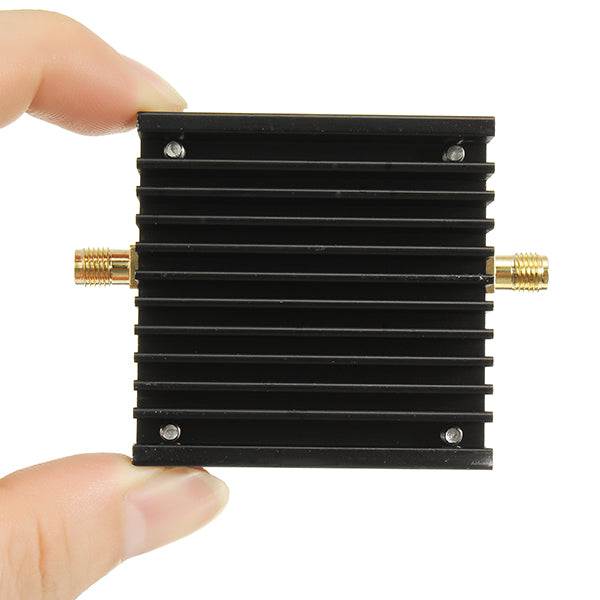

Operating frequency: 380--450MHz Input power: 0.1W (20dBm) Maximum output: 2.5W (34dBm) 5.0V power supply 5.0W (37dBm) 7.2V power supply 8.0W (39dBm) 10.0V power supply (not recommended) Operating voltage: 5 - 7.2V (DC) Operating current: 1 - 2A (determined by output power) RF connector: standard SMA female head Dimensions: 50 * 50 * 15mm (L * W * H) Product weight: 55g
Package included:
1 x 433MHz 5W RF Power Amplifier
