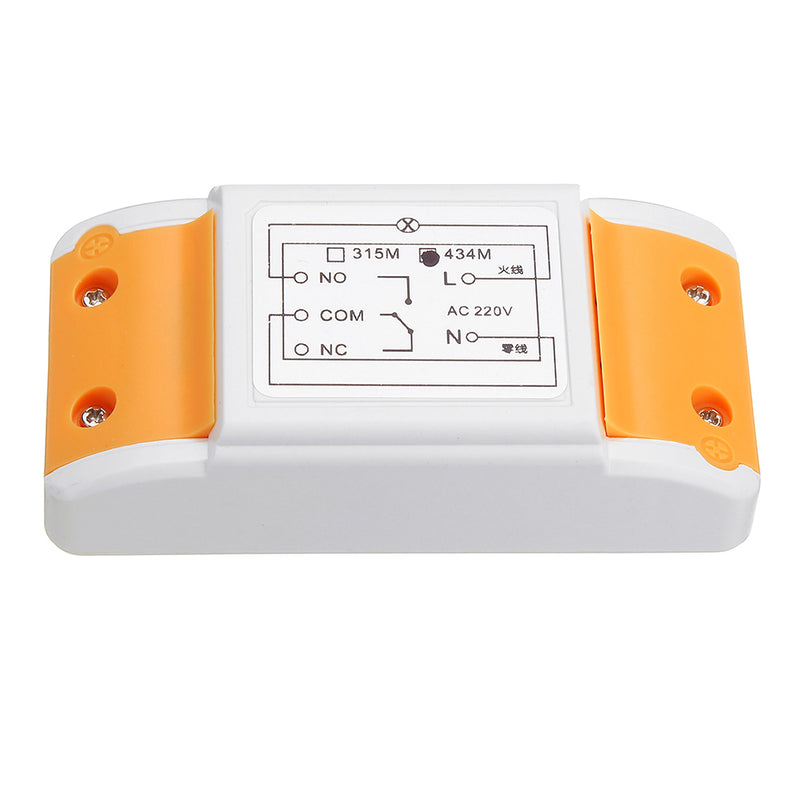

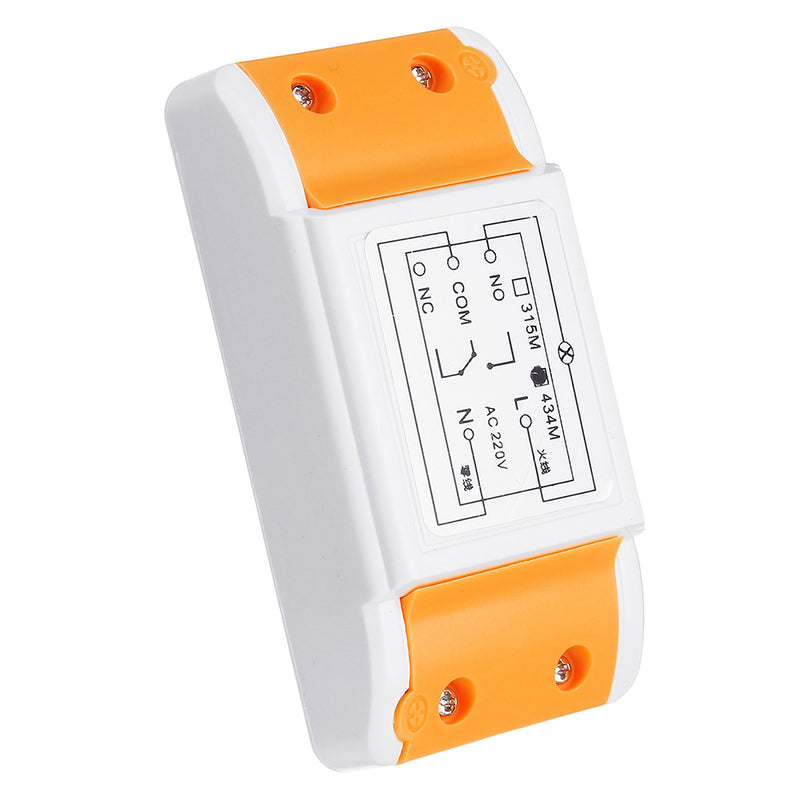

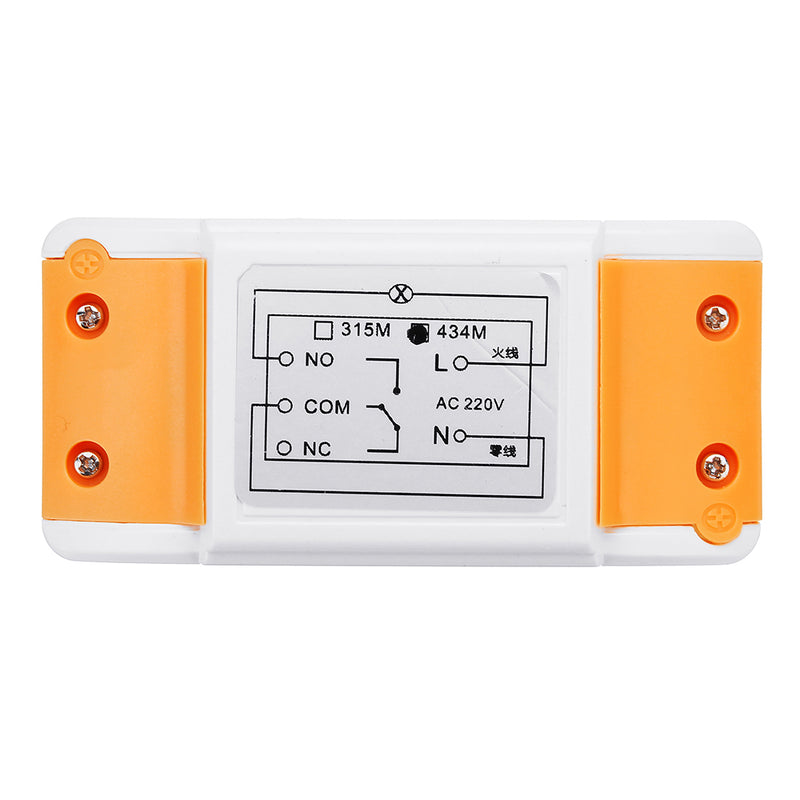

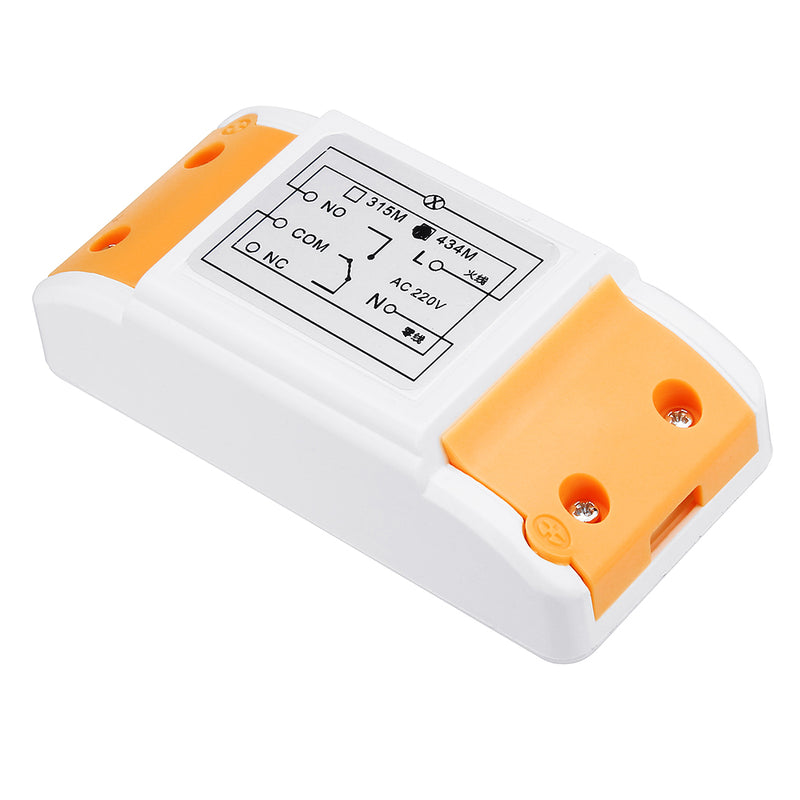

Size: 64 x 39 x 18mmLearing method:

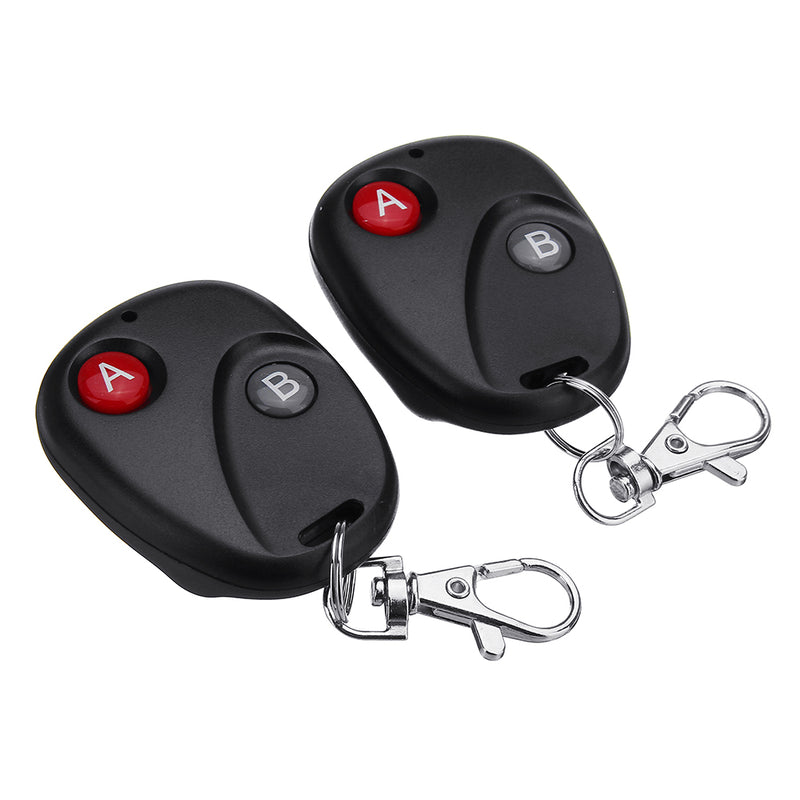

Press and hold the learning button, the indicator light is off (indicating that it has entered the learning state), release the learning button, press any button on the remote control, the indicator light flashes four times and then the light is always on to indicate that the learning is successful.
Clear method:
Press and hold the learning button for about 8 seconds. The indicator will turn off and return to light.
Work mode switching:
Switch the working mode by shorting the 1, 2, and 3 solder joints on the board
1. Jog - do not shorting the pad, vacant = M
2. Self-locking - shorting 1, 2 pads = L
3. Interlocking - shorting 2, 3 pads = T
The meaning of self-locking/interlocking/jogging:
Interlock: Press the corresponding button of the remote control, the corresponding relay is turned on, and then press another remote control button; the relay is disconnected.
Non-lock, jog: Press the remote control button, the corresponding relay is turned on, release the remote control button; the corresponding relay is disconnected.
Self-locking: Press the remote control button once, the relay is turned on, press the remote control button again, the relay is disconnected.
