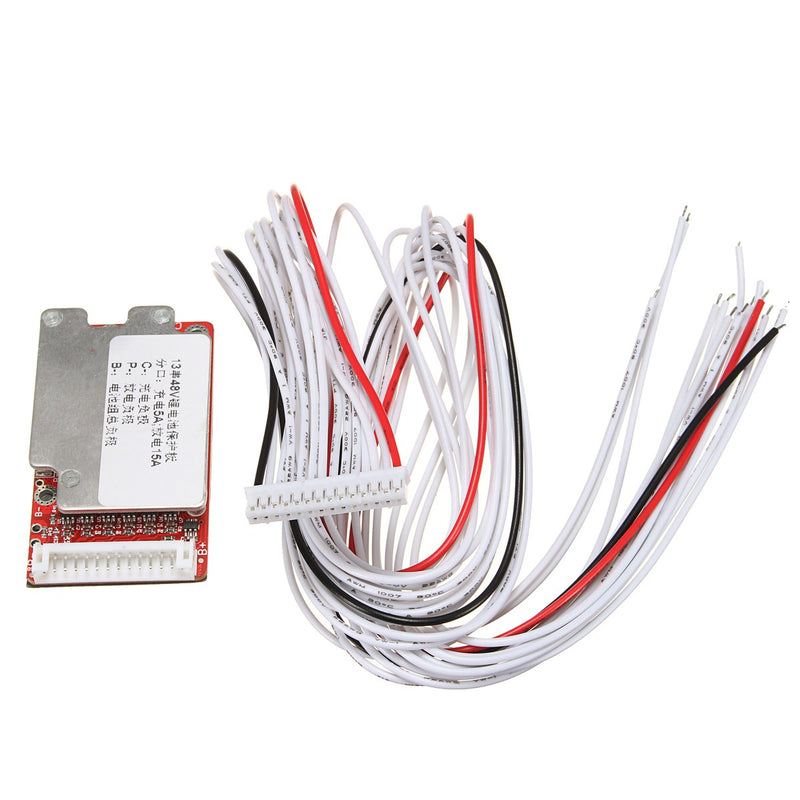

Rated discharge current: 15A Color: Silver & Green & Black Size: About 60*34*10mm Wire Length: About 50cm
Features:
-With 14-pin Cable, length is 500mm -With high wear resistance and heat resistance -Overcharge protection, over discharge protection -Over current protection, short circuit protection
Project
Details
Standard
Overcharge protection
Single overcharge detection voltage
4.25V±0.05V
Single overcharge release voltage
4.10V±0.05V
Charging protection
Rated charging current
<=5A
Charging protection current
/
Single cell over-discharge detection voltage
2.50V±0.05V
Over discharge protection
Single-substrate release voltage
3.00V ± 0.05V
Rated discharge current
15A
Discharge protection current
45±5A
Short circuit protection
With or without short circuit protection
Have
Short circuit protection recovery condition
Disconnect load
Internal resistance
B-, P-conducting internal resistance
<=25mΩ
Low power consumption
Self-consumption
<30|JIA
(LxWxH) size
Size
60 * 34 * 10 mm

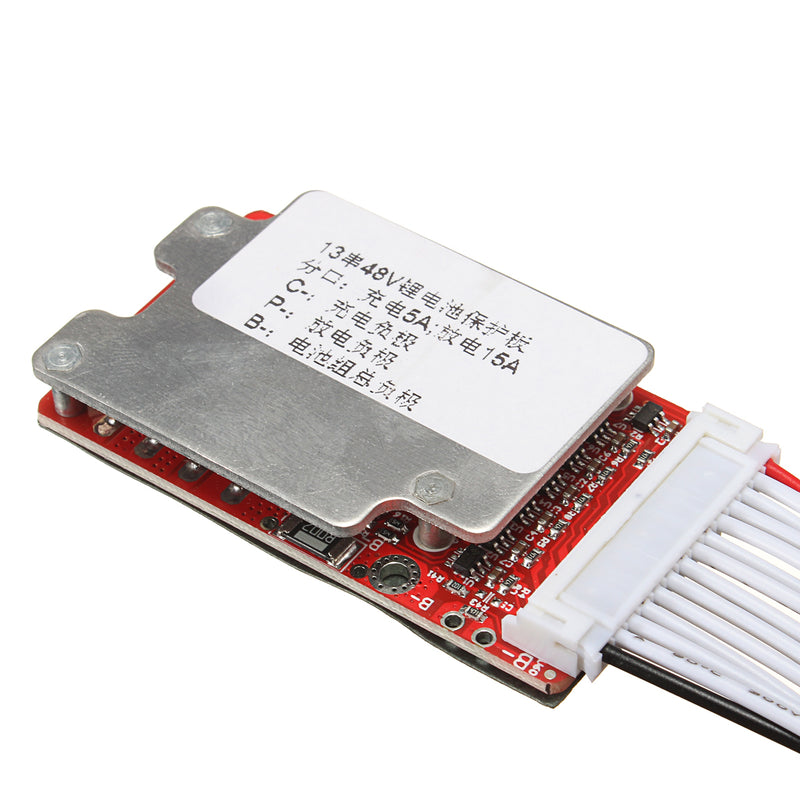

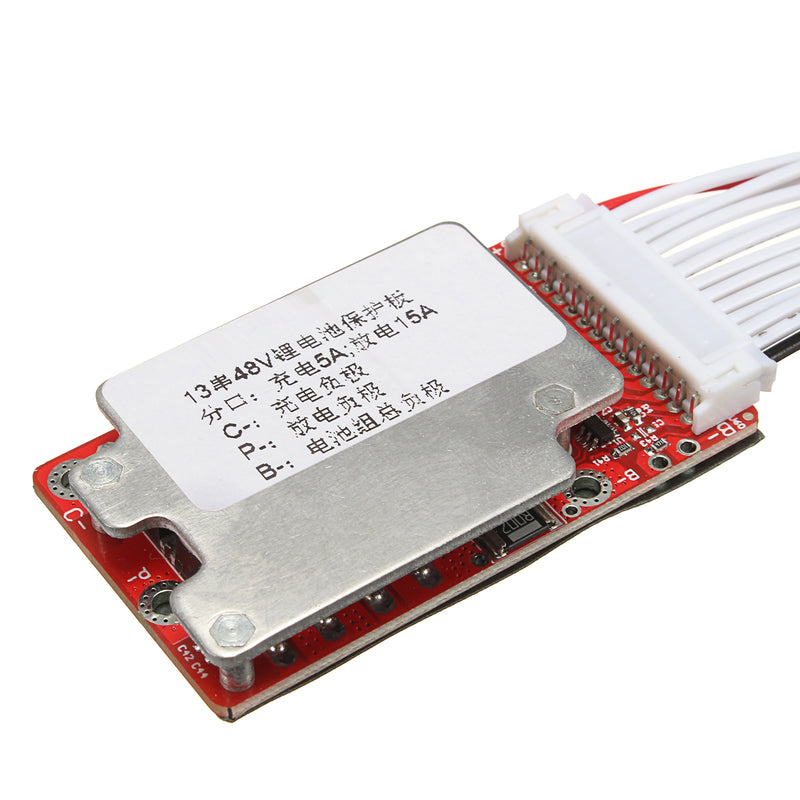

Port description:
B+
Battery pack positive
B-
Battery pack negative
C+
Positive terminal of the charging terminal (positive battery pack)
