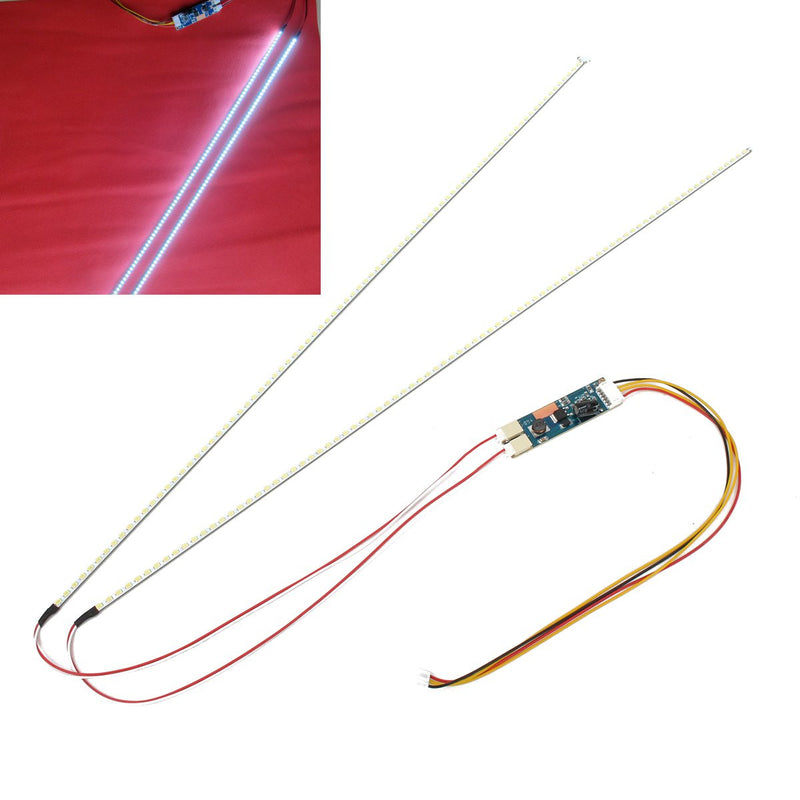

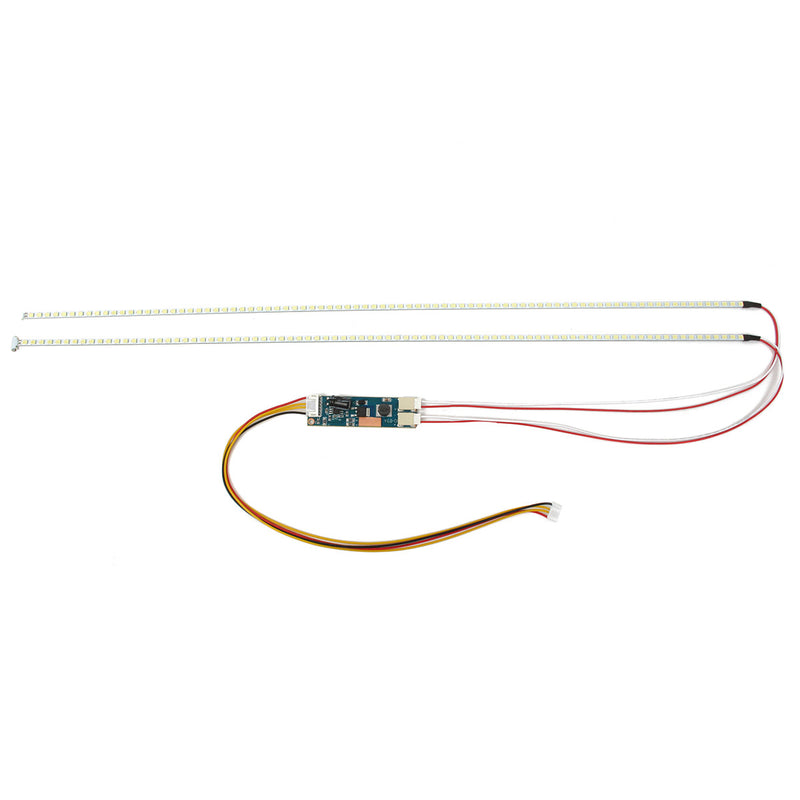

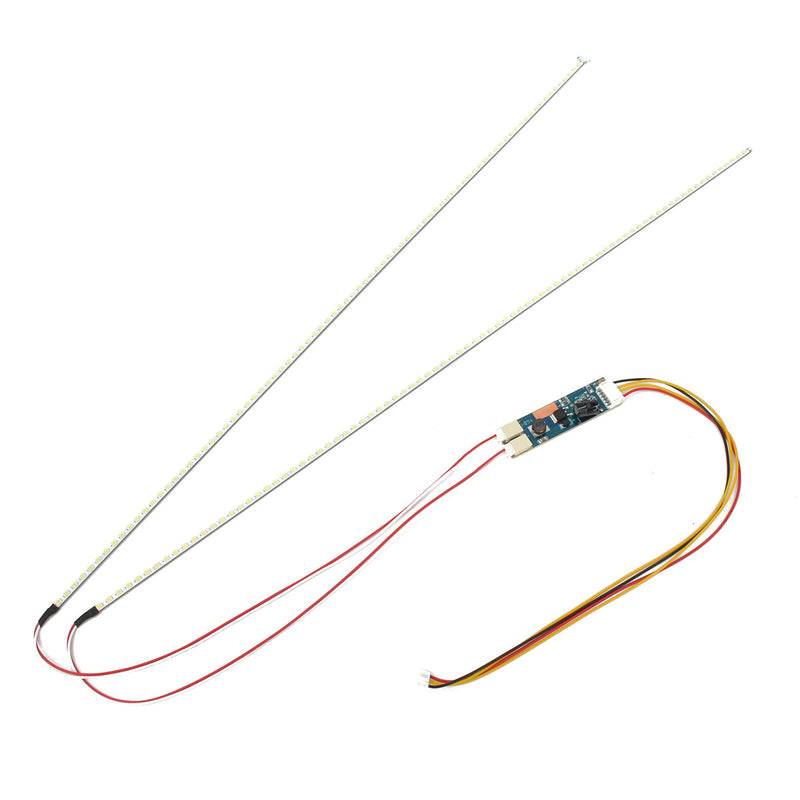

490mm LED Backlight Strip Light Kit DC 10-30V 22 Inch CCFL LCD Screen To LED Monitor Module
Save 0
SKU: U2I-BG-1447834
Share this product
Description
Specifications:

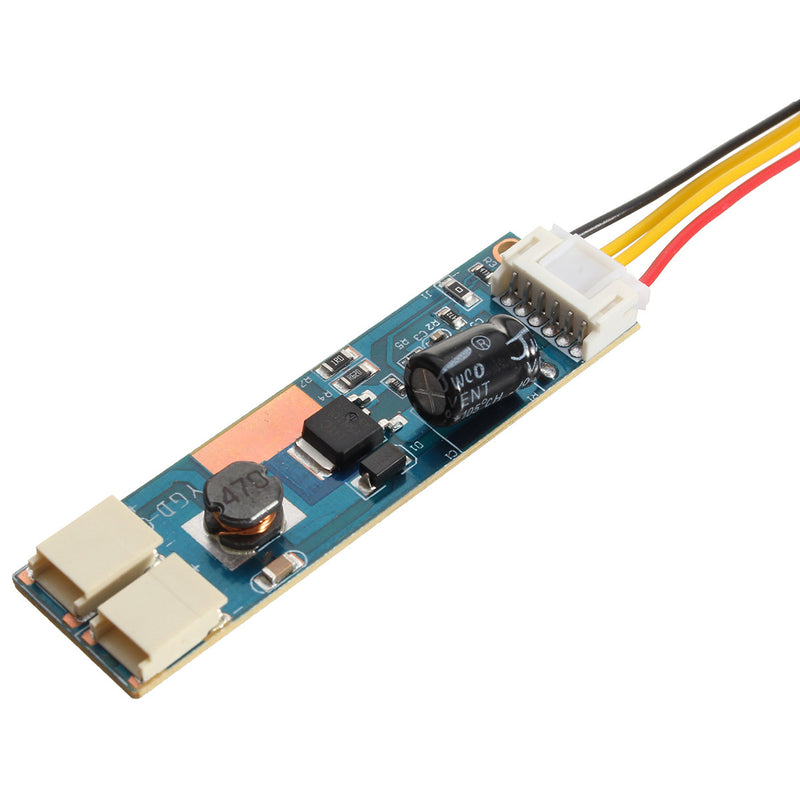

Material: Fiberglass panels Driver board size: 7x2cm Input: DC 10-30V LED strip size: 490x4mm
Features:

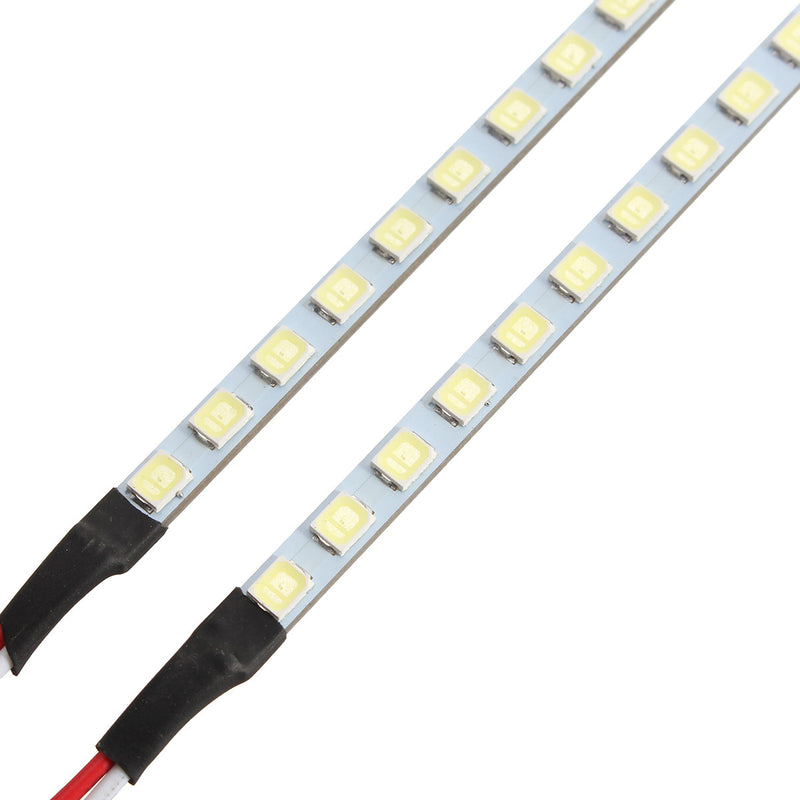

This backlight strip is perfectly design for screen, high brightness, environmental protection and energy saving. LED particles closely, high-density arrangement ,import highlight LED strips. Long service life, with lifetime of 100000 hours. Easy to install, use double-sided adhesive can be attached to the display original LCD groove, or elsewhere.
Installation:
If your monitor is using a inverter, then this kit replace the inveter to plug into the driver board ; If your monitor is a high-voltage integrated power supply board, then: the board energized, find 12V (capacitance), and then unplug the power supply, use a multimeter to find and 12V (capacitance) Disconnect original connecting the negative terminal, the board received three line: 12V, ON, GND, the 12v of the inverter connect with 12v positive electrode of hign-voltage intergrated power supply board,GND is connected with the negative electrode, ON connect with the ON / OFF. In simple terms, tThe original high voltage power supply is disconnected,instead of the inverter, In the original high-pressure front to take power
